UV-NIR sCMOS Camera (200-1100nm)
SIMTRUM Provides a range of Scientific sCMOS camera, including BSI (Backside illumination) FSI(Frontside illumination) sCMOS Technology. below is the model comparison chart to choose the right sCMOS cameras
| Type |
Model |
Sensor Type |
Resolution |
Pixel Size |
Frame Rate |
Peak QE |
| High Speed sCMOS Camera |
Dhyana 2100 |
FSI CMOS / Mono |
5220(H) x 4096(V) |
4.5um x 4.5um |
450fps@8bit |
63%@520nm |
| Dhyana 9KTDI |
BSI sCMOS TDI/Mono |
9072 |
5um x 5um |
510kHZ@8bit |
82%@550nm, |
| Cooled High Sensitivity sCMOS Camera |
95V2 |
BSI sCMOS/Mono |
2048(H) x 2048(V) |
11μm x 11μm |
48fps@12bit STD |
95%@560nm |

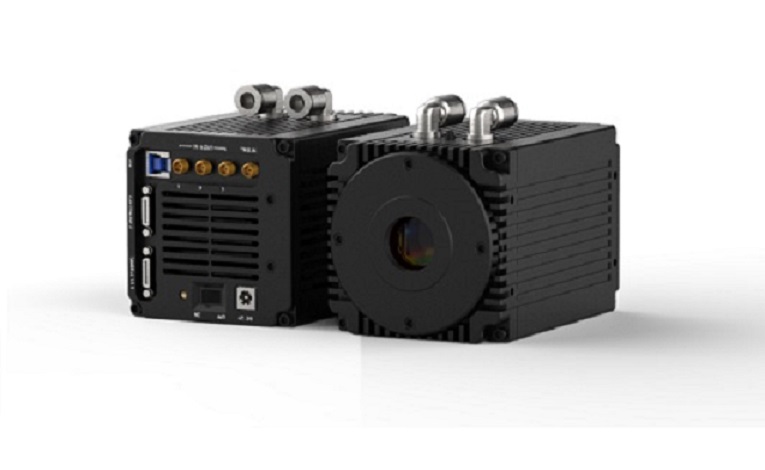

| 400BSI V2 |
BSI sCMOS |
2048(H) x 2048(V) |
6.5μm x 6.5μm |
74fps@CL, 40fps@USB3.0 |
95%@600nm |
| 400BSI V3 |
BSI sCMOS |
2048(H) x 2048(V) |
6.5μm x 6.5μm |
100fps@CL, 40fps@USB3.0 |
95%@600nm |
| 400D |
FSI sCMOS/Mono |
2048(H) x 2040(V) |
6.5μm x 6.5μm |
35fps@16bit |
72%@595nm |
| 400DC |
FSI sCMOS/Color |
2048(H) x 2044(V) |
6.5μm x 6.5μm |
22fps@8bit, 16fps@16bit |
|
| Large Sensor sCMOS cameras |
6060BSI |
BSI sCMOS/Mono |
6144(H) x 6144(V) |
10μm x 10μm |
26.4fps@12-bit STD |
95%@580nm |
| 4040BSI |
4096(H) x 4096(V) |
9μm x 9μm |
16.5fps@CL, 9.7fps@USB3.0 |
90%@550nm |
| 6060FSI |
FSI sCMOS/Mono |
6144(H) x 6144(V) |
10μm x 10μm |
44fps@12-bit STD |
72%@550nm |
| 4040FSI |
4096(H) x 4096(V) |
9μm x 9μm |
16.5fps@CL, 9.7fps@USB3.0 |
74%@600nm |
| Compact Industry sCMOS Camera |
401D |
FSI sCMOS/Mono |
2048(H) x 2048(V) |
6.5μm x 6.5μm |
40fps@16bit, 45fps@8bit |
72%@595nm |
| 401A-G |
2048(H) x 2048(V) |
11μm x 11μm |
|
58%@600nm |
| 401A-U |
2048(H) x 2048(V) |
11μm x 11μm |
|
58%@600nm |
| 201D |
2048(H) x 1152(V) |
6.5μm x 6.5μm |
70fps@16bit, 80fps@8bit |
72%@595nm |
Technical Support Available: Contact us | You can download our full Product Line Card Click Here
