Monochromator Accessories

CM Series and Accessories

Part N/O

ITEM

Description

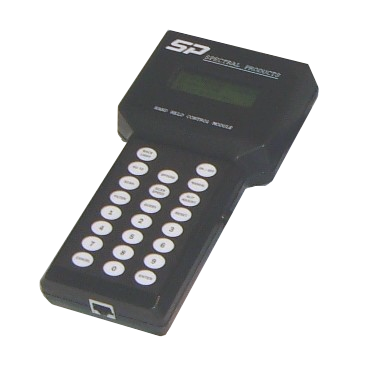

CM1201

Controller: Handheld   control module

Handheld   control module: 2 Line x 20 character LCD display.
Allows local operation of CM110/CM112 monochromators and CMSP 110/112         spectrographs

AB202

Filter Mount

Single   filter carrier that mounts directly     between CM unit and   accessories

IR110

IR coating for   internal optics

For   use with CM110. Infrared (gold) coatings   on CM110     mirrors.
  Enhances transmission by up to 40% between 600 - 1100nm.

(Not   suitable for work below 600nm)

IR112

IR coating for   internal optics

For   use with CM112. Infrared (gold) coatings  on CM112   mirrors.
  Enhances transmission by up to 80% between 600 - 1100nm.

Special   Slit Sizes

Special Slit Size

CMFS   010 Pair: 10µm   slits
  CMFS 020 Pair: 20µm slits
  CMFS 025 Pair: 25µm slits

CMFS   050 Pair: 50µm slits

MCL-100

Collimator: Universal   Output Conditioner

An   output module designed to work with both CM and DK model monochromators. The   adjustable position of the internal   lens   allows the user to   condense or collimate for UV to NIR   wavelengths.


DK Series and Accessories

Part N/O

ITEM

Description

DKBS

Bi-lateral slit   option

Bi-lateral   slit option for DK240 / 480.

Both   sides of slits are automatically controlled for maintaining   image centering when wider slits are necessary.

(Tolerance:   ± 10µm)

DKGPIB

Connection

Internal   IEEE-488 / GPIB communication interface option for DK240 / 480.
  Separate output connector from monochromator.

IR240
  IR240SP*

Infrared (gold) coatings

Infrared   (gold) coatings on optics for DK240.

Enhances   transmission by up to 40% between 600-1100nm.   Not suitable for work   below 600nm.

IR480
  IR480SP*

Infrared (gold) coatings

Infrared   (gold) coatings on optics for DK480.
  Enhances transmission by up to 40% between 600 - 1100nm

DK2401

Handheld   monochromator   controller

Handheld   monochromator controller for DK240 / 480. Allows local control of   monochromator whether or not a computer is   available.

DK24PS

Cable

RS   232 Cable assembly for PS/2 style computer

DK24MA

Cable

RS   232 cable assembly for MAC style computer

DK24IC

Cable

IEEE-488/GPIB   universal cable   assembly

AB300

Filter Wheel

Six   position - 1" diameter       automatic filter wheel   assembly that bolts directly to the DK   entrance. Receives   power   and commands directly through DK unit.

DKSP-to-DK


Attachment   to allow DKSP spectrograph to operate as a monochromator. Includes CM   standard 6-fixed slit set.

AB200

Filter Mount

Single   filter carrier that mounts directly between DK unit and accessory.

MCL-100

Collimator: Universal   Output Conditioner

An   output module designed to work with both CM and DK model monochromators. The   adjustable position of the internal   lens   allows the user to   condense or collimate for UV to NIR   wavelengths.




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
DK24IC
IEEE-488/GPIB universal cable assembly
In Stock Request for quote
DK2401
Hand-held monochromator controller for DK240/242/480.
In Stock Request for quote
CMFS020
Special 20цm wide by 2mm tall slit pair for CM Series
4-6 Weeks Request for quote
CMFS050
Special 50цm wide by 2mm tall slit pair for CM Series
4-6 Weeks Request for quote
CMFS100
Fixed Slit Set W=.125mm,.15mm,.30mm.,.60mm,1.2mm,2.4mm, H=4mm
4-6 Weeks Request for quote
CMFS100-0125
Individual Fixed Slit W=.125mm, H=4mm
4-6 Weeks Request for quote
CMFS100-0150
Individual Fixed Slit W=.15mm, H=4mm
4-6 Weeks Request for quote
CMFS100-0300
Individual Fixed Slit W=.30mm, H=4mm
4-6 Weeks Request for quote
CMFS100-0600
Individual Fixed Slit W=.60mm, H=4mm
4-6 Weeks Request for quote
CMFS100-1200
Individual Fixed Slit W=1.2mm, H=4mm
4-6 Weeks Request for quote
CMFS100-2400
Individual Fixed Slit W=2.4mm, H=4mm
4-6 Weeks Request for quote
DKGPIB
IEEE-488/GPIB communication interface option for DK240/242/480
4-6 Weeks Request for quote
DKPURGE
Purge port
4-6 Weeks Request for quote
DKSP-TO-DK
DKSP Spectrograph to DK Monochromator Adapter
4-6 Weeks Request for quote
IR110
Infrared (gold) coatings for CM110 mirrors
4-6 Weeks Request for quote
IR112
Infrared (gold) coatings for CM112 mirrors
4-6 Weeks Request for quote
IR240
Hand-held control module for CM110/112
4-6 Weeks Request for quote
IR240SP
Hand-held control module for CM110/112
4-6 Weeks Request for quote
IR480
Hand-held control module for CM110/112
4-6 Weeks Request for quote
IR480SP
Hand-held control module for CM110/112
4-6 Weeks Request for quote
MCL100
Hand-held control module for CM110/112
4-6 Weeks Request for quote
CM1201
Hand-held control module for CM110/112
4-6 Weeks Request for quote
