Piezo Mirror Mounts



 Can be controlled by nanomotor drivers C-NID and C-FCCC ( must be

   used with handle controller C-HC)




Mirrors

Gimbal Mirror Mounts




Search Reset
Compare Model Drawings & Specs Optic Diameter (mm) Motor Channel Drive Frequency (kHz) Interface Input voltage (VDC) Power consumption Mechanism Maximum Speed (μrad) Connector Type Availability Price
(USD)

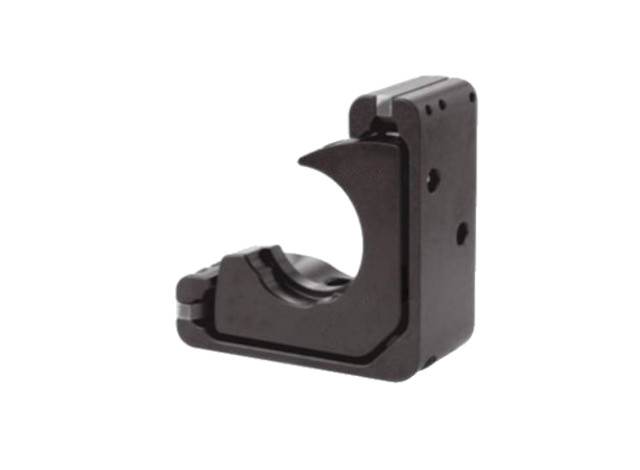

PDOM-25.4
Piezo Driven Mirror Mount, Optic Diameter=25.4mm
25.4Piezo Driven14-Pin Mini-DIN 4-6 Weeks Request for quote

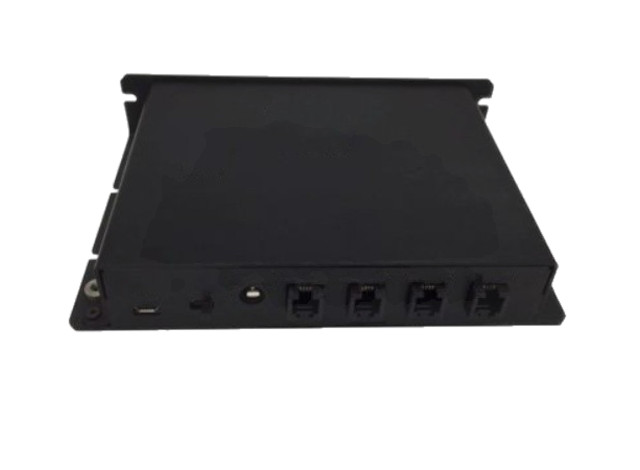

C-NID
Nanomotor Intelligent Driver
42USB2.012 (typical), 10.5 to 14.511 W@ 2 kHz working,2W@ idle 4-6 Weeks $836.67

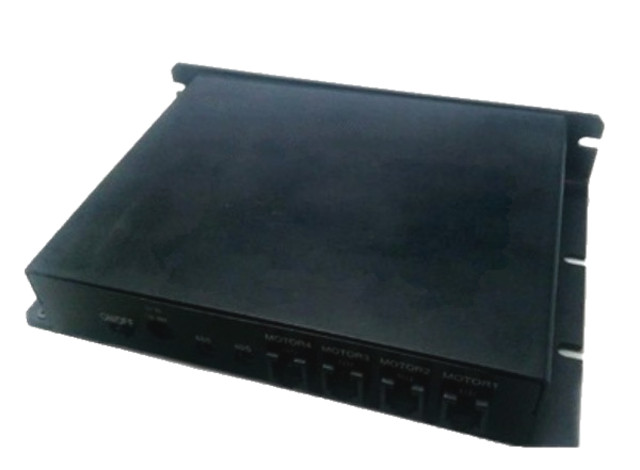

C-FCCC
Four channel cascade controller
41.5RS48512 (typical), 10.5 to 14.511 W@ 2 kHz working,2W@ idle 4-6 Weeks $836.67

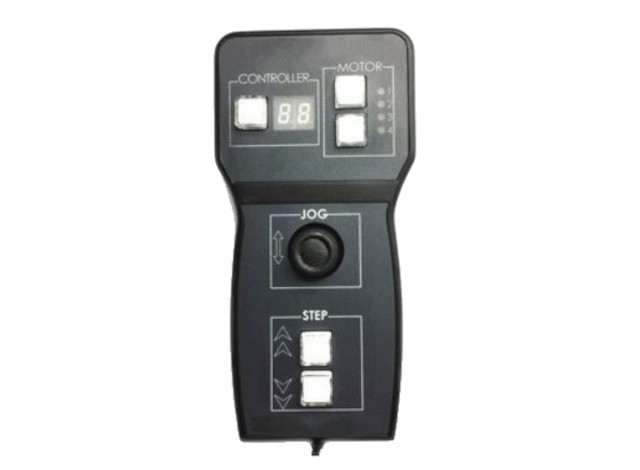

C-HC
Handle Controller
41.5RS4855(typical), 4.5 to 5.5 (power from controller)400mW 4-6 Weeks $641.67

C-HC - Parameter

Dimension (mm)
160x80x28

Motor Channel
4

Drive Frequency (kHz)
1.5

Interface
RS485

Temperature
0°C to 65°C

Storage
-40°C to 95°C

Input voltage (VDC)
5(typical), 4.5 to 5.5 (power from controller)

Power consumption
400mW

C-FCCC - Parameter

Dimension (mm)
130x100x30

Motor Channel
4

Drive Frequency (kHz)
1.5

Interface
RS485

Temperature
0°C to 65°C

Storage
-40°C to 95°C

Input voltage (VDC)
12 (typical), 10.5 to 14.5

Power consumption
11 W@ 2 kHz working,2W@ idle

C-NID - Parameter

Dimension (mm)
130x100x30

Motor Channel
4

Drive Frequency (kHz)
2

Interface
USB2.0

Temperature
0°C to 65°C

Storage
-40°C to 95°C

Input voltage (VDC)
12 (typical), 10.5 to 14.5

Power consumption
11 W@ 2 kHz working,2W@ idle

PDOM-25.4 - Parameter

Thickness (mm)
24.64

A x A
54.3x54.3

Optic Diameter (mm)
25.4

Angular Range
+/- 2°

Mechanism
Piezo Driven

Maximum Speed (μrad)
1

Connector Type
4-Pin Mini-DIN

C-HC - Download

C-FCCC - Download

C-NID - Download

PDOM-25.4 - Download

Accessories

Motorized Actuator Adapters
