Wavelength-Switchable LED Source (340-980nm)

Many applications require wavelength-switchable sources. For example, in vision applications different types of objects may require different illumination wavelength for optimized contrast.

Wavelength-switchable LED sources	Light guide adaptor

A wide range of wavelengths and white LED’s are available for users to choose from. The selected LEDs are installed in the light source chassis in the factory. Users can then switch among the installed LEDs by manually turning a hand wheel.

A high-NA aspherical collimating optics is included for precision collimation and high light throughput. Clear aperture of the optics is 22mm in diameter. Other optional optics may be added for fiber/lightguide coupling and other functions.

The light source includes a 5-ft electrical cable with a connector on one end to be plugged into the light source, and two bare-wire terminals at the other end. The light sources can be driven by Mightex LED controllers or other LED controllers and current sources. Only a single driving channel is required because at any time only one wavelength is powered up. Over-current protection is built into the light source to prevent potential damage during switching.

An optional focusing module can be mounted on the front of the LED collimator to focus light into a tight spot which is an image of the LED emitter.

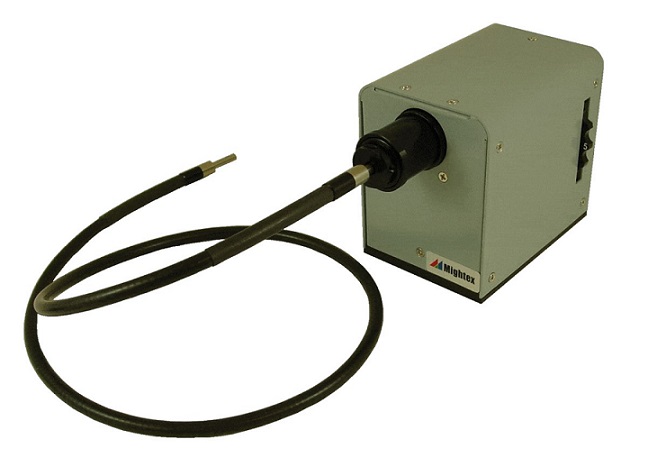

An optional light guide adaptor is also available to couple the LED light into a lightguide, as shown in the photo below.

Features:

Switchable among wavelengths/colors
Up to 9 LED emitters
Wide range of available wavelengths: UV/VIS/NIR and white
Standard 22mm-diameter collimating optics
Optional focusing module
Optional fiber-coupling optics
Optional lightguide-coupling optics
Optional LED controllers

Applications:

General purpose light source
Microscope illuminator
Fiber and lightguide coupling

LED Source Choice & Specifications

Part Number	Wavelength (nm)	Half Diverging Angle (deg)	Iop (mA)	Vop (V)	Typical Output Power1 (mW)
WLS-LED-0340-02	340	3.4	500	4.3	23
WLS-LED-0365-04	365	3.4	1000	3.65	350
WLS-LED-0385-04	385	3.4	1000	3.65	500
WLS-LED-0400-01	400	2.5	350	3.5	100
WLS-LED-0405-03	405	1.7	1000	3	325
WLS-LED-0410-03	410	1.7	1000	3	315
WLS-LED-0415-03	415	1.7	1000	3	310
WLS-LED-0420-03	420	1.7	1000	3	310
WLS-LED-0425-03	425	1.7	1000	3	290
WLS-LED-0455-03	455	1.7	1000	3.9	280
WLS-LED-0470-03	470	1.7	1000	3.9	200
WLS-LED-0490-01	490	1.7	350	3.5	140
WLS-LED-0505-03	505	1.7	1000	3.9	135
WLS-LED-0530-03	530	1.7	1000	3.9	100
WLS-LED-0560-02	560 broadband	1.7	700	2.9	180
WLS-LED-0590-03	590	1.7	1000	3.9	65
WLS-LED-0617-03	617	1.7	1000	3.9	150
WLS-LED-0625-03	625	1.7	1000	3.9	280
WLS-LED-0656-03	656	1.7	1000	2.7	280
WLS-LED-0680-02	680	1.7	600	2.7	75
WLS-LED-0740-03	740	2.5	1000	2.5	200
WLS-LED-0780-02	780	1.7	800	2.5	110
WLS-LED-0810-02	810	1.7	800	2.2	120
WLS-LED-0850-02	850	1.7	1000	2.1	175
WLS-LED-0870-01	870	1.7	700	1.9	110
WLS-LED-0940-01	940	1.7	700	1.5	100
WLS-LED-0940-02	940	1.7	1000	1.8	200
WLS-LED-0980-01	980	1.7	500	1.4	30
WLS-LED-4000-03	warm white 4,000K	1.7	1000	3.9	180
WLS-LED-5500-03	cool white 5,500K	1.7	1000	3.9	170
WLS-LED-6500-03	glacier white 6,500K	1.7	1000	3.6	180

LED Wavelength
