Lightguide-Coupled LED Source (310-980nm)
Overview Specifications and Model Guide Accessories Order Now!

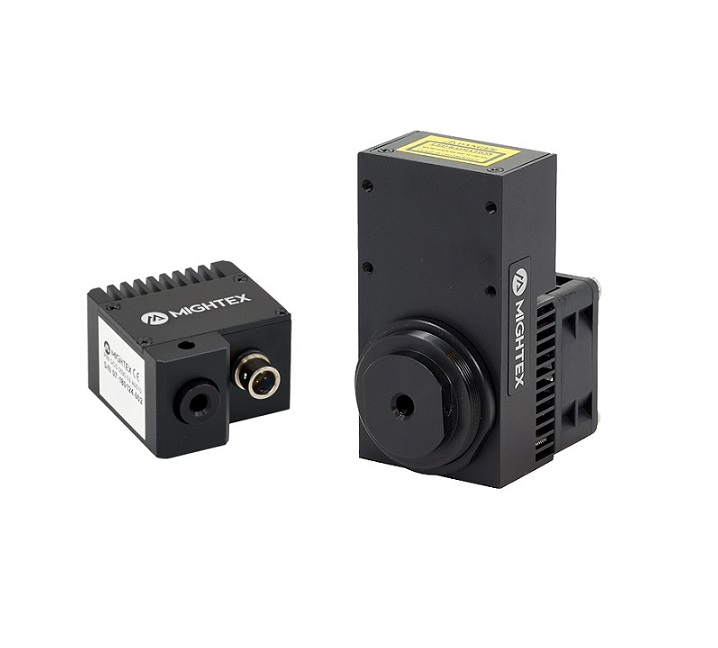

High-Power Lightguide Coupled

GCS-series high-power LED sources are designed for high-efficiency coupling of LED light into a liquid lightguide (LLG) or a fiber optic bundle. Virtually all lightguides with core diameters ranging from 3mm to 8mm can be used with the GCS-series light source. Please note that lightguides and adapters are sold separately. GCS series also features a locking electrical connector for secured connection. GCS series are designed as a universal light source for general lab use and OEM applications. All LED drivers such as the SLC series or other LED drivers and current sources can be used to drive the GCS-series light sources. The one-piece machined aluminum alloy housing features integrated heatsinks and multiple mounting holes.

Multi-chip LED emitters have been added to the product portfolio (Type-B). Some of these 7W to 15W LEDs have total optical power exceeding 1W, quadrupling the power of a single-chip LED (Type-A). Models with higher powers (i.e. Type-B with 7W and higher) feature a cooling fan, and have a different form factor compared to other models. Please examine the installation drawings carefully. Power supply for the cooling fan is included in the price of the LED sources.

To drive a GCS LED source, one can use any of the wide range of LED controllers:

·         Software controlled LED controllers; or

·         Manual LED drivers

Features:

·         High output power

·         Broad wavelength selections in VIS, UV and NIR

·         Interchangeable liquid lightguides or fiber bundles

·         Compact, machined metal housing with integrated heat sink

·         Multiple mounting features for lab and OEM applications

·         Locking electrical connector

Applications:

·       Microscopy

·         Fluorescence

·         Machine vision

·         Sensors

·         Semiconductor equipment

·         Testing instruments

·         Medical instruments

Lightguide Collimators

Features:

·         Aspherical lens

·         Adjustable focus with locking ring

·         Accepts various ferrule diameters

Applications:

·         Coupling light into lightguides

·         Collimating light from lightguides




Product Brochures: High-Power  | Collimators

Type-A GCS (passively cooled with no cooling fan)
Type-B GCS (with a cooling fan)

Part Number Wavelength CodeType DescriptionWavelength (nm)Iop(mA)Vop(V)Typical Radiant
Flux (mW)
GCS-0310-03-xxxx310ADUV 310nm3103505.818
GCS-0325-03-xxxx325ADUV 325nm3255005.49
GCS-0340-02-xxxx340ADUV 340nm3405004.312
GCS-0365-04-xxxx365AUV 365nm36510003.65220
GCS-0365-13-xxxx365BUV 365nm, 13W36535003.85950
GCS-0380-03-xxxx380AUV 380nm, 3W38010003.280
GCS-0385-04-xxxx385AUV 385nm38510003.65300
GCS-0385-07-xxxx385BUV 385nm, 7W38550015330
GCS-0385-11-xxxx385BUV 385nm, 11W38570015.5410
GCS-0385-13-xxxx385BUV 385nm, 13W38535003.751180
GCS-0390-03-xxxx390AUV 390nm39010003.1165
GCS-0395-03-xxxx395AUV 395nm39510003.1180
GCS-0400-03-xxxx400AUV 400nm, 3W40010003.1175
GCS-0405-03-xxxx405AUV 405nm40510003215
GCS-0410-03-xxxx410A410nm41010003210
GCS-0415-03-xxxx415A415nm41510003210
GCS-0430-02-xxxx430A430nm4305003.8130
GCS-0455-03-xxxx455ARoyal Blue45510003300
GCS-0470-04-xxxx470ABlue47010003.9130
GCS-0470-15-xxxx470BBlue, 15W470100015400
GCS-0471-04-xxxx471ABlue471350395
GCS-0490-01-xxxx490A490nm4903503.585
GCS-0505-04-xxxx505ACyan50510003.930
GCS-0505-12-xxxx505BCyan505100012.2200
GCS-0530-03-xxxx530AGreen53010002.85120
GCS-0530-15-xxxx530BGreen, 15W530100015180
GCS-0560-02-xxxx560A560nm, broadband5607002.9120
GCS-0590-03-xxxx590AAmber59010003.235
GCS-0617-03-xxxx617ARed-Orange61710003100
GCS-0617-10-xxxx617BRed-Orange, 10W617100010.8175
GCS-0625-03-xxxx625ARed62510003100
GCS-0625-07-xxxx625BRed, 7W6257009.6200
GCS-0700-01-xxxx700A700nm7005002.135
GCS-0720-01-xxxx720A720nm7206002.250
GCS-0740-03-xxxx740A740nm74010002.9130
GCS-0810-02-xxxx810A810nm8108002.280
GCS-0850-02-xxxx850A850nm85010002.1125
GCS-0870-01-xxxx870A870nm8707001.975
GCS-0910-02-xxxx910A910nm91010001.980
GCS-0940-02-xxxx940A940nm94010002.4125
GCS-0980-01-xxxx980A980nm9805001.420
GCS-3000-03-xxxx3000AWarm White3,000K10002.880
GCS-3000-12-xxxx3000BWarm White, 12W3,000K100012240
GCS-4000-04-xxxx4000AWarm White4,000K10003.995
GCS-5500-04-xxxx5500ACool White5,500K10003.995
GCS-5500-12-xxxx5500BCool White, 12W5,500K100012300
GCS-6500-04-xxxx6500AGlacier White6,500K10003.695
GCS-6500-15-xxxx6500BGlacier White, 15W6,500K100015300


Type-H GCS (high current, with a cooling fan)

Part Number Wavelength CodeType DescriptionPeak Wavelength (nm)Iop(A)Vop(V)Typical Radiant
Flux (mW) (3)
GCS-0365-76-xxxx365HUV 365nm, 50W365184.22600
GCS-0405-65-xxxx405HUV 405nm, 65W405183.61600
GCS-0470-50-xxxx470HBlue, 50W470133.82000
GCS-0525-60-xxxx525HGreen, 60W525134.6800
GCS-0560-68-xxxx560H560nm Broadband, 70W560183.81700
GCS-0625-38-xxxx625HRed, 40W625132.9700
GCS-0730-77-xxxx730HNIR, 80W730185.91100
GCS-6500-33-xxxx6500HGlacier White, 30W6,500K93.71200
GCS-6500-65-xxxx6500HGlacier White, 65W6,500K183.72200


Lightguide Adapters (for Type-A GCS only)

Adapter CodeFor Ferrule Diameter(mm)For Ferrule Length(mm)
A05105≥10
A06106≥10
A07107≥10
A08108≥10
A08158≥15


Lightguide Collimators

Part NumberFocal Length (mm)Clear Aperture (mm)F# / NALens MaterialWavelength Range (nm)Lightguide Ferrule OD 1
LGC-019-022-05-V19220.86/0.5B270350 ~ 2,0005mm
LGC-019-022-07-V19220.86/0.5B270350 ~ 2,0007mm




Here are accessories for GCS-series lightguide coupled LED sources.

(1) ACC-GCS-C05: Electrical cable for GCS-series LEDs.

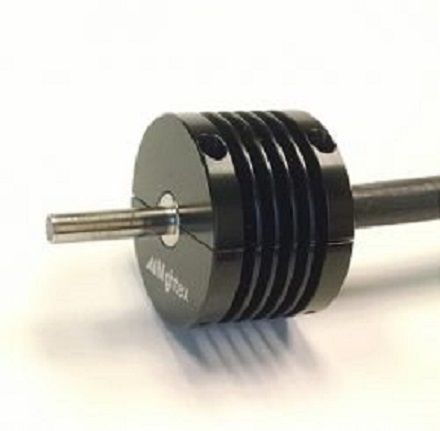

(2) ACC-LLG-HS-03: Heatsink for 3mm core liquid lightguides.

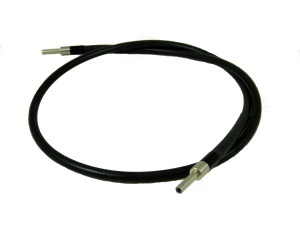

(3) Liquid lightguides.

·         LLG-03-59-300-0650-1 Liquid lightguide, 3mm core, 0.59NA,

300-650nm,1 meter (ferrule diameter:5mm).

·         LLG-03-59-300-0650-2: Liquid lightguide, 3mm core, 0.59NA,

300-650nm, 2 meters (ferrule diameter:5mm).

·         LLG-03-59-340-0800-1: Liquid lightguide, 3mm core, 0.59NA,

340-800nm, 1 meter (ferrule diameter:5mm).

·         LLG-03-59-340-0800-2: Liquid lightguide, 3mm core, 0.59NA,

340-800nm, 2 meters (ferrule diameter:5mm).

·         LLG-03-59-420-2000-1: Liquid lightguide, 3mm core, 0.59NA,

420-2000nm,1 meter (ferrule diameter:5mm).

·         LLG-03-59-420-2000-2: Liquid lightguide, 3mm core, 0.59NA,

420-2000nm, 2 meters (ferrule diameter:5mm).

·         LLG-05-59-340-0800-1: Liquid lightguide, 5mm core, 0.59NA,

340-0800nm, 1 meter (ferrule diameter:7mm).

·         LLG-05-59-420-2000-1: Liquid lightguide, 5mm core, 0.59NA,

420-2000nm, 1 meter (ferrule diameter:7mm).

·         LLG-05-59-420-2000-2: Liquid lightguide, 5mm core, 0.59NA,

420-2000nm, 2 meter (ferrule diameter:7mm).

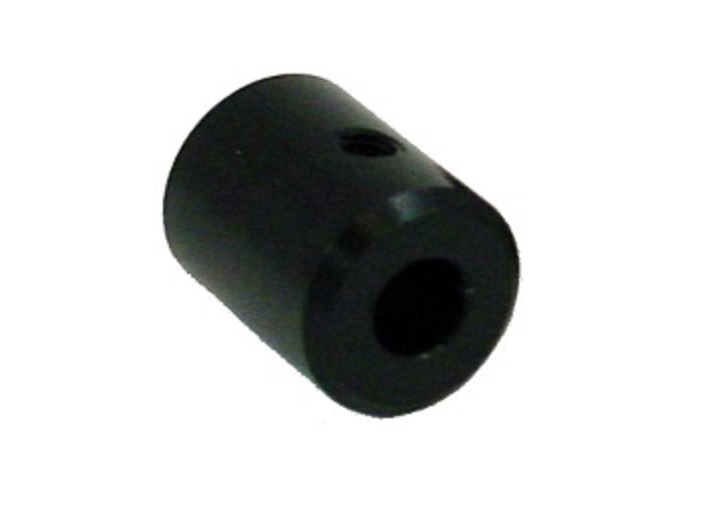

(4) Lightguide adapters for Type-A GCS source ONLY. Each Type-A GCS product

comes with a standard lightguide adapter for 5mm-diameter ferrule (A0510). Other adapters (as well as additional standard adapters) can be purchased separately,

as follows:

·         ACC-GCS-A0510: Adapter for a lightguide with ferrule diameter of 5mm and ferrule length of 10mm or greater.

·         ACC-GCS-A0610: Adapter for a lightguide with ferrule diameter of 6mm and ferrule length of 10mm or greater.

·         ACC-GCS-A0710: Adapter for a lightguide with ferrule diameter of 7mm and ferrule length of 10mm or greater.

·         ACC-GCS-A0810: Adapter for a lightguide with ferrule diameter of 8mm and ferrule length of 10mm or greater.

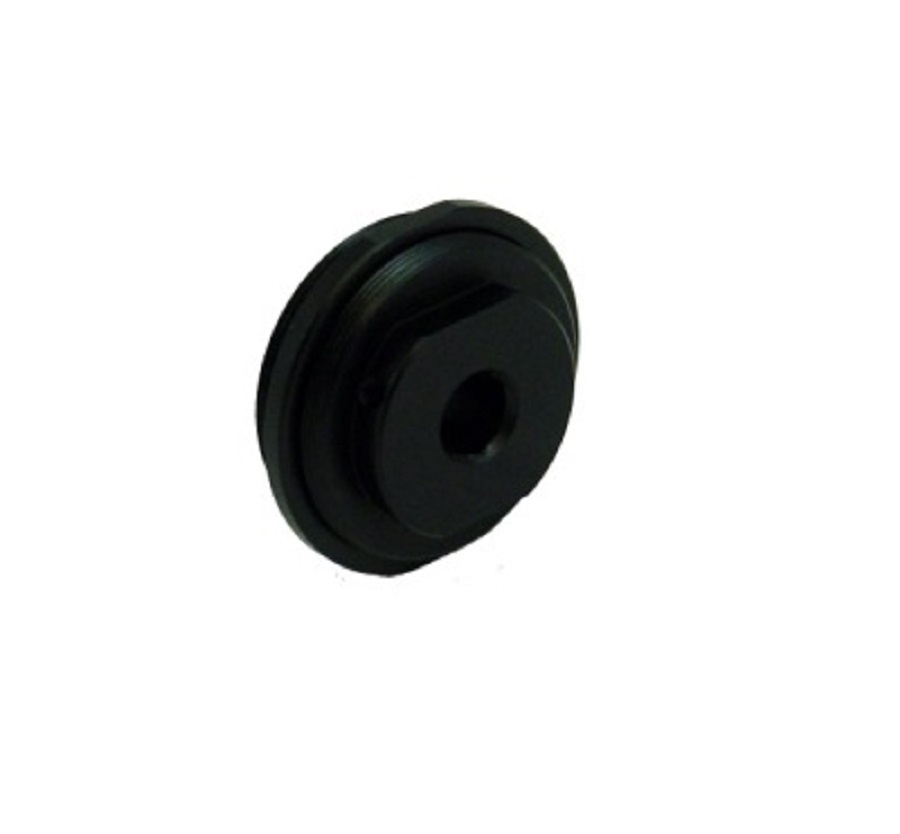

(5) Lightguide adapters for Type-B GCS sources.

·         ACC-GCS-A0515, Adapter for lightguide with ferrule diameter of 5mm

and ferrule length of 15mm or greater, for Type-B GCS only.

·         ACC-GCS-A0715, Adapter for lightguide with ferrule diameter of 7mm

and ferrule length of 15mm or greater, for Type-B GCS only.

·         ACC-GCS-A0815, Adapter for lightguide with ferrule diameter of 8mm

and ferrule length of 15mm or greater, for Type-B GCS only.

·         ACC-GCS-A1015, Adapter for lightguide with ferrule diameter of 10mm

and ferrule length of 15mm or greater, for Type-B GCS only.

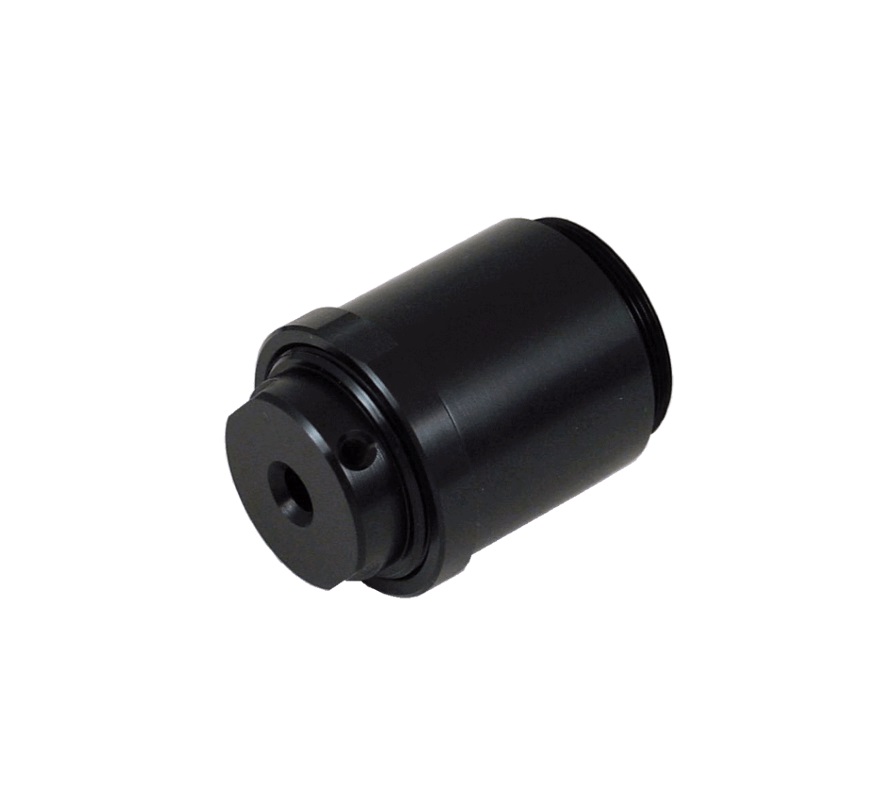

Lightguide Collimator

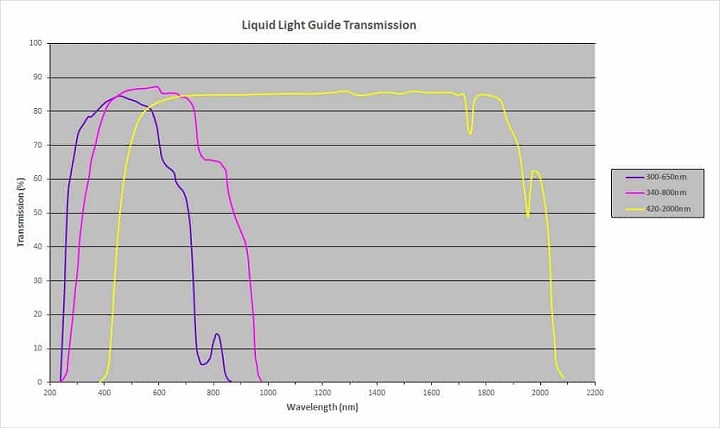

Light Guide Transmission
