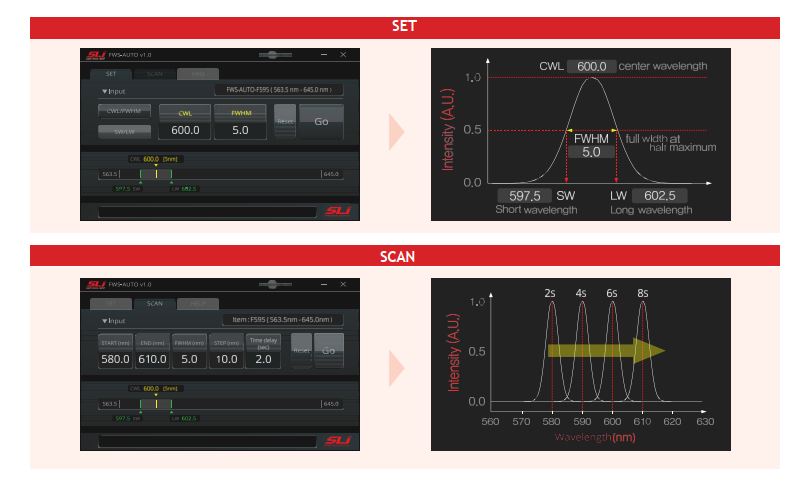

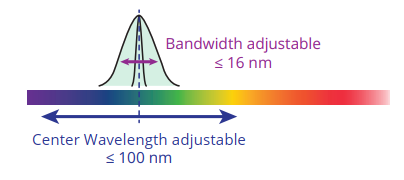

The Flexible Wavelength Wavelength Selector is a unique wavelength selection device that employs TwinFilm™ technology to deliver the tunability and adjustable bandwidth of a grating monochromator, together with the imaging advantages of a circular aperture filter. Auto Poly models feature complete software control of wavelength and bandwidth via a USB link and simple software interface.

Product Number

Product Size

Spectral Range

FWHM Range

Aperture Size

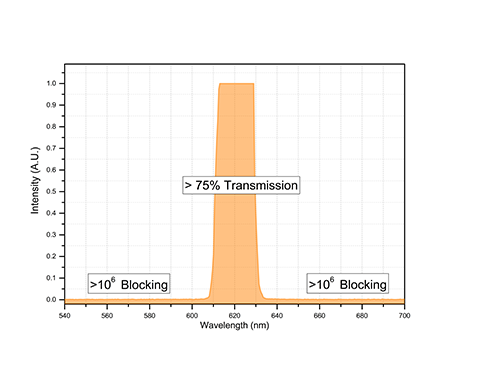

Transmission

FWS-Poly-UV

Medium (170x129x200 mm)

255 ~ 390 nm

3 ~ 16 nm

5 mm

> 75 %

FWS-Poly-VIS

Medium (170x129x200 mm)

353 ~ 890 nm

3 ~ 15 nm

5 mm

> 75 %

FWS-Poly-NIR

Medium (170x129x200 mm)

615 ~ 1015 nm

3 ~ 15 nm

5 mm

> 75 %

FWS-Poly-SWIR

Medium (170x129x200 mm)

1005 ~ 1650 nm

5 ~ 15 nm

5 mm

> 75 %

FWS-Poly-IR-Plus

Medium (170x129x200 mm)

615 ~ 1650 nm

3 ~ 15 nm

5 mm

> 75 %

FWS-Poly-Custom

Medium (170x129x200 mm)

~ User Defined nm

3 ~ 16 nm

5 mm

> 75 %

The Flexible Wavelength Wavelength Selector is a unique wavelength selection device that employs TwinFilm™ technology to deliver the tunability and adjustable bandwidth of a grating monochromator, together with the imaging advantages of a circular aperture filter. Auto Mono models feature complete software control of wavelength and bandwidth via a USB link and simple software interface.

Product Number

Product Size

Center Wavelength

Spectral Range

FWHM Range

Aperture Size

Transmission

FWS-Mono-F00

Medium (48x92x64 mm)

272 nm

253 ~ 290 nm

3 ~ 16 nm

5 mm

> 75 %

FWS-Mono-F01

Medium (48x92x64 mm)

299 nm

278 ~ 320 nm

3 ~ 16 nm

5 mm

> 75 %

FWS-Mono-F02

Medium (48x92x64 mm)

334 nm

310 ~ 358 nm

3 ~ 16 nm

5 mm

> 75 %

FWS-Mono-F03

Medium (48x92x64 mm)

372 nm

353 ~ 390 nm

3 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F04

Medium (48x92x64 mm)

410 nm

385 ~ 435 nm

3 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F05

Medium (48x92x64 mm)

460 nm

430 ~ 490 nm

3 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F06

Medium (48x92x64 mm)

518 nm

485 ~ 550 nm

3 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F07

Medium (48x92x64 mm)

583 nm

545 ~ 620 nm

3 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F08

Medium (48x92x64 mm)

658 nm

615 ~ 700 nm

3 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F09

Medium (48x92x64 mm)

740 nm

690 ~ 790 nm

3 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F10

Medium (48x92x64 mm)

833 nm

775 ~ 890 nm

3 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F11

Medium (48x92x64 mm)

945 nm

880 ~ 1015 nm

5 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F12

Medium (48x92x64 mm)

1083 nm

1005 ~ 1160 nm

5 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F13

Medium (48x92x64 mm)

1233 nm

1145 ~ 1320 nm

5 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F14

Medium (48x92x64 mm)

1403 nm

1300 ~ 1505 nm

5 ~ 15 nm

5 mm

> 75 %

FWS-Mono-F15

Medium (48x92x64 mm)

1563 nm

1475 ~ 1650 nm

7 ~ 13 nm

5 mm

> 14 %

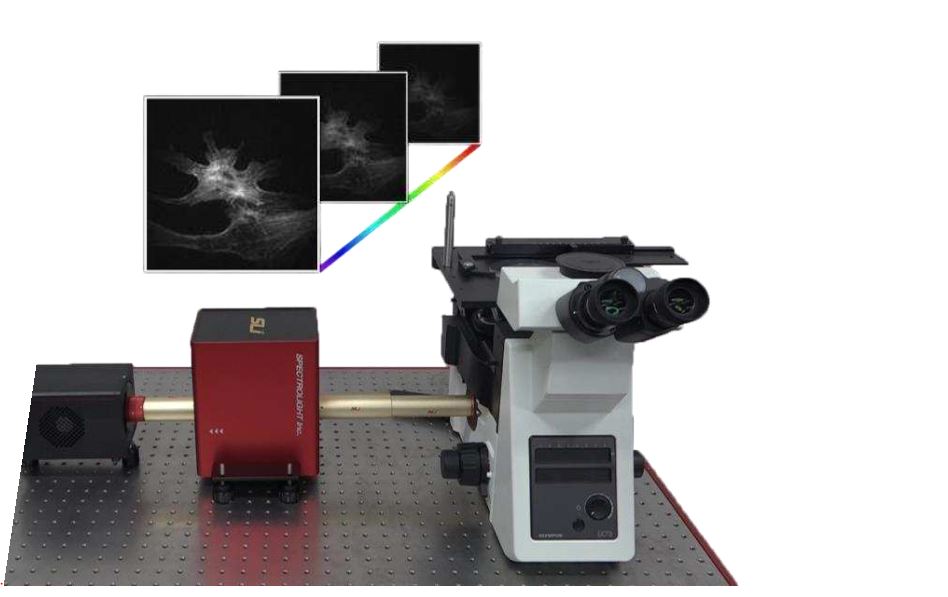

Applications using 4f Relay System
- Hyperspectral Imaging

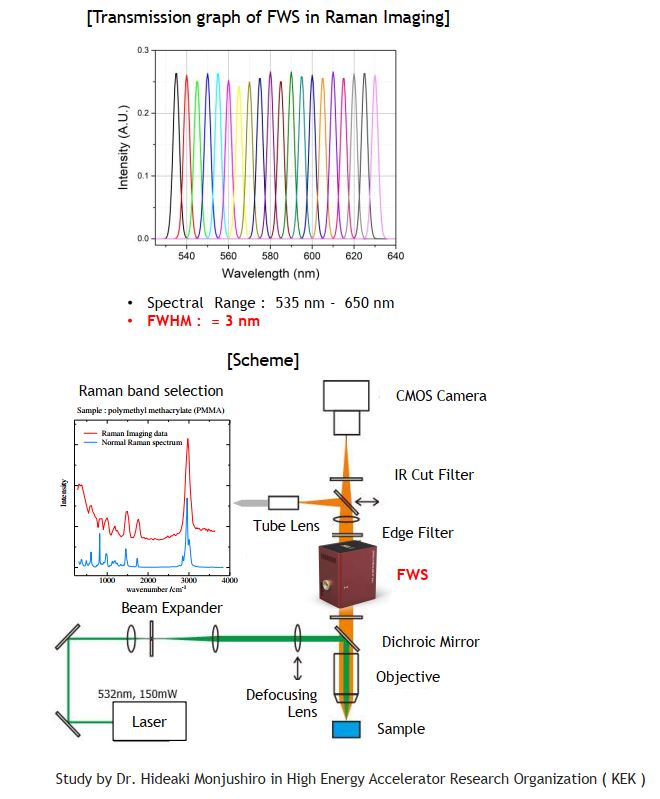

- Global Raman Imaging
- Fluorescent Imaging

Product

Type of Lamp

Lamp Power Output

Power Stability

Bulb Lifetime

Color
Temperature

Dimensions

Power Supply

Mighty Light

Tungsten Halogen

~ 2 W

± 0.5 %

~ 1000 hours

2900 K

125 x 75 x 70 mm

9V DC at 2A

Mighty Light Plus

Tungsten Halogen

~ 7 W (10mm light guide)

± 0.5 %

~ 500 hours

3400 K

340 x 160 x 140 mm

24 V DC at 13 A
