Flexible Wavelength Selector Manual

Overview Basic CenterLine High Resolution Related Products Order Now!

Flexible Wavelength Selector – Manual Basic, CenterLine and High Resolution.

Three manual models feature manual adjustment of the center wavelength, transmission bandwidth and beam offset compensation. For High Resolution (HR) and Basic (B) models, the bandwidth can be manually adjusted from around 1.5 nm to 16 nm. The bandwidth of the CenterLine (CL) model is fixed at ~ 16 nm (nominal)

Basic

The center wavelength, the bandwidth and the beam direction offset can be adjusted/controlled manually by featuring three knurled knobs; Two for adjusting the center wavelength and the transmission bandwidth, the other for compensating the beam direction offset.

CenterLine

The center wavelength with a fixed bandwidth and the beam direction offset can be adjusted/controlled manually by featured two knurled knobs; one for adjusting the center wavelength with a fixed bandwidth of around 16 nm (nominal), the other for compensating the beam direction offset.

High Resolution

Both the center wavelength and bandwidth can be adjusted separately by the multi-rotation manual knobs with the maximum quality resolution. Compared with the FWS-Basic model, it is possible to make a more minute adjustment of the center wavelength and bandwidth with this model.

Specification Overview

Optical Specifications	Basic	CenterLine	High Resolution
Transmission	> 75%	> 75%	> 75%
Spectral Range (nominal)	255~1700 nm	255~1700 nm	255~1700 nm
Bandwidth Adjustment Range	3 nm to 16 nm	Fixed 16 nm	up to 1.5 nm
Center Wavelength Accuracy (nominal)	± 0.5 nm	± 0.5 nm	± 0.5 nm
Cut-on Transition Width	2%-3% (from blocking to transmission)	2%-3% (from blocking to transmission)	2%-3% (from blocking to transmission)
Cut-off Transition Width	2%-3% (from transmission to blocking)	2%-3% (from transmission to blocking)	2%-3% (from transmission to blocking)

Applications

- Fluorescence microscopy

- Hperspectral Imaging

- Life sciences instrumentation

- Machine vision

- Laboratory research

Advantages

- Broad wavelength tuning

- Smoothly adjustable bandwidth (FWHM 2 nm - 16 nm)

- Large (up to 10mm diam.) circular aperture

- High (106) out of band extinction

- Compact rugged optomechanical package

- In-line operation for easy integration

- No beam deviation or walk-off during tuning

Flexible Wavelength Selector - Basic

The Flexible Wavelength Selector utilizes TwinFilm™ technology to deliver the tunable wavelength filtering characteristics of a grating monochromator together with the circular aperture imaging capabilities of a bandpass filter.

The Flexible Wavelength Selector (FWS) Basic is a manually tunable filter that features three knurled knobs – two for adjusting the center wavelength and the transmission bandwidth and one for compensating the beam direction offset.

Product specifications and Brochures

Product Brochure Link:

Optical Specifications	Basic	CenterLine	High Resolution
Transmission	> 75%	> 75%	> 75%
Spectral Range (nominal)	255~1700 nm	255~1700 nm	255~1700 nm
Bandwidth Adjustment Range	3 nm to 16 nm	Fixed 16 nm	up to 1.5 nm
Center Wavelength Accuracy (nominal)	± 0.5 nm	± 0.5 nm	± 0.5 nm
Cut-on Transition Width	2%-3% (from blocking to transmission)	2%-3% (from blocking to transmission)	2%-3% (from blocking to transmission)
Cut-off Transition Width	2%-3% (from transmission to blocking)	2%-3% (from transmission to blocking)	2%-3% (from transmission to blocking)

General Specifications
Dimensions	40 x 76 x 40 mm
Aperture Size	5 mm

Flexible Wavelength Selector Manual
Spectral Range	Item Number
255 ~ 1700 nm	FWS-Manual

Model Guide
Product Size	Product Size	Center Wavelength	Spectral Range	FWHM Range	Aperture Size	Transmission
FWS-B-F00	Medium (40x76x40 mm)	272 nm	253 ~ 290 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-B-F01	Medium (40x76x40 mm)	299 nm	278 ~ 320 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-B-F02	Medium (40x76x40 mm)	334 nm	310 ~ 358 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-B-F03	Medium (40x76x40 mm)	372 nm	353 ~ 390 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-B-F04	Medium (40x76x40 mm)	410 nm	385 ~ 435 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-B-F05	Medium (40x76x40 mm)	460 nm	430 ~ 490 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-B-F06	Medium (40x76x40 mm)	518 nm	485 ~ 550 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-B-F07	Medium (40x76x40 mm)	583 nm	545 ~ 620 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-B-F08	Medium (40x76x40 mm)	658 nm	615 ~ 700 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-B-F09	Medium (40x76x40 mm)	740 nm	690 ~ 790 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-B-F10	Medium (40x76x40 mm)	833 nm	775 ~ 890 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-B-F11	Medium (40x76x40 mm)	945 nm	880 ~ 1015 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-B-F12	Medium (40x76x40 mm)	1083 nm	1005 ~ 1160 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-B-F13	Medium (40x76x40 mm)	1233 nm	1145 ~ 1320 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-B-F14	Medium (40x76x40 mm)	1403 nm	1300 ~ 1505 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-B-F15	Medium (40x76x40 mm)	1563 nm	1475 ~ 1650 nm	7 ~ 13 nm	5 mm	> 75 %

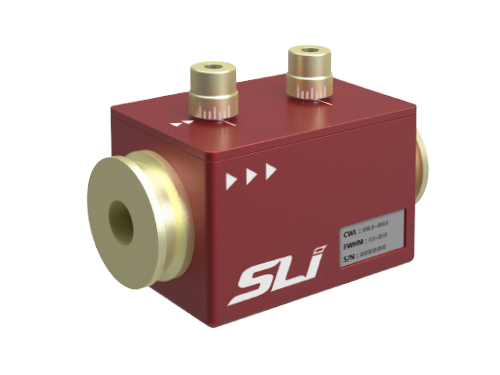

Flexible Wavelength Selector - CenterLine

The Flexible Wavelength Selector utilizes TwinFilm™ technology to deliver the wavelength tuning and adjustable bandwidth of a grating monochromator together with the imaging advantages of a circular aperture filter. The CenterLine format of FWS features one knurled-knob for adjusting the center wavelength with a fixed bandwidth of around 16 nm.

Product specifications and Brochures

Product Brochure Link:

Optical Specifications	Basic	CenterLine	High Resolution
Transmission	> 75%	> 75%	> 75%
Spectral Range (nominal)	255~1700 nm	255~1700 nm	255~1700 nm
Bandwidth Adjustment Range	3 nm to 16 nm	Fixed 16 nm	up to 1.5 nm
Center Wavelength Accuracy (nominal)	± 0.5 nm	± 0.5 nm	± 0.5 nm
Cut-on Transition Width	2%-3% (from blocking to transmission)	2%-3% (from blocking to transmission)	2%-3% (from blocking to transmission)
Cut-off Transition Width	2%-3% (from transmission to blocking)	2%-3% (from transmission to blocking)	2%-3% (from transmission to blocking)

General Specifications
Model	Medium	Small
Dimensions	40 mm x 58 mm x 40 mm	32 mm x 46 mm x 32 mm
Aperture Size	up to 10 mm	up to 5 mm

Medium Flexible Wavelength Selector
Spectral Range	Item Number
358 - 400 nm	FWS-CL-M-380
395- 447 nm	FWS-CL-M-425
447 - 501 nm	FWS-CL-M-475
496 - 561 nm	FWS-CL-M-530
555 - 628 nm	FWS-CL-M-595
621 - 703 nm	FWS-CL-M-665
700 - 790 nm	FWS-CL-M-745
784 - 900 nm	FWS-CL-M-845

Small Flexible Wavelength Selector
Spectral Range	Item Number
358 - 400 nm	FWS-CL-S-380
395- 447 nm	FWS-CL-S-425
447 - 501 nm	FWS-CL-S-475
496 - 561 nm	FWS-CL-S-530
555 - 628 nm	FWS-CL-S-595
621 - 703 nm	FWS-CL-S-665
700 - 790 nm	FWS-CL-S-745
784 - 900 nm	FWS-CL-S-845

Model Guide
Product Number	Product Size	Center Wavelength	Spectral Range	FWHM Range	Aperture Size	Transmission
FWS-CL-F00	Medium (36x32x34 mm)	272 nm	253 ~ 290 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F01	Medium (36x32x34 mm)	299 nm	278 ~ 320 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F02	Medium (36x32x34 mm)	334 nm	310 ~ 358 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F03	Medium (36x32x34 mm)	375 nm	350 ~ 400 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F04	Medium (36x32x34 mm)	418 nm	390 ~ 445 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F05	Medium (36x32x34 mm)	468 nm	435 ~ 500 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F06	Medium (36x32x34 mm)	525 nm	490 ~ 560 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F07	Medium (36x32x34 mm)	590 nm	550 ~ 630 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F08	Medium (36x32x34 mm)	665 nm	620 ~ 710 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F09	Medium (36x32x34 mm)	750 nm	700 ~ 800 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F10	Medium (36x32x34 mm)	843 nm	785 ~ 900 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F11	Medium (36x32x34 mm)	995 nm	890 ~ 1020 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F12	Medium (36x32x34 mm)	1085 nm	1010 ~ 1160 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F13	Medium (36x32x34 mm)	1235 nm	1150 ~ 1320 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F14	Medium (36x32x34 mm)	1408 nm	1310 ~ 1505 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-CL-F15	Medium (36x32x34 mm)	1590 nm	1480 ~ 1700 nm	3 ~ 16 nm	5 mm	> 75 %

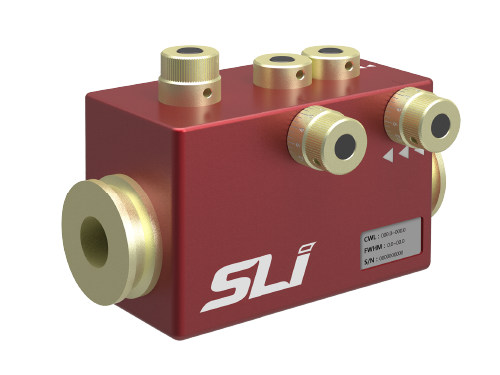

Flexible Wavelength Selector - High Resolution

The high resolution manual format features two precision multi-rotation dials for adjusting the center wavelength and the transmission bandwidth. The third knob is used for compensating the beam direction offset. High resolution models are ideal for chemical imaging type applications, where the wavelength can be rapidly adjusted and set to an emission or absorption peak of the sample.

Product specifications and Brochures

Product Brochure Link:

Optical Specifications	Basic	CenterLine	High Resolution
Transmission	> 75%	> 75%	> 75%
Spectral Range (nominal)	255~1700 nm	255~1700 nm	255~1700 nm
Bandwidth Adjustment Range	3 nm to 16 nm	Fixed 16 nm	up to 1.5 nm
Center Wavelength Accuracy (nominal)	± 0.5 nm	± 0.5 nm	± 0.5 nm
Cut-on Transition Width	2%-3% (from blocking to transmission)	2%-3% (from blocking to transmission)	2%-3% (from blocking to transmission)
Cut-off Transition Width	2%-3% (from transmission to blocking)	2%-3% (from transmission to blocking)	2%-3% (from transmission to blocking)

General Specifications
Dimensions	40 mm x 76 mm x 50 mm
Aperture Size	up to 10 mm

Flexible Wavelength Selectors
Spectral Range	Item Number
358 - 400 nm	FWS-H-M-380
395 - 447 nm	FWS-H-M-425
447 - 501 nm	FWS-H-M-475
496 - 561 nm	FWS-H-M-530
555 - 628 nm	FWS-H-M-595
621 - 703 nm	FWS-H-M-665
700 - 790 nm	FWS-H-M-745
784 - 900 nm	FWS-H-M-845

Model Guide
Product Number	Product Size	Center Wavelength	Spectral Range	FWHM Range	Aperture Size	Transmission
FWS-H-F00	Medium (40x76x50 mm)	272 nm	253 ~ 290 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-H-F01	Medium (40x76x50 mm)	299 nm	278 ~ 320 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-H-F02	Medium (40x76x50 mm)	334 nm	310 ~ 358 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-H-F03	Medium (40x76x50 mm)	372 nm	353 ~ 390 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-H-F04	Medium (40x76x50 mm)	410 nm	385 ~ 435 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-H-F05	Medium (40x76x50 mm)	460 nm	430 ~ 490 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-H-F06	Medium (40x76x50 mm)	518 nm	485 ~ 550 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-H-F07	Medium (40x76x50 mm)	583 nm	545 ~ 620 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-H-F08	Medium (40x76x50 mm)	658 nm	615 ~ 700 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-H-F09	Medium (40x76x50 mm)	740 nm	690 ~ 790 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-H-F10	Medium (40x76x50 mm)	833 nm	775 ~ 890 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-H-F11	Medium (40x76x50 mm)	945 nm	880 ~ 1015 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-H-F12	Medium (40x76x50 mm)	1083 nm	1005 ~ 1160 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-H-F13	Medium (40x76x50 mm)	1233 nm	1145 ~ 1320 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-H-F14	Medium (40x76x50 mm)	1403 nm	1300 ~ 1505 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-H-F15	Medium (40x76x50 mm)	1563 nm	1475 ~ 1650 nm	7 ~ 13 nm	5 mm	> 75 %

SpectroLight Wavelength Selector Product Matrix		Wavelength Range	Wavelength Adjustment	Bandwidth Adjustment	Center Wavelength Accuracy	FWHM Accuracy	Aperture
Flexible Wavelength Auto	FWS Poly	255 - 1700 nm	Software Control -50 nm to -500 nm	Software Control (3-16 nm)	± 0.5 nm	± 0.5 nm	5 nm
Flexible Wavelength Auto	FWS Mono	255 - 1700 nm	Software Control -100 nm	Software Control (3-16 nm)	± 0.5 nm	± 0.5 nm	5 nm
Flexible Wavelength Manual	FWS Basic	255 - 1700 nm	Manual Control -50 nm to -400 nm	Manual Control 3 nm to 16 nm	± 0.5 nm	± 0.5 nm	5 nm
	FWS Centerline	255 - 1700 nm	Manual Control -50 nm to -200 nm	Manual Control Fixed 16 nm	± 0.5 nm	2nm - 16nm	up to 10 mm
	FWS High Resolution	255 - 1700 nm	Manual Control -50 nm to -200 nm	Manual Control up to 1.5 nm	± 0.5 nm	2nm - 16nm	up to 10 mm

Accessories
Product	Type of Lamp	Lamp Power Output	Power Stability	Bulb Lifetime	Color Temperature	Dimensions	Power Supply
Mighty Light	Tungsten Halogen	~ 2 W	± 0.5 %	~ 1000 hours	2900 K	125 x 75 x 70 mm	9V DC at 2A
Mighty Light Plus	Tungsten Halogen	~ 7 W (10mm light guide)	± 0.5 %	~ 500 hours	3400 K	340 x 160 x 140 mm	24 V DC at 13 A

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards, click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
FWS-Basic Flexible Wavelength Selector Manual, Spectral Range 255-1700nm, Bandwidth adjustment range 3 nm to 16nm	4-6 Weeks	Request for quote
FWS-CenterLine Flexible Wavelength Selector Manual, Spectral Range 255-1700nm, Bandwidth Adjustment Range fixed 16 nm	4-6 Weeks	Request for quote
FWS-HighResolution Flexible Wavelength Selector Manual, Spectral Range 255 - 1700nm, Bandwidth Adjustment Range up to 1.5 nm	4-6 Weeks	Request for quote

FWS-HighResolution - Parameter

FWS-CenterLine - Parameter

FWS-Basic - Parameter

FWS-HighResolution - Download

FWS-CenterLine - Download

FWS-Basic - Download

Accessories

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
