CW Pigtailed TO56 Laser Diode SM (1270nm - 1653nm)

Overview & Specifications Order Now!

Pluggable CWDM Laser Diodes: TOSA

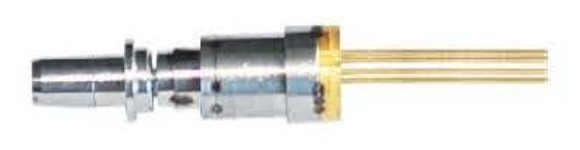

TOSA lasers arc 1.27μm-1.61μm Multiple Quantum Well (MQW) structured distributed-feedback (DFB) laser modules. These laser diodes are built in a pluggable T056 package with monitoring P1N-PD for fiberoptic communication systems. These modules are ideally suitable for 2.5/10Gbps transmission applications. Among products, 4 products of 1.27μm, 1.29μm, 1.31μm and 1.33μm are suitable for 10Gbps transmission. The products are Telcordia GR-468 qualified, and in compliance with RoHS requirement.

Applications

- Telecommunication transceivers

- Datacom transceivers

- Fiberoptic sensors

Features

- CWDM laser diode module

- Signal rate up to 10Gb/s

- High output power(>2mW)

- LC receptacle TOSA package

Product specifications and Brochures

Product Brochure Link:

Parameter	Symbol	Test Conditions	Min.	Typ.	Max.	Unit
Peak Optical Output Power	PP	If=ITH+20mA	1.8	2	-	mW
Threshold Current	ITH	TL=25°C	10	-	-	mA
Threshold Current	VLR	-	-	7	25	V
Operating Current	VIF	CW	-	80	500	V
Laser Reverse Voltage	VRMON	-	-	-	2	V
TEC Set Temperature	IRMON	CW, If=ITH+20mA, VRD=5V	15	-	35	μA
Laser Forward Voltage	ID	IF=0mA, VRMON=5V	-	-	3	μA
Optical Isolation	CT	Vrd=5V, f=1MHz	30	-	-	pF
Side-mode Suppression Ratio	λc	CW. If=ITH+20mA	35	45	-	nm
Spectral Linewidth (FWHM)	SMSR	If=ITH+20mA	-	3	-	dB
Bandwidth (@-3dB)	-	T=25°C	-	2.5	-	dB
PD Reverse Voltage	TE	Im hold(@Pf=1mW(25℃))	-	5	10	dB
PD Forward Current	dλ/dT	-	-	1.1	5	nm/℃
PD Monitor Dark Current (Vr=-5V )	Δλ	Po = 2mW, TC =0 to 70°C	-	0	0.1	nm

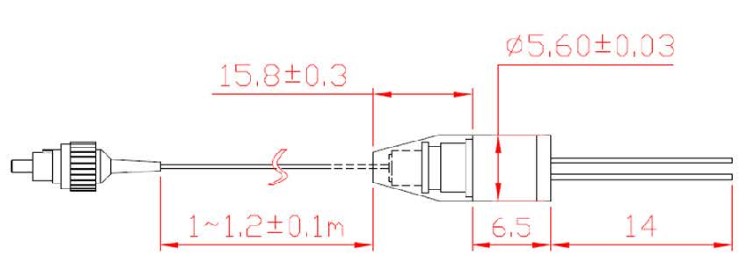

Mechanical Dimensions

PIN Definition

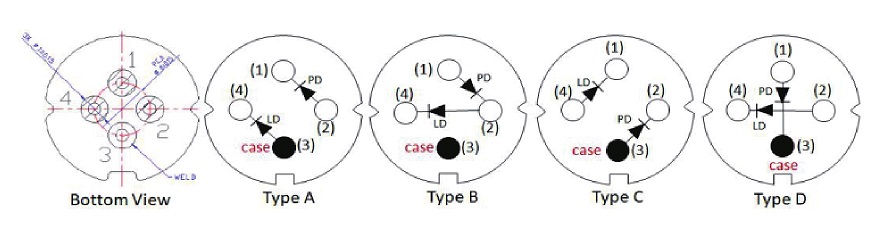

PIN Assignment
PIN	TypeA	Type B	Type C	Type D (Selected)
1	PD Cathode	PD Anode	LD Cathode	PD Anode
2	PD Anode	LD Anode/PD Cathode	PD Cathode	LD Anode
3	LD Anode (Case)	Case	PD Anode (Case)	PD Cathode (Case)
4	LD Cathode	LD Cathode	LD Anode	LD Cathode

Ordering Information

TOSA-	□	□ □	□	□	□	□	□	□	□
TOSA-	LD Type	Wavelength	Data	Package type	Pin Out	Output Power	Fiber type	Pigtail length	Connector
	F:FP	27:1270	1:2.5Gb/s	1:Receptacle/without Isolator	A:Type A	1: 1mW	0: SMF-28e	0:None	0:None
	D:DFB	29:1290	2:10Gb/s	2:Receptacle/with Isolator	B:Type B	2: 2mW	1:PMF-1310	1:50cm	1:FC/UPC
	S:SLED	…		3:Pigtail /without Isolator	C:Type C	5: 5mW	2:PMF-1550	2:100cm	2:FC/APC
	V: VCSEL	61:1610		4:Pigtail/with Isolator	D:Type D	A: 10mW	C: Customized	3:150cm	3:SC/UPC
						B: 20mW		4:200cm	4:SC/APC
								C:Customized	5:LC/UPC
									6:LC/APC
									C:Customized
Example of Ordering Form: TOSA-D2714B2022-01
TOSA-	D	27	1	4	B	2	0	2	2
	DFB	1270nm	2.5Gb/s	Pigtail/with Isolator	Type B	2mW	SMF-28e	100cm	FC/APC
