Products / Lasers/Light /DPSS / Diode Lasers /CW Pigtail Laser Diode (400-1920nm) /CW Pigtailed Laser Diode Single Mode (700-1650nm) /

CW Pigtailed Laser Diode Single Mode (700-1650nm)

Overview 700-830 830-905 905-1064 1270-1330 1350-1430 1450-1530 1550-1650 Order Now!

CW Pigtailed Laser Diode Single Mode (700-1650nm)

SIMTRUM offers High Coupling Efficient Solutions for 400nm~1650nm Pigtailed Laser Module with Single Mode Fiber and Polarization Maintaining Fiber, the output power can be up to 100mW. We adopt a unique technique to get high Polarization Extinction Ratio (PER), which is up to 20dB with Low Noise Laser Output.

With SM and PM Fiber, it can get the Gauss Beam which is the Single Transverse Mode Beam and the M2 value is less 1.3. Meanwhile, the TE Cooler and Photodiode is optional for customers, we can integrate them into the Laser Module according to the customer's requirement. SIMTRUM also offers Customized solutions for Pigtailed Laser Modules, such as Customized Wavelength and Customized Power to meet the special needs of customers.

SIMTRUM uses laser welding technology to guarantee the long-term reliability of the laser structure. To ensure long-term reliability, each laser diode will undergo rigorous testing and aging in the factory.

Product Brochure Link:

Features

- 400 nm to 1650 nm

- SM and PM Fiber

- 1 mW to 100 mW Output Power

- PER up to 20 dB

- Built-in TE Cooler Optional

- Built-in Photodiode Optional

- Long Lifetime

- High Stability

- Customized Wavelength

- Customized Output Power

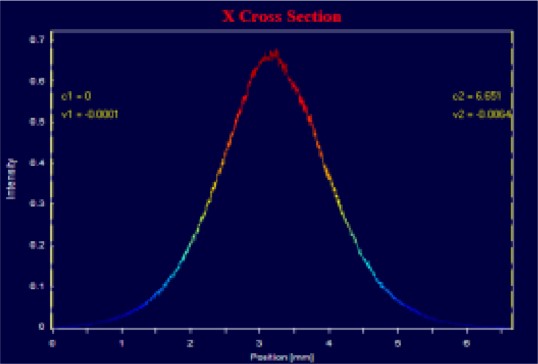

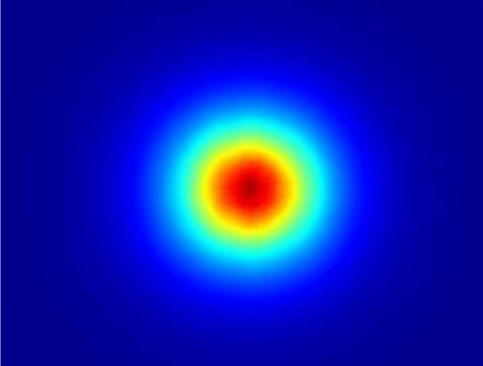

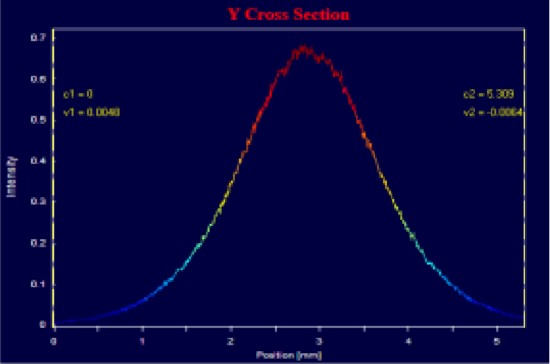

Laser Beam Profile

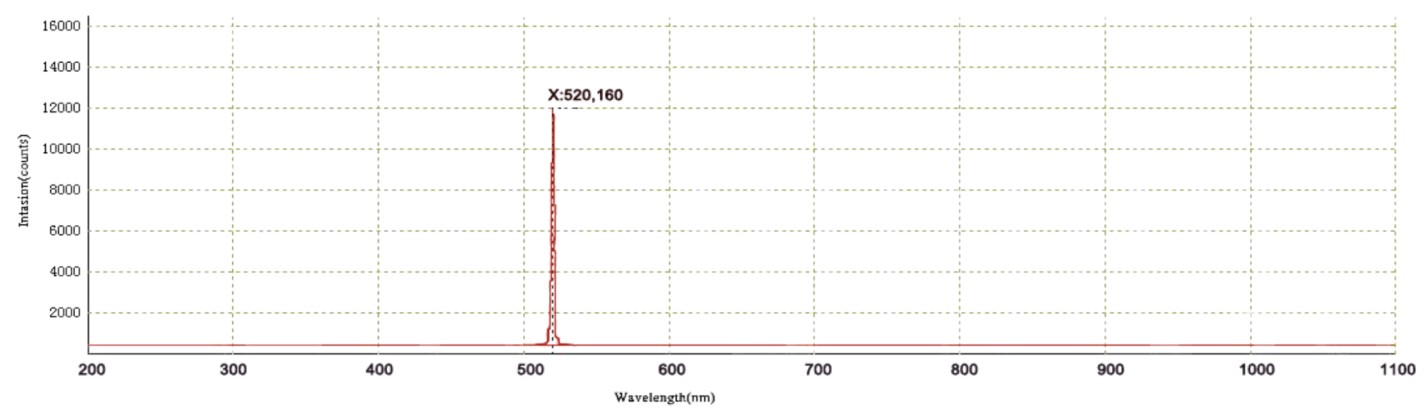

Spectrum Sample

Packaging Information

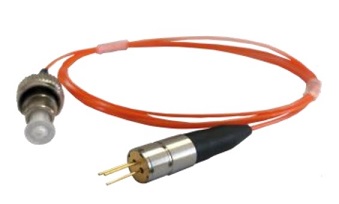

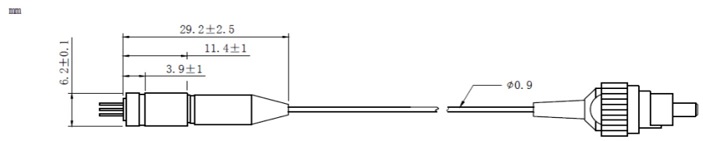

Coaxial Package View

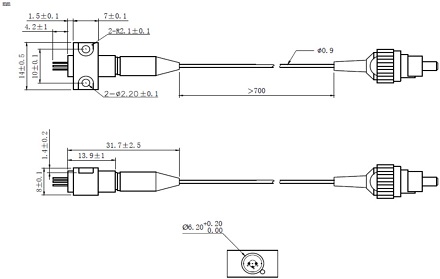

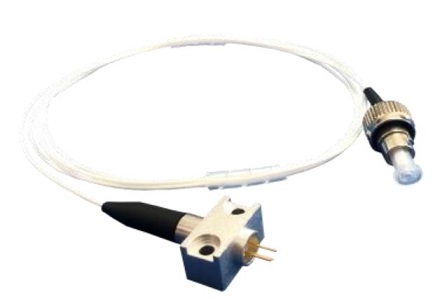

B8 Package View (with heat-sink)

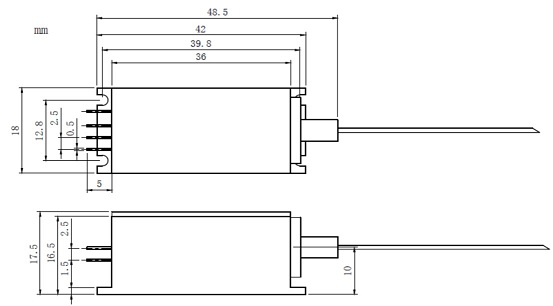

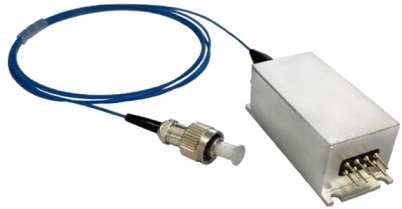

8-Pin Package View (built-in TEC)

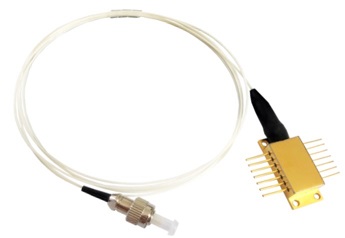

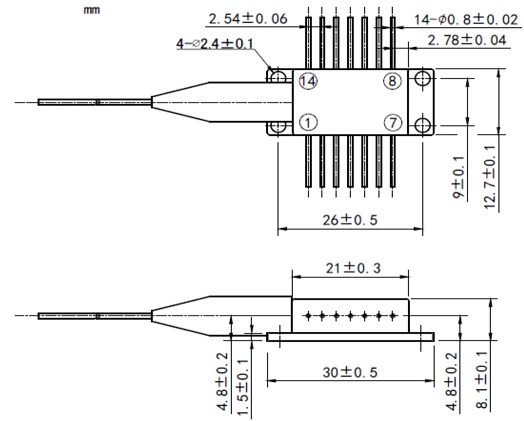

14-Pin Package View (built-in TEC)

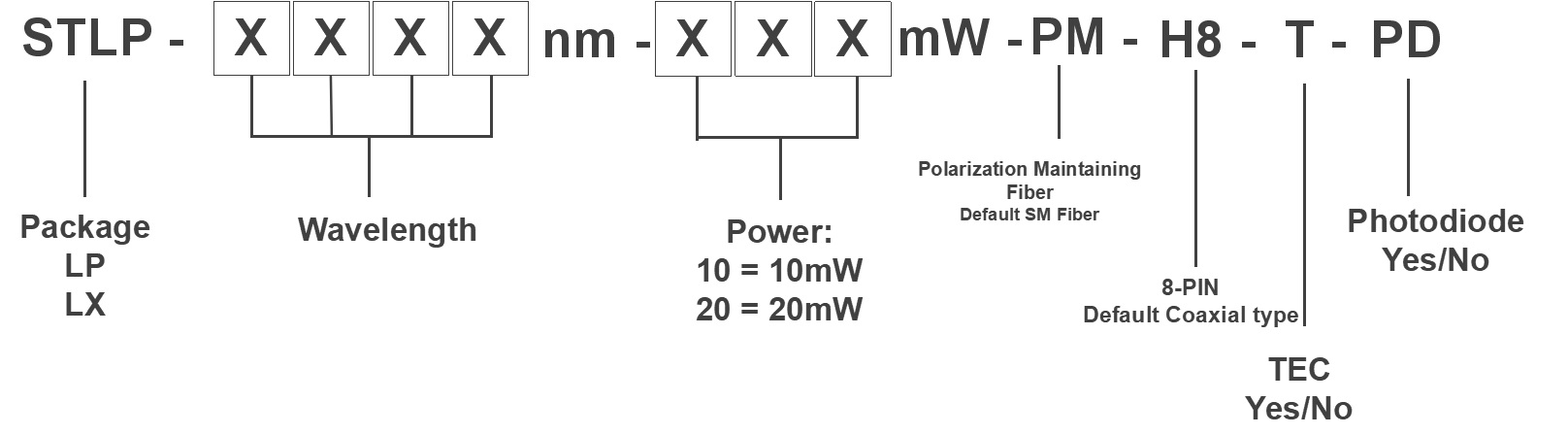

Ordering Information

Selection Guide 700 to 830 nm

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
705nm	STLP-705-010m-PD	10mW	SMF	4um	Coaxial	FC/PC	V	X
	STLX-705-010m-H8-T-PD	10mW	SMF	4um	8-Pin	FC/PC	V	V
	STLP-705-015m-PD	15mW	SMF	4um	Coaxial	FC/PC	V	X
	STLX-705-015m-H8-T-PD	15mW	SMF	4um	8-Pin	FC/PC	V	V
	STLP-705-010m-PM-PD	10mW	PMF	4um	Coaxial	FC/APC	V	X
	STLX-705-010m-PM-H8-T-PD	10mW	PMF	4um	8-Pin	FC/APC	V	V
	STLP-705-015m-PM-PD	15mW	PMF	4um	Coaxial	FC/APC	V	X
	STLX-705-015m-PM-H8-T-PD	15mW	PMF	4um	8-Pin	FC/APC	V	V
730nm	STLP-730-010m-PD	10mW	SMF	4um	Coaxial	FC/PC	V	X
	STLX-730-010m-H8-T-PD	10mW	SMF	4um	8-Pin	FC/PC	V	V
	STLP-730-015m-PD	15mW	SMF	4um	Coaxial	FC/PC	V	X
	STLX-730-015m-H8-T-PD	15mW	SMF	4um	8-Pin	FC/PC	V	V
	STLP-730-010m-PM-PD	10mW	PMF	4um	Coaxial	FC/APC	V	X
	STLX-730-010m-PM-H8-T-PD	10mW	PMF	4um	8-Pin	FC/APC	V	V
	STLP-730-015m-PM-PD	15mW	PMF	4um	Coaxial	FC/APC	V	X
	STLX-730-015m-PM-H8-T-PD	15mW	PMF	4um	8-Pin	FC/APC	V	V
785nm	STLP-785-005m-PD	5mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-785-005m-H8-T-PD	5mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-785-030m-PD	30mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-785-030m-H8-T-PD	30mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-785-040m-PD	40mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-785-040m-H8-T-PD	40mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-785-050m-PD	50mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-785-050m-H8-T-PD	50mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-785-020m-PM-PD	20mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-785-020m-PM-H8-T-PD	20mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-785-030m-PM-PD	30mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-785-030m-PM-H8-T-PD	30mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-785-040m-PM-PD	40mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-785-040m-PM-H8-T-PD	40mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-785-030m-PD	30mW	SMF-28	9um	Coaxial	FC/PC	V	X
808nm	STLP-808-020m-PD	20mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-808-020m-H-T-PD	20mW	SMF	5um	HHL-01	FC/PC	V	V
	STLP-808-030m-PD	30mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-808-030m-H-T-PD	30mW	SMF	5um	HHL-01	FC/PC	V	V
	STLP-808-040m-PD	40mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-808-040m-H-T-PD	40mW	SMF	5um	HHL-01	FC/PC	V	V
	STLP-808-050m-PD	50mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-808-050m-H-T-PD	50mW	SMF	5um	HHL-01	FC/PC	V	V
	STLP-808-015m-PM-PD	15mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-808-015m-PM-H-T-PD	15mW	PMF	5um	HHL-01	FC/APC	V	V
	STLP-808-030m-PM-PD	30mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-808-030m-PM-H-T-PD	30mW	PMF	5um	HHL-01	FC/APC	V	V
	STLP-808-040m-PM-PD	40mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-808-040m-PM-H-T-PD	40mW	PMF	5um	HHL-01	FC/APC	V	V
820nm	STLP-820-030m-PD	30mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-820-030m-H8-T-PD	30mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-820-050m-PD	50mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-820-050m-H8-T-PD	50mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-820-030m-PM-PD	30mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-820-030m-PM-H8-T-PD	30mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-820-050m-PM-PD	50mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-820-050m-PM-H8-T-PD	50mW	PMF	5um	8-Pin	FC/APC	V	V
830nm	STLP-830-005m-PD	5mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-830-005m-H8-T-PD	5mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-830-030m-PD	30mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-830-030m-H8-T-PD	30mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-830-050m-PD	50mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-830-050m-H8-T-PD	50mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-830-080m-PD	80mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-830-080m-H8-T-PD	80mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-830-100m-PD	100mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-830-100m-H8-T-PD	100mW	SMF	5um	8-Pin	FC/PC	V	V

Note: V - Yes, X - No, O - Optional

Ordering Information

Selection Guide 830 to 905 nm

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
830nm	STLP-830-030m-PM-PD	30mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-830-030m-PM-H8-T-PD	30mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-830-050m-PM-PD	50mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-830-050m-PM-H8-T-PD	50mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-830-080m-PM-PD	80mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-830-080m-PM-H8-T-PD	80mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-830-100m-PM-PD	100mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-830-100m-PM-H8-T-PD	100mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-830-050m-PD	50mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-830-100m-PD	100mW	SMF-28	9um	Coaxial	FC/PC	V	X
850nm	STLP-850-002m-PD	2mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-850-002m-H8-T-PD	2mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-850-010m-PD	10mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-850-010m-H8-T-PD	10mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-850-030m-PD	30mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-850-030m-H8-T-PD	30mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-850-050m-PD	50mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-850-050m-H8-T-PD	50mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-850-070m-PD	70mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-850-070m-H8-T-PD	70mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-850-030m-PM-PD	30mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-850-030m-PM-H8-T-PD	30mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-850-050m-PM-PD	50mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-850-050m-PM-H8-T-PD	50mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-850-070m-PM-PD	70mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-850-070m-PM-H8-T-PD	70mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-850-002m-PD	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-850-020m-PD	20mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-850-050m-PD	50mW	SMF-28	9um	Coaxial	FC/PC	V	X
880nm	STLP-880-001m-PD	1mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-880-001m-H8-T-PD	1mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-880-001m-PM-PD	1mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-880-001m-PM-H8-T-PD	1mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-880-002m-PD	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
905nm	STLP-905-002m-PD	2mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-905-002m-H8-T-PD	2mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-905-030m-PD	30mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-905-030m-H8-T-PD	30mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-905-050m-PD	50mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-905-050m-H8-T-PD	50mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-905-070m-PD	70mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-905-070m-H8-T-PD	70mW	SMF	5um	8-Pin	FC/PC	V	V

Note: V - Yes, X - No, O - Optional

Ordering Information

Selection Guide 905 to 1064 nm

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
905nm	STLP-905-030m-PM-PD	30mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-905-030m-PM-H8-T-PD	30mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-905-050m-PM-PD	50mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-905-050m-PM-H8-T-PD	50mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-905-070m-PM-PD	70mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-905-070m-PM-H8-T-PD	70mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-905-050m-PD	50mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-905-080m-PD	80mW	SMF-28	9um	Coaxial	FC/PC	V	X
940nm	STLP-940-030m-PD	30mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-940-030m-H8-T-PD	30mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-940-050m-PD	50mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-940-050m-H8-T-PD	50mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-940-080m-PD	80mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-940-080m-H8-T-PD	80mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-940-100m-PD	100mW	SMF	5um	Coaxial	FC/PC	V	X
	STLX-940-100m-H8-T-PD	100mW	SMF	5um	8-Pin	FC/PC	V	V
	STLP-940-030m-PM-PD	30mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-940-030m-PM-H8-T-PD	30mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-940-050m-PM-PD	50mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-940-050m-PM-H8-T-PD	50mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-940-080m-PM-PD	80mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-940-080m-PM-H8-T-PD	80mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-940-100m-PM-PD	100mW	PMF	5um	Coaxial	FC/APC	V	X
	STLX-940-100m-PM-H8-T-PD	100mW	PMF	5um	8-Pin	FC/APC	V	V
	STLP-940-050m-PD	50mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-940-100m-PD	100mW	SMF-28	9um	Coaxial	FC/PC	V	X
980nm	STLP-980-005m-PD	5mW	SMF	6um	Coaxial	FC/PC	V	X
	STLX-980-005m-H8-T-PD	5mW	SMF	6um	8-Pin	FC/PC	V	V
	STLP-980-010m-PD	10mW	SMF	6um	Coaxial	FC/PC	V	X
	STLX-980-010m-H8-T-PD	10mW	SMF	6um	8-Pin	FC/PC	V	V
	STLP-980-010m-PD	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-980-015m-PD	15mW	SMF-28	9um	Coaxial	FC/PC	V	X
1064nm	STLP-1064-010m-PD	10mW	SMF	6um	Coaxial	FC/PC	V	X
	STLP-1064-015m-PD	15mW	SMF	6um	Coaxial	FC/PC	V	X
	STLP-1064-030m-PD	30mW	SMF	6um	Coaxial	FC/PC	V	X
	STLP-1064-050m-PD	50mW	SMF	6um	Coaxial	FC/PC	V	X
	STLP-1064-005m-PM-PD	5mW	PMF	6um	Coaxial	FC/APC	V	X
	STLP-1064-010m-PM-PD	10mW	PMF	6um	Coaxial	FC/APC	V	X
	STLP-1064-020m-PM-PD	20mW	PMF	6um	Coaxial	FC/APC	V	X
	STLP-1064-040m-PM-PD	40mW	PMF	6um	Coaxial	FC/APC	V	X
	STLP-1064-010m-PD	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1064-020m-PD	20mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1064-050m-PD	50mW	SMF-28	9um	Coaxial	FC/PC	V	X

Note: V - Yes, X - No, O - Optional

Ordering Information

Selection Guide 1207 to 1330 nm

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
1270nm	STLP-1270-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1270-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1270-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1270-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1270-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1270-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1270-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1270-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1270-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1270-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1270-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1290nm	STLP-1290-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1290-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1290-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1290-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1290-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1290-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1290-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1290-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1290-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1290-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1290-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1310nm	STLP-1310-002m-FP	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1310-003m-DFB	3mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1310-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1310-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1310-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1310-010m-T-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1310-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1310-015m-DFB	15mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1310-015m-H8-T-DFB	15mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1310-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1310-010m-PM-T-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1310-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1310-015m-PM-DFB	15mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1310-015m-PM-H8-T-DFB	15mW	PMF	9um	8-Pin	FC/APC	V	V
1330nm	STLP-1330-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1330-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1330-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1330-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1330-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1330-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1330-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1330-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1330-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1330-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1330-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V

Note: V - Yes, X - No, O - Optional

Ordering Information

Selection Guide 1350 to 1430 nm

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
1350nm	STLP-1350-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1350-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1350-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1350-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1350-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1350-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1350-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1350--005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1350-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1350-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1350-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1370nm	STLP-1370-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1370-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1370-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1370-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1370-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1370-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1370-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1370--005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1370-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1370-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1370-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1390nm	STLP-1390-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1390-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1390-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1390-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1390-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1390-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1390-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1390--005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1390-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1390-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1390-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1410nm	STLP-1410-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1410-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1410-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1410-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1410-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1410-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1410-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1410-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1410-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1410-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1410-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1430nm	STLP-1430-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1430-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1430-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1430-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1430-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1430-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1430-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1430-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1430-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1430-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1430-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V

Note: V - Yes, X - No, O - Optional

Ordering Information

Selection Guide 1450 to 1530 nm

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
1450nm	STLP-1450-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1450-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1450-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	ST LX- 1450-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1450-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1450-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1450-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	ST LP- 1450-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1450-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1450-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1450-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1470nm	STLP-1470-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1470-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1470-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	ST LX- 1470-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1470-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1470-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1470-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1470-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1470-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1470-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1470-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1490nm	STLP-1490-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1490-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1490-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	ST LX- 1490-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1490-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1490-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1490-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1490-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1490-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1490-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1490-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1510nm	STLP-1510-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1510-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1510-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1510-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1510-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1510-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1510-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1510--005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1510-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1510-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1510-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1530nm	STLP-1530-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1530-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1530-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1530-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1530-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1530-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1530-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1530--005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1530-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1530-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1530-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V

Note: V - Yes, X - No, O - Optional

Ordering Information

Selection Guide 1550 to 1650 nm

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
1550nm	STLP-1550-002m-FP	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1550-003m-DFB	3mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1550-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1550-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1550-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1550-010m-T-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1550-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1550-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1550-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1550-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1550-010m-PM-T-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1550-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1570nm	STLP-1570-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1570-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1570-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1570-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1570-010m-DFB	10mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1570-010m-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1570-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1570-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1570-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1570-010m-PM-DFB	10mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1570-010m-PM-H8-T-DFB	10mW	PMF	9um	8-Pin	FC/APC	V	V
1590nm	STLP-1590-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1590-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1590-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1590-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1590-008m-DFB	8mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1590-008m-H8-T-DFB	8mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1590-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1590-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1590-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1590-008m-PM-DFB	8mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1590-008m-PM-H8-T-DFB	8mW	PMF	9um	8-Pin	FC/APC	V	V
1610nm	STLP-1610-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1610-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1610-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1610-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1610-008m-DFB	8mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1610-008m-H8-T-DFB	8mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1610-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1610-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1610-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1610-008m-PM-DFB	8mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1610-008m-PM-H8-T-DFB	8mW	PMF	9um	8-Pin	FC/APC	V	V
1625nm	STLP-1625-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1625-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1625-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1625-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1625-008m-DFB	8mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1625-008m-H8-T-DFB	8mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1625-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1625-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1625-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1625-008m-PM-DFB	8mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1625-008m-PM-H8-T-DFB	8mW	PMF	9um	8-Pin	FC/APC	V	V
1650nm	STLP-1650-002m-DFB	2mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1650-005m-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLP-1650-005m-T-DFB	5mW	SMF-28	9um	Coaxial	FC/PC	V	V
	STLX-1650-005m-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1650-008m-DFB	8mW	SMF-28	9um	Coaxial	FC/PC	V	X
	STLX-1650-008m-H8-T-DFB	8mW	SMF-28	9um	8-Pin	FC/PC	V	V
	STLP-1650-005m-PM-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	X
	STLP-1650-005m-PM-T-DFB	5mW	PMF	9um	Coaxial	FC/APC	V	V
	STLX-1650-005m-PM-H8-T-DFB	5mW	PMF	9um	8-Pin	FC/APC	V	V
	STLP-1650-008m-PM-DFB	8mW	PMF	9um	Coaxial	FC/APC	V	X
	STLX-1650-008m-PM-H8-T-DFB	8mW	PMF	9um	8-Pin	FC/APC	V	V

Note: V - Yes, X - No, O - Optional

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
STLP-705-015m-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 705 nm, output power 15mW, single mode, package coaxial, with photodiode	2-3 Weeks	Request for quote
STLP-730-015m-PM-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 730 nm, output power 15mW, Polarization Maintaining, with photodiode	2-3 Weeks	Request for quote
STLX-785-030m-H8-T-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 785 nm, output power 30mW, single mode, package 8pin, with TE cooler and photodiode	2-3 Weeks	Request for quote
STLX-808-020m-H-T-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 808 nm, output power 20mW, single mode, package HHL-01, with TE cooler and Photodiode	2-3 Weeks	Request for quote
STLX-820-030m-PM-H8-T-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 820 nm, output power 30mW, Polarization Maintaining, package 8pin, with TE cooler and photodiode	2-3 Weeks	Request for quote
STLP-830-080m-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 830 nm, output power 80mW, single mode, package coaxial, with Photodiode	2-3 Weeks	Request for quote
STLP-850-002m-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 850 nm, output power 2mW, single mode, package coaxial, with Photodiode	2-3 Weeks	Request for quote
STLX-880-001m-PM-H8-T-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 880 nm, output power 1mW, Polarization Maintaining, package 8pin, with TE cooler and photodiode	2-3 Weeks	Request for quote
STLP-905-030m-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 905 nm, output power 30mW, single mode, package coaxial, with Photodiode	2-3 Weeks	Request for quote
STLP-940-100m-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 940 nm, output power 100mW, single mode, package coaxial, with Photodiode	2-3 Weeks	Request for quote
STLX-980-005m-H8-T-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 980 nm, output power 5mW, single mode, package 8pin, with TE cooler and Photodiode	2-3 Weeks	Request for quote
STLP-1064-020m-PM-PD CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1064 nm, output power 20mW, Polarization Maintaining, package coaxial, with Photodiode	2-3 Weeks	Request for quote
STLP-1270-010m-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1270 nm, output power 10mW, single mode, package coaxial, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1290-005m-PM-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1290 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1310-010m-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1310 nm, output power 10mW, single mode, package coaxial, Distributed feedback diodes	2-3 Weeks	Request for quote
STLX-1330-005m-PM-H8-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1330 nm, output power 5mW, Polarization Maintaining, package 8pin, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLX-1350-005m-H8-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1350 nm, output power 5mW, single mode, package 8pin, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLX-1370-005m-PM-H8-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1370 nm, output power 5mW, Polarization Maintaining, package 8pin, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLX-1390-005m-PM-H8-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1390 nm, output power 5mW, Polarization Maintaining, package 8pin, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1410-005m-PM-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1410 nm, output power 5mW, Polarization Maintaining, package 8pin, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1430-005m-PM-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1430 nm, output power 5mW, Polarization Maintaining, package coaxial, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1450-010m-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1450 nm, output power 10mW, single mode, package coaxial, Distributed feedback diodes	2-3 Weeks	Request for quote
STLX-1470-010m-H8-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1470 nm, output power 10mW, single mode, package 8pin, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1490-005m-PM-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1490 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1510--005m-PM-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1510 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1530-005m-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1530 nm, output power 5mW, single mode, package coaxial, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLX-1550-005m-PM-H8-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1550 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1570-005m-PM-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1570 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLX-1590-008m-H8-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1590 nm, output power 8mW, single mode, package 8pin, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1610-005m-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1610 nm, output power 5mW, single mode, package coaxial, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1625-008m-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1625 nm, output power 8mW, single mode, package coaxial, Distributed feedback diodes	2-3 Weeks	Request for quote
STLP-1650-005m-PM-T-DFB CW Pigtailed Laser Diode Single Mode (700-1650nm), Wavelength 1650 nm, output power 5mW, Polarization Maintaining, package coaxial, with TE cooler, Distributed feedback diodes	2-3 Weeks	Request for quote

STLP-1650-005m-PM-T-DFB - Parameter

STLP-1625-008m-DFB - Parameter

STLP-1610-005m-T-DFB - Parameter

STLX-1590-008m-H8-T-DFB - Parameter

STLP-1570-005m-PM-T-DFB - Parameter

STLX-1550-005m-PM-H8-T-DFB - Parameter

STLP-1530-005m-T-DFB - Parameter

STLP-1510--005m-PM-T-DFB - Parameter

STLP-1490-005m-PM-T-DFB - Parameter

STLX-1470-010m-H8-T-DFB - Parameter

STLP-1450-010m-DFB - Parameter

STLP-1430-005m-PM-DFB - Parameter

STLP-1410-005m-PM-T-DFB - Parameter

STLX-1390-005m-PM-H8-T-DFB - Parameter

STLX-1370-005m-PM-H8-T-DFB - Parameter

STLX-1350-005m-H8-T-DFB - Parameter

STLX-1330-005m-PM-H8-T-DFB - Parameter

STLP-1310-010m-DFB - Parameter

STLP-1290-005m-PM-T-DFB - Parameter

STLP-1270-010m-DFB - Parameter

STLP-1064-020m-PM-PD - Parameter

STLX-980-005m-H8-T-PD - Parameter

STLP-940-100m-PD - Parameter

STLP-905-030m-PD - Parameter

STLX-880-001m-PM-H8-T-PD - Parameter

STLP-850-002m-PD - Parameter

STLP-830-080m-PD - Parameter

STLX-820-030m-PM-H8-T-PD - Parameter

STLX-808-020m-H-T-PD - Parameter

STLX-785-030m-H8-T-PD - Parameter

STLP-730-015m-PM-PD - Parameter

STLP-705-015m-PD - Parameter

STLP-1650-005m-PM-T-DFB - Download

STLP-1625-008m-DFB - Download

STLP-1610-005m-T-DFB - Download

STLX-1590-008m-H8-T-DFB - Download

STLP-1570-005m-PM-T-DFB - Download

STLX-1550-005m-PM-H8-T-DFB - Download

STLP-1530-005m-T-DFB - Download

STLP-1510--005m-PM-T-DFB - Download

STLP-1490-005m-PM-T-DFB - Download

STLX-1470-010m-H8-T-DFB - Download

STLP-1450-010m-DFB - Download

STLP-1430-005m-PM-DFB - Download

STLP-1410-005m-PM-T-DFB - Download

STLX-1390-005m-PM-H8-T-DFB - Download

STLX-1370-005m-PM-H8-T-DFB - Download

STLX-1350-005m-H8-T-DFB - Download

STLX-1330-005m-PM-H8-T-DFB - Download

STLP-1310-010m-DFB - Download

STLP-1290-005m-PM-T-DFB - Download

STLP-1270-010m-DFB - Download

STLP-1064-020m-PM-PD - Download

STLX-980-005m-H8-T-PD - Download

STLP-940-100m-PD - Download

STLP-905-030m-PD - Download

STLX-880-001m-PM-H8-T-PD - Download

STLP-850-002m-PD - Download

STLP-830-080m-PD - Download

STLX-820-030m-PM-H8-T-PD - Download

STLX-808-020m-H-T-PD - Download

STLX-785-030m-H8-T-PD - Download

STLP-730-015m-PM-PD - Download

STLP-705-015m-PD - Download

Accessories

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)

Company
About us Contact us Worldwide Location
Light Analysis
Spectrometers Hyperspectral Camera Power meters Beam Profiler
Microscope
Confocal Microscope Raman Microscope Microscopy Stages TCSPC Solution
Light Sources
Fiber lasers Fiber Amplifier Diode Lasers Incoherent Light
Imaging
sCMOS Camera SW/MW/LW IR Cameras Infrared Pyrometer Microscope Cameras
Optics
Nonlinear Crystals Thz Components Waveplate Objective Lens

Sign In

Register

Retrieve password

CW Pigtailed Laser Diode Single Mode (700-1650nm) | SIMTRUM

STLP-1650-005m-PM-T-DFB - Parameter

STLP-1625-008m-DFB - Parameter

STLP-1610-005m-T-DFB - Parameter

STLX-1590-008m-H8-T-DFB - Parameter

STLP-1570-005m-PM-T-DFB - Parameter

STLX-1550-005m-PM-H8-T-DFB - Parameter

STLP-1530-005m-T-DFB - Parameter

STLP-1510--005m-PM-T-DFB - Parameter

STLP-1490-005m-PM-T-DFB - Parameter

STLX-1470-010m-H8-T-DFB - Parameter

STLP-1450-010m-DFB - Parameter

STLP-1430-005m-PM-DFB - Parameter

STLP-1410-005m-PM-T-DFB - Parameter

STLX-1390-005m-PM-H8-T-DFB - Parameter

STLX-1370-005m-PM-H8-T-DFB - Parameter

STLX-1350-005m-H8-T-DFB - Parameter

STLX-1330-005m-PM-H8-T-DFB - Parameter

STLP-1310-010m-DFB - Parameter

STLP-1290-005m-PM-T-DFB - Parameter

STLP-1270-010m-DFB - Parameter

STLP-1064-020m-PM-PD - Parameter

STLX-980-005m-H8-T-PD - Parameter

STLP-940-100m-PD - Parameter

STLP-905-030m-PD - Parameter

STLX-880-001m-PM-H8-T-PD - Parameter

STLP-850-002m-PD - Parameter

STLP-830-080m-PD - Parameter

STLX-820-030m-PM-H8-T-PD - Parameter

STLX-808-020m-H-T-PD - Parameter

STLX-785-030m-H8-T-PD - Parameter

STLP-730-015m-PM-PD - Parameter

STLP-705-015m-PD - Parameter

STLP-1650-005m-PM-T-DFB - Download

STLP-1625-008m-DFB - Download

STLP-1610-005m-T-DFB - Download

STLX-1590-008m-H8-T-DFB - Download

STLP-1570-005m-PM-T-DFB - Download

STLX-1550-005m-PM-H8-T-DFB - Download

STLP-1530-005m-T-DFB - Download

STLP-1510--005m-PM-T-DFB - Download

STLP-1490-005m-PM-T-DFB - Download

STLX-1470-010m-H8-T-DFB - Download

STLP-1450-010m-DFB - Download

STLP-1430-005m-PM-DFB - Download

STLP-1410-005m-PM-T-DFB - Download

STLX-1390-005m-PM-H8-T-DFB - Download

STLX-1370-005m-PM-H8-T-DFB - Download

STLX-1350-005m-H8-T-DFB - Download

STLX-1330-005m-PM-H8-T-DFB - Download

STLP-1310-010m-DFB - Download

STLP-1290-005m-PM-T-DFB - Download

STLP-1270-010m-DFB - Download

STLP-1064-020m-PM-PD - Download

STLX-980-005m-H8-T-PD - Download

STLP-940-100m-PD - Download

STLP-905-030m-PD - Download

STLX-880-001m-PM-H8-T-PD - Download

STLP-850-002m-PD - Download

STLP-830-080m-PD - Download

STLX-820-030m-PM-H8-T-PD - Download

STLX-808-020m-H-T-PD - Download

STLX-785-030m-H8-T-PD - Download

STLP-730-015m-PM-PD - Download

STLP-705-015m-PD - Download

Accessories
