CW Pigtailed Laser Diode Multi-Mode(700-1920nm)

Overview 760-915 940-1920 Order Now!

CW Pigtailed Laser Diode Multi-Mode (700 - 1920nm)

SIMTRUM offers High Coupling Efficient Solution for 375nm~1920nm Pigtailed Laser Module with 50um,105um,200um, and 400um Fiber Core, the output power ranges from 5mW to 50W. Meanwhile, the TE Cooler and Photodiode is optional for customers, the Green or Red Aiming Beam is also optional for IR Lasers. We can integrate these functions into the Laser Module as per customer's requirement. The standard package of the lasers can be Coaxial,2-PIN,4-PIN,14-PIN and 9-PIN.

SIMTRUM also offers Customized solutions for Pigtailed Laser Modules, such as Customized Wavelength, Customized Power, Customized Fiber Core, and Customized packages to meet the special needs of customers.

SIMTRUM uses laser welding technology to guarantee the long-term reliability of the laser structure. To ensure long-term reliability, each laser diode will undergo rigorous testing and aging in the factory. Meanwhile, the high-low storage temperature circulation is also necessary for each laser diode.

Product Brochure Link:

Features

- 375nm~1920nm

- 5mW~50W Output Power

- 50um/ 105um/ 200um/ 400um Fiber Core

- Coaxial/ 2-PIN/ 4-PIN/ 14-PIN/ 9-PIN Package

- Built-in TE Cooler Optional

- Built-in Photodiode Optional

- Red/Green Aiming Beam Optional for IR LASER

- Long Lifetime

- High Stability

- Customized Wavelength

- Customized Output Power

- Customized Fiber Core

Packaging Information
Coaxial Package View


B8 Package View (with heat-sink)

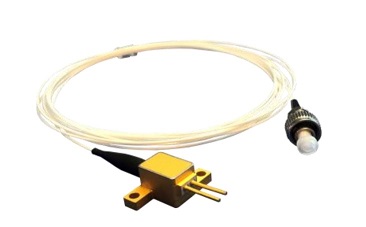

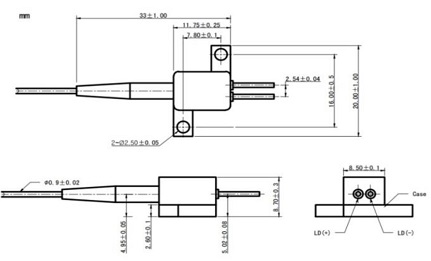

2-Pin Package View

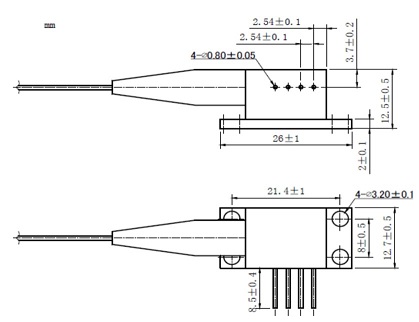

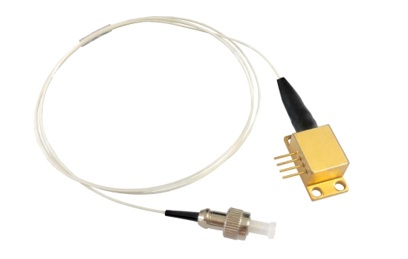

4-Pin Package View

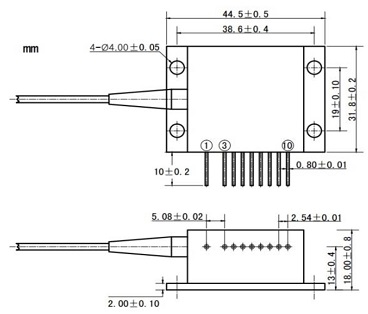

9-Pin Package View


14-Pin Package View (built-in TEC)


B4 Package View

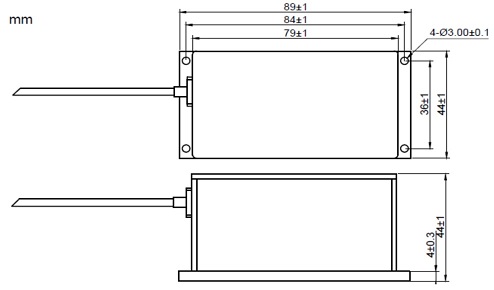

P5 Package View

Ordering Information

Selection Guide 760 to 915 nm

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
760nm	STLX-760-1500m-M-H2	1.5W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-760-1500m-M-H14-T-PD	1.5W	MMF	105um	14-Pin	FC/PC	V	V
	STLX-760-003-200M-H2	3W	MMF	200um	2-Pin	FC/PC	X	X
	STLX-760-003-200M-H9-T-PD	3W	MMF	200um	9-Pin	FC/PC	V	V
770nm	STLX-770-003-M-H2	3W	MMF	105um	2-Pin	FC/PC	X	X
770nm	STLX-770-003-M-H9-T-PD	3W	MMF	105um	9-Pin	FC/PC	V	V
785nm	STLP-785-050m-M-PD	50mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-785-050m-M-H8-T-PD	50mW	MMF	105um	8-Pin	FC/PC	V	V
	STLX-785-1500m-50M-H2	1.5W	MMF	50um	2-Pin	FC/PC	X	X
	STLX-785-1500m-50M-H14-T-PD	1.5W	MMF	50um	14-Pin	FC/PC	V	V
	ST LX-785-002-M- H14-T-PD	2W	MMF	105um	14-Pin	FC/PC	V	V
	STLX-785-003-M-H2	3W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-785-003-M-H9-T-PD	3W	MMF	105um	9-Pin	FC/PC	V	V
	STLX-785-007-M-H2	7W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-785-007-M-H9-T-PD	7W	MMF	105um	9-Pin	FC/PC	V	V
808nm	STLP-808-150m-62M-PD	150mW	MMF	62.5um	Coaxial	FC/PC	V	X
	STLX-808-150m-62M-H8-T-PD	150mW	MMF	62.5um	8-Pin	FC/PC	V	V
	STLP-808-200m-M-PD	200mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-808-200m-M-H8-T-PD	200mW	MMF	105um	8-Pin	FC/PC	V	V
	STLP-808-300m-M-PD	300mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-808-300m-M-H8-T-PD	300mW	MMF	105um	8-Pin	FC/PC	V	V
	STLX-808-002-50M-H14-T-PD	2W	MMF	50um	14-Pin	FC/PC	V	V
	STLX-808-002-M- H 14-T-PD	2W	MMF	105um	14-Pin	FC/PC	V	V
	STLX-808-004-M-H2	4W	MMF	105um	2-Pin	FC/PC	X	X
	ST LX-808-004- M-H9-T-PD	4W	MMF	105um	9-Pin	FC/PC	V	V
	STLX-808-005-M-H2	5W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-808-008-M-H2	8W	MMF	105um	2-Pin	FC/PC	X	X
	ST LX-808-008-M-H9-T-PD	8W	MMF	105um	9-Pin	FC/PC	V	V
	STLX-808-010-200M-H2	10W	MMF	200um	2-Pin	FC/PC	X	X
	STLX-808-025-200M-HH2	25W	MMF	200um	2-Pin	FC/PC	X	X
830nm	STLP-830-150m-M-PD	150mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-830-150m-M-H8-T-PD	150mW	MMF	105um	8-Pin	FC/PC	V	V
	STLP-830-200m-M-PD	200mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-830-200m-M-H8-T-PD	200mW	MMF	105um	8-Pin	FC/PC	V	V
	STLX-830-001-50M-H2	1W	MMF	50um	2-Pin	FC/PC	X	X
	STLX-830-002-50M-H2 (0.15)	2W	MMF	50um	2-Pin	FC/PC	X	X
	STLX-830-002-50M-H14-T-PD	2W	MMF	50um	14-Pin	FC/PC	V	V
	ST LX-830-002-M- H 14-T-PD	2W	MMF	105um	14-Pin	FC/PC	V	V
	STLX-830-003-M-H2	3W	MMF	105um	2-Pin	FC/PC	X	X
850nm	STLP-850-050m-M-PD	50mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-850-050m-M-H8-T-PD	50mW	MMF	105um	8-Pin	FC/PC	V	V
	STLP-850-150m-M-PD	150mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-850-150m-M-H8-T-PD	150mW	MMF	105um	8-Pin	FC/PC	V	V
	STLP-850-200m-M-PD	200mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-850-200m-M-H8-T-PD	200mW	MMF	105um	8-Pin	FC/PC	V	V
880nm	STLP-880-005m-M-PD	5mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-880-005m-M-H8-T-PD	5mW	MMF	105um	8-Pin	FC/PC	V	V
	STLX-880-002-M- H14-T-PD	2W	MMF	105um	14-Pin	FC/PC	V	V
	STLX-880-003-M-H2	3W	MMF	105um	2-Pin	FC/PC	X	X
905nm	STLP-905-120m-M-PD	120mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-905-120m-M-H8-T-PD	120mW	MMF	105um	8-Pin	FC/PC	V	V
	STLP-905-150m-M-PD	150mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-905-150m-M-H8-T-PD	150mW	MMF	105um	8-Pin	FC/PC	V	V
915nm	STLX-915-002- M-H14-T-PD	2W	MMF	105um	14-Pin	FC/PC	V	V
	STLX-915-010-M-H2	10W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-915-010-M-H9-T-PD	10W	MMF	105um	9-Pin	FC/PC	V	V
	ST LX-915-020-M-HH2	20W	MMF	105um	2-Pin	FC/PC	X	X
	ST LX-915-030-M-HH2	30W	MMF	105um	2-Pin	FC/PC	X	X
	ST LX-915-055- M-HH2	55W	MMF	105um	2-Pin	FC/PC	X	X

Note: V - Yes, X - No, O - Optional

Ordering Information

Selection Guide 940 to 1920 nm

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
940nm	STLP-940-200m-M-PD	200mW	MMF	105um	Coaxial	FC/PC	V	X
	STLX-940-200m-M-H8-T-PD	200mW	MMF	105um	8-Pin	FC/PC	V	V
	STLX-940-002-M-H14-T-PD	2W	MMF	105um	14-Pin	FC/PC	V	V
	STLX-940-010-M-H2	10W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-940-010-M-H9-T-PD	10W	MMF	105um	9-Pin	FC/PC	V	V
	STLX-940-020-M-HH2	20W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-940-030-M-HH2	30W	MMF	105um	2-Pin	FC/PC	X	X
980nm	STLP-980-100m-M-PD	100mw	MMF	105um	Coaxial	FC/PC	V	X
	STLX-980-100m-M-H8-T-PD	100mW	MMF	105um	8-Pin	FC/PC	V	V
	STLP-980-150m-M-PD	150mw	MMF	105um	Coaxial	FC/PC	V	X
	STLX-980-150m-M-H8-T-PD	150mW	MMF	105um	8-Pin	FC/PC	V	V
	STLX-980-002-M-H14-T-PD	2W	MMF	105um	14-Pin	FC/PC	V	V
	STLX-980-010-M-H2	10W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-980-010-M-H9-T-PD	10W	MMF	105um	9-Pin	FC/PC	V	V
	STLX-980-020-M-HH2	20W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-980-030-M-HH2	30W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-980-055-M-HH2	55W	MMF	105um	2-Pin	FC/PC	X	X
1064nm	STLX-1064-001-M-H14-T-PD	1W	MMF	105um	14-Pin	FC/PC	V	V
	STLX-1064-008-M-H2	8W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-1064-008-M-H9-T-PD	8W	MMF	105um	9-Pin	FC/PC	V	V
	STLX-1064-025-M-H2	25W	MMF	105um	2-Pin	FC/PC	X	X
1310nm	STLX-1310-001-M-H14-T-PD	1W	MMF	105um	14-Pin	FC/PC	V	V
1310nm	STLX-1310-001-M-H2	1W	MMF	105um	2-Pin	FC/PC	X	X
1330nm	STLX-1330-001-M-H14-T-PD	1W	MMF	105um	14-Pin	FC/PC	V	V
1330nm	STLX-1330-001-M-H2	1W	MMF	105um	2-Pin	FC/PC	X	X
1450nm	STLX-1450-002-M-H2	2W	MMF	105um	2-Pin	FC/PC	X	X
1450nm	STLX-1450-002-M-H9-T-PD	2W	MMF	105um	9-Pin	FC/PC	V	V
1470nm	STLX- 1470-800m-M-H14-T-PD	800mW	MMF	105um	14-Pin	FC/PC	V	V
	STLX-1470-001-M-H2	1W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-1470-2500m-M-H2	2.5W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-1470-2500m-M-H9-T-PD	2.5W	MMF	105um	9-Pin	FC/PC	V	V
	STLX-1470-003-M-H2	3W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-1470-003-M-H9-T-PD	3W	MMF	105um	9-Pin	FC/PC	V	V
1490nm	STLX-1490-002-M-H2	2W	MMF	105um	2-Pin	FC/PC	X	X
1490nm	STLX-1490-002-M-H9-T-PD	2W	MMF	105um	9-Pin	FC/PC	V	V
1530nm	STLX-1530-1500m-M-H2	1.5W	MMF	105um	2-Pin	FC/PC	X	X
1530nm	STLX-1530-1500m-M-H9-T-PD	1.5W	MMF	105um	9-Pin	FC/PC	V	V
1550nm	STLX-1550-1500m-M-H2	1.5W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-1550-1500m-M-H9-T-PD	1.5W	MMF	105um	9-Pin	FC/PC	V	V
	STLX-1550-2500m-M-H2	2.5W	MMF	105um	2-Pin	FC/PC	X	X
	STLX-1550-2500m-M-H9-T-PD	2.5W	MMF	105um	9-Pin	FC/PC	V	V
1570nm	STLX-1570-1500m-M-H2	1.5W	MMF	105um	2-Pin	FC/PC	X	X
1570nm	STLX-1570-1500m-M-H9-T-PD	1.5W	MMF	105um	9-Pin	FC/PC	V	V
1920nm	STLX-1920-400m-M-H2	400mW	MMF	105um	2-Pin	FC/PC	X	X

Note: V - Yes, X - No, O - Optional
