Mid-infrared Wide Tunable Laser (4-12 μm) | SIMTRUM Photonics Store

Products / Lasers/Light /Broadband/Tunable Lasers /Mid-infrared Wide Tunable Laser (4-12 μm) /

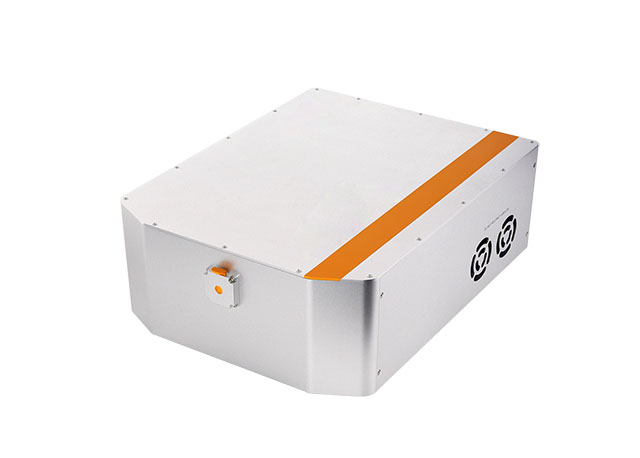

Mid-infrared Wide Tunable Laser (4-12 μm)
Overview Specifications Related Products Order Now!
SIMTRUM provides mid-infrared (MIR) broadband tunable lasers with a wide spectral coverage of 4-12 μm. The ultra-stable opto-mechanical design and built-in high-precision wavelength monitoring module enable wavelength tuning through a high-performance electronic control mechanism without the need to rely on an infrared spectrometer.

The product is suitable for applications such as AFMIR, SNOM and infrared photothermal microscopy. Typical output power of >20mW is available for the standard product operating at 4-5 μm, and customized requirements such as wavelength and power are accepted for operating at 5-12 μm.

Features

  • 4-12 μm Wide Spectral Coverage
  • Electronically Controlled Wavelength Adjustment
  • Excellent beam quality
  • High power stability

Applications

  • Gas Molecule Detection
  • Infrared Spectroscopy
  • Silicon Photonics
  • Device Test and Measurement
  • Biomedical Analysis
  • Gas Sensing

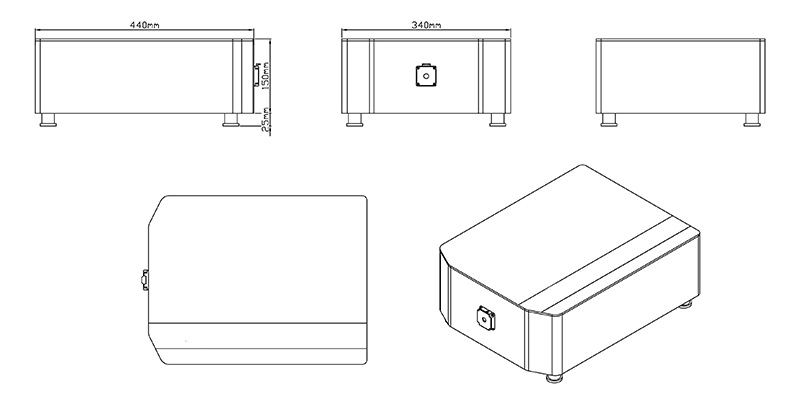

Dimensions

Product Specifications

Product Number LL-NP01-TQCL-300
Working Wavelength 4-5 μm (5-12 μm optional)
Output Bandwidth ＜0.5 cm-1
Tuning Step 1 cm-1
Wavelength Tuning Accuracy ＜1 cm-1
Tuning Range ＞200 nm@4.55 μm
Average Output Power ＞1 mW (High Power optional)
Power Stability（%） ≤1% RMS (12 hours@25℃）
Beam Quality M2＜1.5
Output Type Free Space Output
Supply Voltage 100-240 VAC
Operational Temperature 15-35℃
Operational Humidity 20~80% (non-condensing)
Dimensions 440×340×175 mm
Cooling Air cooling

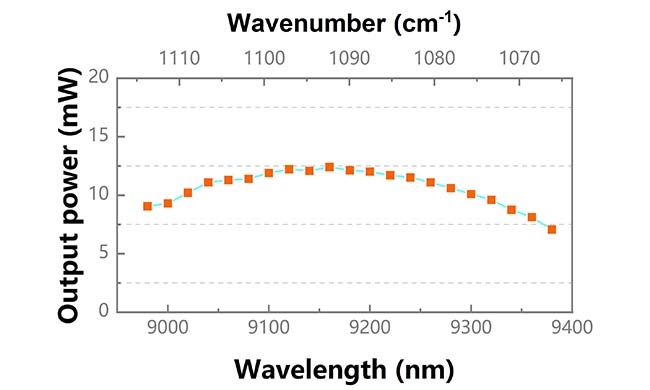

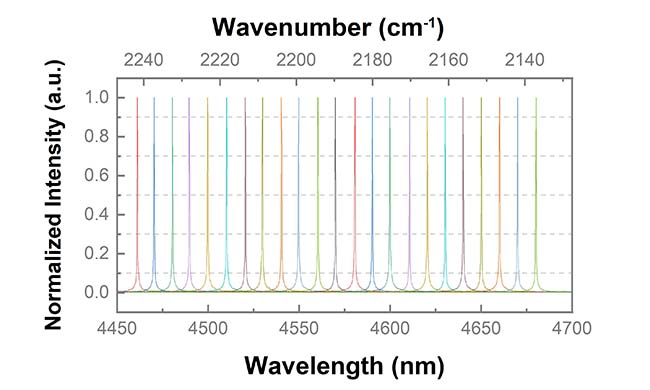

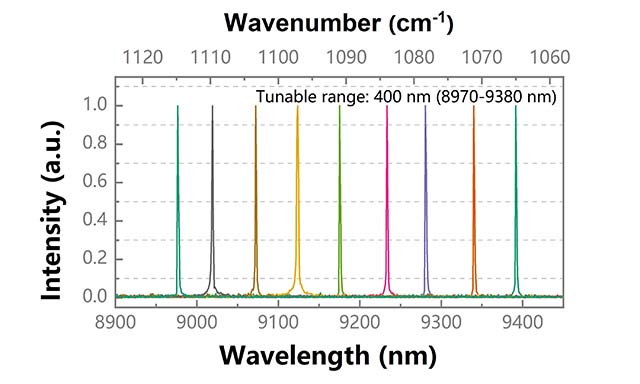

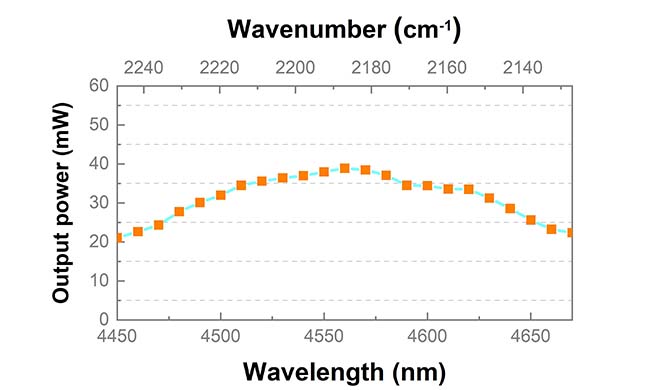

Testing Data




Product Wavelength(nm) Type Output Power
C-band Tunable Laser
(1529-1567 nm）
 1529~1567nm CW Up to 200mW
L-band Tunable Laser
(1554-1607 nm）
 1554~1607nm CW Up to 200mW
Supercontinuum Fiber Lasers (450-2300nm） 450-2300nm ps Pulse 1W Average

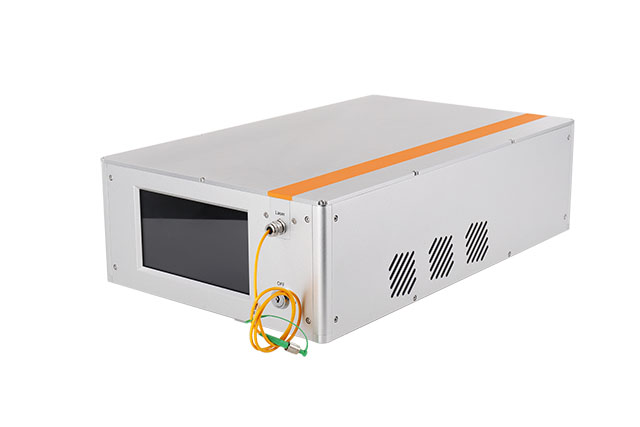

2 μm CW Wide Tunable Laser (1900-2000 nm) 1900-2000nm CW Average Power＞1 mW
Mid-infrared Wide Tunable Laser (4-12 μm) 4-12 μm CW Average Power＞1 mW
Femtosecond Optical Parametric Amplifier (650 - 2600nm) 650-2600 nm fs Pulse 40-60 W
Short Pulse Optical Parametric Amplifier (650 - 2600nm) 650-2600 nm fs Pulse 80 W
Broadband Femtosecond Laser 950 -1150nm 950-1150 nm fs Pulse 150mW




If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items Detail Unit Remark
Application
Working Wavelength   μm
Output Bandwidth   cm-1
Tuning Step   cm-1
Wavelength Tuning Accuracy   cm-1
Output Power   mW
Power Stability   %
Beam Quality (M2)   /
Output Type   / Free Space/ Fiber Output



We are here for you!





Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-NP01-TQCL-300
Working Wavelength: 4-5μm (5-12 μm optional) ,Output Bandwidth: ＜0.5cm-1 ,Tuning Step: 1cm-1 ,Wavelength Tuning Accuracy: ＜1cm-1 ,Average Output Power: ＞1mW ,Power Stability: ≤1% RMS (12 hours@25℃) ,Beam Quality: M2＜1.5 ,Output Type: Free Space Output 		4-6 Weeks Request for quote

LL-NP01-TQCL-300 - Parameter

LL-NP01-TQCL-300 - Download
