Visible Single-Photon Detector (Peak QE~500nm) | SIMTRUM Photonics Store

Visible Single-Photon Detector (Peak QE~500nm)

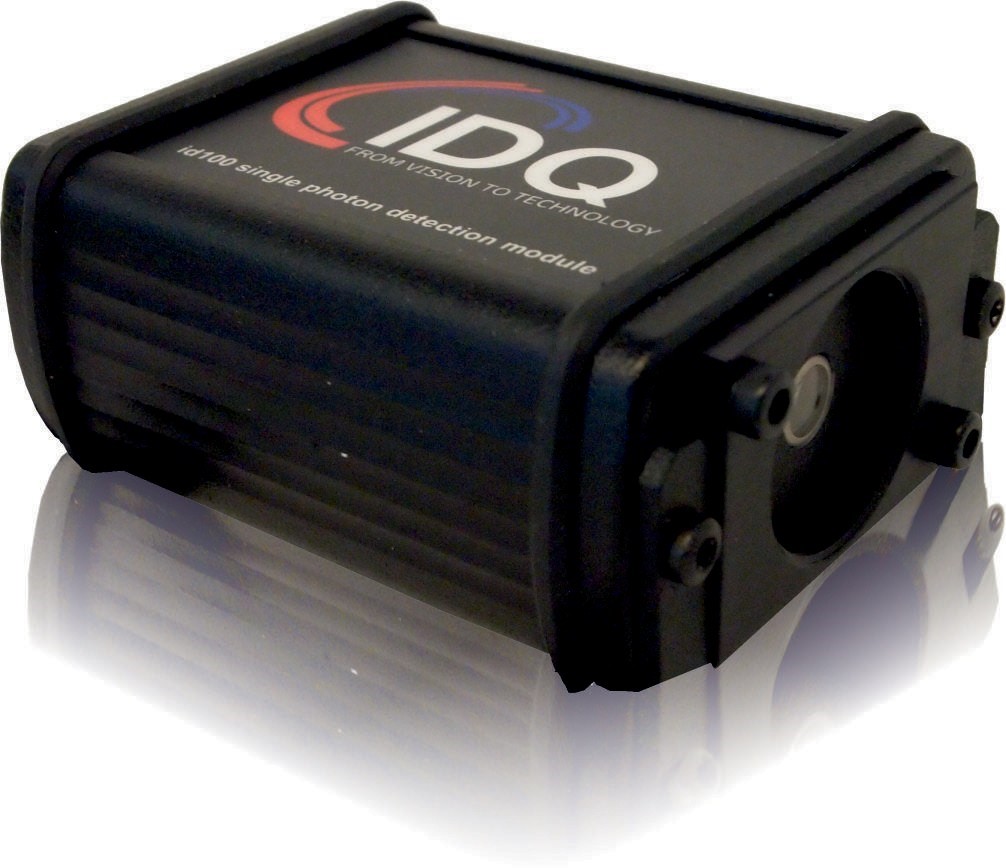

The ID100 series consists of compact and affordable single-photon detector modules with best-in-class timing resolution and state-of-the-art dark count rate based on a reliable silicon avalanche photodiode sensitive in the visible spectral range: 350-900 nm.



Varying Detector Size for Free Space and Fiber Applications

The ID100 series detectors come as:

-free-space modules, the ID100-20 and  ID100- 50 with 20 μm and 50 μm photosensitive area, respectively

-fibre-coupled modules, the ID100-SMF20, ID100- MMF50 and the ID100-MMF100 coming with a standard FC/PC optical input.


The modules are available in four dark count grades

The grades are educational (EDU), regular (REG), standard (STD) and ultra-low-noise (ULN), matching your budget to the perfromance required.


With a timing resolution as low as 40 ps and a remarkably short dead time of 45 ns, these modules outperform existing commercial detectors in all applications requiring single-photon detection with high timing accuracy and stability up to a count rate of 20 MHz.












● 350-900nm

● Timing resolution 40ps

● Low dead time 45 ns

● Small IRF shift at high count rates

● Peak photon dtector at 500nm

● Active area diameter of 20um or 50um

● Free space or fiber coupling



General Specifications (download specification sheet here: ID100)

Parameter

Min

Typical

Max

Units

Wavelength Range

350


1000

nm

Timing Resolution [FWHM]


40

60

ps

Single-Photon Detection Probability (SPDE)

At 400nm

15

18


%

At 500nm

30

35


%

At 600nm

20

25


%

At 700nm

15

18


%

At 800nm

5

7


%

At 900nm

3

4


%






After Pulsing Probability


0.5


%

Output Pulse Width

9

10

15

ns

Output Pulse amplitude

1.5

2

2.5

V

Deadtime


45

50

ns

Maximum count rate


20


Mhz

Supply Voltage

5.6

6

6.5

V

Supply Current


100

150

mA

Storage Temperature

-40


70

°C

Cooling time



5

s


Model Guide


Active   Area Diameter

TE Cooled

Dark Count Rate

Educational   (EDU)

Regular   (REG)

Standard   (STD)

Ultra Low   Noise (ULN)

ID100-20-XXX

20um

Yes

<1000Hz

<250Hz

=<25Hz

<5Hz

ID100-SMF20-XXX

(1)

Yes

<1000Hz

<250Hz

=<25Hz

<5Hz

ID100-50-XXX

50um

Yes

<1000Hz

<250Hz

<100Hz

<60Hz

ID100-MMF50-XXX

(2)

Yes

<1000Hz

<250Hz

<100Hz

<60Hz

ID100-MMF100-XXX

(3)

Yes

<1000Hz

<250Hz

<100Hz

<60Hz


(1) The ID100-SMF20 contains a single mode fibre optimized to your operating wavelength

(2) The ID100-MMF50 contains a 50/125 μm multi-mode fibre optimized for the visible spectral range with a 0.22 numerical aperture. The coupling efficiency is larger than 80%.

(3) The ID100-MMF100 contains a 100/140 μm multi-mode fibre optimized for the visible spectral range with a 0.22 numerical aperture. The coupling efficiency is larger than 50%.


Supplied Accesories

- Free space: Detector system and 4 mounting brackets, Operating Guide, power supply transformer w/cable.

- Fibre coupled: Detector system, Operating Guide, Power supply transformer w/cable.


Please download the specification sheet found here: ID100

For assistance: please contact us at info@simtrum.com


General Specifications

Parameter

Min

Typical

Max

Units

Wavelength Range

350


1000

nm

Timing Resolution [FWHM]


40

60

ps

Single-Photon Detection Probability (SPDE)

At 400nm

15

18


%

At 500nm

30

35


%

At 600nm

20

25


%

At 700nm

15

18


%

At 800nm

5

7


%

At 900nm

3

4


%






After Pulsing Probability


0.5


%

Output Pulse Width

9

10

15

ns

Output Pulse amplitude

1.5

2

2.5

V

Deadtime


45

50

ns

Maximum count rate


20


Mhz

Supply Voltage

5.6

6

6.5

V

Supply Current


100

150

mA

Storage Temperature

-40


70

°C

Cooling time



5

s



Model Guide


Active   Area Diameter

TE Cooled

Dark Count Rate

Educational   (EDU)

Regular   (REG)

Standard   (STD)

Ultra Low   Noise (ULN)

ID100-20-XXX

20um

Yes

<1000Hz

<250Hz

=<25Hz

<5Hz

ID100-SMF20-XXX

(1)

Yes

<1000Hz

<250Hz

=<25Hz

<5Hz

ID100-50-XXX

50um

Yes

<1000Hz

<250Hz

<100Hz

<60Hz

ID100-MMF50-XXX

(2)

Yes

<1000Hz

<250Hz

<100Hz

<60Hz

ID100-MMF100-XXX

(3)

Yes

<1000Hz

<250Hz

<100Hz

<60Hz


(1) The ID100-SMF20 contains a single mode fibre optimized to your operating wavelength

(2) The ID100-MMF50 contains a 50/125 μm multi-mode fibre optimized for the visible spectral range with a 0.22 numerical aperture. The coupling efficiency is larger than 80%.

(3) The ID100-MMF100 contains a 100/140 μm multi-mode fibre optimized for the visible spectral range with a 0.22 numerical aperture. The coupling efficiency is larger than 50%.


Supplied Accesories

- Free space: Detector system and 4 mounting brackets, Operating Guide, power supply transformer w/cable.

- Fibre coupled: Detector system, Operating Guide, Power supply transformer w/cable.



The ID100 is an adapt device which can be used for a wide range of research and industrial processes. Consult our technical experts at info@simtrum.com or click the links below to access our subject matter guide.


Simtrum Application Note

Articles:

General Time Correlated Single Photon Counting(TCSPC) Guide

There   are several techniques for studying photoluminescence lifetime. Among them,Time-Correlated Single Photon Counting (TCSPC) is the most common technique for fluorescence lifetime measurements. It allows to measures fluorescence   decay time from 10sps to a few hundred nanoseconds producing a wealth of   information of the sample. This application note will discuss the basics of   luminescence, its application in the spectroscopy and microscopy, TCSPC setup   and necessary components in detail.


Fluorescence and luminescence detection

Fluorescence Lifetime Imaging microscopy (FILM) is an   imaging technique which is based on the differences in the exponential decay   rate of the fluorophore from a sample. This technique has been widely used to   quantify froster resonance energy transfer (FRET) in cells and to acquire   information about populations of interacting molecules. FILM is a highly   sensitive technique for recording very weak signals with picosecond   resolution with high precision. It is independent of fluorophore   concentration, excitation intensity and noise.


Dynamic Light Scattering (DLS)

DLS is a non invasive technique and it is well established for measuring the size of molecules and particles in the submicron region. It can measure particle sizes of 1nm to 1/10 of the wavelength of the light with ± 1% precision ± by taking only 1-2 minutes to get the results. It allows for low sample volumes (as low as 2 uL) and straightforward sample preparation at modest development cost. An overview of the DLS experiment is by measuring the auto-correlation measurements and plotting an intensity correlation function(ICF) with time.


Articles Coming Soon:

Single molecule detection, DNA   sequencing

Fluorescence correlation spectroscopy

Flow cytometry, spectrophotometry

Quantum cryptography, quantum   optics

Laser scanning microscope

Adaptive optics Particle physics

Dynamic light scattering   (DLS)



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
ID100-MMF100-STD
Single-Photon Detector Module in the VIS spectrum, with 50 micron diode; Fiber couple with multi mode fibers of 100 micron core with 50% coupling; DCR <100Hz
4-6 Weeks Request for quote
ID100-MMF100-REG
Single-Photon Detector Module in the VIS spectrum, with 50 micron diode; Fiber couple with multi mode fibers of 100 micron core with 50% coupling; DCR <100Hz
4-6 Weeks Request for quote
ID100-MMF100-EDU
Single-Photon Detector Module in the VIS spectrum, with 50 micron diode; Fiber couple with multi mode fibers of 100 micron core with 50% coupling; DCR <1000Hz
4-6 Weeks Request for quote
ID100-MMF50-ULN
Single-Photon Detector Module in the VIS spectrum, with 60 micron diode; Fiber couple with multi mode fibers of 50 micron core with 80% coupling efficiency; DCR <60Hz
4-6 Weeks Request for quote
ID100-MMF50-STD
Single-Photon Detector Module in the VIS spectrum, with 50 micron diode; Fiber couple with multi mode fibers of 50 micron core with 80% coupling efficiency; DCR <100Hz
4-6 Weeks Request for quote
ID100-MMF50-REG
Single-Photon Detector Module in the VIS spectrum, with 50 micron diode; Fiber couple with multi mode fibers of 50 micron core with 80% coupling efficiency; DCR <250Hz
4-6 Weeks Request for quote
ID100-MMF50-EDU
Single-Photon Detector Module in the VIS spectrum, with 50 micron diode; Fiber couple with multi mode fibers of 50 micron core with 80% coupling efficiency; DCR <1000Hz
4-6 Weeks Request for quote
ID100-50-ULN
Single-Photon Detector Module in the VIS spectrum, with 50 micron diode; Free Space; DCR =<60Hz
4-6 Weeks Request for quote
ID100-50-STD
Single-Photon Detector Module in the VIS spectrum, with 50 micron diode; Free Space; DCR <100Hz
4-6 Weeks Request for quote
ID100-50-REG
Single-Photon Detector Module in the VIS spectrum, with 50 micron diode; Free Space; DCR <250Hz
4-6 Weeks Request for quote
ID100-50-EDU
Single-Photon Detector Module in the VIS spectrum, with 50 micron diode; Free Space; DCR<1000 Hz
4-6 Weeks Request for quote
ID100-SMF20-ULN
Single-Photon Detector Module in the VIS spectrum, with a 20 micron diode; Fiber couple with single mode; DCR=<7Hz
4-6 Weeks Request for quote
ID100-SMF20-STD
Single-Photon Detector Module in the VIS spectrum, with a 20 micron diode; Fiber couple with single mode; DCR=<25Hz
4-6 Weeks Request for quote
ID100-SMF20-REG
Single-Photon Detector Module in the VIS spectrum, with a 20 micron diode; Fiber couple with single mode; DCR<250Hz
4-6 Weeks Request for quote
ID100-SMF20-EDU
Single-Photon Detector Module in the VIS spectrum, with a 20 micron diode; Fiber couple with single mode; DCR<1000Hz
4-6 Weeks Request for quote
ID100-20-ULN
Single-Photon Detector Module in the VIS spectrum, with a 20 micron diode; Free space; DCR=<7Hz
4-6 Weeks Request for quote
ID100-20-STD
Single-Photon Detector Module in the VIS spectrum, with a 20 micron diode; Free space; DCR=<25Hz
4-6 Weeks Request for quote
ID100-20-REG
Single-Photon Detector Module in the VIS spectrum, with a 20 micron diode; Free space; DCR<250Hz
4-6 Weeks Request for quote
ID100-20-EDU
Single-Photon Detector Module in the VIS spectrum, with a 20 micron diode; Free space; DCR<1000Hz
4-6 Weeks Request for quote
