This Calculator Will Help You To calculate The Diffracted Angle For A Given Incidence Angle Of Transmission Gratings

www.simtrum.com

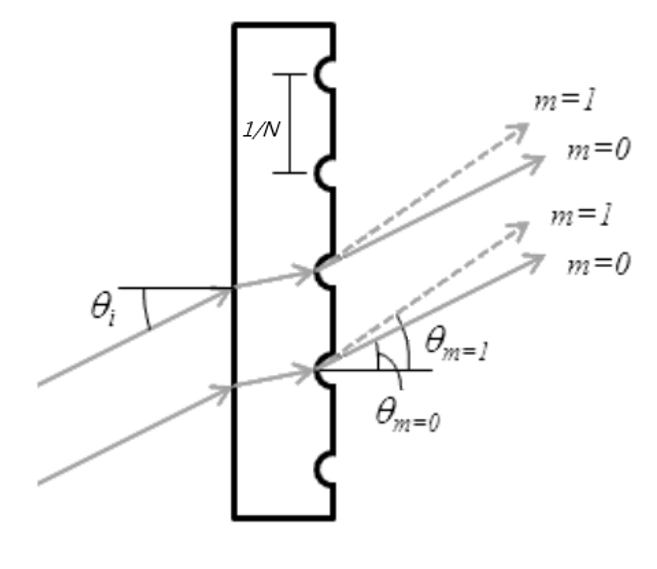

$\frac{[ sin(\theta_m) - sin(\theta_i)]}{N}$= $m \lambda$


Raster Line Density $N$; Incidence Angle $\theta_i$; Order $m$; Wavelength $\lambda$; Diffracted Angle $\theta_m$;


Input
Raster Line Density, $N$:
1/mm
Incidence Angle, $\theta_i$:
degree (°)
Order, $m$:
Wavelength, $\lambda$:
nm





Output
Diffracted Angle, $\theta_m$:
degree (°)
