2000nm High Power CW Fiber Laser
Overview & Specifications Related Products Order Now!

High Power CW Fiber Laser – STPW 2000

STPW 2000 is a high-power 2000nm CW Fiber laser with an operating wavelength range of 1900nm – 2050nm, single mode output with CW output power of up to 30W. It has an excellent near-diffraction limit beam.


STPW 2000 is ideal for transparent plastic welding using materials such as PMMA and PC/ABS for biomedical applications. It can also be used as the pump source for MIR lasers in scientific research.







Features

- Customizable wavelength

- Single mode

- Diffraction limited beam

- Easy operation and maintenance-free

- Turn-key system

Applications

- Plastic welding and cutting

- Medical surgery

- Solid laser pump source

- Transparent material processing

- Spectroscopy

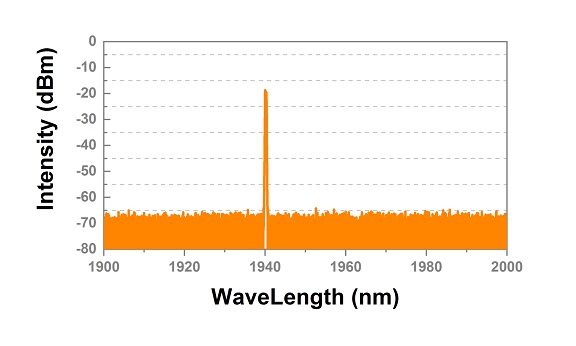

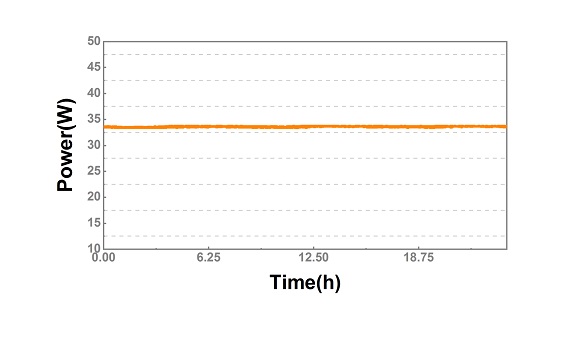

Output SpectrumPower Stability




Product specifications and Brochures

Product Brochure Link:


Laser Parameters
Operating Wavelengthnm1900-2000 nm
Spectral Bandwidthnm<1 nm
Average PowerW30W, 70W
Beam Diametermm5 mm
Average Power Stability% RMS<1 % RMS (24h@25°C)
Beam Quality
TEM00, m2<1.1
Output Polarization
Random/Linear Polarization
Output Type
Fiber collimator output
Electrical, Environmental and Mechanical Parameters
Supply VoltageVAC100-240
Operational Temperature Range°C15-35
Operational Humidity Range%20-80 ( Non-condensing )
Weight Laser Headkg20
Dimensions Laser Headmm (LxW*H)633 x 483 x 141
Cooling
Air-cooled, Water-cooled

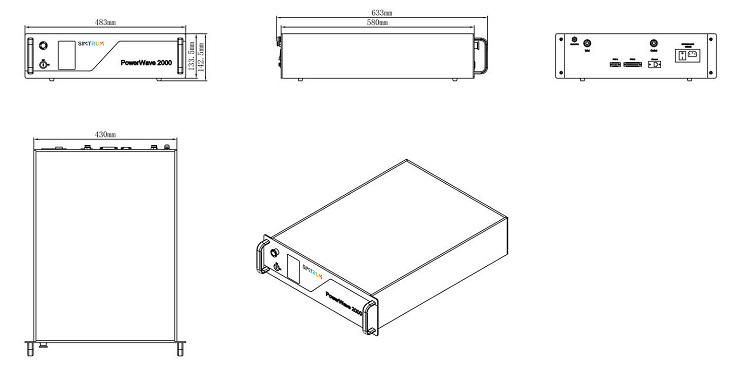

Machine Drawings





Type Wavelength Wavelength Accuracy Spectral Linewidth Output Power
405-940 CW Single Mode Fiber Laser 405-940 nm ±5 nm - 5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser 793/ 808/ 915/ 976 nm ±3 nm / ±10 nm 3nm / 6nm 5/10/25W
974/976 CW Single Mode Fiber Pump Laser 974/ 976 nm ±1 nm - 200 - 1000mW
1030/1064 CW Single Mode Fiber Laser 1064 nm ±2 nm < 0.1nm 100mW - 10W
1120nm CW Single Mode Fiber Laser 1120±1 nm -  ≤ 0.1nm 1/2/5W
1310 CW Single Mode Fiber Laser 1310 nm ±2 nm ≤ 3nm 10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser 1425/ 1435/ 1455/ 1465/ 1480 nm ±3 nm / ±10 nm - 200 - 800mW
1550 CW Single Mode Fiber Laser 1550 nm ±0.5 nm ≤ 3nm 10mW - 20W
1570 CW Single Mode Fiber Laser 1570 nm ±1 ±0.5 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
2000 High Power CW Fiber Laser 1900-2050 nm - < 1nm  > 30 W
