Optical Power Meter (Photodiode) | SIMTRUM Photonics Store

Optical Power Meter

SIMTRUM can provide photoelectric, thermoelectric, handheld and USB multi-channel laser power meters, the wavelength range covers 0.19-25 um, the power can be measured in a wide range, often used in laser processing, experimental testing and laser performance monitoring and other fields.

Model Wavelength range Power range Resolution Sensitivity Accuracy

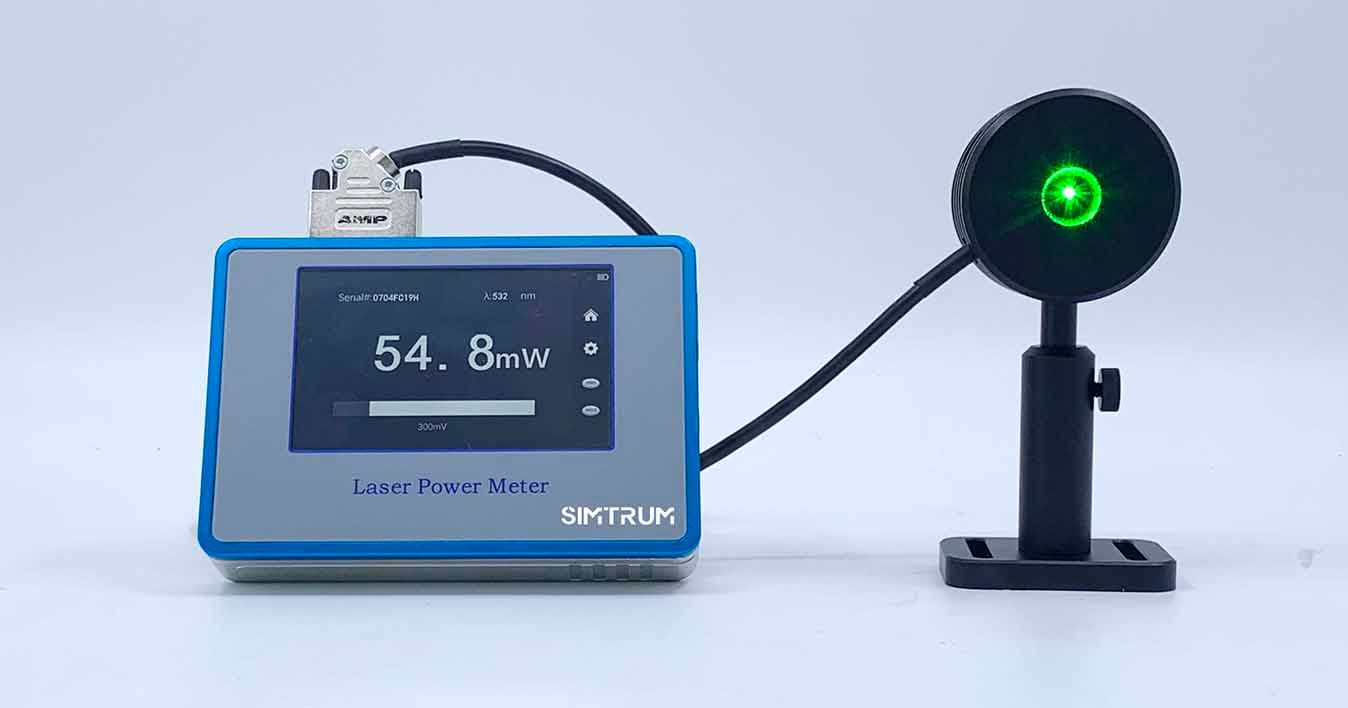

Thermopile Laser Power Meter 0.19-25 um 100uW-300W Up to 10uW Up to 100uW <±2%
Handheld Thermopile Laser Power Meter 0.19-25 um 0.5W-50W Up to100uW Up to 10mW <±2%

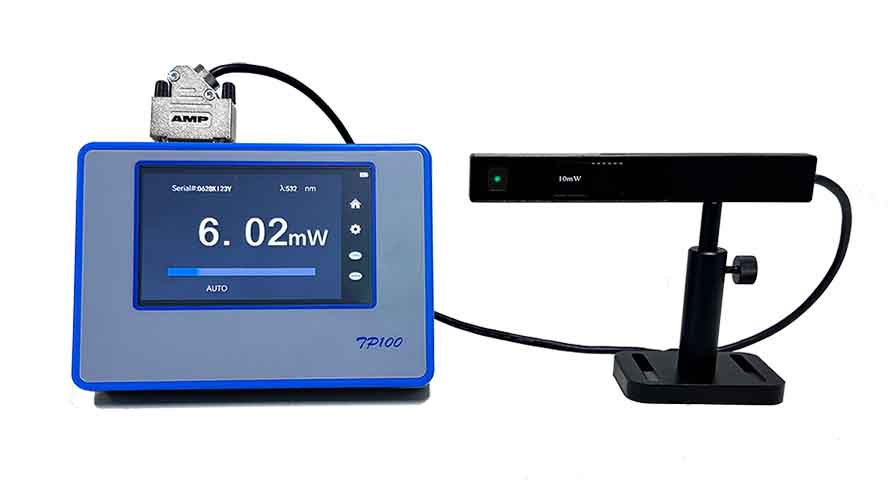

Photoelectric Laser Power Meter 200-1100 nm 1nW-1000mW Up to1nW 1nW <±2%
USB series Laser Power Meter 0.19-25 um 1nW-300W Up to1nW 1nW <±2%

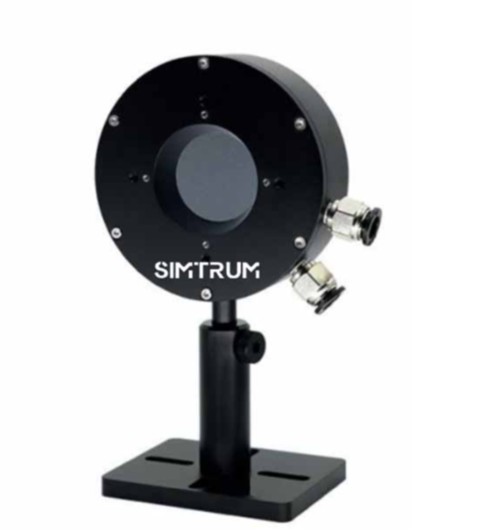

Water-cooled laser power meter 0.19-25 um 1-5000W Up to 0.1W / <±4%

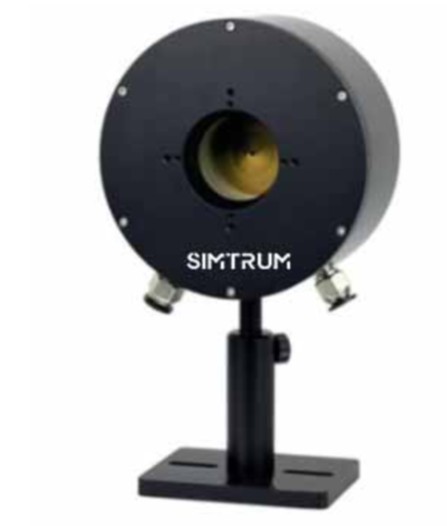

10-kilowatt-class thermoelectric power meter 0.8-2 um/10.6um 7KW-30kW 1W / <±5%

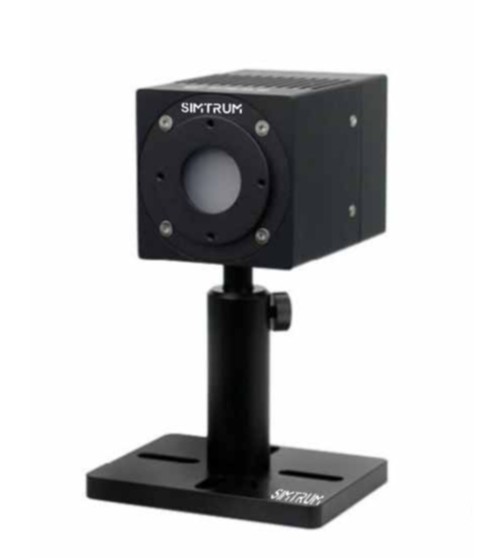

High damage threshold power meter 0.24-2.2 um 10mW-600W 最高0.5mW / <±3%

Technical Support Available: Contact us  You can download our full Product Line Card Click Here
