Hyperspectral Camera (220nm-12.5μm)
SIMTRUM provides hyperspectral camera from 220 nm to 12.5 um spectrum, we have line scan hyperspectral camera and snap short hyperspectral camera suitable for drone, lab , industrial & field application. choose a hyperspectral camera to meet your project goals and are suitable for general purpose use.
| Model |
Spectral Range |
Spectral resolution |
Resolution |
Frame rate |

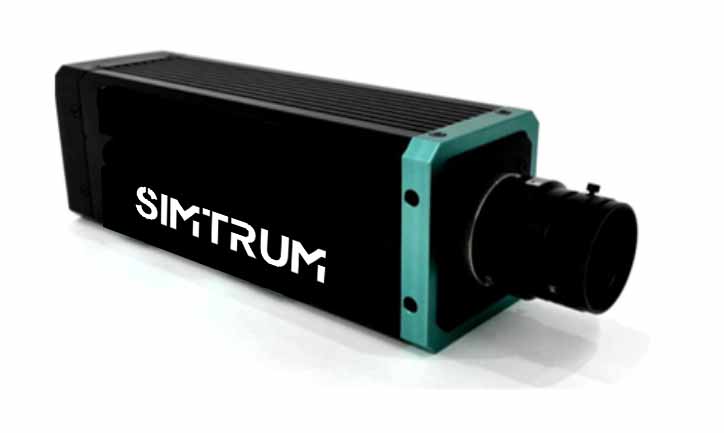

| Line-scan hyperspectral camera |
220-380nm |
better than 2nm |
2048*2048 |
40fps |
| 1056*1027 |
| 400-1000nm |
better than 7nm |
1312*1082 |
130fps |
| 950-1700nm |
better than 9nm |
320*256 |
330fps |
| 640*512 |
| 2900-4300nm |
better than 20nm |
320*256 |
642 fps @ 200 bands |
| Multi-detector line-scan hyperspectral camera |
400-1700nm |
400-1000nm:better than 2.8nm |
400-1000nm:5.86 µm x 5.86 µm |
400-1000nm:128fps |
| 900-1700nm: better than6nm |
900-1700nm:15µm x15 µm |
900-1700nm: 175fps |
| 400-2500nm |
400-1000nm:better than2.8nm |
400-1000nm:5.86 µm x 5.86 µm |
400-1000nm:128fps |
| 100-2500nm: better than10nm |
100-2500nm:15µm x15 µm |
1000-2500nm:100fps |

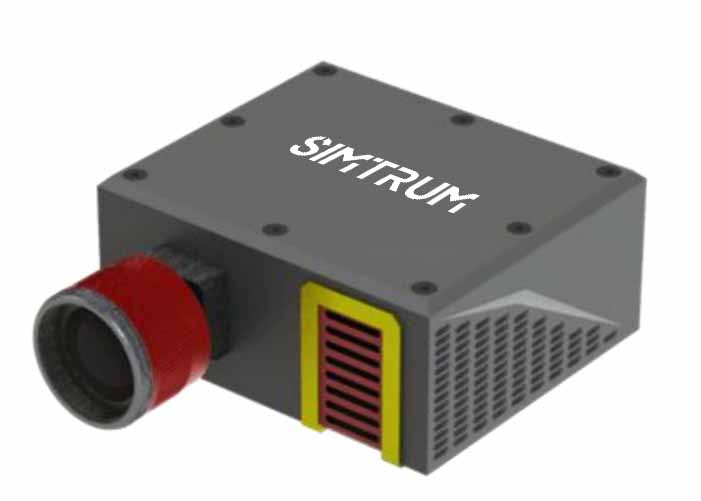

| Thermal infrared hyperspectral camera |
7700-12500nm |
better than 40nm |
15µm x15 µm |
/ |
|

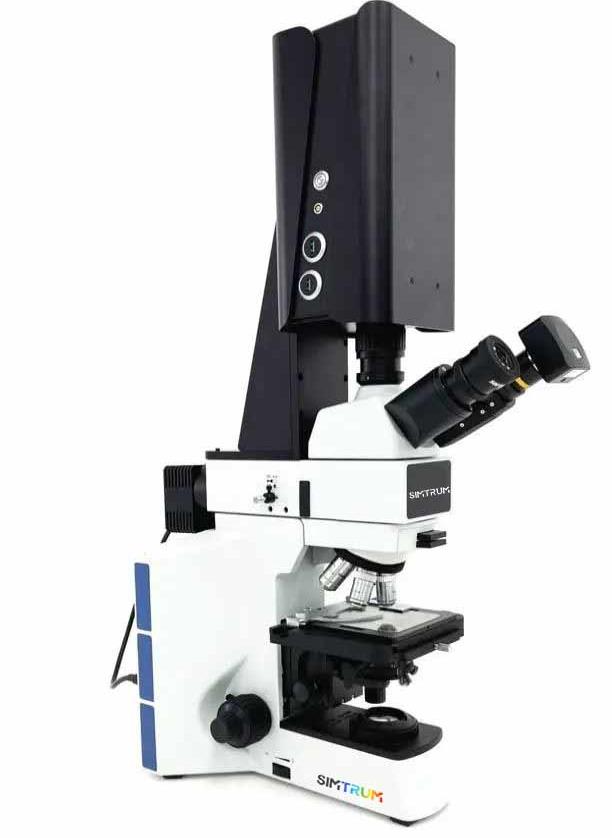

| Microscopic Hyperspectral Imager |
400-1000nm |
better than 2.8nm |
1920*1200 |
128fps |
| 900-1700nm |
better than 6nm |
640*512 |
140fps |

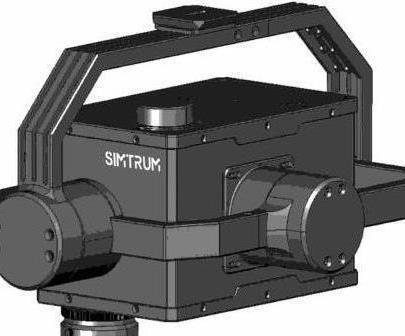

| UAV-Borne Hyperspectral Imaging System |
400-1000nm |
better than 2.8nm |
1920*1200 |
128fps |
| 900-1700nm |
better than 6nm |
1280*1024 |
125fps |
| 900-2500nm |
better than 10nm |
640*512 |
≥100fps |
| 400-2500nm |
400-1000nm:better than 2.8nm |
400-1000nm:5.86 µm x 5.86 µm |
400-1000nm:128fps |
| 1000-2500nm:better than 10nm |
100-2500nm:15µm x15 µm |
1000-2500nm:100fps |

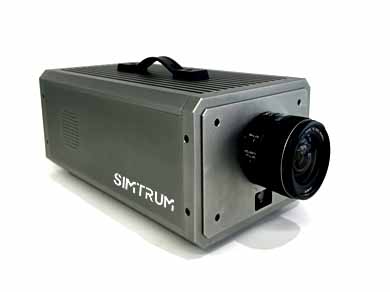

| Portable hyperspectral camera |
400-1000nm |
better than 2.8nm |
1920*1200 |
50/128fps |
| 900-1700nm |
better than 6nm |
640*512 |
175fps |
Technical Support Available: Contact us | You can download our full Product Line Card Click Here
