Products / Lasers/Light / DPSS / Diode Lasers / CW Pigtail Laser Diode (400-1920nm) /

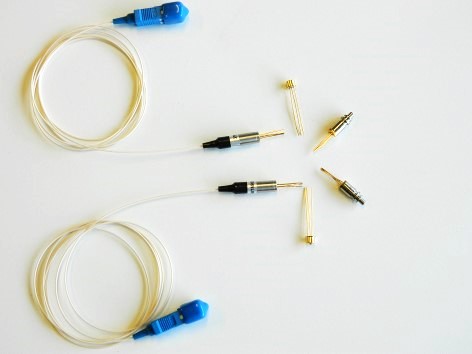

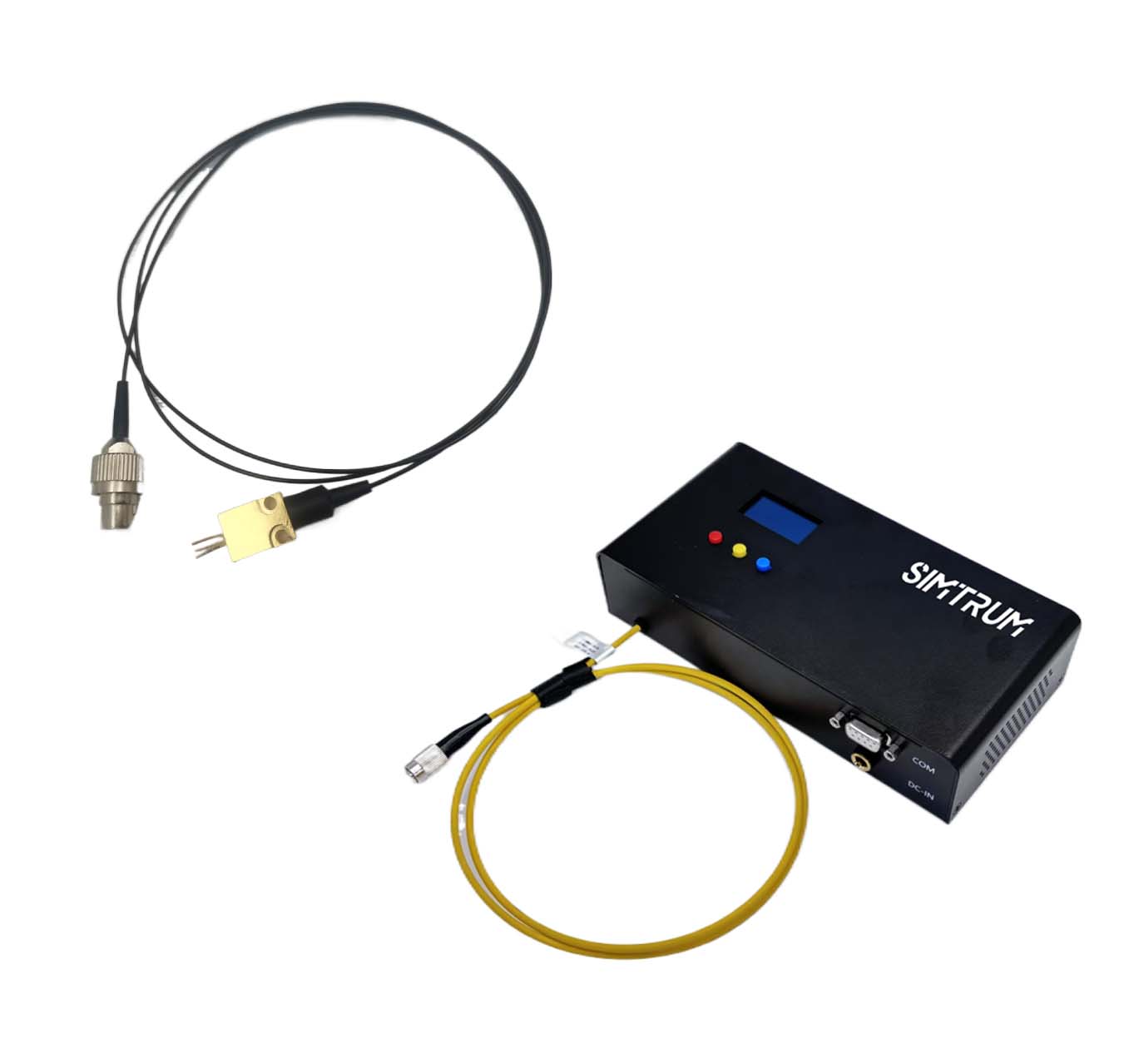

SIMTRUM Offer different types of fiber pigtailed laser diode, with single-mode ,multi-mode option. wavelengh rance cover from 400-1920nm power level can be customized

Laser Diode Type	Wavelength Choice	Power Range	Mode
CW Pigtailed Laser Diode Single Mode (400-700nm)	400nm / 405nm / 445nm / 460nm / 473nm / 480nm / 488nm / 495nm / 505nm / 510nm / 520nm / 633nm / 635nm / 660nm / 670nm/ 685nm	15mW - 100mW	SM
CW Pigtailed Laser Diod Multi-Mode (375 - 700nm)	375nm / 395nm / 400nm / 405nm / 410nm / 413nm / 445nm / 455nm / 465nm / 480nm / 488nm / 495nm / 505nm / 520nm / 525nm / 532nm / 630nm / 633nm / 635nm/ 653nm / 660nm / 670nm / 685nm / 690nm	50mW - 20W	MM
CW Pigtailed Laser Diode Single Mode (700-1650nm)	705nm / 730nm / 785nm / 808nm / 820nm / 830nm / 850nm / 880nm / 905nm / 940nm / 980nm /1064nm / 1270nm / 1290nm / 1310nm /1330nm / 1350nm / 1370nm / 1390nm / 1410nm / 1430nm / 1450nm / 1470nm / 1490nm / 1510nm / 1530nm / 1550nm / 1570nm / 1590nm / 1610nm / 1625nm / 1650nm	2mW - 100mW	SM
CW Pigtailed Laser Diode Multi-Mode (700-1920nm)	760nm / 770nm / 785nm / 808nm / 830nm / 850nm / 880nm / 905nm / 915nm / 940nm / 980nm / 1064nm / 1310nm / 1330nm / 1450nm / 1470nm / 1490nm / 1530nm / 1550nm / 1570nm / 1920nm	5mW - 55W	SM
CW Pigtailed Narrow linewidth Laser Diode Single Mode	Full Range1270 to 1650nm Follow ITU standard with 50Ghz per wavelength	10mW - 100mW	SM
CW Pigtailed TO56 Laser Diode Single Mode (1270nm - 1653nm)	1270nm / 1290nm / 1310nm / 1330nm	~2 mW	SM
Semiconductor Optical Amplifier (SOA)

Technical Support Available: Contact us | You can download our full Product Line Card Click Here
