X-ray Spectrometer (1- 20keV)
hardLIGHT Overview Related Product Order Now!

hardLIGHT X-ray Spectrometer (2 - 4keV)

The TXS spectrometer enables accurate photon diagnostics at HHG beamlines, X-ray

free-electron lasers, and table-top X-ray lasers. Photon energies between 2 keV and

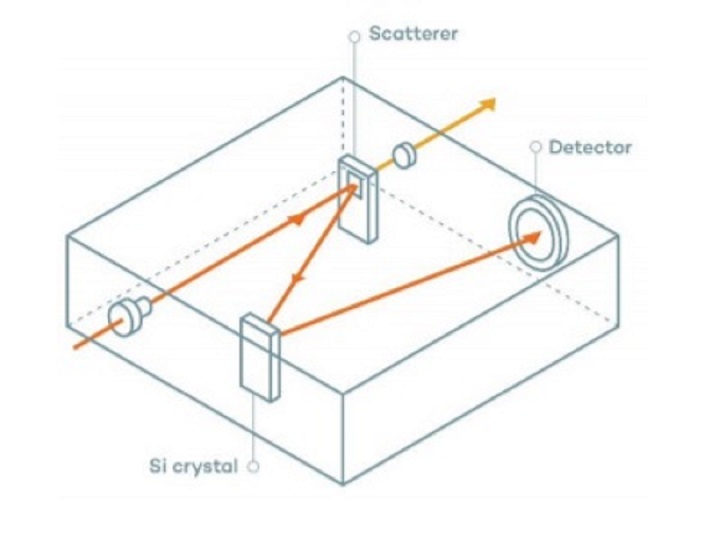

4 keV can be measured in single-shot. In von Hamos geometry with high-efficiency

backscattering, the X-ray spectrum is fingerprinted for online beam characterization.

The transmitted beam remains undisturbed with >90% transmission for further use in

experiments. By simply exchanging the backscattering probe with a material sample,

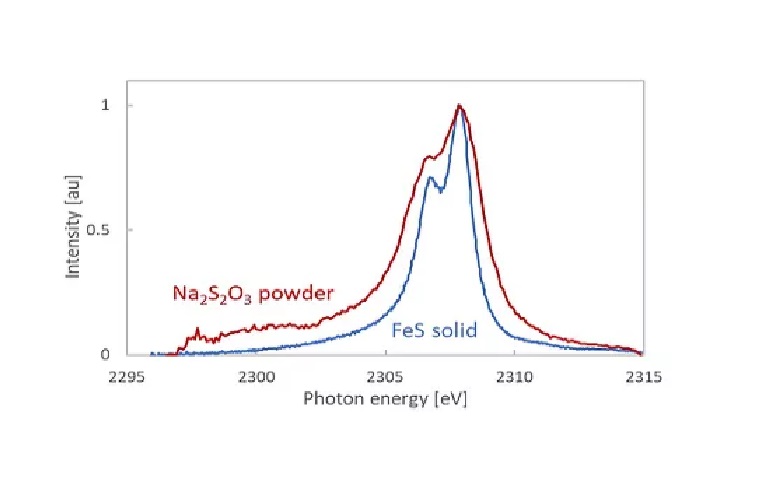

the hardLIGHT TXS is made ready for X-ray emission spectroscopy (XES). The tender

X-ray range provides sensitive access to the chemical state of many materials, e.g.,

investigations of sulfur at 2keV allow for important insights for battery research.

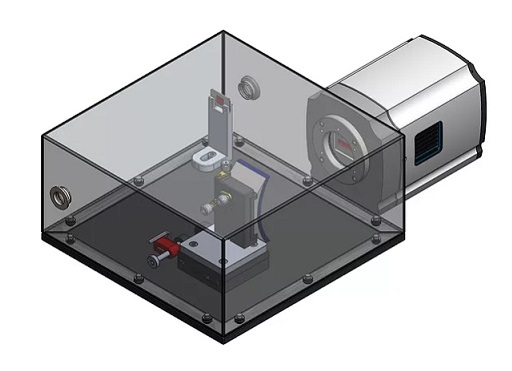

X-ray Spectrometer.JPG

Please check the table below for individual specifications

Product Brochure English: X-ray Spectrometer (1-20keV)

中文产品册: X-ray Spectrometer (1-20keV)


Typical Value

Remarks

Product Model

hardLIGHT TXS


Topology

Von Hamos


Energy Range (KeV)

2-4 keV , resolution 0.3eV


Source Distance

Flexible


Detector

CCD or MCP/CMOS or Hybrid


Operating Pressure (mbar)

< 10-6

UHV Version Available

Crystal Positioning

Motorized Closed-loop


Spectral Filter Insertion Unit

Optional


Control Interfaces

USB or Ethernet


Software

Windows UI and LabVIEW/VB/C/C++SDK


Customizable

Fully Customizable



Versatility

• Small footprint

• Easily transferred between experimental stations

• Intuitive operation


XES Operation Mode

• Emission spectroscopy in the tender X-ray range 2-4keV

• Integrated sample mount

• High energy resolution of 10-4 in a bandwidth of 2%


Diagnostic Operation Mode

• Online beam characterization at HHG beamlines,

• X-ray free-electron lasers,

• table-top X-ray lasers

• Non-interfering architecture with backscattering probe

• High transmission >90%






Customization

• Every spectrometer is customized to exactly match the desired

  application, e.g:

• Table-top x-ray spectrometers

• Bragg/Laue x-ray spectrometer

• Combined crystal/multilayer spectrometer

• Tokamak diagnostics

• Monte Carlo simulations





Related UV Camera Options

Product
Model

maxCAM

 easyCAM XF95
 Sensor

 back-illuminated CCD from e2v (grade 1),

 enhanced process, uncoated

front-illuminated CCD from e2v (grade 1),

enhanced process

Back-illuminated sCMOS without Anti-reflection coating
Wavelength 1-100nm( Best QE) 50-300nm -
 Pixels  1024 x 255 * 2048 x 2048
 Pixel Size  26 x 26 um 11um x 11 um
 Image Area  26.7 x 6.7 mm 22.5mm x 22.5mm
 Spectral Rates  200/s full vertical bin, 1000/s crop mode 80-1000eV; 200 nm-1100nm
 Minimum Temperature  -60° C air cooled -50° C @20° C room temperature
 Well Depth

 500 000 e- active area,  1 000 000 eregister

90 000 e-
 Read Noise  12.5 etyp. at 500kHz 1.6 e- (Median)
 Dark Current  0.004 e- /px/s at -60°C -
 Linearity  >99% -
 Vacuum Compatibility  10-8mbar 10-7Pa(Max)



Related Spectrometer Product

Product Model Wavelength (nm) Dispersion Resolution
maxLIGHT Pro (XUV) 5 to 80 0.5 to   1.3nm/mm <0.028nm at 40nm
easyLIGHT (XUV) 30 to 250 ~2.0nm/mm <0.1nm
highLIGHT(XUV) 1 to 100 - <0.1nm
maxLIGHT (VUV) 40 to 200 0.9 to   1.6nm/mm <0.05nm at 120nm
easyLIGHT (VUV) 80 to  300 ~2.5nm/mm <0.1nm
X-Ray Spectroscopy
 2-4 keV   0.3eV
Extended X-ray Spectroscopy 5-12keV
Near Edge X-ray absorption
 200 - 1200eV


We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
X-ray Spectrometer
X-ray Spectrometer (1-20keV) 		4-6 Weeks Request for quote

X-ray Spectrometer - Parameter
