Fast pyrometers with display (0°C-3000 °C) | SIMTRUM Photonics

Products / Imaging /Infrared Pyrometer/Cameras /Infrared Pyrometers (-40-3000C) /Infrared Pyrometers Series 1x /
Infrared Pyrometers Series 1x
Overview Specifications & Model Guide Related Products Order Now!

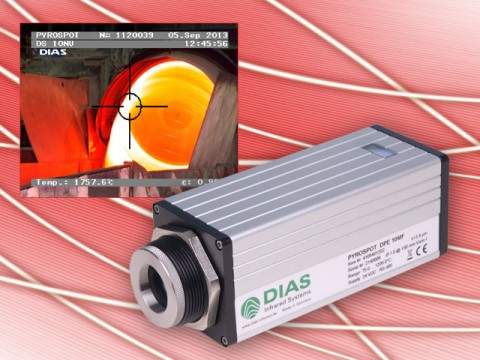

PYROSPOT Series 10 - Fast pyrometers with display, keys for parameterization and vario optics


The digital pyrometers PYROSPOT of series 10 are used specifically for non-contact temperature measurment in industry and research. Different temperature and spectral ranges are available. Customized system solutions including hardware and software adjustments are possible at any time.

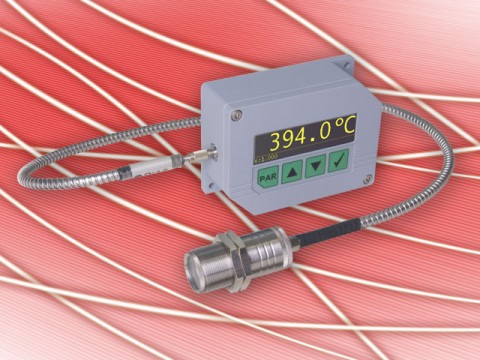

PYROSPOT Series 11 - Robust and fast fiber optics pyrometers with display and control keys


The digital pyrometer PYROSPOT of series 11 are used specifically in steel industry, kiln engineering, soldering installations as well as in ceramic and metal industry. The solid construction in a robust housing with fiber optic cable allows usage even under rough environmental conditions.












Charateristics of the PYROSPOT Series 10:

- Temperature measurement from 0°C to 3000 °C

- Short response times from 1 ms

- Vario optics with measurement field size from 0.7 mm

- Aiming: laser aiming light, led aiming light, through-lens sighting or

  integrated video camera

- Ratio pyrometers for almost emissivity independent measurments

- The devices have keys for parameterization of the device and

  a display showing the temperature

- 0/4 to 20 mA standard temperature linear output

- RS-485 interface (galvanically isolated, Modbus RTU)

- Minimum/maximum value storage

- Switch output, galvanically isolated

- Compact IP 65 housing (54 mm × 54 mm × 170 mm)

- Optional: ATEX explosion protection housing

- Special pyrometers for temperature measurements on

  hot CO2 (DA 10C), in semiconductor industry (DA 10MF),

  on thungsten (DG 10NT) and on silicon/laser application (DGA 10N)

 Charateristics of the PYROSPOT Series 11:

 - Full digital spectral and ratio pyrometer with fiber cable

 - Temperature ranges between 100 °C and 3000 °C

 - Fiber cable and optical head for ambient temperatures up to 250 °C

 - Vario and fixed optics for target sizes from 0.7 mm

 - Short response times from 2 ms

 - Large, easy to read OLED display and programmable keys

 - Integrated laser aiming light

 - Standard temperature linear output 0/4 to 20 mA

 - RS-485 interface (Modbus RTU) and integrated switch contact

 - Maximum/minimum value storage

 - Compact housing, IP65

 - Special pyrometers for temperature measurement in silicon and for laser application

   (DGAF 11N)




























Housing Variants


Round housingsCompact housingSeparate electronics boxPortable





Series2540, 42, 44, 47, 4854, 55, 56104, 11, 302), 342)80
DimensionsM25×1,
    length 98 mm		M40×1.5,
    length 125 mm		Æ 50 mm,
    length 105-140 mm		54 × 54 × 170 mm³ (H × W × L)

80 × 110 × 40 mm³

(H × W × D)

230 × 135 × 85 mm³ (H × W × L)
MaterialStainless steel (IP65)Stainless steel (IP65)Stainless steel (IP65)Aluminum (IP65)Aluminum, stainless steel (IP65)Aluminium, plastics (IP50)



Please check the table below for individual specifications tied to individual products.

Product Brochure Link: PYROSPOT Series 10 & 11


Series 10 – Fast pyrometers with display, parameterization keys and vario optics


 - Different vario optics with very small target sizes     from 0.7 mm

 - Integrated display for showing measured values       and parameters

 - Keys for parameterization

 - A lot of different aiming aids

Device typeSpectral rangeTemperature rangeDistance ratiot95InterfaceAiming/targeting aid
DS 10N0.8 µm to 1.1 µm550 °C to 3000 °C200 : 1 to 300 : 12 msRS-485Each pyrometer is equipped with a LED or laser aiming light, a through-lens sighting or a color video camera
DGA 10Naround 0.88 µm400 °C to 2500 °C50 : 1 to 200 : 12 msRS-485
DG 10NTaround 1.25 µm500 °C to 2500 °C200 : 12 msRS-485
DG 10N1.5 µm to 1.8 µm200 °C to 2500 °C200 : 1 to 300 : 12 msRS-485
DGE 10N2.0 µm to 2.6 µm100 °C to 1200 °C100 : 1 to 200 : 12 msRS-485
DP 10N2.0 µm to 2.8 µm50 °C to 1200 °C100 : 1 to 200 : 11,5 msRS-485
DA 10M3 µm to 5.0 µm30°C to 1400 °C100 : 1 to 130 : 11 msRS-485
DPE 10M3.0 µm to 5.0 µm20 °C to 1000 °C75 : 1 to 150 : 11,5 msRS-485
DA 10MF3.5 µm to 4.0 µm75 °C to 1800 °C100 : 1 to 130 : 11 msRS-485
DPE 10MF3.5 µm to 4.0 µm50 °C to 2500 °C75 : 1 to 200 : 11,5 msRS-485
DA 10Faround 3.9 µm200 °C to 2500 °C100 : 1 to 130 : 11 msRS-485
DA 10Caround 4.6 µm500 °C to 2000 °C100 : 11 msRS-485Through-lens sighting
DA 10Garound 5.0 µm75 °C to 2500 °C100 : 1 to 130 : 11 msRS-485Each pyrometer is equipped with a LED or laser aiming light, a through-lens sighting or a color video camera
DY 10L8 µm to 14 µm0 °C to 1000 °C80 : 1 to 100 : 130 msRS-485
Ratio pyrometers
DSR 10N0.7 µm to 1.1 µm500 °C to 3000 °C50 : 1 to 300 : 15 msRS-485Each pyrometer is equipped with a LED or laser aiming light, a through-lens sighting or a color video camera
DSR 10NF0.7 µm to 1.1 µm600 °C to 2500 °C100 : 1 to 300 : 15 msRS-485
DGR 10N1.5 µm to 1.9 µm300 °C to 2300 °C100 : 1 to 300 : 15 msRS-485



Series 11 – Robust pyrometers with fiber optics, display and keys


 - Vario and fixed optics available with very small

    target sizes from 0.7 mm

 - For environmental conditions up to 250 °C

 - OLED display and keys for parameterization

 - Protection class IP65

Device typeSpectral rangeTemperature rangeDistance ratiot95InterfaceAiming/targeting aid
DSF 11N0.8 µm to 1.1 µm600 °C to 3000 °C100 : 1 to 150 : 12 msRS-485Laser aiming light
DGAF 11Naround 0.88 µm350 °C to 2500 °C15: 1 to 150 : 12 msRS-485Laser aiming light
DGF 11N1.5 µm to 1.8 µm250 °C to 2500 °C100 : 1 to 150 : 12 msRS-485Laser aiming light
DGEF 11N1.5 µm to 2.2 µm100 °C to 800 °C20 : 1 to 30 :12 msRS-485Laser aiming light
DGEF 11N2.0 µm to 2.6 µm150 °C to 1200 °C50 : 1 to 75 : 12 msRS-485Laser aiming light
Ratio pyrometers
DSRF 11N0.7 µm to 1.1 µm600 °C to 3000 °C50 : 1 to 150 : 15 msRS-485Laser aiming light
DGRF 11N1.5 µm to 1.9 µm300 °C to 2300 °C50 : 1 to 150 : 15 msRS-485Laser aiming light


What does the device designation mean?

Our pyrometers are labeled according to a special scheme that helps you identify the IR sensor type, instrument series, spectral range, and some special features.

For example: PYROSPOT DA 10GV

Pyrometer with semiconductor photodiode infrared sensor of series 10, sectral range "G" and video module


PYROSPOTD_ ____ ___ _
DIAS
Infrared detector
S, G, A, GE, GA – Semiconductor photodiodes

P, PE – Semiconductor photoresistors,

T – Thermopile, Y – pyroelectric detector

R – Ratio pyrometer
F – Fiber optics
Device series  4, 10, 11, 25, 30, 34, 40, 42, 44, 47, 48, 54, 55, 56, 80
Spectral range
N, M, P,  F, C, G, U, L (please refer overview)
Additional designation: F – Flames, G – Glass, T – Tungsten, V – Video camera














Find the right device for every material and measuring temperature range

MaterialMeasuring temperature rangeSpectral rangeDevice designation
Nonmetals–40°C to 1000°C8 µm to 14 µm"L"
Ultrathin glass300°C to 1100°Caround 7.7 µm"U"
Glass surfaces50°C to 2500°Caround 5.0 µm"G"
Hot CO2500°C to 2000°Caround 4.5 µm/4.6 µm"C"
Measurement through flames100°C to 2500°Caround 3.9 µm"F"
Semidconductors, metals50°C to 1800°C3.5 µm to 4.0 µm"MF"
Thin plastic films50°C to 400°Caround 3.43 µm"P"
Ceramics, metals20°C to 1000°C3 µm to 5 µm"M"
Metals, ceramics50°C to 2200°C2.0 µm to 2.8 µm"N"
Metals, ceramics, graphite200°C to 2500°C1.5 µm to 1.8 µm"N"
Tungsten500°C to 2500°Caround 1.25 µm"NT"
Silicon, metals400°C to 2500°Caround 0.88 µm"N"
Metals, glass melts500°C to 3000°C0.8 µm to 1.1 µm"N"
Liquid metals1000°C to 2500°Caround 0.55 µm"N"

























PYROSPOT SeriesTemperature RangeSpectral RangeInterfaceAiming and Targeting Aid
Series 1x0 °C to 3000 °C0.7 µm to 14 µmRS-485LED or Laser-Aiming light adapter,
    Through-lens sighting, Color video camera
Series 2x and 3xSeries 2x: –20 °C to 700 °C,
 Series 3x: 600 °C to 1800 °C		Series 2x: 8 µm to 14 µm,
   Series 3x: 0.8 µm to 1.1 µm		Parameter InterfaceLaser-Aiming light adapter
Series 4x–40 °C to 2500 °C0.7 µm to 14 µmUSB, RS-485, Ethernet

Laser-Aiming light adapter, LED aiming light

Series 5x–40 °C to 3000 °C0.7 µm to 2.6 µmRS-485

Through-lens sighting, Laser, Video

Series 8x200 °C to 3000 °C0.7 µm to 1.8 µmUSBTFT color display, laser



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Spectral range (µm)


Search Reset
Compare Model Drawings & Specs Spectral range (µm) Temperature Range (°C) Availability Reference Price
(USD)
DGRF 11N
4-6 Weeks Request for quote
DSRF 11N
0.7 to 1.1 4-6 Weeks Request for quote
DSF 11N
0.8 to 1.1 4-6 Weeks Request for quote
DGAF 11N
0.88 4-6 Weeks Request for quote
DGF 11N
 1.5 to 1.8 4-6 Weeks Request for quote
DGEF 11N
4-6 Weeks Request for quote
DSR 10NF/DSR 10NFV
 0.7 to 1.1 4-6 Weeks Request for quote
DSR 10N/DSR 10NV
 0.7 to 1.1 4-6 Weeks Request for quote
DGR 10N/DGR 10NV
 4-6 Weeks Request for quote
DS 10N/DS 10NV
0.8 to 1.1 4-6 Weeks Request for quote
DGA 10N/DGA 10NV
0.88 4-6 Weeks Request for quote
DG 10N/DG 10NV
 1.5 to 1.8 4-6 Weeks Request for quote
DGE 10N/DGE 10NV
 2.0 to 2.6 4-6 Weeks Request for quote
DP 10N/DP 10NV
 4-6 Weeks Request for quote
DPE 10M/DPE 10MV
 3 to 5 20 to 850 | 30 to 1000 4-6 Weeks Request for quote
DA 10M/DA 10MV
 3 to 5 4-6 Weeks Request for quote
DPE 10MF/DPE 10MFV
3.5 to 4.0 4-6 Weeks Request for quote
DA 10MF/DA 10MFV
 3.5 to 4.0 4-6 Weeks Request for quote
DA 10F/DA 10FV
 3.9 4-6 Weeks Request for quote
DA 10C/DT 40C
 4-6 Weeks Request for quote
DA 10G/DA 10GV
 5 4-6 Weeks Request for quote
DY 10L/DY 10LV
 8 to 14 4-6 Weeks Request for quote

DY 10L/DY 10LV - Parameter

Weight (g)
500

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display and push-buttons

Measurement Uncertainty
0.6 % or 1 K

Spectral range (µm)
8 to 14

Distance ratio
100:1

Reproducibility

Temperature Range (°C)

NETD (k)

Adjustable Response Time

Adjustable Emissivity ε
0.200 - 1.000 via RS-485 interface

Dimensions
54 mm × 54 mm, length 170 mm

DA 10G/DA 10GV - Parameter

Weight (g)
500

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display and push-buttons

Measurement Uncertainty
0.6 % or 1 K

Spectral range (µm)
5

Reproducibility
0.3 % or 0.5 K

Temperature Range (°C)

NETD (k)

Adjustable Response Time
1ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.010 - 1.000 via RS-485 interface

Dimensions
54 mm × 54 mm, length 170 mm

DA 10C/DT 40C - Parameter

Weight (g)
500

Operating Temperature (°C)
0 to 70

Housing

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)

Distance ratio
100:1

Reproducibility

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε

Dimensions
54 mm × 54 mm, length 170 mm

DA 10F/DA 10FV - Parameter

Weight (g)
500

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display and push-buttons

Measurement Uncertainty
0.6 % or 1 K

Spectral range (µm)
3.9

Reproducibility
0.3 % or 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
1ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.010 - 1.000 via RS-485 interface

Dimensions
54 mm × 54 mm, length 170 mm

DA 10MF/DA 10MFV - Parameter

Weight (g)
500

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display and push-buttons

Measurement Uncertainty
0.6 % or 1 K

Spectral range (µm)
3.5 to 4.0

Reproducibility
0.3 % or 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
1ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.010 - 1.000 via RS-485 interface

Dimensions
54 mm × 54 mm, length 170 mm

DPE 10MF/DPE 10MFV  - Parameter

Weight (g)
520

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display, push-buttons

Measurement Uncertainty
up to 400 °C: 2 K, over 400 °C: 0.3 % of measured value + 1 K

Spectral range (µm)
3.5 to 4.0

Reproducibility

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
1.5ms to 100s

Adjustable Emissivity ε
0.010 - 1.000 via device or interface

Dimensions
54 mm × 54 mm, length 170 mm

DA 10M/DA 10MV - Parameter

Weight (g)
520

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display and push-buttons

Measurement Uncertainty
0.6 % or 1 K

Spectral range (µm)
3 to 5

Reproducibility
0.3 % or 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
1ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.010 - 1.000 via RS-485 interface

Dimensions
54 mm × 54 mm, length 170 mm

DPE 10M/DPE 10MV - Parameter

Weight (g)
520

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display, push-buttons

Measurement Uncertainty
up to 400 °C: 2 K, over 400 °C: 0.3 % of measured value + 1 K

Spectral range (µm)
3 to 5

Reproducibility

Temperature Range (°C)
20 to 850 | 30 to 1000

NETD (k)
0.1

Adjustable Response Time
1.5ms to 100s

Adjustable Emissivity ε
0.010 - 1.000 via device or interface

Dimensions
54 mm × 54 mm, length 170 mm

DP 10N/DP 10NV - Parameter

Weight (g)
520

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display and push-buttons

Measurement Uncertainty
up to 400 °C: 2 K, over 400 °C: 0.3 % of measured value + 1 K

Spectral range (µm)

Reproducibility

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
1.5ms to 100s

Adjustable Emissivity ε
0.010 - 1.000 via device or interface

Dimensions
54 mm × 54 mm, length 170 mm

DGE 10N/DGE 10NV - Parameter

Weight (g)
520

Operating Temperature (°C)
0 to 45

Housing
Compact housing with plug connector, display, push-buttons and optics protection window

Measurement Uncertainty
0.5 % + 2 K

Spectral range (µm)
2.0 to 2.6

Distance ratio
100:1

Reproducibility
0.3 % + 1 K

Temperature Range (°C)

NETD (k)
0.5

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε

Dimensions
54 mm × 54 mm, length 170 mm

DG 10N/DG 10NV - Parameter

Weight (g)
520

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display, push-buttons and optics protection window

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
1.5 to 1.8

Distance ratio
200:1

Reproducibility
0.1 % + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε

Dimensions
54 mm × 54 mm, length 170 mm

DGA 10N/DGA 10NV  - Parameter

Weight (g)
520

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display, push-buttons and optics protection window

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
0.88

Distance ratio
Please Refer Table

Reproducibility
0.1 % + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000via device or interface

Dimensions
54 mm × 54 mm, length 170 mm

DS 10N/DS 10NV  - Parameter

Weight (g)
520

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display, push-buttons and optics protection window

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
0.8 to 1.1

Distance ratio
200:1

Reproducibility
0.1 % + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000via device or interface

Dimensions
54 mm × 54 mm, length 170 mm

DGR 10N/DGR 10NV - Parameter

Weight (g)
520

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display, push-buttons and optics protection window

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)

Distance ratio
100:1

Reproducibility
0.2 % + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000via device or interface

Dimensions
54 mm × 54 mm, length 170 mm

DSR 10N/DSR 10NV - Parameter

Weight (g)
520

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display, push-buttons and optics protection window

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
0.7 to 1.1

Distance ratio
50:1

Reproducibility
0.2 % + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000via device or interface

Dimensions
54 mm × 54 mm, length 170 mm

DSR 10NF/DSR 10NFV - Parameter

Weight (g)
520

Operating Temperature (°C)
0 to 70

Housing
Compact housing with plug connector, display, push-buttons and optics protection window

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
0.7 to 1.1

Distance ratio
100:1

Reproducibility
0.2 % + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000via device or interface

Dimensions
54 mm × 54 mm, length 170 mm

DGEF 11N  - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 45 (electronics) | 0 to 250 (optical head) | 0 to 250 (Fibre cable) | 0 to 150 (Fibre cable with 90° curve)

Housing
Alu housing with plug connector, display and keyboard

Measurement Uncertainty
0.5 % + 2 K

Spectral range (µm)

Distance ratio
Please Refer Table

Reproducibility
0.3 % + 1 K

Temperature Range (°C)

NETD (k)
0.5

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

Dimensions
110 mm × 80 mm × 40 mm (without connectors)

DGF 11N - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70 (electronics) | 0 bis 250 (optical head) | 0 to 250 (fibre cable) | 0 to 150 (fibre cable with 90° curve)

Housing
Alu housing with plug connector, display and keyboard

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
1.5 to 1.8

Distance ratio
Please Refer Table

Reproducibility
0.1 % + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

Dimensions
110 mm × 80 mm × 40 mm (without connectors)

DGAF 11N  - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70 (electronics) | 0 to 250 (optical head) | 0 to 250 (fibre cable) | 0 to 150 (fibre cable with 90° curve)

Housing
Alu housing with plug connector, display and keyboard

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
0.88

Distance ratio
Please Refer Table

Reproducibility
0.1 % + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

Dimensions
110 mm × 80 mm × 40 mm (without connectors)

DSF 11N  - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70 (electronics) | 0 to 250 (optical head), 0 to 250 (fibre cable), 0 to 150 (with 90° curve)

Housing
Alu housing with plug connector, display and keyboard

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
0.8 to 1.1

Distance ratio
Please Refer Table

Reproducibility
0.1 % + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

Dimensions
110 mm × 80 mm × 40 mm (without connectors)

DSRF 11N  - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70 (electronics) | 0 to 250 (optical head) | 0 to 250 (fibre cable) | 0 to 150 (fibre cable with 90° curve)

Housing
Alu housing with plug connector, display and keyboard

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
0.7 to 1.1

Distance ratio
Please Refer Table

Reproducibility
0.2 % + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000 (1-channel mode)

Dimensions

DGRF 11N  - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70 (electronics) | 0 to 250 (optical head) | 0 to 250 (fibre cable) | 0 to 150 (fibre cable with 90° curve)

Housing
Alu housing with plug connector, display and keyboard

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)

Distance ratio
Please Refer Table

Reproducibility
0.2 % + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000 (1-channel mode)

Dimensions

DY 10L/DY 10LV - Download

DA 10G/DA 10GV - Download

DA 10C/DT 40C - Download

DA 10F/DA 10FV - Download

DA 10MF/DA 10MFV - Download

DPE 10MF/DPE 10MFV  - Download

DA 10M/DA 10MV - Download

DPE 10M/DPE 10MV - Download

DP 10N/DP 10NV - Download

DGE 10N/DGE 10NV - Download

DG 10N/DG 10NV - Download

DGA 10N/DGA 10NV  - Download

DS 10N/DS 10NV  - Download

DGR 10N/DGR 10NV - Download

DSR 10N/DSR 10NV - Download

DSR 10NF/DSR 10NFV - Download

DGEF 11N  - Download

Download

DGF 11N - Download

Download

DGAF 11N  - Download

Download

DSF 11N  - Download

Download

DSRF 11N  - Download

Download

DGRF 11N  - Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
