Products / Imaging /Infrared Pyrometer/Cameras /Infrared Pyrometers (-40-3000C) /Infrared Pyrometers Series 2x and 3x /

Infrared Pyrometers Series 2x and 3x

Overview Specifications & Model Guide Related Products Order Now!

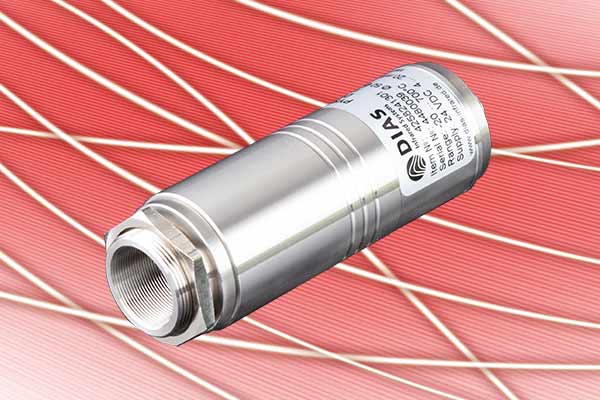

PYROSPOT Series 25 - Compact with parameterization interface

The digital pyrometers of PYROSPOT series 25 are developed and produced in Germany. They can be used for industrial continuous use within the temperature range from –20 °C to 700 °C. Customized system solutions including hardware and software adjustment are possible at any time.

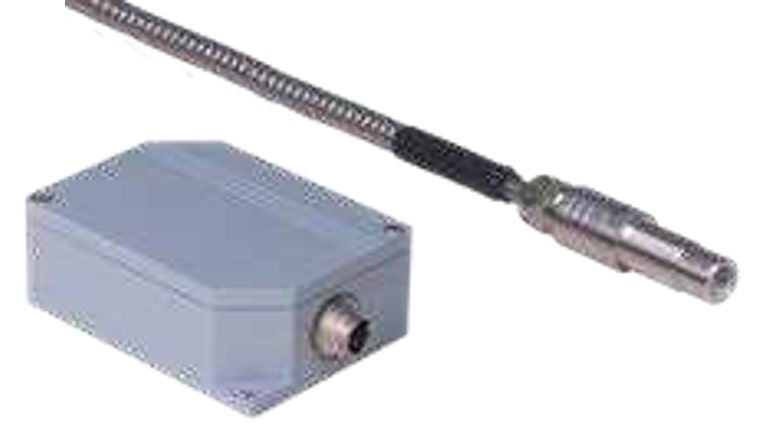

PYROSPOT Series 30/34 - Pyrometers with fiber optics for glass industry

Temperature-resistant pyrometers with excellent cost-performance ratio

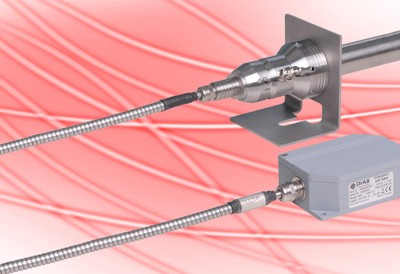

The digital pyrometers PYROSPOT of series 30/34 with fiber cable and optical head, They provide non-contact temperature measurement from 600°C to 1800 °C in forehearth, feeder and in glass tank. Customized system solutions including hardware and software adjustments are possible at any time.

Charateristics of the PYROSPOT Series 25:

- Temperature range between -20 °C and 700 °C

- Fixed, digital 2-wire pyrometers with standard

4 to 20 mA temperature linear output

- Compact housing with small diameter

- Excellent price-performance ratio

- Complete parameterization via interface and software or

optional handheld programming device or ex works

Charateristics of the PYROSPOT Series 30/34:

- Temperature range between 600 °C and 1800 °C

- Extremely robust and temperature-resistant

- Adjusted spectral range for glass industry

- Mono fiber optics cable with fixed optics

- Air purge unit with quick fastener

- 2-wire or 4-wire technology

Housing Variants

Round housings

Compact housing

Separate electronics box

Portable

Series

40, 42, 44, 47, 48

54, 55, 56

4, 11, 30²⁾, 34²⁾

Dimensions

M25×1,
length 98 mm

M40×1.5,
length 125 mm

Æ 50 mm,
length 105-140 mm

54 × 54 × 170 mm³ (H × W × L)

80 × 110 × 40 mm³

(H × W × D)

230 × 135 × 85 mm³ (H × W × L)

Material

Stainless steel (IP65)

Aluminum (IP65)

Aluminum, stainless steel (IP65)

Aluminium, plastics (IP50)

1) PYROSWITCH Series 48.

2) Without display and user controls

Please check the table below for individual specifications tied to individual products.

Product Brochure Link: PYROSPOT Series 2x and 3x

Series 25 – Compact pyrometers with parameterization interface
						- 2-wire pyrometers with convincing price-performance ratio - Fixed optics - Stainless steel housing IP65
Device type	Spectral range	Temperature range	Distance ratio	^t95	Interface	Aiming/targeting aid
DT 25L	8 µm to 14 µm	–20 °C to 700 °C	40 : 1	200 ms	Parameter interface	Optional: laser-aiming light adapter

Series 30/34 – Extremely temperature resistant pyrometers with excellent price-performance ratio
						- Pyrometers with fiber optics, e.g. for glass and brick industry - Fixed optics with air purge unit and quick lock - Protection class IP65
Device type	Spectral range	Temperature range	Distance ratio	^t95	Interface	Aiming/targeting aid
DSF 30NG	0.8 µm to 1.1 µm	600 °C to 1800 °C	200 : 1	10 ms	USB	None
DSF 34NG	0.8 µm to 1.1 µm	600 °C to 1800 °C	200 : 1	10 ms	RS-485	None

What does the device designation mean?

Our pyrometers are labeled according to a special scheme that helps you identify the IR sensor type, instrument series, spectral range, and some special features.

For example: PYROSPOT DA 10GV

Pyrometer with semiconductor photodiode infrared sensor of series 10, sectral range "G" and video module

PYROSPOT	D	_ _	_	_	_ _	_	_ _
DIAS
Infrared detector S, G, A, GE, GA – Semiconductor photodiodes P, PE – Semiconductor photoresistors, T – Thermopile, Y – pyroelectric detector
R – Ratio pyrometer
F – Fiber optics
Device series 4, 10, 11, 25, 30, 34, 40, 42, 44, 47, 48, 54, 55, 56, 80
Spectral range N, M, P, F, C, G, U, L (please refer overview)
Additional designation: F – Flames, G – Glass, T – Tungsten, V – Video camera

Find the right device for every material and measuring temperature range

Material	Measuring temperature range	Spectral range	Device designation
Nonmetals	–40°C to 1000°C	8 µm to 14 µm	"L"
Ultrathin glass	300°C to 1100°C	around 7.7 µm	"U"
Glass surfaces	50°C to 2500°C	around 5.0 µm	"G"
Hot CO₂	500°C to 2000°C	around 4.5 µm/4.6 µm	"C"
Measurement through flames	100°C to 2500°C	around 3.9 µm	"F"
Semidconductors, metals	50°C to 1800°C	3.5 µm to 4.0 µm	"MF"
Thin plastic films	50°C to 400°C	around 3.43 µm	"P"
Ceramics, metals	20°C to 1000°C	3 µm to 5 µm	"M"
Metals, ceramics	50°C to 2200°C	2.0 µm to 2.8 µm	"N"
Metals, ceramics, graphite	200°C to 2500°C	1.5 µm to 1.8 µm	"N"
Tungsten	500°C to 2500°C	around 1.25 µm	"NT"
Silicon, metals	400°C to 2500°C	around 0.88 µm	"N"
Metals, glass melts	500°C to 3000°C	0.8 µm to 1.1 µm	"N"
Liquid metals	1000°C to 2500°C	around 0.55 µm	"N"

PYROSPOT Series	Temperature Range	Spectral Range	Interface	Aiming and Targeting Aid
Series 1x	0 °C to 3000 °C	0.7 µm to 14 µm	RS-485	LED or Laser-Aiming light adapter, Through-lens sighting, Color video camera
Series 2x and 3x	Series 2x: –20 °C to 700 °C, Series 3x: 600 °C to 1800 °C	Series 2x: 8 µm to 14 µm, Series 3x: 0.8 µm to 1.1 µm	Parameter Interface	Laser-Aiming light adapter
Series 4x	–40 °C to 2500 °C	0.7 µm to 14 µm	USB, RS-485, Ethernet	Laser-Aiming light adapter, LED aiming light
Series 5x	–40 °C to 3000 °C	0.7 µm to 2.6 µm	RS-485	Through-lens sighting, Laser, Video
Series 8x	200 °C to 3000 °C	0.7 µm to 1.8 µm	USB	TFT color display, laser

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Spectral Range (nm)

Search Reset

	Spectral range (µm)	Availability	Reference Price (USD)
DT 25L	8 to 14	4-6 Weeks	Request for quote
DSF 30NG	0.8 to 1.1	4-6 Weeks	Request for quote
DSF 34NG	0.8 to 1.1	4-6 Weeks	Request for quote

DSF 34NG - Parameter

Weight (g)

500

Operating Temperature (°C)

0 to 70

Housing

Measurement Uncertainty

Spectral range (µm)

0.8 to 1.1

Distance ratio

Reproducibility

0.1 % + 0.5 K

Temperature Range (°C)

NETD (k)

0.1

Adjustable Response Time

Adjustable Emissivity ε

0.050 - 1.000

DSF 30NG - Parameter

Weight (g)

500

Operating Temperature (°C)

0 to 70

Housing

Measurement Uncertainty

Spectral range (µm)

0.8 to 1.1

Distance ratio

Reproducibility

0.1 % + 0.5 K

Temperature Range (°C)

NETD (k)

0.1

Adjustable Response Time

Adjustable Emissivity ε

0.050 - 1.000

DT 25L - Parameter

Weight (g)

Operating Temperature (°C)

0 to 70

Housing

Measurement Uncertainty

Spectral range (µm)

8 to 14

Distance ratio

Reproducibility

Temperature Range (°C)

NETD (k)

0.1

Adjustable Response Time

Adjustable Emissivity ε

0.200 - 1.000

DSF 34NG - Download

Download

DSF 30NG - Download

Download

DT 25L - Download

Download
