Handheld Infrared Pyrometers (200 to 3000°C) | SIMTRUM Photonics

Products / Imaging /Infrared Pyrometer/Cameras /Infrared Pyrometers (-40-3000C) /Infrared Pyrometers Series 8x (Handheld) /
Infrared Pyrometers Series 8x (Handheld)
Overview Specifications & Model Guide Related Products Order Now!

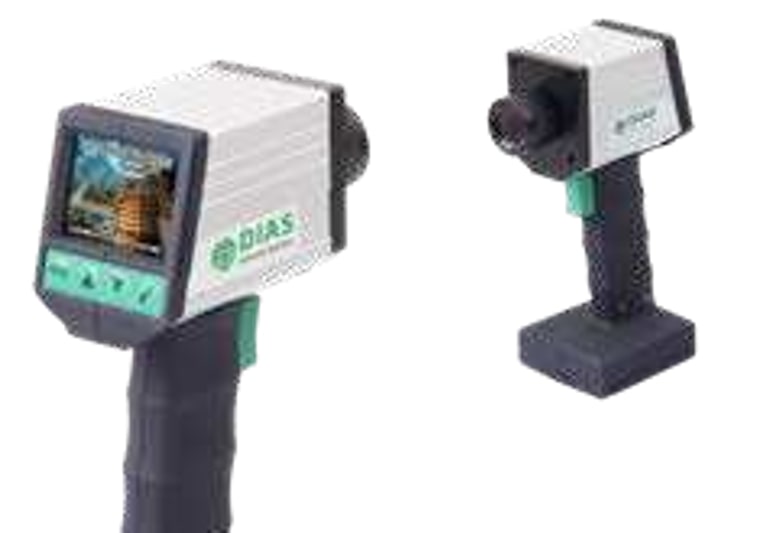

PYROSPOT Series 80 - Portable pyrometers for the use in the heavy industry

Fast handheld pyrometers with TFT color display

What is PYROSPOT Series 80?

The portable pyrometers of DIAS PYROSPOT series 80 are suitable for temperatures from 200 °C to 3000 °C in heavy industry under rough conditions. You are able to reach every measurement point with this portable and robust device and you stay flexible. Together with an integrated video module a color TFT display enables an easy and correct alignment of the pyrometer to the measuring object. This is safer – especially in harsh industrial environments than the view visors often used in high temperature pyrometers.








Charateristics of the PYROSPOT Series 80

 - High accuracy and minimum response times from 5 ms

 - Easily focusable precision vario optics for measurement distances between 0.65 m and 12 m

 - Optics for close range available

 - 2.5 “TFT display with target marking and measurement display, option: laser

 - Buttons for parameterization of the pyrometer

 - Operation with protective gloves possible

 - Instantaneous / maximum value memory for 999 records

 - USB interface for data transfer, Modbus RTU










Housing Variants


Round housingsCompact housingSeparate electronics boxPortable





Series2540, 42, 44, 47, 4854, 55, 56104, 11, 302), 342)80
DimensionsM25×1,
    length 98 mm		M40×1.5,
    length 125 mm		Æ 50 mm,
    length 105-140 mm		54 × 54 × 170 mm³ (H × W × L)

80 × 110 × 40 mm³

(H × W × D)

230 × 135 × 85 mm³ (H × W × L)
MaterialStainless steel (IP65)Stainless steel (IP65)Stainless steel (IP65)Aluminum (IP65)Aluminum, stainless steel (IP65)Aluminium, plastics (IP50)

1) PYROSWITCH Series 48.

2) Without display and user controls


Please check the table below for individual specifications tied to individual products.

Product Brochure Link: PYROSPOT Series 80


Series 80 – Fast portable pyrometers with TFT color display


 - High accuracy
      - Easily focusable vario optics

      - 2.5" TFT display with target marking and

measured value display

      - Robust housing

Device typeSpectral rangeTemperature rangeDistance ratiot95InterfaceAiming/targeting aid
DS 80NV0.8 µm to 1.1 µm550 °C to 2500 °C200 : 15 msUSBTFT color display, laser
DG 80NV1.5 µm to 1.8 µm200 °C to 2000 °C200 : 15 msUSBTFT color display, laser
Ratio pyrometers
DSR 80NV0.7 µm to 1.1 µm500 °C to 2500 °C50 : 1 to 200 : 15 msUSBTFT color display, laser



What does the device designation mean?

Our pyrometers are labeled according to a special scheme that helps you identify the IR sensor type, instrument series, spectral range, and some special features.

For example: PYROSPOT DA 10GV

Pyrometer with semiconductor photodiode infrared sensor of series 10, sectral range "G" and video module


PYROSPOTD_ ____ ___ _
DIAS
Infrared detector
S, G, A, GE, GA – Semiconductor photodiodes

P, PE – Semiconductor photoresistors,

T – Thermopile, Y – pyroelectric detector

R – Ratio pyrometer
F – Fiber optics
Device series  4, 10, 11, 25, 30, 34, 40, 42, 44, 47, 48, 54, 55, 56, 80
Spectral range
N, M, P,  F, C, G, U, L (please refer overview)
Additional designation: F – Flames, G – Glass, T – Tungsten, V – Video camera














Find the right device for every material and measuring temperature range

MaterialMeasuring temperature rangeSpectral rangeDevice designation
Nonmetals–40°C to 1000°C8 µm to 14 µm"L"
Ultrathin glass300°C to 1100°Caround 7.7 µm"U"
Glass surfaces50°C to 2500°Caround 5.0 µm"G"
Hot CO2500°C to 2000°Caround 4.5 µm/4.6 µm"C"
Measurement through flames100°C to 2500°Caround 3.9 µm"F"
Semidconductors, metals50°C to 1800°C3.5 µm to 4.0 µm"MF"
Thin plastic films50°C to 400°Caround 3.43 µm"P"
Ceramics, metals20°C to 1000°C3 µm to 5 µm"M"
Metals, ceramics50°C to 2200°C2.0 µm to 2.8 µm"N"
Metals, ceramics, graphite200°C to 2500°C1.5 µm to 1.8 µm"N"
Tungsten500°C to 2500°Caround 1.25 µm"NT"
Silicon, metals400°C to 2500°Caround 0.88 µm"N"
Metals, glass melts500°C to 3000°C0.8 µm to 1.1 µm"N"
Liquid metals1000°C to 2500°Caround 0.55 µm"N"




















PYROSPOT SeriesTemperature RangeSpectral RangeInterfaceAiming and Targeting Aid
Series 1x0 °C to 3000 °C0.7 µm to 14 µmRS-485LED or Laser-Aiming light adapter,
    Through-lens sighting, Color video camera
Series 2x and 3xSeries 2x: –20 °C to 700 °C,
 Series 3x: 600 °C to 1800 °C		Series 2x: 8 µm to 14 µm,
   Series 3x: 0.8 µm to 1.1 µm		Parameter InterfaceLaser-Aiming light adapter
Series 4x–40 °C to 2500 °C0.7 µm to 14 µmUSB, RS-485, Ethernet

Laser-Aiming light adapter, LED aiming light

Series 5x–40 °C to 3000 °C0.7 µm to 2.6 µmRS-485

Through-lens sighting, Laser, Video

Series 8x200 °C to 3000 °C0.7 µm to 1.8 µmUSBTFT color display, laser



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
DSR 80NV
 4-6 Weeks Request for quote
DS 80NV
 4-6 Weeks Request for quote
DG 80NV
 4-6 Weeks Request for quote

DG 80NV - Parameter

Weight (g)
800

Operating Temperature (°C)
0 to 50 (battery recharging: 0 to 40)

Housing
Aluminium / Plastic: 230 mm x 135 mm x 85 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
1.5 to 1.8

Distance ratio
200:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DS 80NV - Parameter

Weight (g)
800

Operating Temperature (°C)
0 to 50 (battery recharging: 0 to 40)

Housing
Aluminium / Plastic: 230 mm x 135 mm x 85 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1

Distance ratio
200:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DSR 80NV - Parameter

Weight (g)
800

Operating Temperature (°C)
0 to 50 (battery recharging: 0 to 40)

Housing
Aluminium / Plastic: 230 mm x 135 mm x 85 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.7 to 1.1

Distance ratio
200:1

Reproducibility
0.2% + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DG 80NV - Download

Download

DS 80NV - Download

Download

DSR 80NV - Download

Download
