Products / Imaging /Infrared Pyrometer/Cameras /Infrared Pyrometers (-40-3000C) /Infrared Pyrometers Series 5x (adjustable focus) /

Infrared Pyrometers Series 5x (adjustable focus)

Overview Specifications & Model Guide Related Products Order Now!

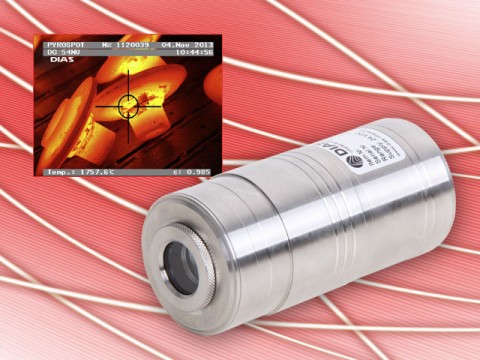

PYROSPOT Series 54 - Powerful pyrometers with very good cost-performance ratio

The digital pyrometer PYROSPOT of series 54 are developed and manufactured in Germany and are suitable for continuous operation in industry and research. Different temperature and spectral ranges are available. Customized system solutions including hardware and software adjustments are possible at any time.

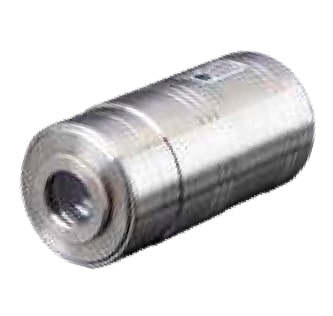

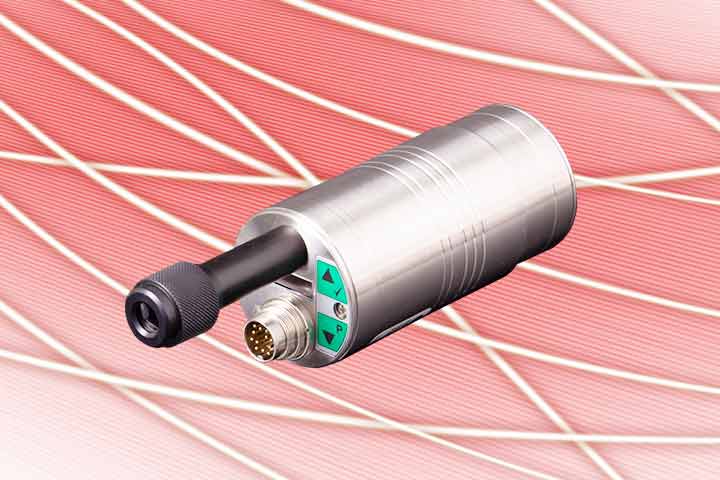

PYROSPOT Series 55 - pyrometers with fixed focus or adjustable focus

The digital pyrometers PYROSPOT of series 55 are suitable for application in the steel and metal industry, in furnace facilities, in soldering and welding equipments as well as in the ceramic industry.

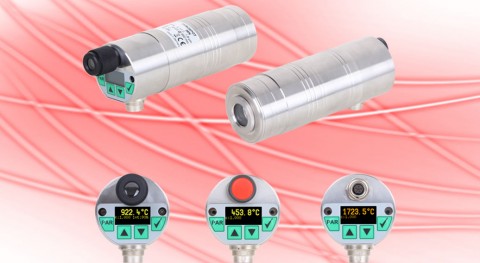

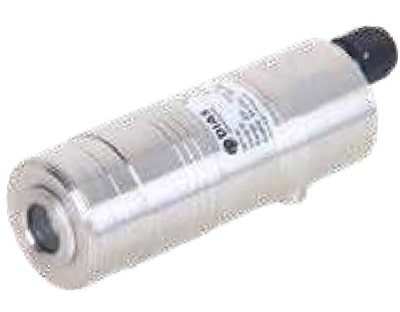

PYROSPOT Series 56 - Powerful pyrometers with display and parameterization keys

The digital pyrometers PYROSPOT of series 56 are used specifically for non-contact temperature measurement in industry and research.

Charateristics of the PYROSPOT Series 54:

- Temperature measurements between –40 °C and 3000 °C

- Fast response times from 2 ms

- Several fixed optics with very small measurement field diameters from 0.7mm

- Laser aiming light, integrated color video camera or through-lens sighting

- Ratio pyrometers for nearly emissivity-independent measurement as well as special pyrometers for combustion plants

- Compact, robust stainless-steel housing IP65

- 0/4 to 20 mA interface

- Galvanically isolated RS-485 interface (Modbus RTU)

- Minimum/Maximum value storage

- Galvanically isolated switching output

Charateristics of the PYROSPOT Series 55:

- Measuring temperature range from 75 °C to 3000 °C

- Fast response time from 2 ms

- Different fixed optics or vario optics with motor focus (adjustable in

eight steps, no external moving parts)

- Display and parametrizing buttons on the back of the device

- Laser aiming light, integrated video camera or optical through-lens

sighting

- Ratio pyrometers for nearly emissivity-independent measurement

- Compact, robust stainless-steel housing IP65 with display and

control buttons

- 0/4 to 20 mA interface

- Galvanically isolated RS-485 interface (Modbus RTU)

- Maximum/Minimum value storage

- Galvanically isolated switching output

Charateristics of the PYROSPOT Series 56:

- Temperature measurement range from –40 °C to 3000 °C

- Fast response time from 2 ms

- Several fixed optics with very small measurement fields from 0.7 mm

- Display and parametrizing buttons on the back of the device

- Selectively laser aiming light, integrated video camera or optical through-lens sighting

- Ratio pyrometers for nearly emissivity-independent measurement

- Compact, robust stainless-steel housing IP65

- 0/4 to 20 mA interface

- Galvanically isolated RS-485 interface (Modbus RTU)

- Maximum/Minimum value storage

- Galvanically isolated switching output

Housing Variants

Round housings

Compact housing

Separate electronics box

Portable

Series

40, 42, 44, 47, 48

54, 55, 56

4, 11, 30²⁾, 34²⁾

Dimensions

M25×1,
length 98 mm

M40×1.5,
length 125 mm

Æ 50 mm,
length 105-140 mm

54 × 54 × 170 mm³ (H × W × L)

80 × 110 × 40 mm³

(H × W × D)

230 × 135 × 85 mm³ (H × W × L)

Material

Stainless steel (IP65)

Aluminum (IP65)

Aluminum, stainless steel (IP65)

Aluminium, plastics (IP50)

1) PYROSWITCH Series 48.

2) Without display and user controls

Please check the table below for individual specifications tied to individual products.

Product Brochure Link: PYROSPOT Series 54,55,56

Series 54 – Compact pyrometers with very good price-performance ratio
						- Parameterization via RS-485 interface - Laser aiming light, color video camera or through-lens sighting - Special pyrometers for measurement in combustion chambers - Robust stainless steel housing IP65
Device type	Spectral range	Temperature range	Distance ratio	^t95	Interface	Aiming/targeting aid
DS 54N	0.8 µm to 1.1 µm	550 °C to 3000 °C	200 : 1 to 300 : 1	2 ms	RS-485	Laser, video, through-lens sighting
DG 54N	1.5 µm to 1.8 µm	200 °C to 2500 °C	200 : 1 to 300 : 1	2 ms	RS-485	Laser, video, through-lens sighting
Ratio pyrometers
DSR 54N	0.7 µm to 1.1 µm	500 °C to 3000 °C	50 : 1 to 300 : 1	5 ms	RS-485	Laser, video, through-lens sighting
Special pyrometer for combustion chambers
DSR 54NF	0.7 µm to 1.1 µm	700 °C to 2500 °C	200 : 1	5 ms	RS-485	Laser, video

Series 55 – Easy to operate pyrometers with fixed optics or motorfocus vario optics
						- Different fixed optics or vario optics with motorfocus (adjustable in 8 steps, no external moving parts) - Display and keys for emissivity/ motorfocus
Device type	Spectral range	Temperature range	Distance ratio	^t95	Interface	Aiming/targeting aid
DS 55N	0.8 µm to 1.1 µm	550 °C to 3000 °C	160 : 1 to 300 : 1	2 ms	RS-485	Laser, video, through-lens sighting
DG 55N	1.5 µm to 1.8 µm	200 °C to 2500 °C	160 : 1 to 300 : 1	2 ms	RS-485	Laser, video, through-lens sighting
DGE 55N	2.0 µm to 2.6 µm	75 °C to 2200 °C	80 : 1 to 200 : 1	2 ms	RS-485	Laser, through-lens sighting
Ratio pyrometers
DSR 55N	0.7 µm to 1.1 µm	500 °C to 3000 °C	40 : 1 to 300 : 1	5 ms	RS-485	Laser, video, through-lens sighting

Series 56 – Powerful pyrometers with display and parameterization keys
						- Different fixed optics with very small target size from 0.7 mm - Laser aiming light, color video camera or through-lens sighting - Stainless steel housing IP65
Device type	Spectral range	Temperature range	Distance ratio	^t95	Interface	Aiming/targeting aid
DS 56N	0.8 µm to 1.1 µm	550 °C to 3000 °C	200 : 1 to 300 : 1	2 ms	RS-485	Laser, video, through-lens sighting
DG 56N	1.5 µm to 1.8 µm	200 °C to 2500 °C	200 : 1 to 300 : 1	2 ms	RS-485	Laser, video, through-lens sighting
DGE 56N	2.0 µm to 2.6 µm	75 °C to 2200 °C	80 : 1 to 200 : 1	2 ms	RS-485	Laser, through-lens sighting
Ratio pyrometers
DSR 56N	0.7 µm to 1.1 µm	500 °C to 3000 °C	50 : 1 to 300 : 1	5 ms	RS-485	Laser, video, through-lens sighting

What does the device designation mean?

Our pyrometers are labeled according to a special scheme that helps you identify the IR sensor type, instrument series, spectral range, and some special features.

For example: PYROSPOT DA 10GV

Pyrometer with semiconductor photodiode infrared sensor of series 10, sectral range "G" and video module

PYROSPOT	D	_ _	_	_	_ _	_	_ _
DIAS
Infrared detector S, G, A, GE, GA – Semiconductor photodiodes P, PE – Semiconductor photoresistors, T – Thermopile, Y – pyroelectric detector
R – Ratio pyrometer
F – Fiber optics
Device series 4, 10, 11, 25, 30, 34, 40, 42, 44, 47, 48, 54, 55, 56, 80
Spectral range N, M, P, F, C, G, U, L (please refer overview)
Additional designation: F – Flames, G – Glass, T – Tungsten, V – Video camera

Find the right device for every material and measuring temperature range

Material	Measuring temperature range	Spectral range	Device designation
Nonmetals	–40°C to 1000°C	8 µm to 14 µm	"L"
Ultrathin glass	300°C to 1100°C	around 7.7 µm	"U"
Glass surfaces	50°C to 2500°C	around 5.0 µm	"G"
Hot CO₂	500°C to 2000°C	around 4.5 µm/4.6 µm	"C"
Measurement through flames	100°C to 2500°C	around 3.9 µm	"F"
Semidconductors, metals	50°C to 1800°C	3.5 µm to 4.0 µm	"MF"
Thin plastic films	50°C to 400°C	around 3.43 µm	"P"
Ceramics, metals	20°C to 1000°C	3 µm to 5 µm	"M"
Metals, ceramics	50°C to 2200°C	2.0 µm to 2.8 µm	"N"
Metals, ceramics, graphite	200°C to 2500°C	1.5 µm to 1.8 µm	"N"
Tungsten	500°C to 2500°C	around 1.25 µm	"NT"
Silicon, metals	400°C to 2500°C	around 0.88 µm	"N"
Metals, glass melts	500°C to 3000°C	0.8 µm to 1.1 µm	"N"
Liquid metals	1000°C to 2500°C	around 0.55 µm	"N"

PYROSPOT Series	Temperature Range	Spectral Range	Interface	Aiming and Targeting Aid
Series 1x	0 °C to 3000 °C	0.7 µm to 14 µm	RS-485	LED or Laser-Aiming light adapter, Through-lens sighting, Color video camera
Series 2x and 3x	Series 2x: –20 °C to 700 °C, Series 3x: 600 °C to 1800 °C	Series 2x: 8 µm to 14 µm, Series 3x: 0.8 µm to 1.1 µm	Parameter Interface	Laser-Aiming light adapter
Series 4x	–40 °C to 2500 °C	0.7 µm to 14 µm	USB, RS-485, Ethernet	Laser-Aiming light adapter, LED aiming light
Series 5x	–40 °C to 3000 °C	0.7 µm to 2.6 µm	RS-485	Through-lens sighting, Laser, Video
Series 8x	200 °C to 3000 °C	0.7 µm to 1.8 µm	USB	TFT color display, laser

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
DSR 54NFV	4-6 Weeks	Request for quote
DSR 54NF	4-6 Weeks	Request for quote
DSR 54NV	4-6 Weeks	Request for quote
DSR 54N	4-6 Weeks	Request for quote
DT 54L	4-6 Weeks	Request for quote
DT 54U	4-6 Weeks	Request for quote
DT 54G	4-6 Weeks	Request for quote
DG 54NV	4-6 Weeks	Request for quote
DG 54N	4-6 Weeks	Request for quote
DS 54NV	4-6 Weeks	Request for quote
DS 54N	4-6 Weeks	Request for quote
DSR 55NV	4-6 Weeks	Request for quote
DSR 55N	4-6 Weeks	Request for quote
DGE 55N	4-6 Weeks	Request for quote
DG 55NV	4-6 Weeks	Request for quote
DG 55N	4-6 Weeks	Request for quote
DS 55NV	4-6 Weeks	Request for quote
DS 55N	4-6 Weeks	Request for quote
DSR 56NV	4-6 Weeks	Request for quote
DSR 56N	4-6 Weeks	Request for quote
DT 56L	4-6 Weeks	Request for quote
DT 56G	4-6 Weeks	Request for quote
DGE 56N	4-6 Weeks	Request for quote
DG 56NV	4-6 Weeks	Request for quote
DG 56N	4-6 Weeks	Request for quote
DS 56NV	4-6 Weeks	Request for quote
DS 56N	4-6 Weeks	Request for quote

DS 56N - Parameter

Weight (g)

750

Operating Temperature (°C)

0 to 70

Housing

Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty

0.5 % + 1 K

Spectral range (µm)

0.8 to 1.1

Distance ratio

200:1 | 300:1

Reproducibility

0.1 % + 0.5 K

Temperature Range (°C)

–40 to 1000 | 0 to 1000

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

Dimensions

54 mm × 54 mm, length 170 mm

DS 56NV - Parameter

Weight (g)

750

Operating Temperature (°C)

0 to 70

Housing

Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty

0.5 % + 1 K

Spectral range (µm)

0.8 to 1.1

Distance ratio

200:1 | 300:1

Reproducibility

0.1 % + 0.5 K

Temperature Range (°C)

300 to 1100

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

Dimensions

54 mm × 54 mm, length 170 mm

DG 56N - Parameter

Weight (g)

750

Operating Temperature (°C)

0 to 70

Housing

Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty

0.5 % + 1 K

Spectral range (µm)

1.5 to 1.8

Distance ratio

200:1 | 300:1

Reproducibility

0.1 % + 0.5 K

Temperature Range (°C)

100 to 1300 | 200 to 1400 | 500 to 2500

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

Dimensions

54 mm × 54 mm, length 170 mm

DG 56NV - Parameter

Weight (g)

750

Operating Temperature (°C)

0 to 70

Housing

Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty

0.5 % + 1 K

Spectral range (µm)

1.5 to 1.8

Distance ratio

200:1 | 300:1

Reproducibility

0.1 % + 0.5 K

Temperature Range (°C)

300 to 1300 | 400 to 1400 500 to 2500

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

Dimensions

DGE 56N - Parameter

Weight (g)

750

Operating Temperature (°C)

0 to 70

Housing

Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty

0.5 % + 2 K

Spectral range (µm)

2.0 to 2.6

Distance ratio

Reproducibility

0.3 % + 1 K

Temperature Range (°C)

600 to 1800 | 0 to 2500 | 250 to 1300 | 350 to 1800 | 250 to 2000

NETD (k)

0.5

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

Dimensions

54 mm × 54 mm, length 170 mm

DT 56G - Parameter

Weight (g)

750

Housing

Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty

0.6 % or 1 K

Spectral range (µm)

Distance ratio

75:1 | 100:1

Reproducibility

0.3 % or 0.5 K

Temperature Range (°C)

600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 bis 1800

NETD (k)

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.00

Dimensions

54 mm × 54 mm, length 170 mm

DT 56L - Parameter

Weight (g)

750

Housing

Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty

0.6 % or 1 K

Spectral range (µm)

8 to 14

Distance ratio

75:1 | 100:1

Reproducibility

0.3% or 0.5 K

Temperature Range (°C)

600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800 | 250 to 2000

NETD (k)

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.200 - 1.000

Dimensions

54 mm × 54 mm, length 170 mm

DSR 56N - Parameter

Weight (g)

750

Operating Temperature (°C)

0 to 70

Housing

Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty

0.5 % + 1 K

Spectral range (µm)

0.7 to 1.1

Distance ratio

Reproducibility

0.2 % + 0.5 K

Temperature Range (°C)

600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 bis 1800

NETD (k)

0.1

Adjustable Response Time

5ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

Dimensions

DSR 56NV - Parameter

Weight (g)

750

Operating Temperature (°C)

0 to 70

Housing

Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty

0.5 % + 1 K

Spectral range (µm)

0.7 to 1.1

Distance ratio

Reproducibility

0.2 % + 0.5 K

Temperature Range (°C)

–40 to 1000

NETD (k)

0.1

Adjustable Response Time

5ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

Dimensions

54 mm × 54 mm, length 170 mm

DS 55N - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

0.8 to 1.1

Reproducibility

0.1% + 0.5 K

Temperature Range (°C)

600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DS 55NV - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

0.8 to 1.1

Reproducibility

0.1% + 0.5 K

Temperature Range (°C)

–40 to 1000 | 0 to 1000

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DG 55N - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

1.5 to 1.8

Reproducibility

0.1% + 0.5 K

Temperature Range (°C)

50 to 1300 | 100 to 1800 | 500 to 2500

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DG 55NV - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

1.5 to 1.8

Reproducibility

0.1% + 0.5 K

Temperature Range (°C)

100 to 1400 | 500 to 2500

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DGE 55N - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 2 K

Spectral range (µm)

2.0 to 2.6

Reproducibility

0.3% + 1 K

Temperature Range (°C)

50 to 1000

NETD (k)

0.5

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DSR 55N - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

0.7 to 1.1

Reproducibility

0.2% + 0.5 K

Temperature Range (°C)

20 to 850 | 30 to 1000

NETD (k)

0.1

Adjustable Response Time

5ms to 100s

Adjustable Emissivity ε

0.050 - 1.000 (1-channel mode)

DSR 55NV - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

0.7 to 1.1

Reproducibility

0.2% + 0.5 K

Temperature Range (°C)

NETD (k)

0.1

Adjustable Response Time

5ms to 100s

Adjustable Emissivity ε

0.050 - 1.000 (1-channel mode)

DS 54N - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

0.8 to 1.1

Distance ratio

200:1 | 300:1

Reproducibility

0.1% + 0.5 K

Temperature Range (°C)

–40 to 1000 | 0 to 1000

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DS 54NV - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

0.8 to 1.1

Distance ratio

200:1 | 300:1

Reproducibility

0.1% + 0.5 K

Temperature Range (°C)

300 to 1100

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DG 54N - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

1.5 to 1.8

Distance ratio

200:1 | 300:1

Reproducibility

0.1% + 0.5 K

Temperature Range (°C)

100 to 1300 | 200 to 1400 | 500 to 2500

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DG 54NV - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

1.5 to 1.8

Distance ratio

200:1 | 300:1

Reproducibility

0.1% + 0.5 K

Temperature Range (°C)

300 to 1300 | 400 to 1400 500 to 2500

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DT 54G - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm diameter ∅ 50 mm

Measurement Uncertainty

0.6% or 1 K

Spectral range (µm)

Distance ratio

Reproducibility

0.3% or 0.5 K

Temperature Range (°C)

600 to 1800 | 0 to 2500 | 250 to 1300 | 350 to 1800 | 250 to 2000

NETD (k)

< 0.15

Adjustable Response Time

Adjustable Emissivity ε

0.200 - 1.000 via RS-485 interface

DT 54U - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm diameter ∅ 50 mm

Measurement Uncertainty

0.6% or 1 K

Spectral range (µm)

Distance ratio

Reproducibility

0.3% or 0.5 K

Temperature Range (°C)

600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 bis 1800

NETD (k)

0.1

Adjustable Response Time

2ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DT 54L - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm diameter ∅ 50 mm

Measurement Uncertainty

0.6% or 1 K

Spectral range (µm)

8 to 14

Distance ratio

75:1 | 100:1

Reproducibility

0.3% or 0.5 K

Temperature Range (°C)

600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800 | 250 to 2000

NETD (k)

< 0.15

Adjustable Response Time

Adjustable Emissivity ε

0.200 - 1.000 via RS-485 interface

DSR 54N - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

0.7 to 1.1

Reproducibility

0.2% + 0.5 K

Temperature Range (°C)

600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 bis 1800

NETD (k)

0.1

Adjustable Response Time

5ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DSR 54NV - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

0.7 to 1.1

Reproducibility

0.2% + 0.5 K

Temperature Range (°C)

–40 to 1000

NETD (k)

0.1

Adjustable Response Time

5ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DSR 54NF - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm diameter ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

0.7 to 1.1

Reproducibility

0.2% + 0.5 K

Temperature Range (°C)

100 to 1300 | 500 to 2500

NETD (k)

0.1

Adjustable Response Time

5ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DSR 54NFV - Parameter

Weight (g)

600

Operating Temperature (°C)

0 to 70

Housing

Stainless Steel round housing with plug connector length: 105 mm diameter ∅ 50 mm

Measurement Uncertainty

0.5% + 1 K

Spectral range (µm)

0.7 to 1.1

Reproducibility

0.2% + 0.5 K

Temperature Range (°C)

600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800

NETD (k)

0.1

Adjustable Response Time

5ms to 100s

Adjustable Emissivity ε

0.050 - 1.000

DS 56N - Download

Download

DS 56NV - Download

Download

DG 56N - Download

Download

DG 56NV - Download

Download

DGE 56N - Download

Download

DT 56G - Download

Download

DT 56L - Download

Download

DSR 56N - Download

Download

DSR 56NV - Download

Download

DS 55N - Download

Download

DS 55NV - Download

Download

DG 55N - Download

Download

DG 55NV - Download

Download

DGE 55N - Download

Download

DSR 55N - Download

Download

DSR 55NV - Download

Download

DS 54N - Download

Download

DS 54NV - Download

Download

DG 54N - Download

Download

DG 54NV - Download

DT 54G - Download

Download

DT 54U - Download

Download

DT 54L - Download

Download

DSR 54N - Download

Download

DSR 54NV - Download

Download

DSR 54NF - Download

Download

DSR 54NFV - Download

Download

Accessories

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)

Company
About us Contact us Worldwide Location
Light Analysis
Spectrometers Hyperspectral Camera Power meters Beam Profiler
Microscope
Confocal Microscope Raman Microscope Microscopy Stages TCSPC Solution
Light Sources
Fiber lasers Fiber Amplifier Diode Lasers Incoherent Light
Imaging
sCMOS Camera SW/MW/LW IR Cameras Infrared Pyrometer Microscope Cameras
Optics
Nonlinear Crystals Thz Components Waveplate Objective Lens
