780/1560 Dual Output Femtosecond Laser

Overview Related Products Order Now!

780/1560 nm Dual Output Femtosecond Laser – STR1550D

STR1550D features a dual-port design and may provide high-power output at both 1550nm and 780nm simultaneously. It gives customers the ultimate flexibilities in constructing multi-purpose photonic systems. The proportion of 1550 and 780 output power can be customized upon user request. The laser is an easy-to-use turn-key system and can also be computer controlled.

STR1550D is well-suited for scientific uses such as THz-TDS (time-domain terahertz generation), SHG/THG imaging, pump-probe spectroscopy and multi-photon imaging. It can meet a broad range of R&D requirements of the scientific community.

Features

- Double wavelength output

- High peak power

- Linear polarization

- Diffraction-limited beam

Applications

- SHG imaging

- Two-photon Polymerization

- Multiphoton imaging

- Time-resolved fluorescence

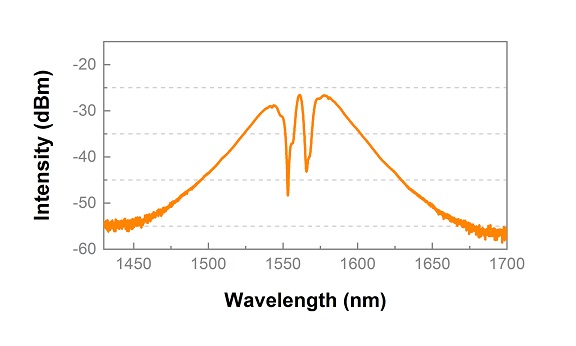

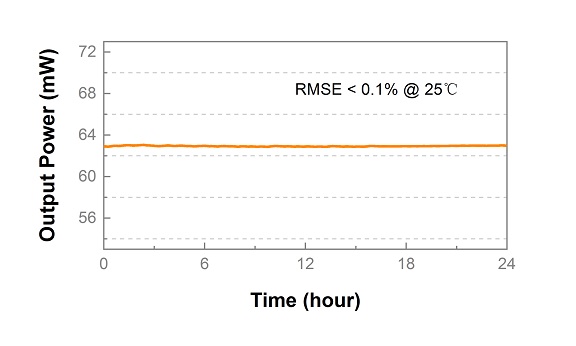

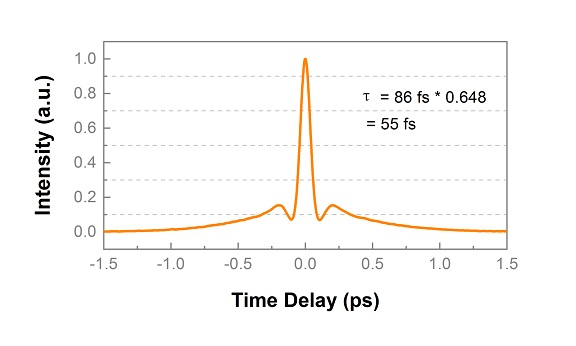

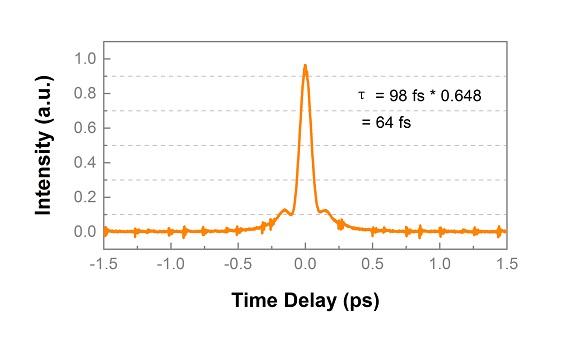

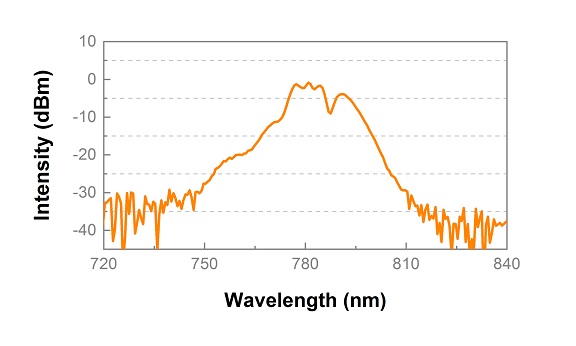

Typical Autocorrelation Trace	Output Spectrum	Power Stability


Typical Autocorrelation Trace	Output Spectrum	Power Stability

Product specifications and Brochures

Product Brochure Link:

Laser Parameters
Operating Wavelength	nm	1560 ± 10 nm	780 ± 10 nm
Pulse Width (FWHM)	fs	< 80 fs	< 100 fs
Polarization Extinction Ratio	dB	> 20 dB
Repetition Rate	MHz	80 MHz
Average Power	mW	>100 mW	> 60 mW (up to 90mW)
Average Power Stability	% RMS	< 0.5 %RMS (12h@25°C)
Pulse Energy	nJ	> 1.25 nJ	> 0.75 nJ
Output Type		PM1550 fiber, FC/APC connector	Spatial collimation output
Electrical, Environmental and Mechanical Parameters
Supply Voltage	VAC	100-240 VAC
Operational Temperature Range	°C	15-35
Operational Humidity Range	°C	20-80 (non-condensing)
Weight	kg	17
Dimensions	mm (LxWxH)	395 x 348 x 126 mm
Cooling		Air Cooling

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

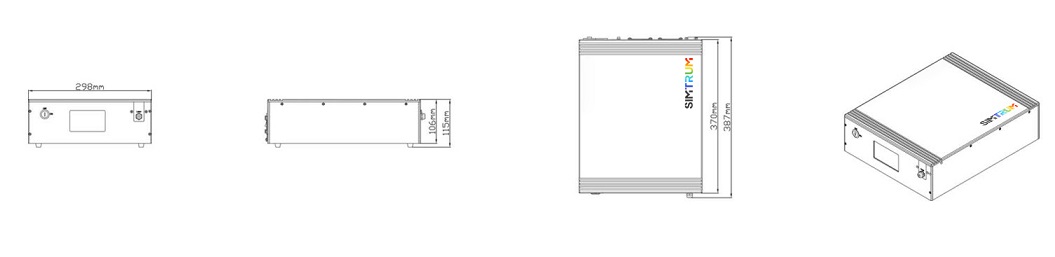

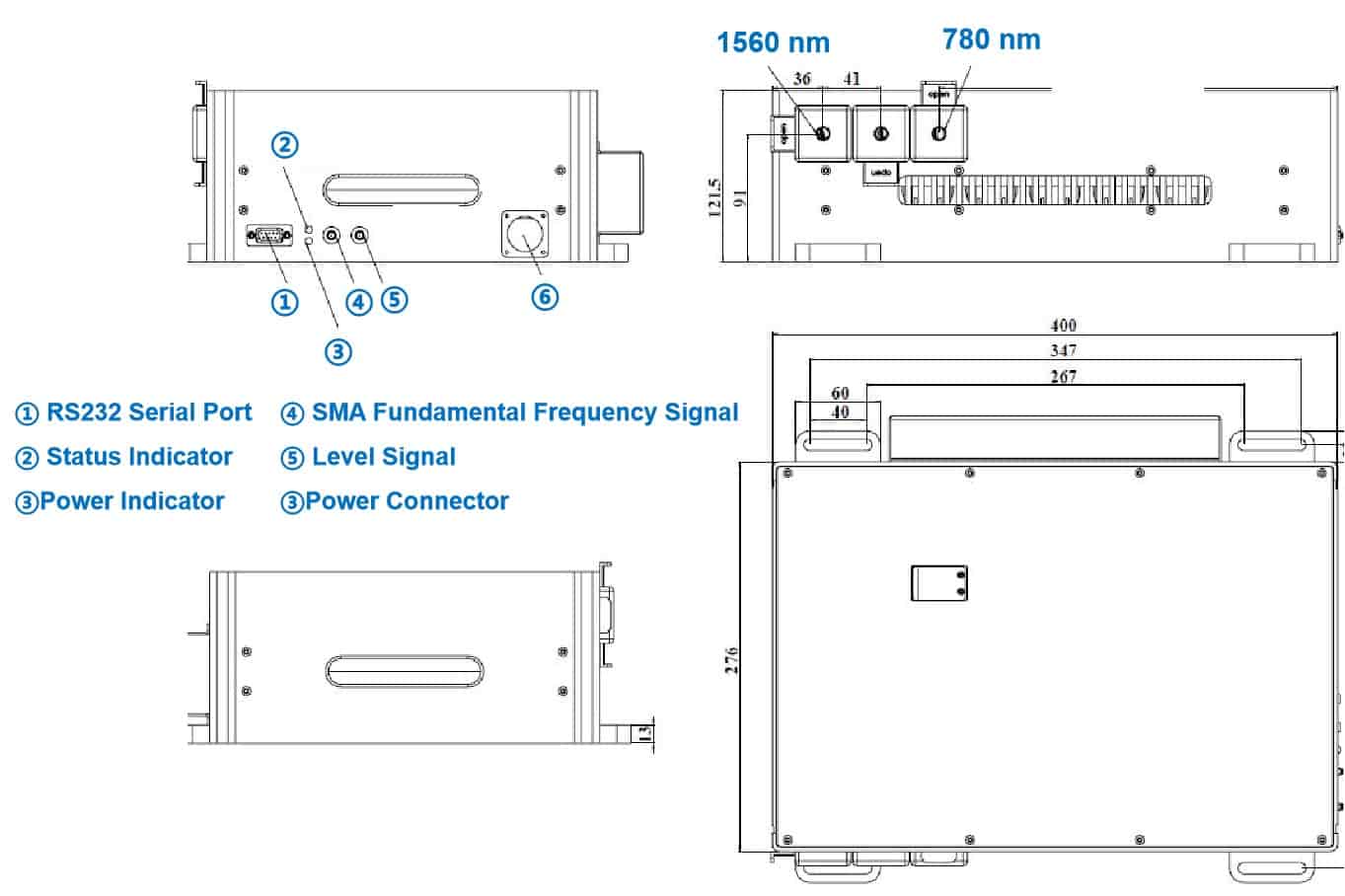

Machine Drawings

Product	Wavelength Range	Pulse Width	Average Power	Rep Rate	Pulse Energy
780nm Femtosecond Laser	780±10 nm	<100 fs	>30 mW	80 MHz	>0.4 nJ
780/1560nm Dual Output FS Laser	780/1560±10 nm	<100 fs	>100mW	80 Mhz	>1.25 nJ
1030nm Femtosecond Laser	1030±5 nm	>200 fs	>60 mW	25 MHz	>4 nJ
1040/50nm Femtosecond Laser	1040/50nm	<150 fs	5 - 10 W	80 Mhz	>80 nJ
1560nm Femtosecond Laser	1560±10 nm	50 - 500 fs	1 mW - 1 W	80 Mhz - 200 MHz	>10 nJ
2000nm Femtosecond Laser	1970±10 nm	200 fs	200 mW	80 MHz	>2.5 nJ

Model	Product
	Terahertz Quantum Cascade Lasers
	780nm Femtosecond Laser for Terahertz
	1560nm Femtosecond Laser for Terahertz
	TPX / HDPE Terahertz Plano Convex Lens Size choice : 1 to 2 inch (customizable) Focal length: 10mm to 240mm (customizable) Material: TPX / HDPE
	Off-Axis Parabolic Mirrors Size choice : 1 to 2 inch (customizable) Angle: 90 degree and 15/45/60 degree Focal length: 12.7mm to 254mm (customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL Through Hole: Yes
	Terahertz Hollow Retro Reflector Size choice : 25.4mm to 63.5mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Metallic Mirrors Size choice : 25.4mm to 76.2mm(customizable) Thickness: 3 to 6mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz ZnTe Crystals Size choice : 10mm * 10mm * (0.1 to 2mm) (customizable)
	Terahertz Beam Expander Reflection Output diameter: 40mm Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Polarizers Size choice : 25.4mm and 50.8mm (customizable)
	THz High Resistivity Silicon Beam Splitter Size choice : 1 to 3 inch (customizable) Thickness 0.5 to 3mm
	Terahertz Beam Profiler (1-18 THz)

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		STR1550D 780/1560 Dual Output Femtosecond Laser, Operating Wavelength 1560 ± 10 nm & 780 ± 10 nm, Pulse Width <80fs & <100fs, Average Power >100mW & >60mW, Average power stability < 0.5 %RMS (12h@25°C)		4-6 Weeks	Request for quote

STR1550D - Parameter

STR1550D - Download
