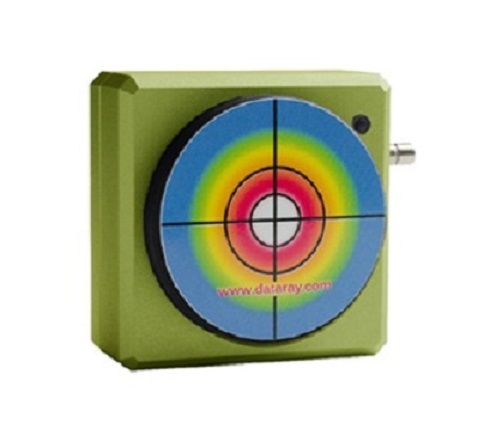

Terahertz Beam Profiler(3-20 THz)

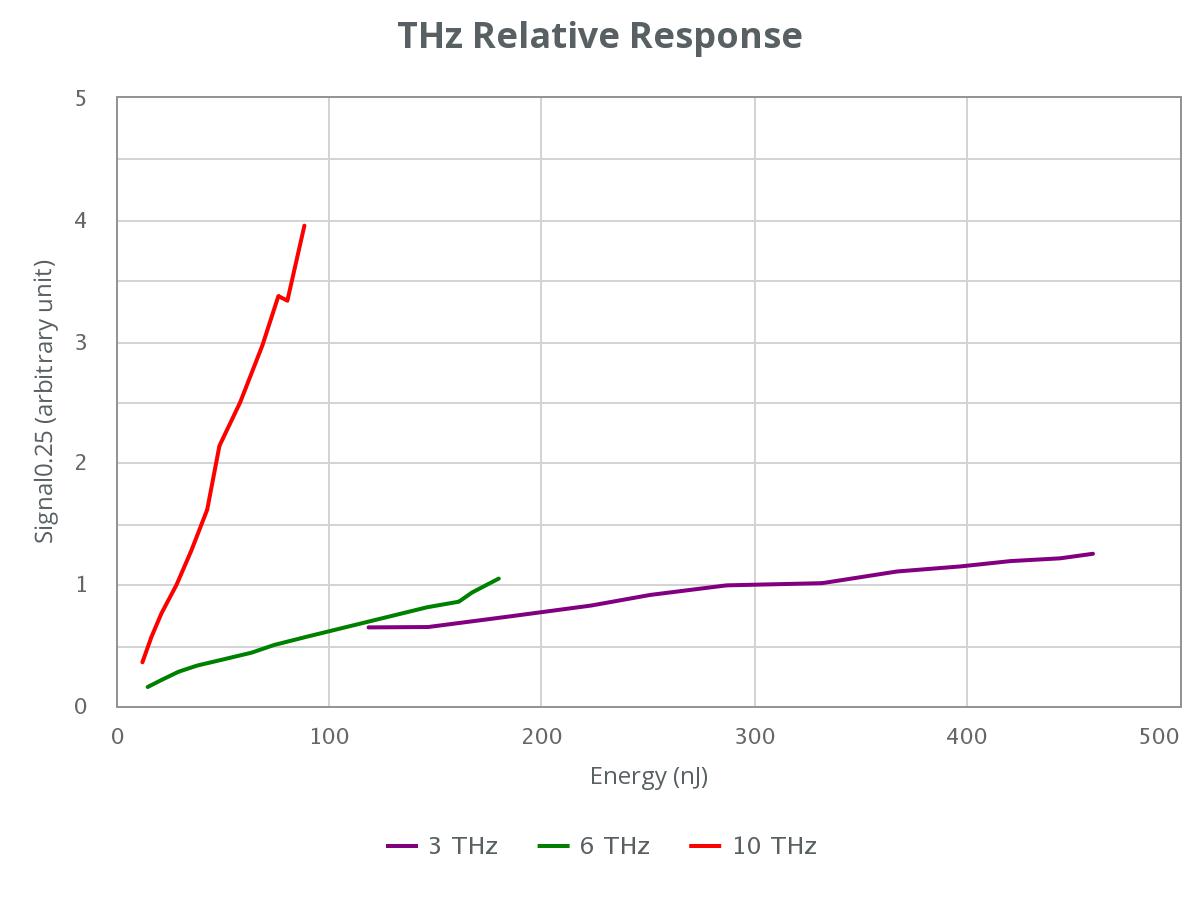

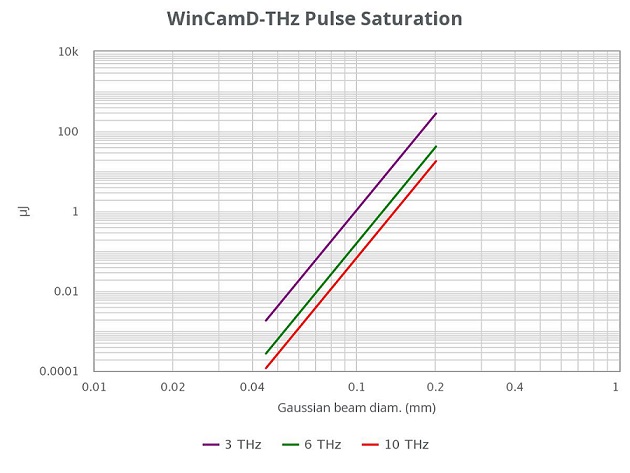

Overview Specifications Charts Related Products Order Now!

Simtrum’s Terahertz Beam Profilers have large active area, high spatial resolution, global shutter, and fast frame rate,is ideally suited to multispectral THz laser beam profiling. The slim, compact package with flexible USB 3.0 cable easily inserts into tight optical trains.

Switchable software configurations allow the user to move swiftly between multi-spectral alignment mode and a mode which compensates for the non-linear response to THz beams.

Features

3 to 20 THz (15 to 100 µm) plus 350 to 1150 nm
2048 x 2048 pixels, 11.3 x 11.3 mm active area
5.5 µm pixels
12 fps @ 2048x2048 to 60 fps @ 512x512
Port-powered, USB 3.0; flexible 3 m cable
HyperCal™ – Dynamic noise and baseline correction software
Real-time non-linearity correction
Global electronic shutter, 85 µs to 2 s
TTL, optical and auto-trigger options
12-bit ADC
Parallel capture on multiple cameras
Field-replaceable image sensors
Relative power level display

Applications

THz laser profiling/allignment
Non-linear spectroscopy
Medical & security inspection/QA opaque opjects
Field servicing of THz lasers & laser-based systems

Please note: This product requires 64-bit Windows 7, 8/8.1, or 10.

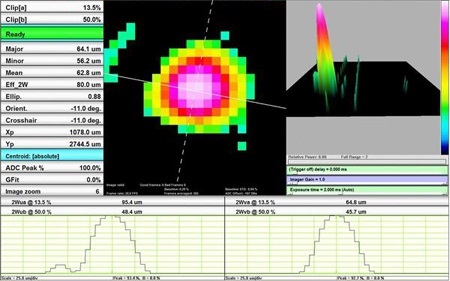

Terahertz Camera Software

Software Features:

XY profiles and centroids
Image & intensity zoom
Linear and logarithmic displays
Linear and area filters
Gaussian and Top Hat least squares fits
Image averaging, 1 to continuous
Ellipse angle, major, minor, mean diameters
Proprietary HyperCal™ dynamic noise and baseline correction
Background capture and subtraction

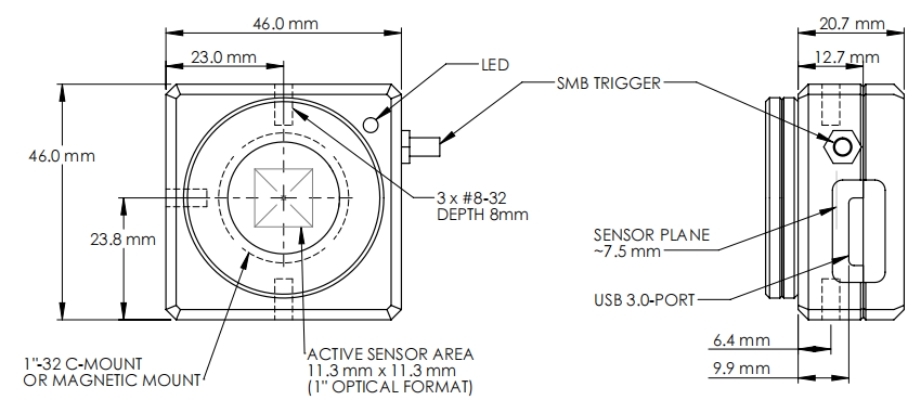

Dimensions:

Product Brochure: Terahertz Camera (3- 20 THz)

Parameters	Detail
Pixel size‚ H x V, count	5.5 x 5.5 µm pixels, 2048 x 2048, 4.2 MPixel
Sensor image area	11.3 x 11.3 mm
Shutter type	Global
Frame rate	≥60 Hz @ 512 x 512; ≥30 Hz @ 1024 x 1024; ≥ 12 Hz @ 2048 x 2048
Max "every pulse" PRR	≥12.5 Hz
Single pulse capture max PRR	USB 3.0: 12.6 kHz
Single pulse capture max PRR	USB 2.0: 6.3 kHz
Signal to RMS noise	>500:1
Electronic shutter	25,000:1, 85 µs to 2s on USB 3.0
Electronic shutter	12,500:1, 158 µs to 2s on USB 2.0
ADC	12 bit
Interface	USB 3.0 Port-powered

Model	Sensor size	Resolution Range	Wavelength Range
Standard Beam profiler	up to 14.6mm	up to 24Mpx	190nm to 1100nm
1 inch Aperture Beam profiler	up to 25mm	up to 4.2Mpx	190nm to 1100nm
SWIR Beam Profiler	9.6 *7.7mm	640 * 512	900nm to 1700nm
IR Beam Profiler	10.88 * 8.16mm	540 * 480	2um to 16um
Terahertz Beam Profiler	11.3 *11.3 mm	up to 4.2Mpx	1- 18 Thz
Scan Slit Beam Profiler	Up to 4mm		190nm to 2500nm

Model	Product
	Terahertz Quantum Cascade Lasers
	780nm Femtosecond Laser for Terahertz
	1560nm Femtosecond Laser for Terahertz
	TPX / HDPE Terahertz Plano Convex Lens Size choice : 1 to 2 inch (customizable) Focal length: 10mm to 240mm (customizable) Material: TPX / HDPE
	Off-Axis Parabolic Mirrors Size choice : 1 to 2 inch (customizable) Angle: 90 degree and 15/45/60 degree Focal length: 12.7mm to 254mm (customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL Through Hole: Yes
	Terahertz Hollow Retro Reflector Size choice : 25.4mm to 63.5mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Metallic Mirrors Size choice : 25.4mm to 76.2mm(customizable) Thickness: 3 to 6mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz ZnTe Crystals Size choice : 10mm * 10mm * (0.1 to 2mm) (customizable)
	Terahertz Beam Expander Reflection Output diameter: 40mm Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Polarizers Size choice : 25.4mm and 50.8mm (customizable)
	THz High Resistivity Silicon Beam Splitter Size choice : 1 to 3 inch (customizable) Thickness 0.5 to 3mm

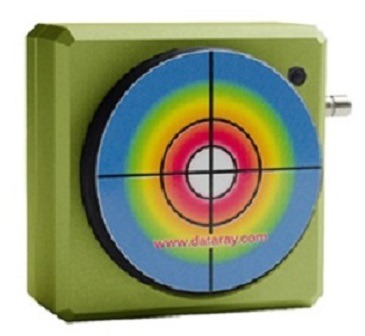

	Terahertz Beam Profiler (1-18 THz)

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		Terahertz Beam Profiler(3-20 THz) 2048 x 2048 pixels, 11.3 x 11.3 mm active area, 5.5 µm pixels		4-6 Weeks	Request for quote
