2000nm Femtosecond Pulse Laser

Lower Power High Power Related Products Order Now!

2000 nm Ultrafast Fiber Laser - STP2000ULP

STP2000ULP is a thulium-fiber based high-performance ultrafast fiber laser specifically designed for scientific users and has flexible parameters upon user requests. It has a center wavelength of 1970±10 nm, a pulse width of 200 fs (15 ps Optional), repetition rate of 80MHz, and an average output power of 200mW (4W Optional).

STP2000ULP is based on SESAM passive locking technology and has an all-PM fiber structure. It uses SIMTRUM Lasers' proprietary optical switch packaging technology and integrates with SIMTRUM Lasers' unique "Smart-Lock" processes to ensure long-term stability and reliability. The laser is an easy-to-use turn-key system and can also be computer controlled.

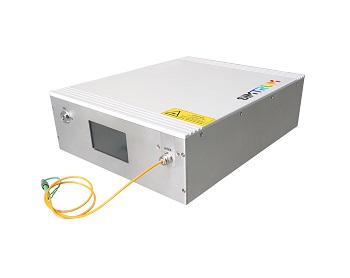

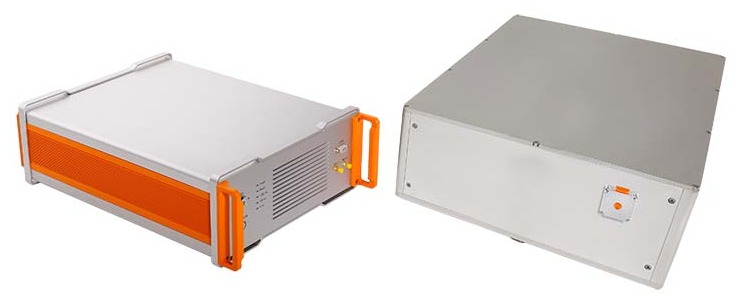

2000nm Lower Power Femtosecond laser picture 1

STP2000ULP is well-suited for applications such as Mid-IR frequency conversion, Nonlinear optics and Silicon photonics. It can meet a broad range of R&D requirements of the scientific community.

Features

- Customizable wavelength

- Femtosecond level

- Linear polarization

- Diffraction-limited beam

Applications

- Mid-IR Frequency Conversion

- Nonlinear optics

- Multiphoton imaging

- Mid-IR spectroscopy

- Silicon photonics

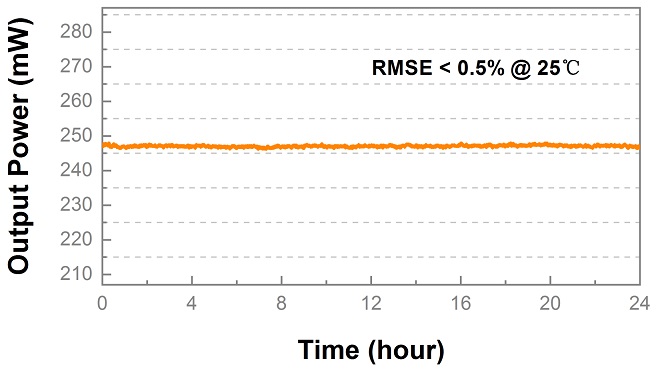

Test Data @200fs

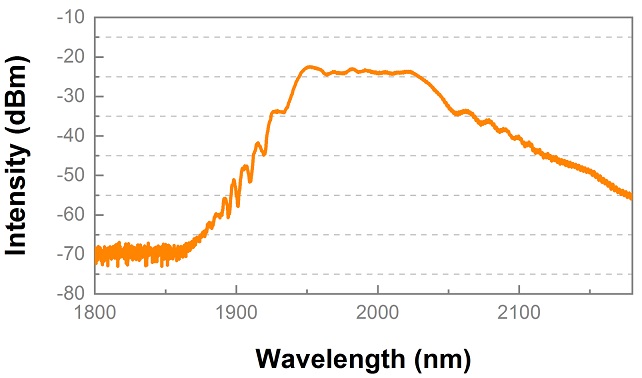

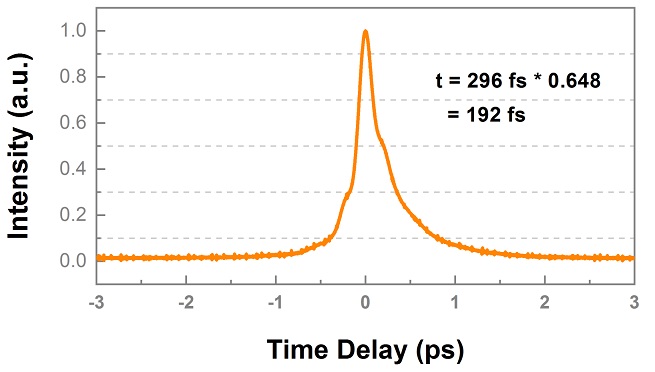

Typical Autocrrelation Trace	Output Spectrum	Average Power Stability

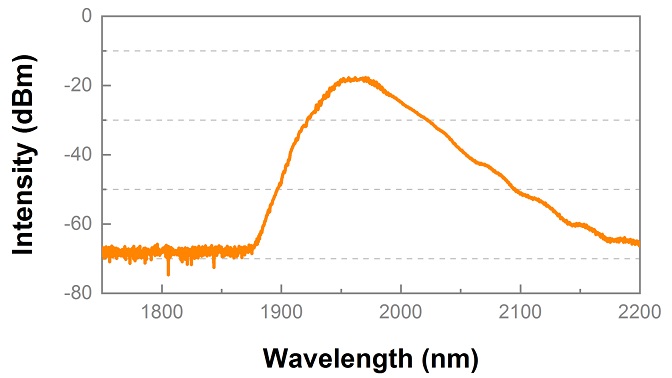

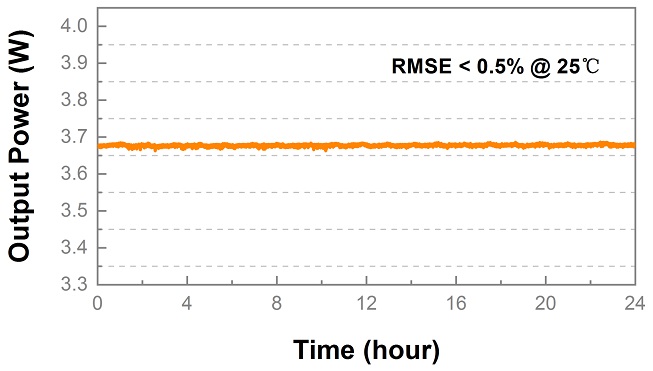

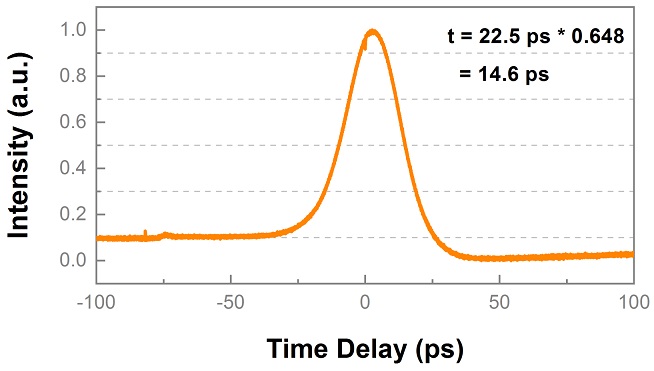

Test Data @50ps
Typical Autocrrelation Trace	Output Spectrum	Average Power Stability

Product Specifications and Brochures

Product Brochure Link:

Laser Parameters
Operating Wavelength	nm	1970 ± 10 nm
Pulse Width (FWHM)	fs, ps	200 fs; 15 ps
Polarization Extinction Ratio	dB	> 20 dB
Repetition Rate	MHz	80 MHz
Average Power	mW, W	> 200 mW (200 fs); 4 W (15 ps)
Average Power Stability	% RMS	< 0.5 %RMS (12h@25°C)
Single-pulse Energy	nJ	2.5 nJ (200 fs); 50 nJ (15 ps)
Output Fiber		FC/APC connector (200 fs); Free-space (15 ps)
Electrical, Environmental and Mechanical Parameters
Supply Voltage	VAC	100-240
Operational Temperature Range	°C	15-35
Operational Humidity Range	°C	20-80
Weight	kg	17
Dimensions	mm (LxWxH)	390 x 297 x 115
Cooling		Air Cooling

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

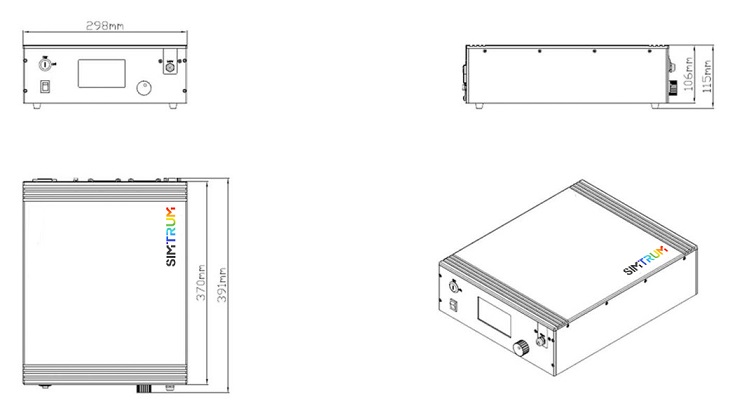

Machine Drawings

2000 nm High Power Ultrafast Fiber Laser - STR2000HP

STR2000HP represents the long-wavelength capabilities of SIMTRUM’s Watt-level femtosecond oscillators. It utilizes a unique dispersion engineering technology to ensure good balance between pulse duration and spectral width. The standard product has a center wavelength of 1970 ±10nm, a pulse width of <300 fs, repetition rate of 80±1 MHz, and an average output power of >1 W. As with our other ultrafast products, STR2000HP has flexible parameters upon user requests.

STR2000HP is well-suited for applications such as Mid-IR frequency conversion, Nonlinear optics and Silicon photonics. It can meet a broad range of R&D requirements of the scientific community.

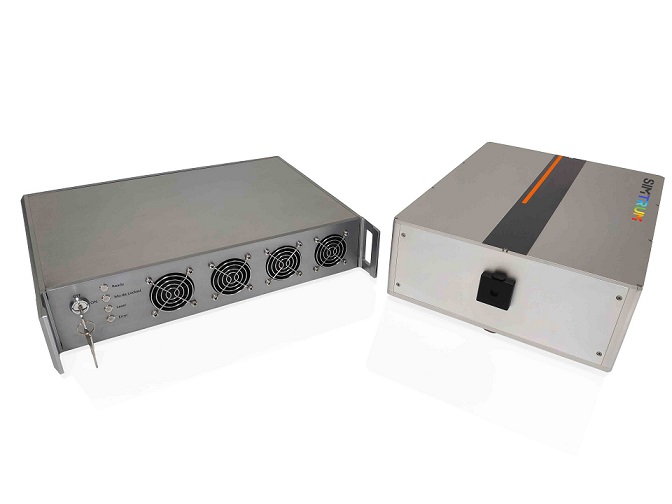

2000nm Lower Power Femtosecond laser picture 1

Features

- Long-term stable operation

- High pulse energy

- Reliable mode-locking

- All-PM solution

Applications

- Mid-IR Frequency Conversion

- Nonlinear optics

- Mid-IR spectroscopy

- Silicon photonics

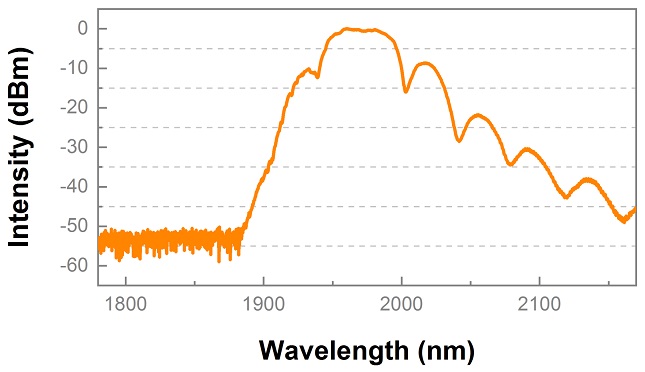

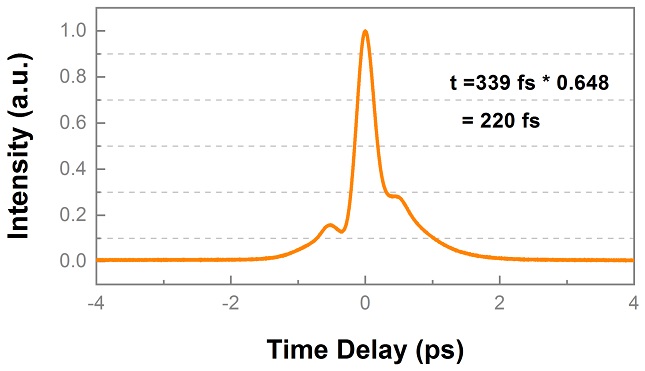

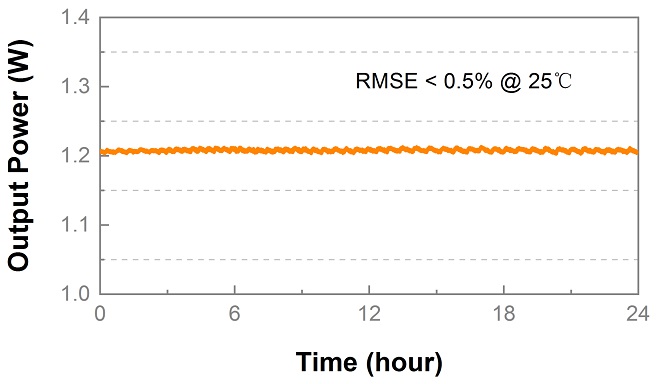

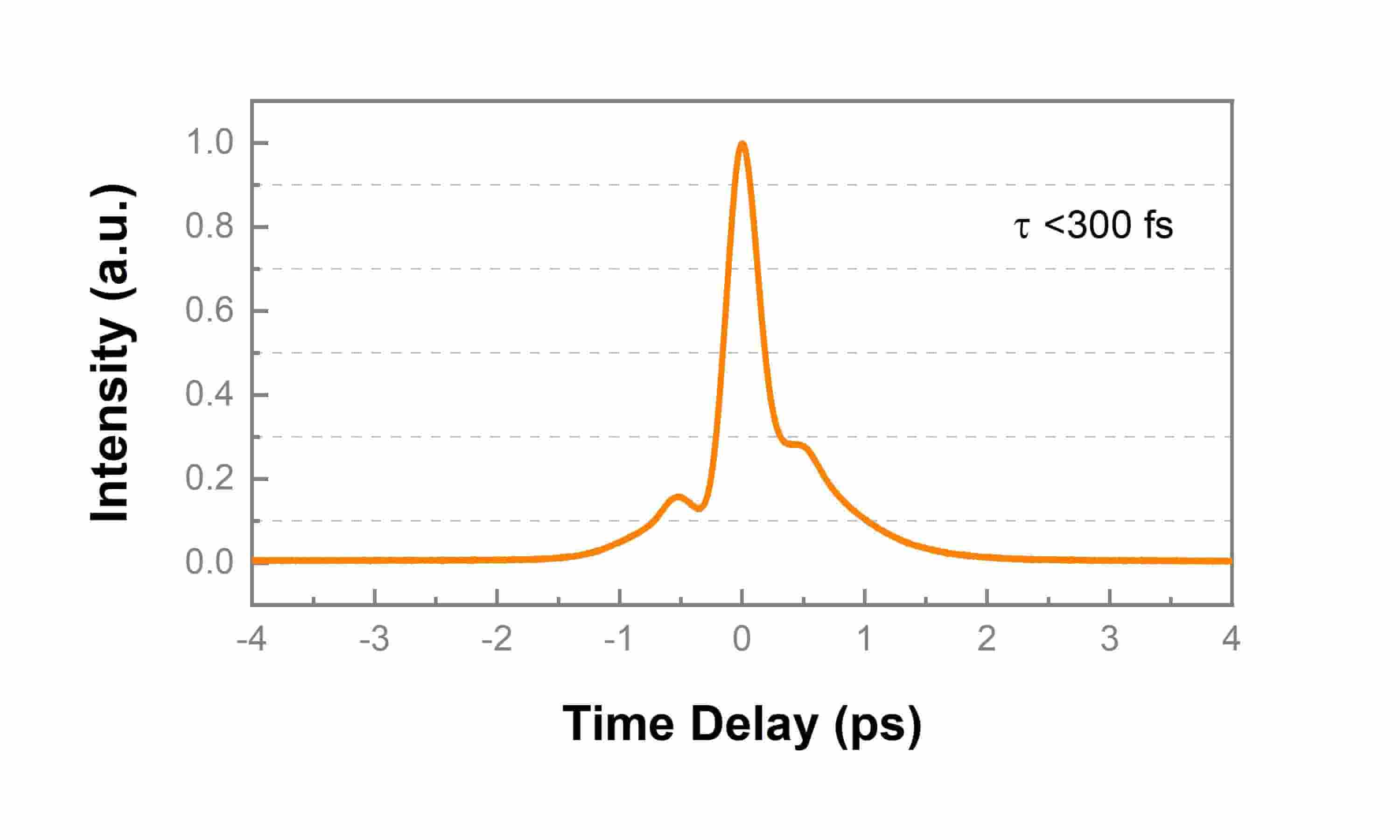

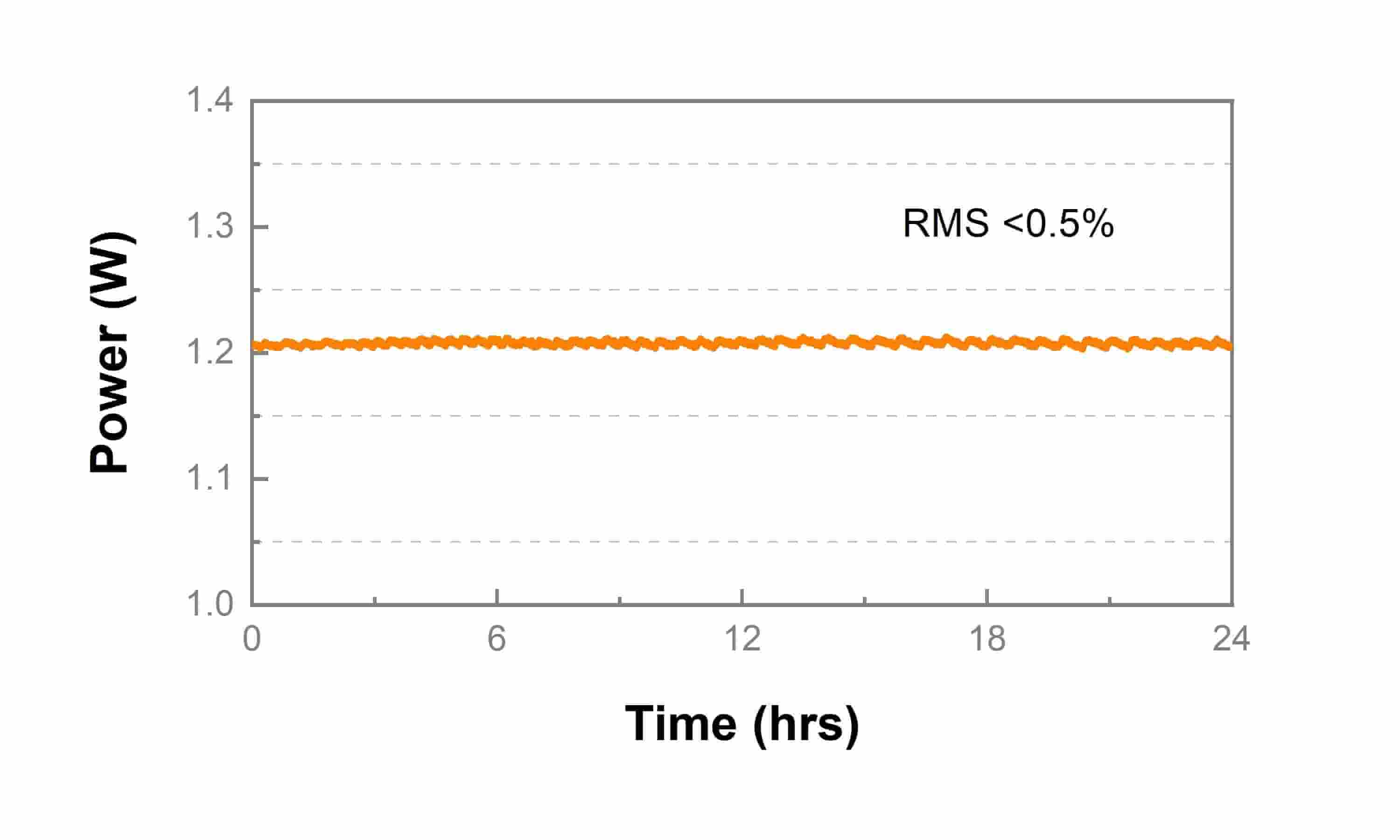

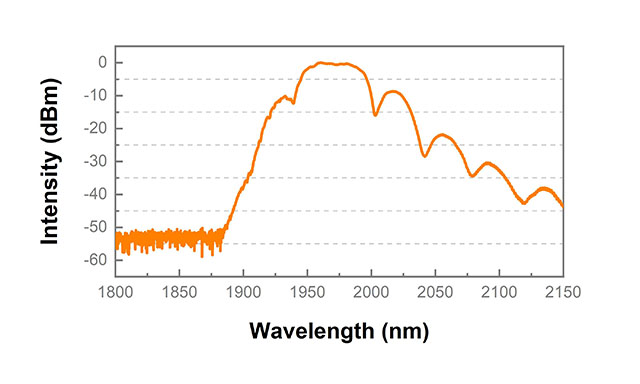

Typical Output Pulse Width	Output Spectrum	Power Stability

Product Specifications and Brochures

Product Brochure Link:

Laser Parameters
Operating Wavelength	nm	1970 ± 10 nm
Pulse Width (FWHM)	fs	< 300 fs (Typical < 250 fs)
Polarization Extinction Ratio	dB	> 20 dB
Repetition Rate	MHz	80 ±1 MHz
Average Power	W	> 1 W
Average Power Stability	% RMS	< 0.5 %RMS (12h@25°C)
Single-pulse Energy	nJ	> 12.5 nJ
Output Fiber		Spatially collimated output
Electrical, Environmental and Mechanical Parameters
Supply Voltage	VAC	100-240
Operational Temperature Range	°C	15-35
Operational Humidity Range	°C	20-80 (non-condensing)
Weight	kg	20
Dimensions	mm (LxWxH)	445 x 300 x 134 , 390 x 445 x 94
Cooling		Air Cooling

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

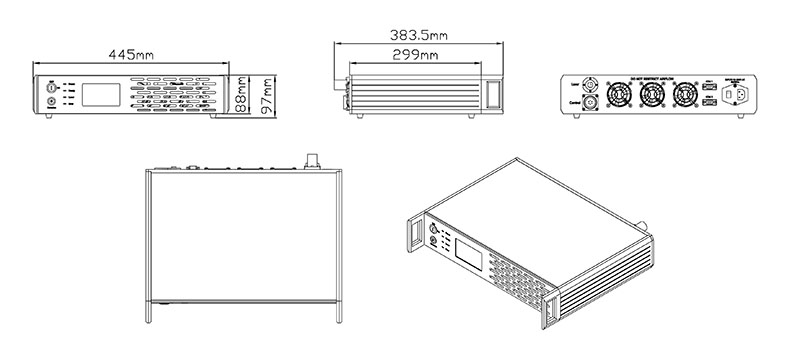

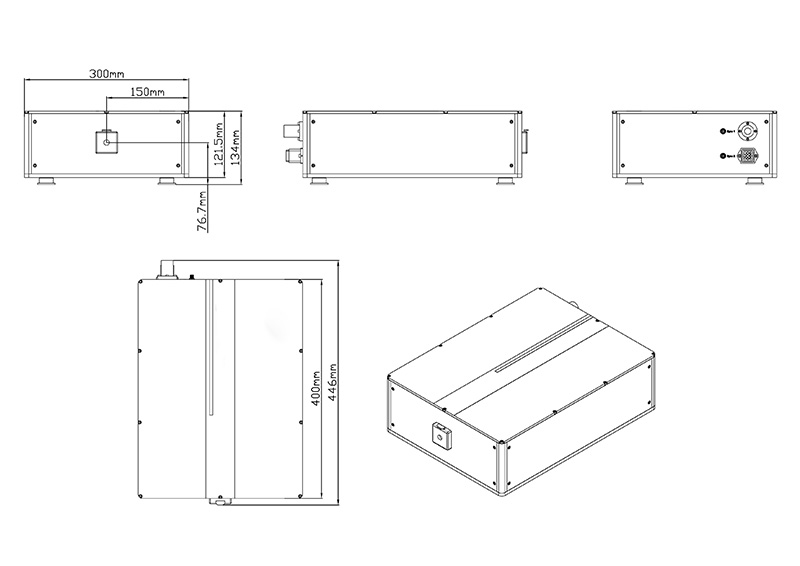

Machine Drawings

Product	Wavelength Range	Pulse Width	Average Power	Rep Rate	Pulse Energy
780nm Femtosecond Laser	780±10 nm	<100 fs	>30 mW	80 MHz	>0.4 nJ
780/1560nm Dual Output FS Laser	780/1560±10 nm	<100 fs	>100mW	80 Mhz	>1.25 nJ
1030nm Femtosecond Laser	1030±5 nm	>200 fs	>60 mW	25 MHz	>4 nJ
1040/50nm Femtosecond Laser	1040/50nm	<150 fs	5 - 10 W	80 Mhz	>80 nJ
1560nm Femtosecond Laser	1560±10 nm	50 - 500 fs	1 mW - 1 W	80 Mhz - 200 MHz	>10 nJ
2000nm Femtosecond Laser	1970±10 nm	200 fs	200 mW	80 MHz	>2.5 nJ

Model	Product
	Terahertz Quantum Cascade Lasers
	780nm Femtosecond Laser for Terahertz
	1560nm Femtosecond Laser for Terahertz
	TPX / HDPE Terahertz Plano Convex Lens Size choice : 1 to 2 inch (customizable) Focal length: 10mm to 240mm (customizable) Material: TPX / HDPE
	Off-Axis Parabolic Mirrors Size choice : 1 to 2 inch (customizable) Angle: 90 degree and 15/45/60 degree Focal length: 12.7mm to 254mm (customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL Through Hole: Yes
	Terahertz Hollow Retro Reflector Size choice : 25.4mm to 63.5mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Metallic Mirrors Size choice : 25.4mm to 76.2mm(customizable) Thickness: 3 to 6mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz ZnTe Crystals Size choice : 10mm * 10mm * (0.1 to 2mm) (customizable)
	Terahertz Beam Expander Reflection Output diameter: 40mm Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Polarizers Size choice : 25.4mm and 50.8mm (customizable)
	THz High Resistivity Silicon Beam Splitter Size choice : 1 to 3 inch (customizable) Thickness 0.5 to 3mm
	Terahertz Beam Profiler (1-18 THz)

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		STP2000ULP 2000nm Femtosecond Pulse Laser - Lower power, Operating wavelength 1970 ± 10 nm, Pulse width 200 fs/15 ps, Polarization Extinction Ratio > 20 dB, Average Power > 200 mW (200 fs)/4 W (15 ps), Single-pulse Energy 2.5 nJ (200 fs)/50 nJ (15 ps)		4-6 Weeks	Request for quote
		STR2000HP 2000nm Femtosecond Pulse Laser - High power, Operating Wavelength 1970 ± 10 nm, Pulse Width (FWHM) < 300 fs (Typical < 250 fs), Polarization Extinction Ratio > 20 dB, Average Power > 1 W, Single-pulse Energy > 12.5 nJ		4-6 Weeks	Request for quote

STR2000HP - Parameter

STP2000ULP - Parameter

STR2000HP - Download

STP2000ULP - Download
