Terahertz Metallic Mirrors


Mirrors are optical devices that reflect light. They are designed to reflect light for a variety of applications, including beam steering interferometry, imaging, or illumination. They are optimized for the proper wavelengths and are also designed for lasers, the damage thresholds that are suitable for the designated laser.


Metallic Mirrors consist of a good combination of performance and value for general purpose applications. They operate over a very broad spectral range from UV to visible, and visible to near – and mid-IR. They are relatively insensitive to angle of incidence and polarization, and their relatively wide bandwidth and high reflectivity makes them ideal for applications like spectroscopy. Metallic mirrors are widely used due to a moderate level of reflection over a very broad spectral range. Protected gold coatings have the highest reflectance in IR.



General Specifications
  Material  K9
  Diameter Tolerance (mm)  ±0.2
  Thickness Tolerance (mm)  ±0.2
  Suface Quality  40/20 scratch and dig
  Chamfer  <0.5mm x   45°
  Clear Aperture  >90%
  Front Surface Flatness  <λ/10@633nm
  Parallelism(arcmin)  <3
  Damage Threshold(pulsed)  1J/cm²(20ns   20Hz 1064nm)


Model Option

CoatingProduct CodeDiameter (mm)Thickness (mm)
Protected Gold @2000-12000nmPAU-TMM-25.4-325.43
PAU-TMM-25.4-66
PAU-TMM-50.8-350.83
PAU-TMM-50.8-66
PAU-TMM-76.2-676.26
Protected Silver @400-12000nmPAG-TMM-25.4-325.43
PAG-TMM-25.4-66
PAG-TMM-50.8-350.83
PAG-TMM-50.8-66
PAG-TMM-76.2-676.26
Protacted Aluminum @400-1200nmPAL-TMM-25.4-325.43
PAL-TMM-25.4-66
PAL-TMM-50.8-350.83
PAL-TMM-50.8-66
PAL-TMM-76.2-676.26
UV-Enhanced Aluminum  @250-450nmUVE-TMM-25.4-325.43
UVE-TMM-25.4-66
UVE-TMM-50.8-350.83
UVE-TMM-50.8-66
UVE-TMM-76.2-676.26

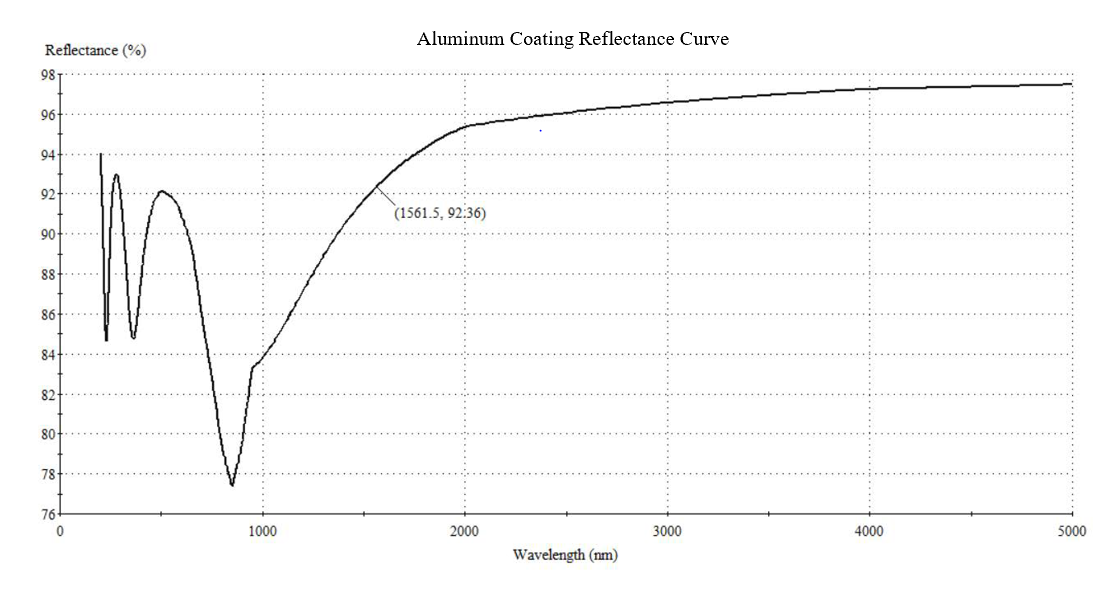

Aluminum Coating Reflectance Curve image.png

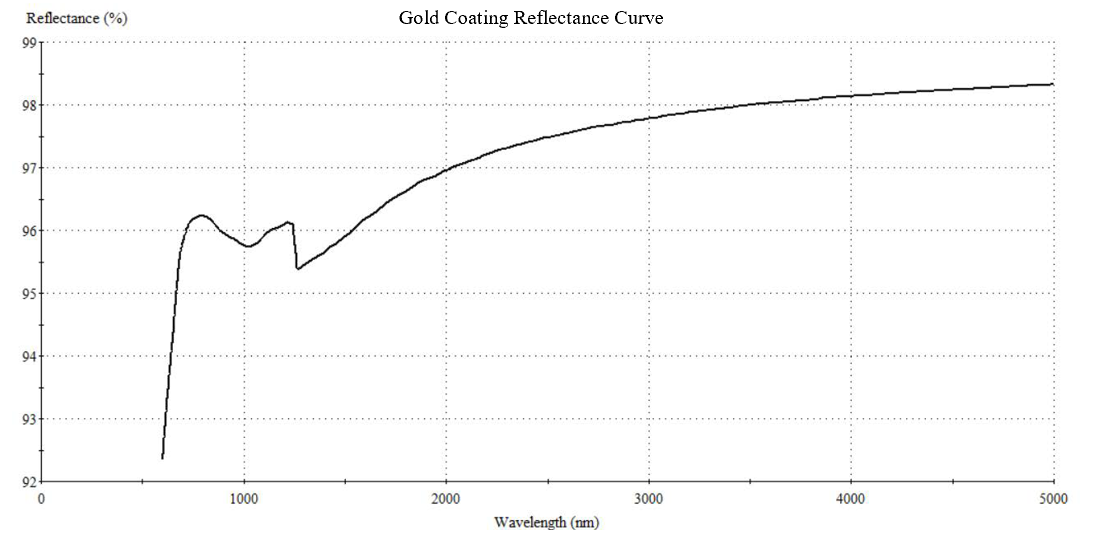

Gold Coating Reflectance Curve

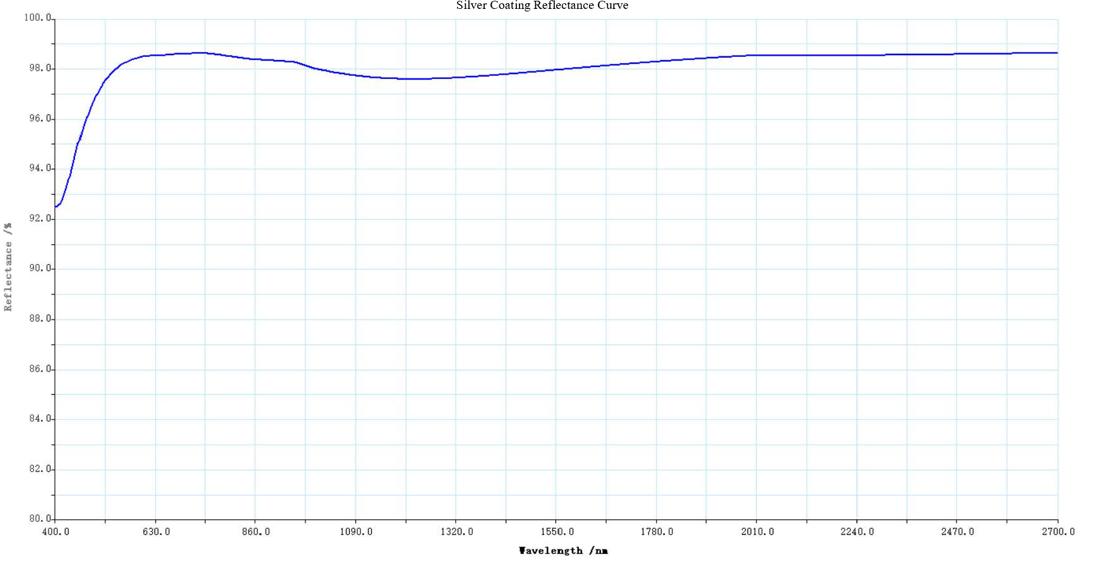

Silver Coating Reflectance Curve


UV Enhanced Coating Reflectance Curve



Model
Product

  Terahertz Quantum Cascade Lasers

  780nm Femtosecond Laser for Terahertz


  1560nm Femtosecond Laser for Terahertz

  TPX / HDPE Terahertz Plano Convex Lens

  Size choice : 1 to 2 inch (customizable)

  Focal length: 10mm to 240mm (customizable)

  Material: TPX / HDPE

  Off-Axis Parabolic Mirrors

  Size choice : 1 to 2 inch (customizable)

  Angle: 90 degree and 15/45/60 degree

  Focal length: 12.7mm to 254mm (customizable)

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL

  Through Hole: Yes

  Terahertz Hollow Retro Reflector

  Size choice : 25.4mm to 63.5mm(customizable)

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL


  Terahertz Metallic Mirrors

  Size choice : 25.4mm to 76.2mm(customizable)

  Thickness: 3 to 6mm(customizable)

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL


  Terahertz ZnTe Crystals

  Size choice : 10mm * 10mm * (0.1 to 2mm) (customizable)

  Terahertz Beam Expander Reflection

  Output diameter: 40mm

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL

  Terahertz Polarizers

  Size choice : 25.4mm and 50.8mm (customizable)


  THz High Resistivity Silicon Beam Splitter

  Size choice : 1 to 3 inch (customizable)

  Thickness 0.5 to 3mm


  Terahertz Beam Profiler (1-18 THz)




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Diameter (mm)

Coating


Search Reset
Compare Model Drawings & Specs Coating Diameter (mm) Availability Reference Price
(USD)
PAU-TMM-25.4-3
Terahertz Metallic Mirrors, protected Gold coating, Diameter 25.4mm, thickness 3mm
Protected Gold@2000-12000nm25.4 2-3 Weeks $60.32
PAU-TMM-25.4-6
Terahertz Metallic Mirrors, protected Gold coating, Diameter 25.4mm, thickness 6mm
Protected Gold@2000-12000nm25.4 2-3 Weeks $63.49
PAU-TMM-50.8-3
Terahertz Metallic Mirrors, protected Gold coating, Diameter 50.8mm, thickness 3mm
Protected Gold@2000-12000nm50.8 2-3 Weeks $117.46
PAU-TMM-50.8-6
Terahertz Metallic Mirrors, protected Gold coating, Diameter 50.8mm, thickness 6mm
Protected Gold@2000-12000nm50.8 2-3 Weeks $130.16
PAU-TMM-76.2-6
Terahertz Metallic Mirrors, protected Gold coating, Diameter 76.2mm, thickness 6mm
Protected Gold@2000-12000nm76.2 2-3 Weeks $215.87
PAG-TMM-25.4-3
Terahertz Metallic Mirrors, protected Silver coating, Diameter 25.4mm, thickness 3mm
Protected Silver@400-12000nm25.4 2-3 Weeks $50.79
PAG-TMM-25.4-6
Terahertz Metallic Mirrors, protected Silver coating, Diameter 25.4mm, thickness 6mm
Protected Silver@400-12000nm25.4 2-3 Weeks $57.14
PAG-TMM-50.8-3
Terahertz Metallic Mirrors, protected Silver coating, Diameter 50.8mm, thickness 3mm
Protected Silver@400-12000nm50.8 2-3 Weeks $114.29
PAG-TMM-50.8-6
Terahertz Metallic Mirrors, protected Silver coating, Diameter 50.8mm, thickness 6mm
Protected Silver@400-12000nm50.8 2-3 Weeks $111.11
PAG-TMM-76.2-6
Terahertz Metallic Mirrors, protected Silver coating, Diameter 76.2mm, thickness 6mm
Protected Silver@400-12000nm76.2 2-3 Weeks $200.00
PAL-TMM-25.4-3
Terahertz Metallic Mirrors, protected Aluminum coating, Diameter 25.4 mm, thickness 3mm
Protected Aluminum @400-1200nm25.4 2-3 Weeks $47.62
PAL-TMM-25.4-6
Terahertz Metallic Mirrors, protected Aluminum coating, Diameter 25.4 mm, thickness 6mm
Protected Aluminum @400-1200nm25.4 2-3 Weeks $53.97
PAL-TMM-50.8-3
Terahertz Metallic Mirrors, protected Aluminum coating, Diameter 50.8 mm, thickness 3mm
Protected Aluminum @400-1200nm50.8 2-3 Weeks $111.11
PAL-TMM-50.8-6
Terahertz Metallic Mirrors, protected Aluminum coating, Diameter 50.8 mm, thickness 6mm
Protected Aluminum @400-1200nm50.8 2-3 Weeks $104.76
PAL-TMM-76.2-6
Terahertz Metallic Mirrors, protected Aluminum coating, Diameter 76.2 mm, thickness 6mm
Protected Aluminum @400-1200nm76.2 2-3 Weeks $177.78
UVE-TMM-25.4-3
Terahertz Metallic Mirrors, UV-Enhanced Aluminum coating, Diameter 25.4 mm, thickness 3mm
UV-Enhanced Aluminum@250-450 nm25.4 2-3 Weeks $47.62
UVE-TMM-25.4-3
Terahertz Metallic Mirrors, UV-Enhanced Aluminum coating, Diameter 25.4 mm, thickness 6mm
UV-Enhanced Aluminum@250-450 nm25.4 2-3 Weeks $53.97
UVE-TMM-50.8-3
Terahertz Metallic Mirrors, UV-Enhanced Aluminum coating, Diameter 50.8 mm, thickness 3mm
UV-Enhanced Aluminum@250-450 nm50.8 2-3 Weeks $111.11
UVE-TMM-50.8-6
Terahertz Metallic Mirrors, UV-Enhanced Aluminum coating, Diameter 50.8 mm, thickness 6mm
UV-Enhanced Aluminum@250-450 nm50.8 2-3 Weeks $104.76
UVE-TMM-76.2-6
Terahertz Metallic Mirrors, UV-Enhanced Aluminum coating, Diameter 76.2 mm, thickness 6mm
UV-Enhanced Aluminum@250-450 nm76.2 2-3 Weeks $177.78
