Products / Lasers/Light /Fiber Lasers /Femtosecond Pulse Fiber Laser 780nm-2um /1560nm Femtosecond Pulse Laser /

1560nm Femtosecond Pulse Laser

1560 Standard 1560 H-Power 1560 H-Rep Model Guide Related Products Order Now!

1560nm Femtosecond Pulse Fiber Laser

The 1560nm Femtosecond Pulse Fiber Laser Series ultrafast lasers integrate the latest femtosecond laser technology. The stable output of 1560 nm femtosecond pulse laser is realized by using high-performance erbium-doped fiber as working medium and high-precision dispersion compensation technology. The output laser pulse has the characteristics of extremely narrow duration and high pulse peak power. The laser is a turnkey product with long-term stable operation and maintenance free. It can be widely used in the research fields of optical frequency comb, supercontinuum, terahertz and so on.

* Specific combination of pulse duration, repetition rate and average power is customizable.

1560nm Femtosecond Laser picture 1

Characteristics

-Pulse duration <50fs

-1560nm wavelength

-Turn-key Product

-ALL PM Fiber Laser Cavity

Applications

-Optical Frequency Comb

-Ultra-Continuous Spectrum

-Ultra-Fast Laser Phenomenon

-THz

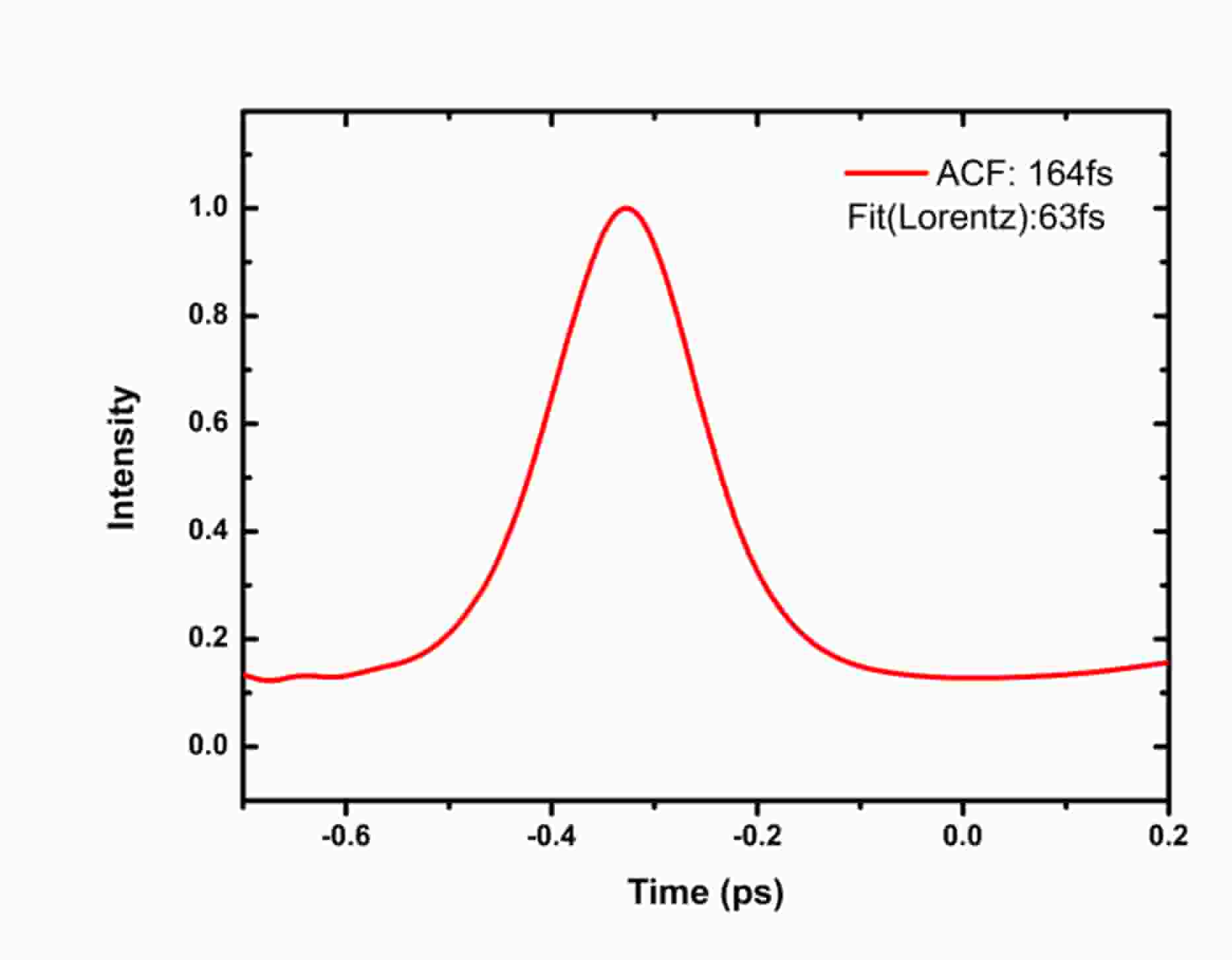

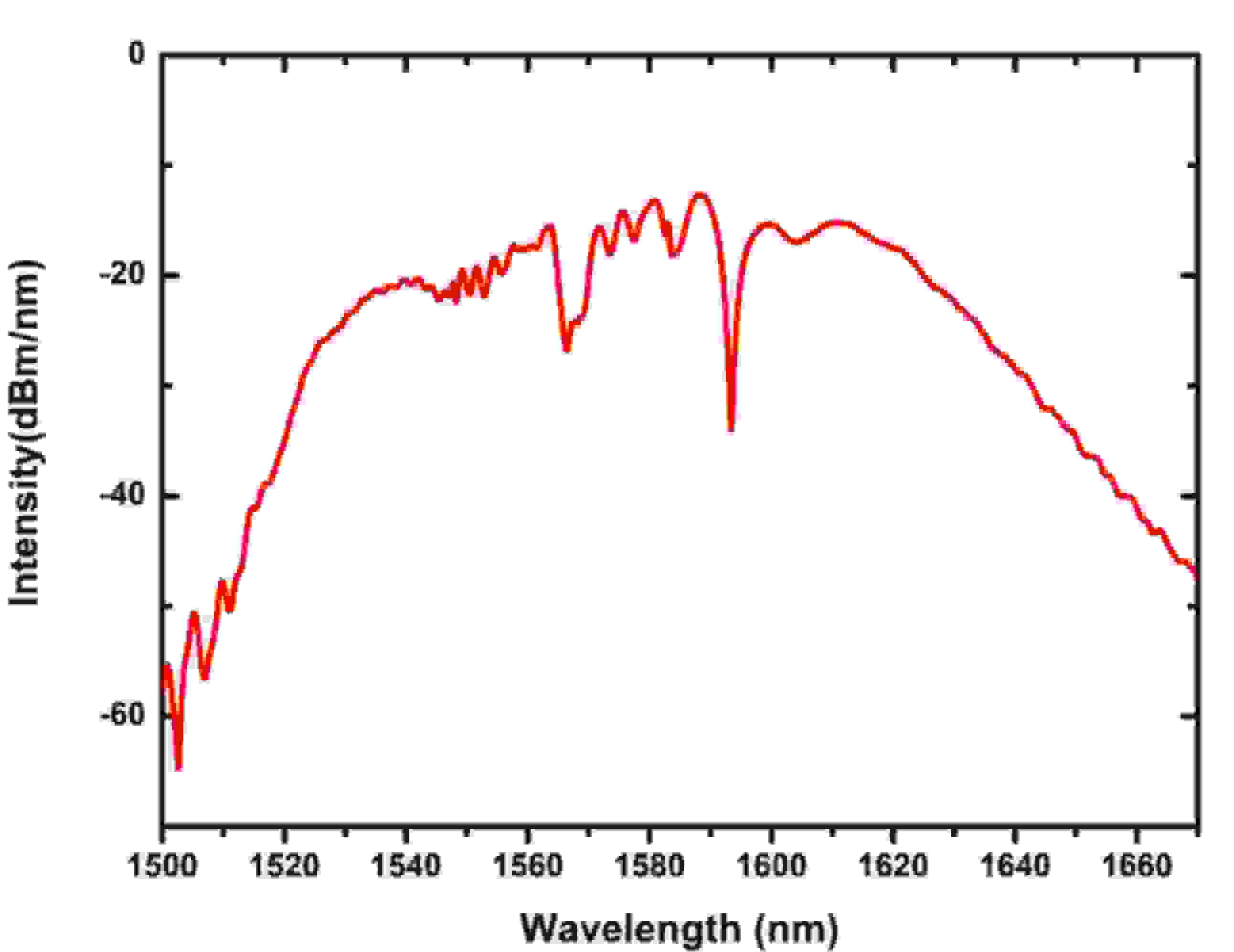

Auto Correlation Pulse Duration <50 fs	Typical Optical Spectrum

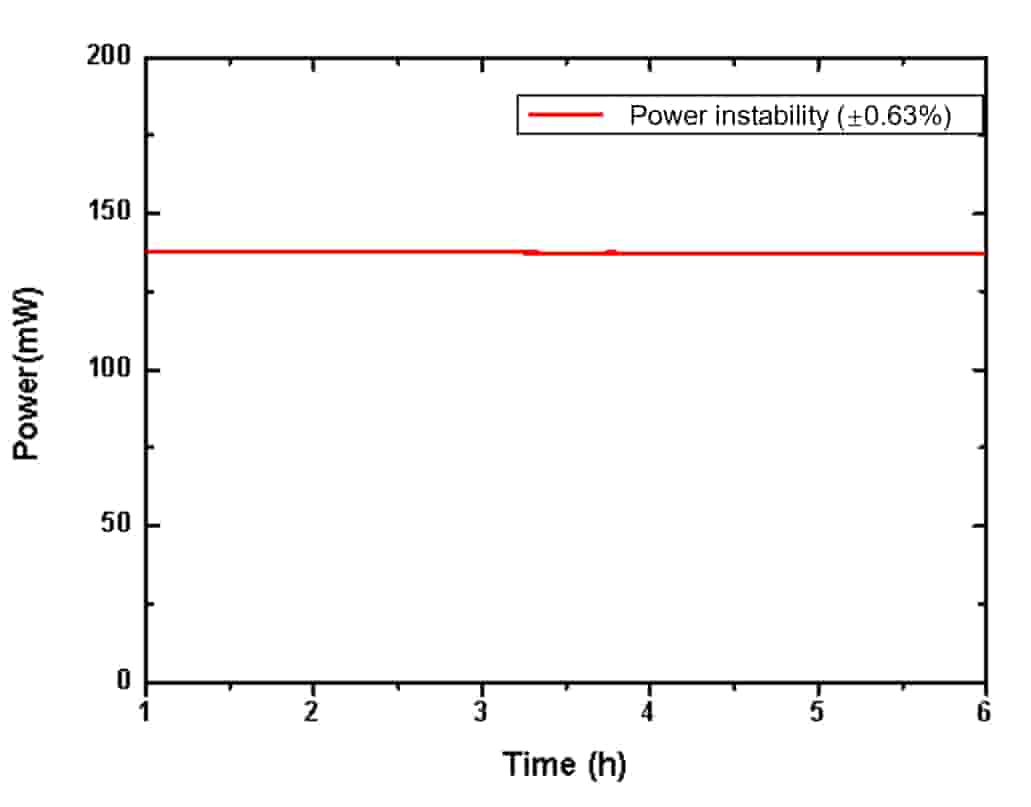

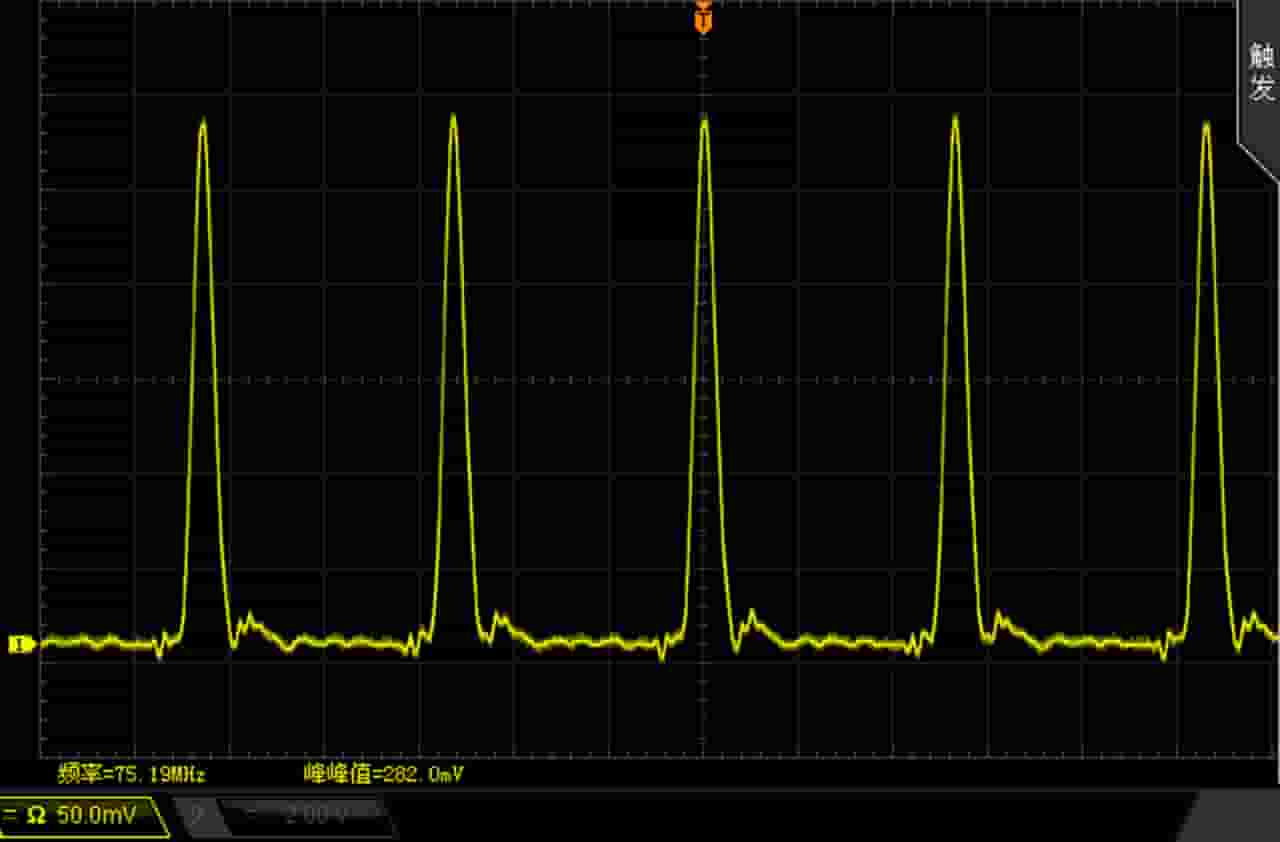

Pulse Train	Power Instability

Product specifications and Brochures

Product Brochure Link:

General Specifications
Optical indicators	Unit	Typical value		Remark
Wavelength	nm	1560±10
The width of the spectrum	nm	20	60
Pulse width	fs	50/100/200/500		Customizable
Output power	mW	1~120		Customizable
Power instability	-	< ±1%
Repeat frequency	MHz	80
The frequency of repetition is unstable	Hz	< 100
Single pulse energy	nJ	>1
Polarized state	-	Line polarization
The type of output fiber	-	Secure fiber 0.5m	Protect the fiber by 2m
Optical connector type	-	FC/APC,slow axis aligned to the card slot
Warm-up time	min	< 1

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

Electrical and environmental parameters	Desktop	Module
The way of control	Keystroke	RS232 Serial Port
Synchronized electrical signal interface	SMA	SMA
Power supply	100~240V AC, <30W	5V DC, <20W

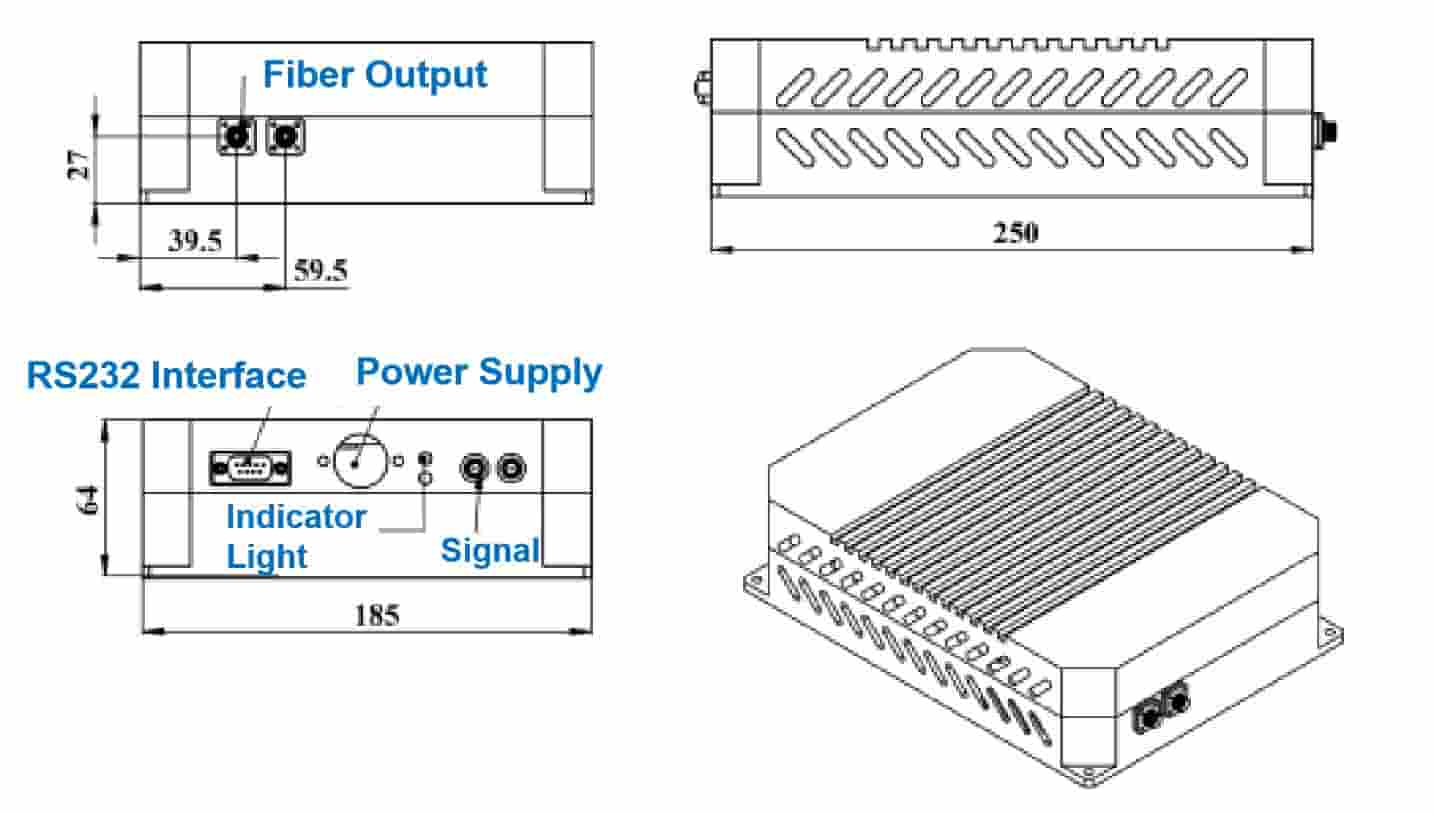

The size of the inch	260(W)×280(D)×120(H)mm	200(W)×121(D)×55(H)mm
Operating temperature	5 ~ 35°C
Operating humidity	0 ~70%

Order information / model number
FSPL	Wavelength (nm).	Pulse width (fs).	Average power (mW).	Heavy frequency(MHz).	The output method	The encapsulation form
	1560	50/100/200/500	10/50/100	80/100	SM PM	B - Desktop M - Modular

1560nm High-Power Femtosecond Pulse Fiber Laser

The 1560nm High-Power Femtosecond Pulse Fiber Laser series integrates the latest femsosecond laser technology, using high-performance rare earth fibers as working media, combined with high-precision dispersion compensation technology and active servo control systems, to achieve a stable output of 1.5μm-band femtosecond pulsed lasers with an average power of 1W. It starts up with one click and has long-term stable operation with very narrow laser pulse. It has pulse peak optical power characteristics in the optical frequency comb, ultra-continuous spectrum and terahertz with a wide range of applications.

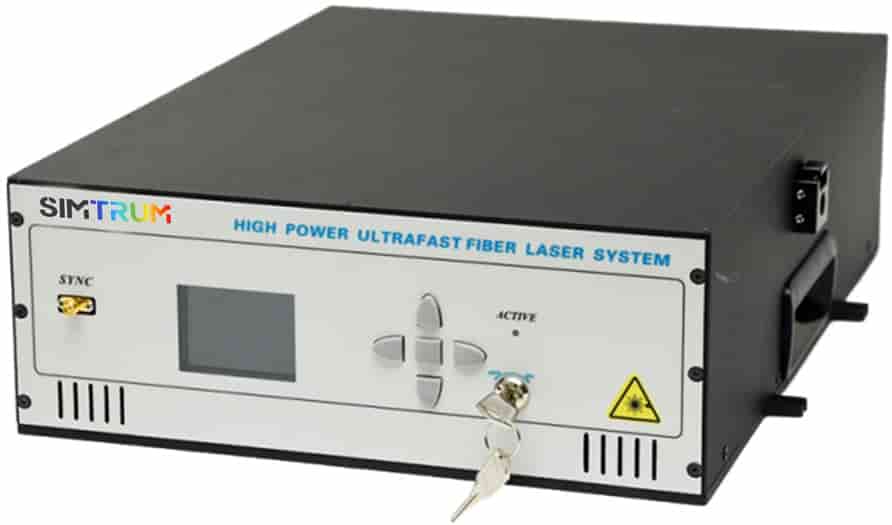

1560nm High-Power Femtosecond Laser picture 1

Characteristics

-Pulse duration <120fs

-Average laser power of 1W

-Turn-key Product

-Maintenance-free

Applications

-Optical Frequency Comb

-Supercontinuum

-Ultra-Fast Laser Phenomenon

-THz

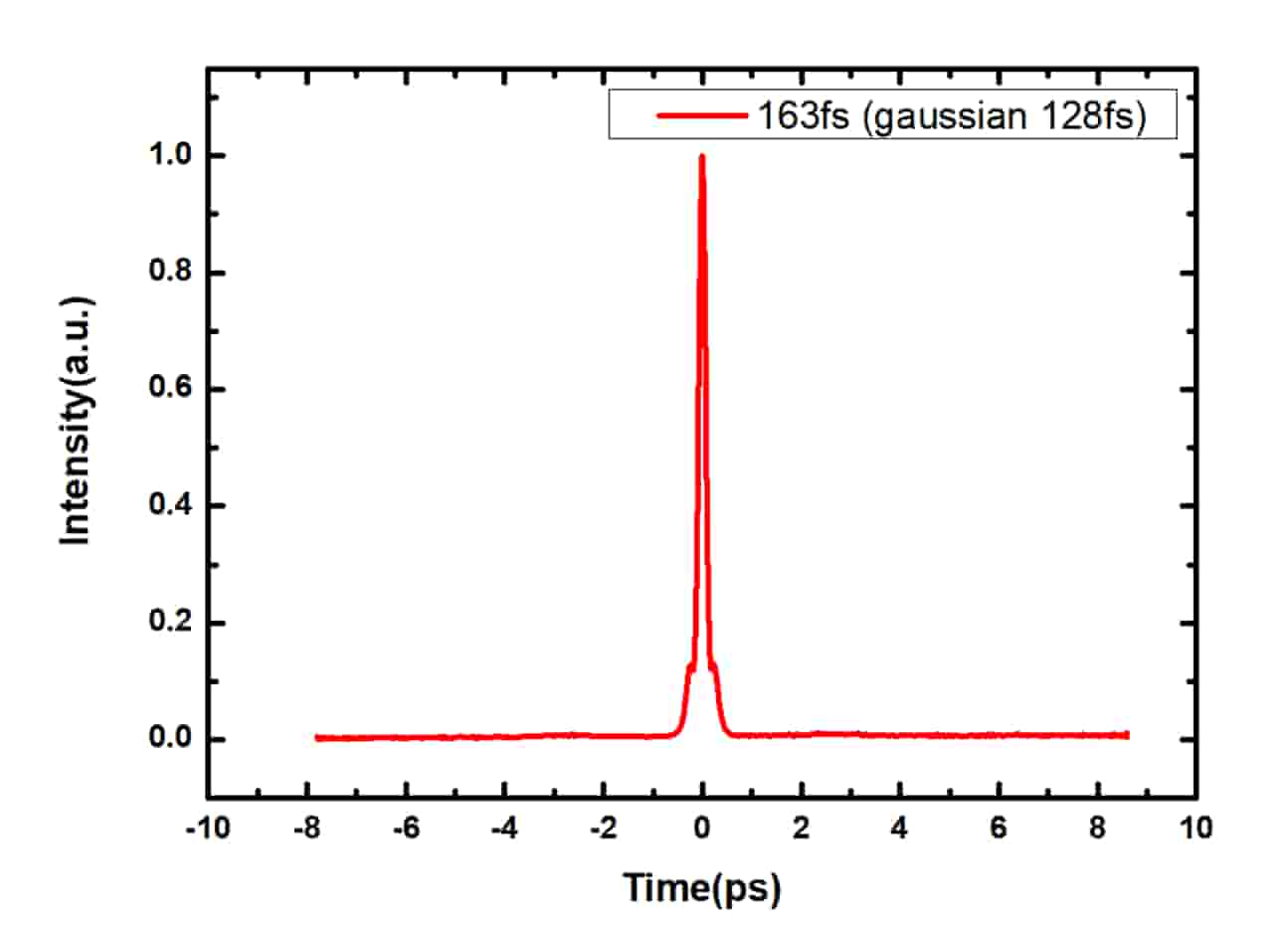

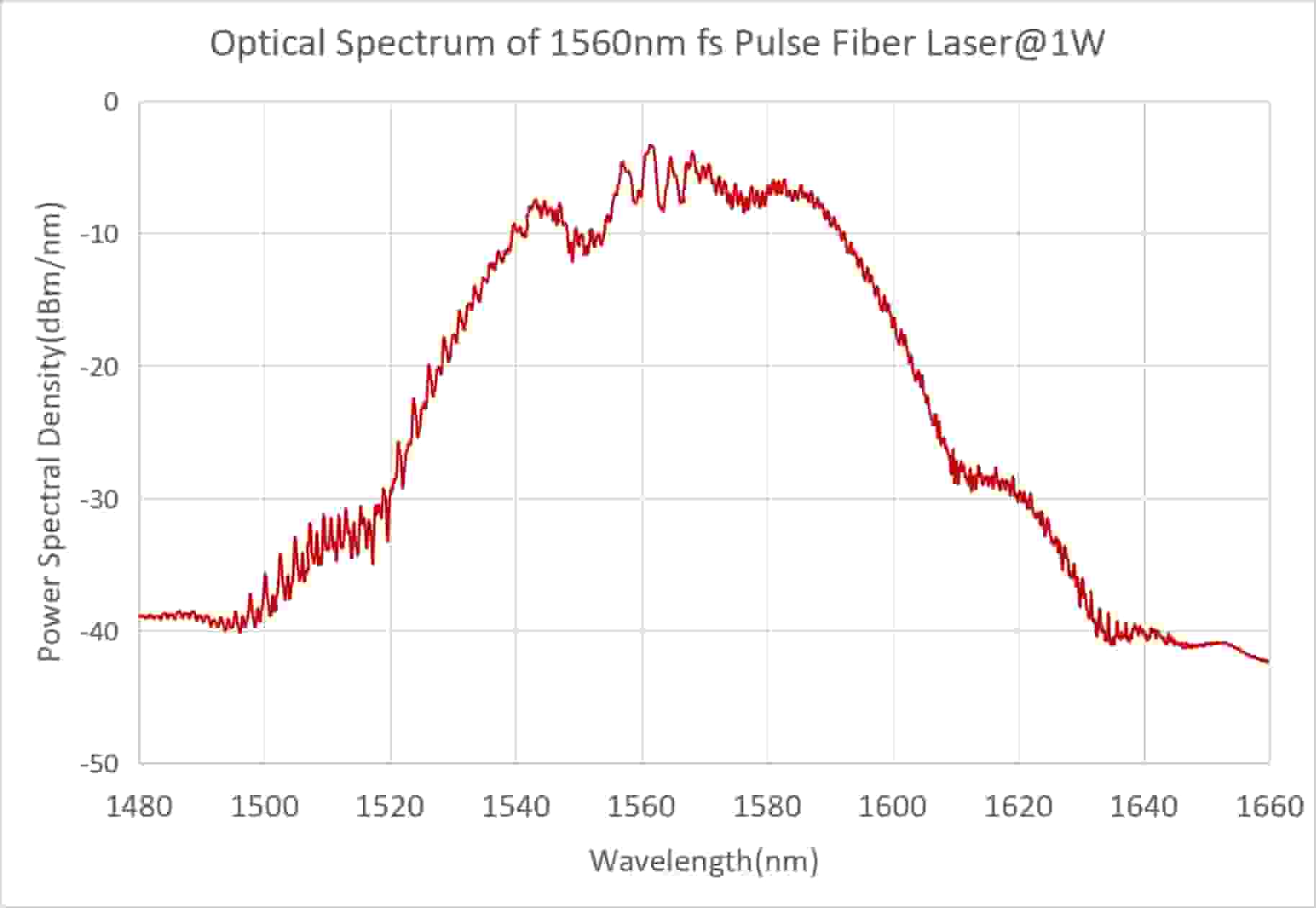

Autocorrelation Curve	Optical Spectrum

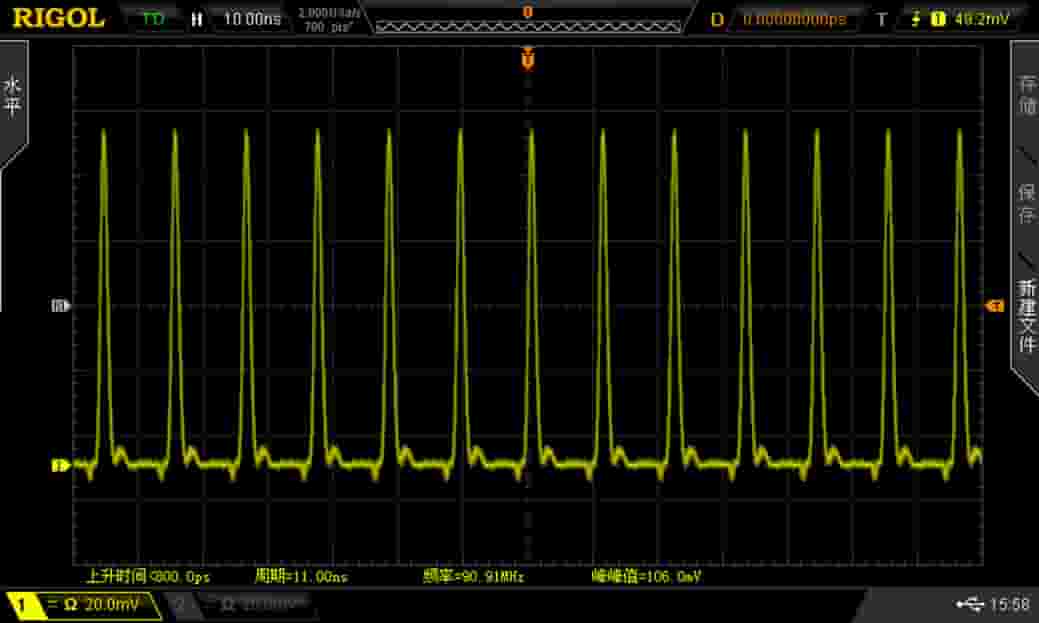

Pulse Train

Product specifications and Brochures

Product Brochure Link:

General Specifications
Optical indicators	Unit	Typical value	Remark
Center wavelength	nm	1560±10	-
Pulse width	fs	≤120	Customizable
Average power of the laser	W	1	Customizable
Power instability	-	< ±1%	24h@25°C
Repeat frequency	MHz	80~100	Customizable
Single pulse energy	nJ	>10	-
Laser polarization	-	Line polarization, DOP>20dB	Vertical polarization
Laser output	-	Space light	-
Beam quality	-	M²<1.2	TEM00
Beam diameter	mm	≤1.6	* 1/e² Waist Diameter
Beam divergence angle	mrad	<1.5	-

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

Electrical and environmental parameters	Unit	Typical Value	Remark
Synchronized electrical signal interface	-	SMA
Warm-up time	min	<1
Operating temperature	°C	5 ～45
Power supply	-	AC 110~240V AC	Power consumption: 40W
Size	mm	330(W)×398(D)×112(H)	Desktop
Weight	kg	≤5

Order information / model number
FSPL	Wavelength (nm).	Pulse width (fs).	Power (mW).	Repeat frequency (MHz).	The output method	The encapsulation form
	1560	120	1000	80/100	FS - Space Light	B - Desktop

1560nm High Repetition rate Femtosecond Pulse Fiber Laser

The 1560nm High Repetition Rate Femtosecond Pulse Fiber Laser series ultrafast laser integrates the latest femtosecond laser technology, uses high-performance rare earth fiber as the working medium, combines high-precision dispersion compensation technology and active servo system, and realizes stable output of femtosecond pulse laser with a high repetition rate in the 1560nm band. One-button self-starting, long-term stable operation and maintenance-free, with extremely narrow laser pulses and high pulse peak power, it has a wide range of applications in the fields of the optical frequency comb, supercontinuum, terahertz THz, and other fields.

* Accept customization of parameters such as pulse width, power, repetition frequency, etc.

Characteristics

-Pulse Width 50~500fs

-Pulse Repetition Frequency 200MHz~1GHz Customizable

-Self-starting Maintenance-free

-Full Polarization-maintaining High stability

Applications

-Optical Frequency Comb

-Supercontinuum

-Ultra-faster Laser Research

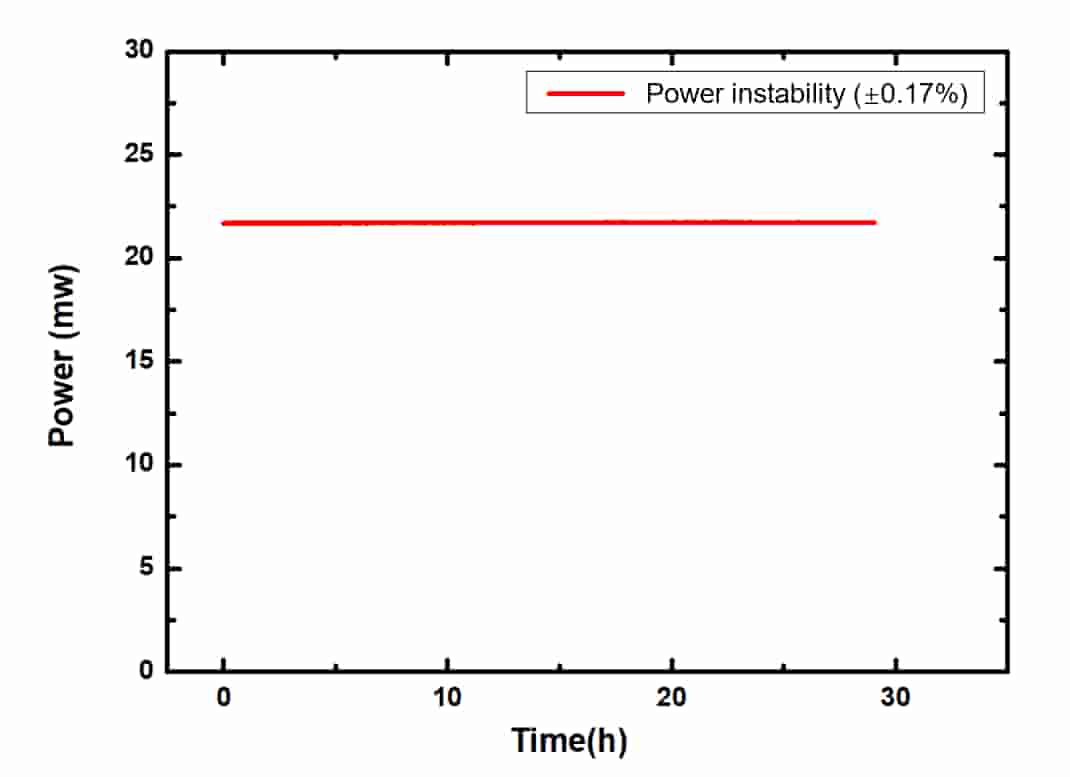

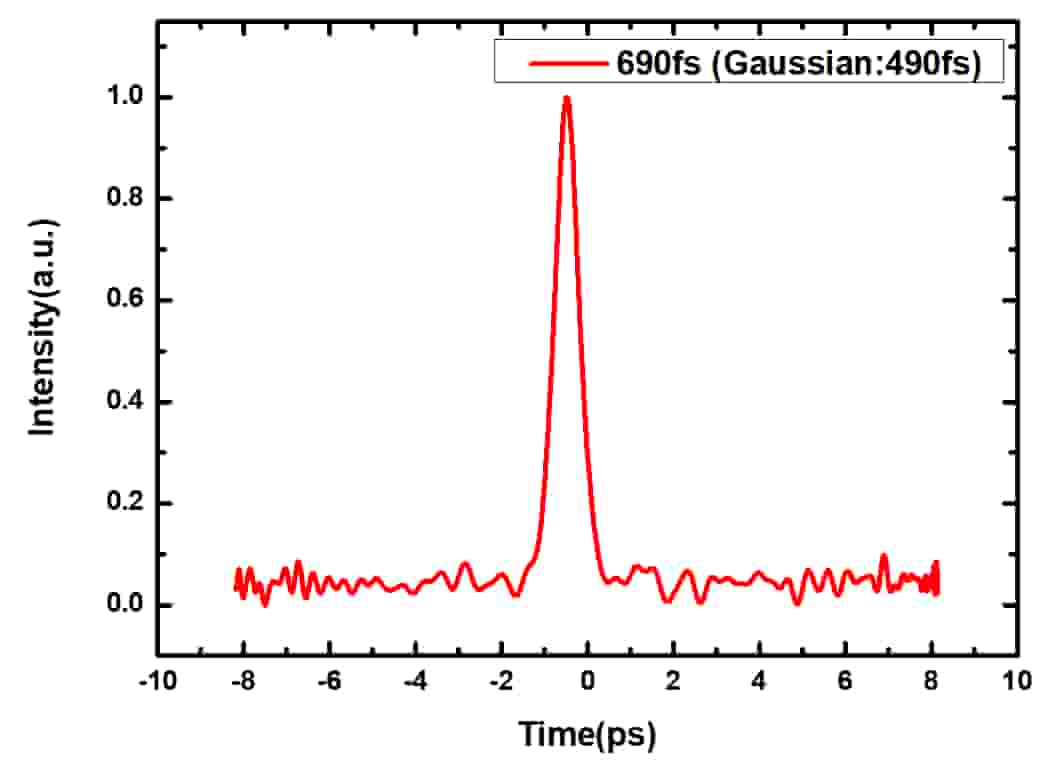

Autocorrelation Curve	Power Stability

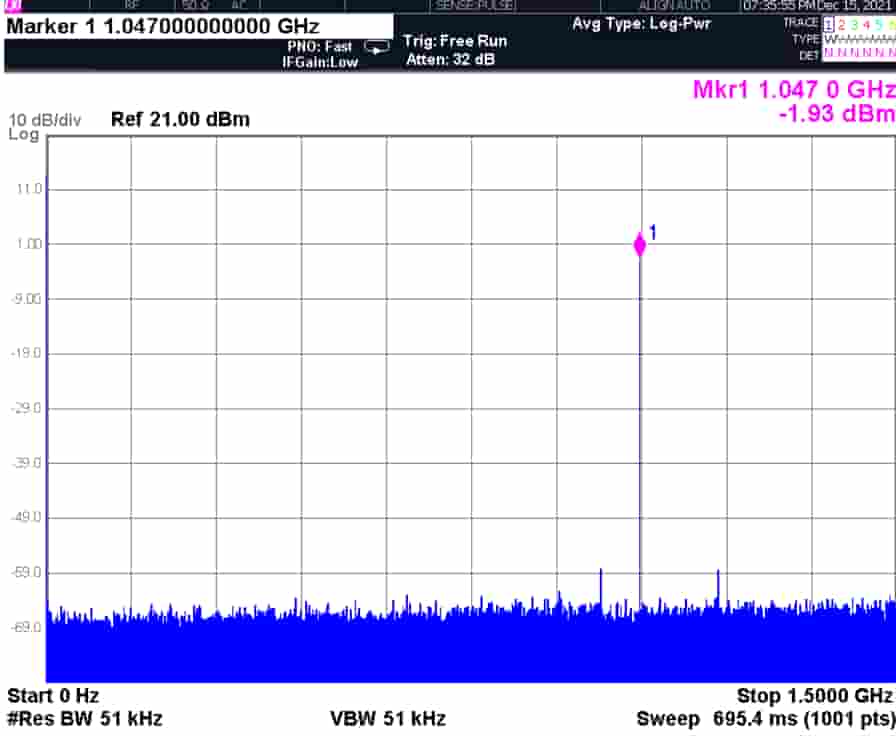

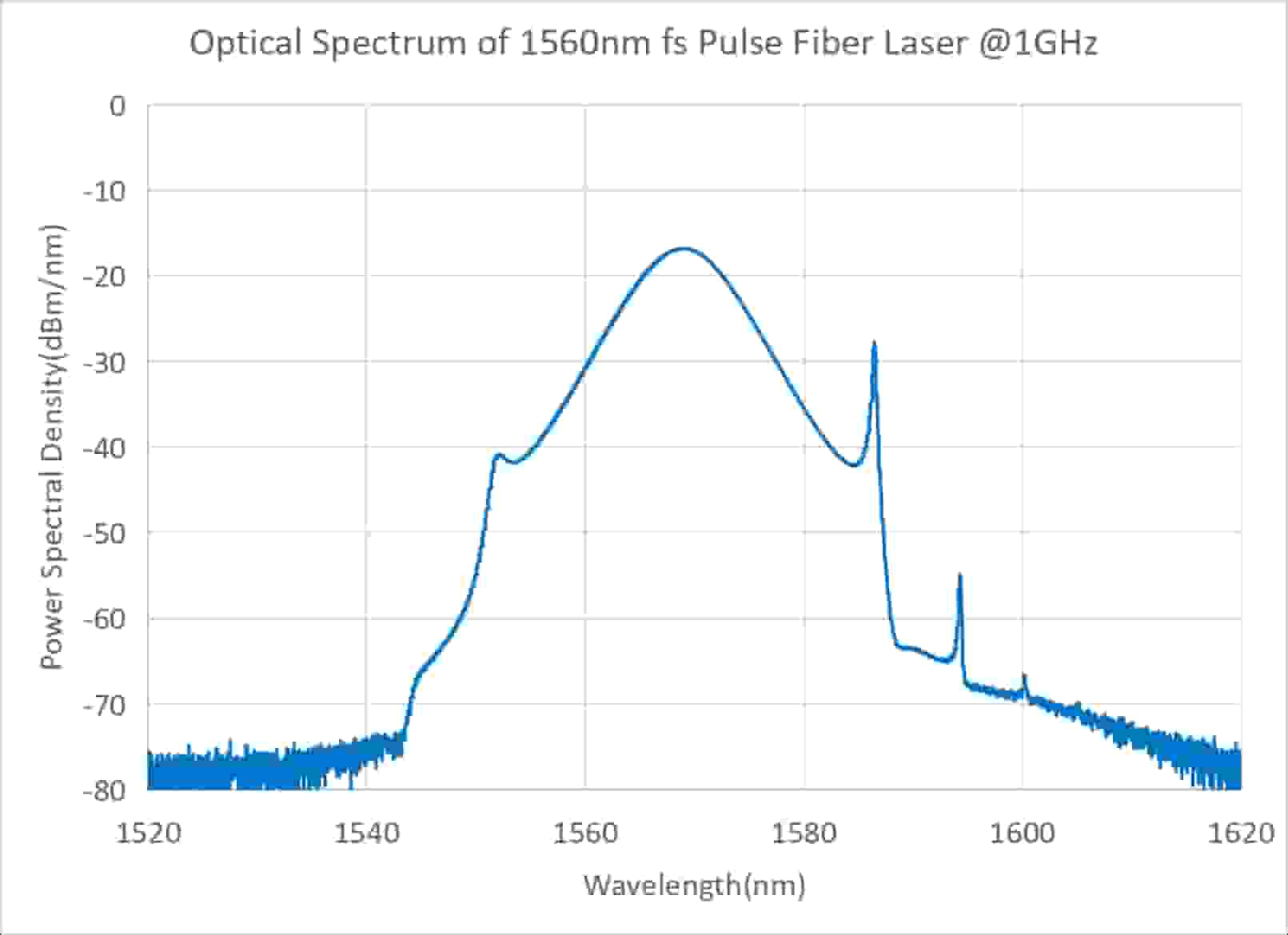

Frequency	Optical Spectrum

Product specifications and Brochures

Productd Brochure Link:

Parameters	Unit	Typical Value	Remarks
Center Wavelength	nm	1560±10
Spectrum Width	nm	20
Pulse Duration	fs	50 ~ 500	Customizable
Average Power	mW	1 ~ 200	Customizable
Power Instability	-	< ±1%
Repetition Rate	MHz	≥ 200	200MHz~1GHz
Repetition Rate Instability	Hz	< 200
Pulse Energy	nJ	> 1
Polarization	-	Linear	Aligned to Slow Axis
Fiber Type	-	PM fiber, 1m
Fiber Connector	-	FC/APC
Worm Up Time	min	< 1

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

General Parameters	Desktop	Module
Control Function	Push Button in Front Panel	RS232 Serial Port
Synchronous Electrical Signal Port	SMA	SMA
Power Supply	AC100~240V, <30W	DC5V, <20W
Dimensions(mm)	260(W)×280(D)×120(H)	200(W)×121(D)×65(H)
Operation Temperature	5 ~ 35°C
Operation Humidity	0~70%

Ordering Information/Model Number

FSPL

WL(nm)

Pulse Duration(fs)

Power(mW)

Freq(MHz)

Fiber

Packaging

1560

50/100/200/500

10/50/100

200/600/1000

B-Desktop
M-Module

Parameters	Unit	Typical Value		Typical Value	Typical Value
Product	-	1560nm Femtosecond Pulse Fiber Laser		1560nm High-Power Femtosecond Pulse Fiber Laser	1560nm High Repetition rate Femtosecond Pulse Fiber Laser
Center Wavelength	nm	1560±10		1560±10	1560±10
Spectrum Width	nm	20	60	-	20
Pulse Duration	fs	50/100/200/500		≤120	50 ~ 500
Average Power	mW	1~120		1	1 ~ 200
Power Instability	-	< ±1%		< ±1%	< ±1%
Repetition Rate	MHz	80		80~100	≥ 200

Product	Wavelength Range	Pulse Width	Average Power	Rep Rate	Pulse Energy
780nm Femtosecond Laser	780±10 nm	<100 fs	>30 mW	80 MHz	>0.4 nJ
780/1560nm Dual Output FS Laser	780/1560±10 nm	<100 fs	>100mW	80 Mhz	>1.25 nJ
1030nm Femtosecond Laser	1030±5 nm	>200 fs	>60 mW	25 MHz	>4 nJ
1040/50nm Femtosecond Laser	1040/50nm	<150 fs	5 - 10 W	80 Mhz	>80 nJ
1560nm Femtosecond Laser	1560±10 nm	50 - 500 fs	1 mW - 1 W	80 Mhz - 200 MHz	>10 nJ
2000nm Femtosecond Laser	1970±10 nm	200 fs	200 mW	80 MHz	>2.5 nJ

Model	Product
	Terahertz Quantum Cascade Lasers
	780nm Femtosecond Laser for Terahertz
	1560nm Femtosecond Laser for Terahertz
	TPX / HDPE Terahertz Plano Convex Lens Size choice : 1 to 2 inch (customizable) Focal length: 10mm to 240mm (customizable) Material: TPX / HDPE
	Off-Axis Parabolic Mirrors Size choice : 1 to 2 inch (customizable) Angle: 90 degree and 15/45/60 degree Focal length: 12.7mm to 254mm (customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL Through Hole: Yes
	Terahertz Hollow Retro Reflector Size choice : 25.4mm to 63.5mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Metallic Mirrors Size choice : 25.4mm to 76.2mm(customizable) Thickness: 3 to 6mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz ZnTe Crystals Size choice : 10mm * 10mm * (0.1 to 2mm) (customizable)
	Terahertz Beam Expander Reflection Output diameter: 40mm Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Polarizers Size choice : 25.4mm and 50.8mm (customizable)
	THz High Resistivity Silicon Beam Splitter Size choice : 1 to 3 inch (customizable) Thickness 0.5 to 3mm
	Terahertz Beam Profiler (1-18 THz)

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
FSPL-1560-50-B 1560nm Femtosecond Laser - Standard, Wavelength 1560±10 nm, Pulse width 50 fs, Average power 1-120 mW, Rep rate 80 MHz, Pulse Energy >1nJ	4-6 Weeks	Request for quote
FSPL-1560-100-B 1560nm Femtosecond Laser - Standard, Wavelength 1560±10 nm, Pulse width 100 fs, Average power 1-120 mW, Rep rate 80 MHz, Pulse Energy >1 nJ	4-6 Weeks	Request for quote
FSPL-1560-200-B 1560nm Femtosecond Laser - Standard, Wavelength 1560±10 nm, Pulse width 200 fs, Average power 1-120 mW, Rep rate 80 MHz, Pulse Energy >1 nJ	4-6 Weeks	Request for quote
FSPL-1560-500-B 1560nm Femtosecond Laser - Standard, Wavelength 1560±10 nm, Pulse width 500 fs, Average power 1-120 mW, Rep rate 80 MHz, Pulse Energy >1 nJ	4-6 Weeks	Request for quote
FSPL-1560-B (HP) 1560nm High-Power Femtosecond Pulse Fiber Laser, Wavelength 1560±10 nm, Pulse width 120 fs, Average power 1000 mW, Rep rate 80-100 MHz, Pulse Energy >10 nJ	4-6 Weeks	Request for quote
FSPL-1560-50 - B - HR 1560nm Hight Repetition Rate FS Pulse Fiber Laser, Wavelength 1560±10 nm, Pulse width 50-500 fs, Average power 1-200 mW, Rep rate ≥ 200 MHz, Pulse Energy >1 nJ	4-6 Weeks	Request for quote
FSPL-1560-100-B-HR 1560nm High-Power Femtosecond Pulse Fiber Laser, Wavelength 1560±10 nm, Pulse width 100 fs, Average power 1-200 mW, Rep rate ≥ 200 MHz, Pulse Energy >1 nJ	4-6 Weeks	Request for quote
FSPL-1560-200-B-HR 1560nm High-Power Femtosecond Pulse Fiber Laser, Wavelength 1560±10 nm, Pulse width 200 fs, Average power 1-200 mW, Rep rate ≥ 200 MHz, Pulse Energy >1 nJ	4-6 Weeks	Request for quote
FSPL-1560-500-B-HR 1560nm High-Power Femtosecond Pulse Fiber Laser, Wavelength 1560±10 nm, Pulse width 500 fs, Average power 1-200 mW, Rep rate ≥ 200 MHz, Pulse Energy >1 nJ	4-6 Weeks	Request for quote

FSPL-1560-500-B-HR - Parameter

FSPL-1560-200-B-HR - Parameter

FSPL-1560-100-B-HR - Parameter

FSPL-1560-50 - B - HR - Parameter

FSPL-1560-B (HP) - Parameter

FSPL-1560-500-B - Parameter

FSPL-1560-200-B - Parameter

FSPL-1560-100-B - Parameter

FSPL-1560-50-B - Parameter

FSPL-1560-500-B-HR - Download

FSPL-1560-200-B-HR - Download

FSPL-1560-100-B-HR - Download

FSPL-1560-50 - B - HR - Download

FSPL-1560-B (HP) - Download

FSPL-1560-500-B - Download

FSPL-1560-200-B - Download

FSPL-1560-100-B - Download

FSPL-1560-50-B - Download
