THz High Resistivity Silicon Beam Splitter

Thz High Resistivity Silicon Beam Splitter

The material of the terahertz beam splitter is generally a high-resistance silicon wafer. The polished high-resistance silicon wafer has the function of transmitting terahertz and anti-visible light and has the function of transflective and translucent to terahertz waves, and the light splitting ratio is about 6:4(through:60%, opposite40%). Mylar film can achieve a higher splitting ratio(5:1).

An addtional AR coating can be applied up on request, we have 4 Terahertz AR coatin, Splitting ratio can improve to 90:10, the coating peak wavelength are 2.7Thz, 3.4Thz, 3.8Thz, 4.5Thz.

General Specifications
Material	High resistance silicon
Diameter Tolerance	± 0.1 mm
Clear Aperture	≥90%
Surface Finish (Double-sided Polishing)	80/50

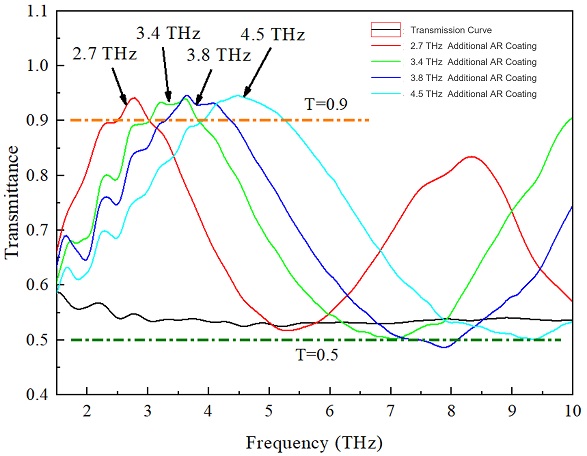

Coating Curve

Black line is standard beam splitter transmission graph acrose 1-10 Thz range

Red Line is addtional 2.7Thz AR coating transmission graph

Green Line is addtional 3.4Thz AR coating transmission graph

Blue Line is addtional 3.8Thz AR coating transmission graph

Shallow Blue Line is addtional 4.5 Thz AR coating transmission graph

Model Option

Coating	Product Code	Diameter (inch)	Thickness (mm)	Resistivity (Ω.cm)
Non-coating	SBS-250-20	1	2	>10000
	SBS-500-15	2	1.5	>10
	SBS-500-5	2	0.5	>11800
	SBS-500-30	2	3	>11800
	SBS-760-20	3	2	>10000
THz AR	SBS-ARC-250-20	1	2	>10000
	SBS-ARC-500-L10	2	1	>10
	SBS-ARC-500-10	2	1	>1000
	SBS-ARC-500-20	2	2	>11800
	SBS-ARC-760-20	3	2	>10000

Model	Product
	Terahertz Quantum Cascade Lasers
	780nm Femtosecond Laser for Terahertz
	1560nm Femtosecond Laser for Terahertz
	TPX / HDPE Terahertz Plano Convex Lens Size choice : 1 to 2 inch (customizable) Focal length: 10mm to 240mm (customizable) Material: TPX / HDPE
	Off-Axis Parabolic Mirrors Size choice : 1 to 2 inch (customizable) Angle: 90 degree and 15/45/60 degree Focal length: 12.7mm to 254mm (customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL Through Hole: Yes
	Terahertz Hollow Retro Reflector Size choice : 25.4mm to 63.5mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Metallic Mirrors Size choice : 25.4mm to 76.2mm(customizable) Thickness: 3 to 6mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz ZnTe Crystals Size choice : 10mm * 10mm * (0.1 to 2mm) (customizable)
	Terahertz Beam Expander Reflection Output diameter: 40mm Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Polarizers Size choice : 25.4mm and 50.8mm (customizable)
	THz High Resistivity Silicon Beam Splitter Size choice : 1 to 3 inch (customizable) Thickness 0.5 to 3mm
	Terahertz Beam Profiler (1-18 THz)

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Thickness (mm)	Resistivity (Ω.cm)	Availability	Reference Price (USD)
SBS-250-20 THz High Resistivity Silicon Beam Splitter, non-coating, diameter 1inch, thickness 2mm, resistivity >10000cm	2	>10000	2-3 Weeks	$70.00
SBS-500-15 THz High Resistivity Silicon Beam Splitter, non-coating, diameter 2inch, thickness 1.5mm, resistivity >10cm	1.5	>10	2-3 Weeks	$117.00
SBS-500-5 THz High Resistivity Silicon Beam Splitter, non-coating, diameter 2inch, thickness 0.5mm, resistivity >11800cm	0.5	>11800	2-3 Weeks	$117.00
SBS-500-30 THz High Resistivity Silicon Beam Splitter, non-coating, diameter 2inch, thickness 3mm, resistivity >11800cm	3	>11800	2-3 Weeks	$117.00
SBS-760-20 THz High Resistivity Silicon Beam Splitter, non-coating, diameter 3inch, thickness 2mm, resistivity >10000cm	2	>10000	2-3 Weeks	$216.00
SBS-ARC-250-20 THz High Resistivity Silicon Beam Splitter, THz AR coating, diameter 1inch, thickness 2mm, resistivity >10000cm	2	>10000	2-3 Weeks	$89.00
SBS-ARC-500-L10 THz High Resistivity Silicon Beam Splitter, THz AR coating, diameter 2inch, thickness 1mm, resistivity >10cm	1	>10	2-3 Weeks	$159.00
SBS-ARC-500-10 THz High Resistivity Silicon Beam Splitter, THz AR coating, diameter 2inch, thickness 1mm, resistivity >1000cm	1	>1000	2-3 Weeks	$159.00
SBS-ARC-500-20 THz High Resistivity Silicon Beam Splitter, THz AR coating, diameter 2inch, thickness 2mm, resistivity >11800cm	2	>11800	2-3 Weeks	$159.00
SBS-ARC-760-20 THz High Resistivity Silicon Beam Splitter, THz AR coating, diameter 3inch, thickness 2mm, resistivity >10000cm	2	>10000	2-3 Weeks	$276.00
