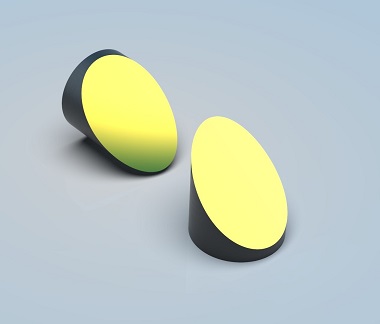

90 Off-Axis Parabolic Mirrors

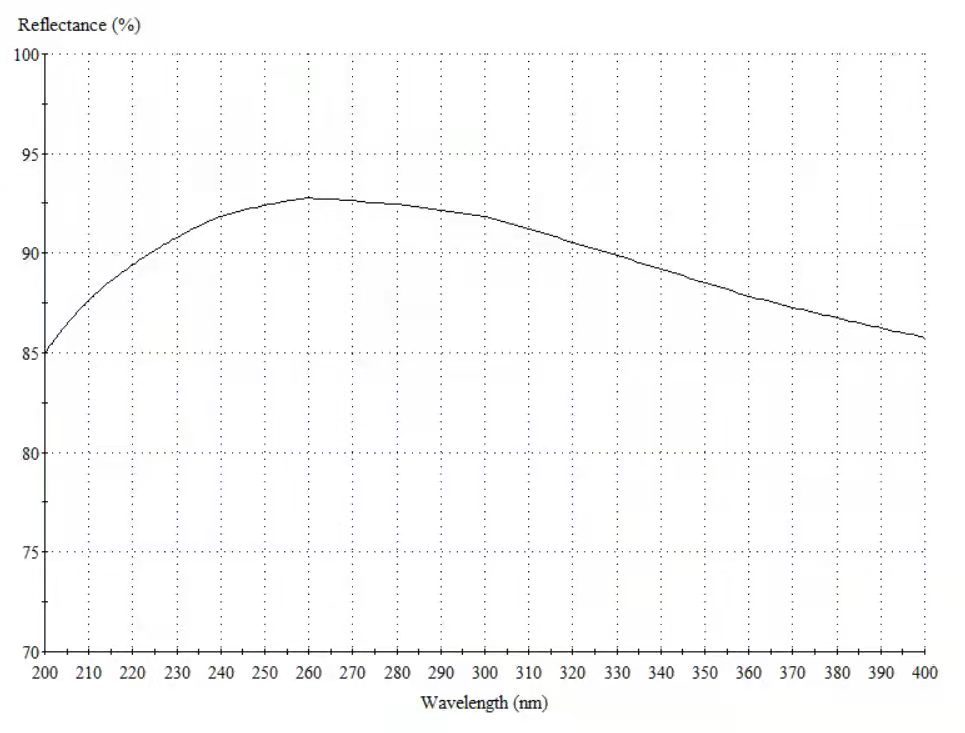

Overview Coating Graph Request a Quotation

Mirrors are optical devices that reflect light. They are designed to reflect light for a variety of applications, including beam steering interferometry, imaging, or illumination. They are optimized for the proper wavelengths and are also designed for lasers, the damage thresholds that are suitable for the designated laser.


Metallic Mirrors consist of a good combination of performance and value for general purpose applications. They operate over a very broad spectral range from UV to visible, and visible to near – and mid-IR. They are relatively insensitive to angle of incidence and polarization, and their relatively wide bandwidth and high reflectivity makes them ideal for applications like spectroscopy. Metallic mirrors are widely used due to a moderate level of reflection over a very broad spectral range. Protected aluminum is an economical reflector over entire 300nm-IR range.


General Specifications

Material

6061-T6

Type

Off Axis Parabolic Mirror

Focal Length Tolerance(mm)

±1

Diameter Tolerance(mm)

±0.2

Surface Roughness(nm)

10

Coating

Protected Aluminium Wavelength: 400-1200nm

Protected Silver Wavelength: 400-12000nm

Protected Gold Wavelength: 2000-12000nm



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Technical Assistance and Email Quotations (Recommended for Custom Orders, inquiries)

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 3 working days.


Local Same Day Service

SINGAPORE: For same day service, please contact us at 6996 0391. Office Hours: 9am - 6pm (+8GMT)

For more contact information click here.


International Inquiries

SIMTRUM provides worldwide shipping and inquiry management. Please contact us for more information.


Diameter (mm)

Focal Length (mm)

Coating


Search Reset
Compare Model Drawings & Specs Coating Focal Length (mm) Reflectance (%) Diameter (mm) Clear Hole Availability Price
(USD)
PAG-OAP-101.6-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:No 		Protected Silver@400-12000nm101.6Ravg>95%25.4No In Stock $162.40
PAG-OAP-101.6-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:Yes 		Protected Silver@400-12000nm101.6Ravg>95%25.4Yes In Stock $180.00
PAG-OAP-101.6-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:No 		Protected Silver@400-12000nm101.6Ravg>95%50.8No In Stock $307.20
PAG-OAP-101.6-50.8-Y
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:Yes 		Protected Silver@400-12000nm101.6Ravg>95%50.8Yes In Stock $324.80
PAG-OAP-152.4-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:No 		Protected Silver@400-12000nm152.4Ravg>95%50.8No In Stock $307.20
PAG-OAP-152.4-50.8-Y
6061, Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:Yes 		Protected Silver@400-12000nm152.4Ravg>95%50.8Yes In Stock $324.80
PAG-OAP-25.4-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:No 		Protected Silver@400-12000nm25.4Ravg>95%25.4No In Stock $162.40
PAG-OAP-25.4-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:Yes 		Protected Silver@400-12000nm25.4Ravg>95%25.4Yes In Stock $180.00
PAG-OAP-310.8-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=310.8mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:No 		Protected Silver@400-12000nm310.8Ravg>95%50.8No In Stock Request for quote
PAG-OAP-40-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=40mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:No 		Protected Silver@400-12000nm40Ravg>95%50.8No In Stock Request for quote
PAG-OAP-50.8-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:No 		Protected Silver@400-12000nm50.8Ravg>95%25.4No In Stock $162.40
PAG-OAP-50.8-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:Yes 		Protected Silver@400-12000nm50.8Ravg>95%25.4Yes In Stock $180.00
PAG-OAP-50.8-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:No 		Protected Silver@400-12000nm50.8Ravg>95%50.8No In Stock $307.20
PAG-OAP-50.8-50.8-Y
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:Yes 		Protected Silver@400-12000nm50.8Ravg>95%50.8Yes In Stock $324.80
PAG-OAP-76.2-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:No 		Protected Silver@400-12000nm76.2Ravg>95%25.4No In Stock $162.40
PAG-OAP-76.2-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, Clear Hole:Yes 		Protected Silver@400-12000nm76.2Ravg>95%25.4Yes In Stock $180.00
PAL-OAP-101.6-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:No 		Protected Aluminum @400-1200nm101.6Ravg>87%25.4No In Stock $144.60
PAL-OAP-101.6-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:Yes 		Protected Aluminum @400-1200nm101.6Ravg>87%25.4Yes In Stock $162.10
PAL-OAP-101.6-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:No 		Protected Aluminum @400-1200nm101.6Ravg>87%50.8No In Stock $263.50
PAL-OAP-101.6-50.8-Y
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:Yes 		Protected Aluminum @400-1200nm101.6Ravg>87%50.8Yes In Stock $281.00
PAL-OAP-152.4-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:No 		Protected Aluminum @400-1200nm152.4Ravg>87%50.8No In Stock $263.50
PAL-OAP-152.4-50.8-Y
6061, Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:Yes 		Protected Aluminum @400-1200nm152.4Ravg>87%50.8Yes In Stock $281.00
PAL-OAP-25.4-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:No 		Protected Aluminum @400-1200nm25.4Ravg>87%25.4No In Stock $156.00
PAL-OAP-25.4-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:Yes 		Protected Aluminum @400-1200nm25.4Ravg>87%25.4Yes In Stock $173.60
PAL-OAP-310.8-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=310.8mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:No 		Protected Aluminum @400-1200nm310.8Ravg>87%50.8No In Stock Request for quote
PAL-OAP-40-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=40mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:Yes 		Protected Aluminum @400-1200nm40Ravg>87%25.4Yes In Stock Request for quote
PAL-OAP-40-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=40mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:No 		Protected Aluminum @400-1200nm40Ravg>87%50.8No In Stock Request for quote
PAL-OAP-50.8-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:No 		Protected Aluminum @400-1200nm50.8Ravg>87%25.4No In Stock $144.60
PAL-OAP-50.8-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:Yes 		Protected Aluminum @400-1200nm50.8Ravg>87%25.4Yes In Stock $162.10
PAL-OAP-50.8-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:No 		Protected Aluminum @400-1200nm50.8Ravg>87%50.8No In Stock $263.50
PAL-OAP-50.8-50.8-Y
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:Yes 		Protected Aluminum @400-1200nm50.8Ravg>87%50.8Yes In Stock $281.00
PAL-OAP-76.2-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:No 		Protected Aluminum @400-1200nm76.2Ravg>87%25.4No In Stock $144.60
PAL-OAP-76.2-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, Clear Hole:Yes 		Protected Aluminum @400-1200nm76.2Ravg>87%25.4Yes 2-3 Weeks $162.10
PAU-OAP-101.6-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:No 		Protected Gold@2000-12000nm101.6Ravg>98%25.4No 2-3 Weeks $178.00
PAU-OAP-101.6-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:Yes 		Protected Gold@2000-12000nm101.6Ravg>98%25.4Yes 2-3 Weeks $195.60
PAU-OAP-101.6-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:No 		Protected Gold@2000-12000nm101.6Ravg>98%50.8No 2-3 Weeks $322.60
PAU-OAP-101.6-50.8-Y
6061, Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:Yes 		Protected Gold@2000-12000nm101.6Ravg>98%50.8Yes 2-3 Weeks $340.20
PAU-OAP-152.4-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:No 		Protected Gold@2000-12000nm152.4Ravg>98%50.8No 2-3 Weeks $322.60
PAU-OAP-152.4-50.8-Y
6061, Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:Yes 		Protected Gold@2000-12000nm152.4Ravg>98%50.8Yes 2-3 Weeks $340.20
PAU-OAP-25.4-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:No 		Protected Gold@2000-12000nm25.4Ravg>98%25.4No 2-3 Weeks $165.30
PAU-OAP-25.4-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:Yes 		Protected Gold@2000-12000nm25.4Ravg>98%25.4Yes 2-3 Weeks $195.60
PAU-OAP-250-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=250mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:No 		Protected Gold@2000-12000nm250Ravg>98%50.8No 2-3 Weeks Request for quote
PAU-OAP-310.8-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=310.8mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:No 		Protected Gold@2000-12000nm310.8Ravg>98%50.8No 2-3 Weeks Request for quote
PAU-OAP-40-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=40mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:No 		Protected Gold@2000-12000nm40Ravg>98%25.4No 2-3 Weeks Request for quote
PAU-OAP-40-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=40mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:Yes 		Protected Gold@2000-12000nm40Ravg>98%25.4Yes 2-3 Weeks Request for quote
PAU-OAP-40-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=40mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:No 		Protected Gold@2000-12000nm40Ravg>98%50.8No 2-3 Weeks Request for quote
PAU-OAP-50.8-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:No 		Protected Gold@2000-12000nm50.8Ravg>98%25.4No 2-3 Weeks $178.00
PAU-OAP-50.8-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:Yes 		Protected Gold@2000-12000nm50.8Ravg>98%25.4Yes 2-3 Weeks $195.60
PAU-OAP-50.8-50.8-N
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:No 		Protected Gold@2000-12000nm50.8Ravg>98%50.8No 2-3 Weeks $322.60
PAU-OAP-50.8-50.8-Y
6061, Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:Yes 		Protected Gold@2000-12000nm50.8Ravg>98%50.8Yes 2-3 Weeks $340.20
PAU-OAP-76.2-25.4-N
6061, Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:No 		Protected Gold@2000-12000nm76.2Ravg>98%25.4No 2-3 Weeks $178.00
PAU-OAP-76.2-25.4-Y
6061, Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, Clear Hole:Yes 		Protected Gold@2000-12000nm76.2Ravg>98%25.4Yes 2-3 Weeks $195.60

PAU-OAP-76.2-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
76.2

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

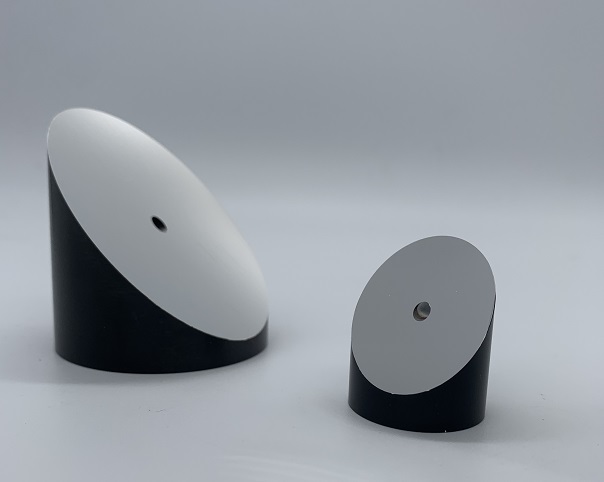

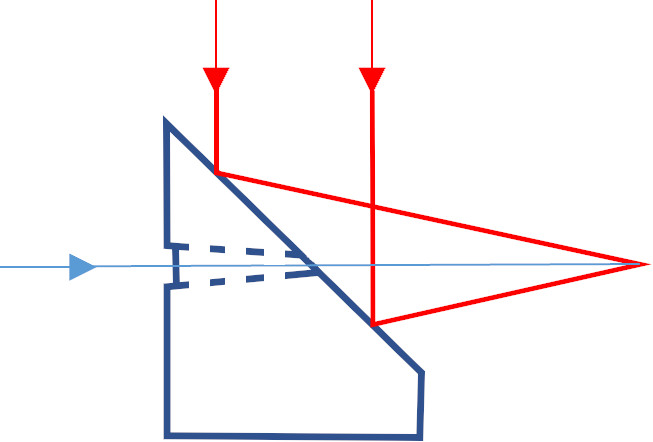

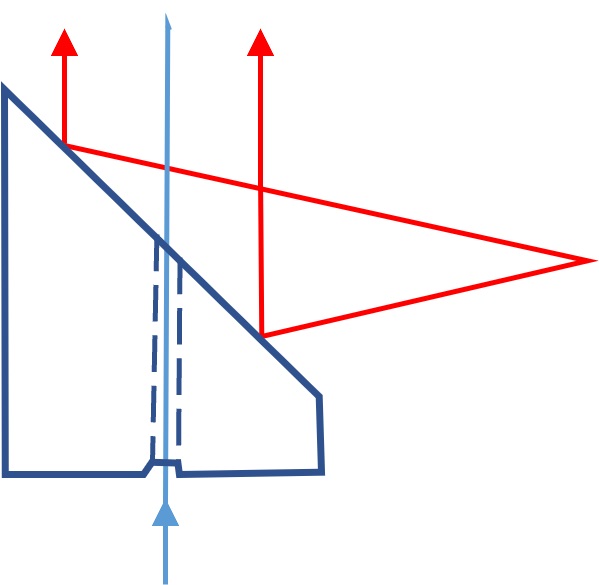

Clear Hole
Yes

PAU-OAP-76.2-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
76.2

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
No

PAU-OAP-50.8-50.8-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
Yes

PAU-OAP-50.8-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
No

PAU-OAP-50.8-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
Yes

PAU-OAP-50.8-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
No

PAU-OAP-40-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
40

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
No

PAU-OAP-40-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
40

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
Yes

PAU-OAP-40-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
40

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
No

PAU-OAP-310.8-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
310.8

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
No

PAU-OAP-250-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
250

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
No

PAU-OAP-25.4-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
25.4

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
Yes

PAU-OAP-25.4-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
25.4

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
No

PAU-OAP-152.4-50.8-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
152.4

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
Yes

PAU-OAP-152.4-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
152.4

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
No

PAU-OAP-101.6-50.8-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
Yes

PAU-OAP-101.6-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
No

PAU-OAP-101.6-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
Yes

PAU-OAP-101.6-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>98%

Surface Roughness
<10nm

Clear Hole
No

PAL-OAP-76.2-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
76.2

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
Yes

PAL-OAP-76.2-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
76.2

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
No

PAL-OAP-50.8-50.8-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
Yes

PAL-OAP-50.8-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
No

PAL-OAP-50.8-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
Yes

PAL-OAP-50.8-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
No

PAL-OAP-40-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
40

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
No

PAL-OAP-40-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
40

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
Yes

PAL-OAP-310.8-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
310.8

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
No

PAL-OAP-25.4-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
25.4

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
Yes

PAL-OAP-25.4-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
25.4

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
No

PAL-OAP-152.4-50.8-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
152.4

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
Yes

PAL-OAP-152.4-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
152.4

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
No

PAL-OAP-101.6-50.8-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
Yes

PAL-OAP-101.6-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
No

PAL-OAP-101.6-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
Yes

PAL-OAP-101.6-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>87%

Surface Roughness
<10nm

Clear Hole
No

PAG-OAP-76.2-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
76.2

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
Yes

PAG-OAP-76.2-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
76.2

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
No

PAG-OAP-50.8-50.8-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
Yes

PAG-OAP-50.8-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
No

PAG-OAP-50.8-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
Yes

PAG-OAP-50.8-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
50.8

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
No

PAG-OAP-40-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
40

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
No

PAG-OAP-310.8-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
310.8

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
No

PAG-OAP-25.4-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
25.4

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
Yes

PAG-OAP-25.4-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
25.4

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
No

PAG-OAP-152.4-50.8-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
152.4

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
Yes

PAG-OAP-152.4-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
152.4

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
No

PAG-OAP-101.6-50.8-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
Yes

PAG-OAP-101.6-50.8-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
50.8

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
No

PAG-OAP-101.6-25.4-Y - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
Yes

PAG-OAP-101.6-25.4-N - Parameter

Type
Off Axis Parabolic Mirror

Material
6061-T6

Coating
Protected Silver@400-12000nm

Focal Length (mm)
101.6

Focal Length Tolerance
±1

Diameter (mm)
25.4

Wavelength (nm)
2000-12000

Diameter Tolerance (mm)
± 0.2

Clear Aperture
>90%

Reflectance (%)
Ravg>95%

Surface Roughness
<10nm

Clear Hole
No

PAU-OAP-76.2-25.4-Y - Download

PAU-OAP-76.2-25.4-N - Download

PAU-OAP-50.8-50.8-Y - Download

PAU-OAP-50.8-50.8-N - Download

PAU-OAP-50.8-25.4-Y - Download

PAU-OAP-50.8-25.4-N - Download

PAU-OAP-40-50.8-N - Download

PAU-OAP-40-25.4-Y - Download

PAU-OAP-40-25.4-N - Download

PAU-OAP-310.8-50.8-N - Download

PAU-OAP-250-50.8-N - Download

PAU-OAP-25.4-25.4-Y - Download

PAU-OAP-25.4-25.4-N - Download

PAU-OAP-152.4-50.8-Y - Download

PAU-OAP-152.4-50.8-N - Download

PAU-OAP-101.6-50.8-Y - Download

PAU-OAP-101.6-50.8-N - Download

PAU-OAP-101.6-25.4-Y - Download

PAU-OAP-101.6-25.4-N - Download

PAL-OAP-76.2-25.4-Y - Download

PAL-OAP-76.2-25.4-N - Download

PAL-OAP-50.8-50.8-Y - Download

PAL-OAP-50.8-50.8-N - Download

PAL-OAP-50.8-25.4-Y - Download

PAL-OAP-50.8-25.4-N - Download

PAL-OAP-40-50.8-N - Download

PAL-OAP-40-25.4-Y - Download

PAL-OAP-310.8-50.8-N - Download

PAL-OAP-25.4-25.4-Y - Download

PAL-OAP-25.4-25.4-N - Download

PAL-OAP-152.4-50.8-Y - Download

PAL-OAP-152.4-50.8-N - Download

PAL-OAP-101.6-50.8-Y - Download

PAL-OAP-101.6-50.8-N - Download

PAL-OAP-101.6-25.4-Y - Download

PAL-OAP-101.6-25.4-N - Download

PAG-OAP-76.2-25.4-Y - Download

PAG-OAP-76.2-25.4-N - Download

PAG-OAP-50.8-50.8-Y - Download

PAG-OAP-50.8-50.8-N - Download

PAG-OAP-50.8-25.4-Y - Download

PAG-OAP-50.8-25.4-N - Download

PAG-OAP-40-50.8-N - Download

PAG-OAP-310.8-50.8-N - Download

PAG-OAP-25.4-25.4-Y - Download

PAG-OAP-25.4-25.4-N - Download

PAG-OAP-152.4-50.8-Y - Download

PAG-OAP-152.4-50.8-N - Download

PAG-OAP-101.6-50.8-Y - Download

PAG-OAP-101.6-50.8-N - Download

PAG-OAP-101.6-25.4-Y - Download

PAG-OAP-101.6-25.4-N - Download

Accessories

Motorized Actuator Adapters

Compare Model Drawings & Specs Availability Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
