High Powered Hollow-Core Fiber Compressor

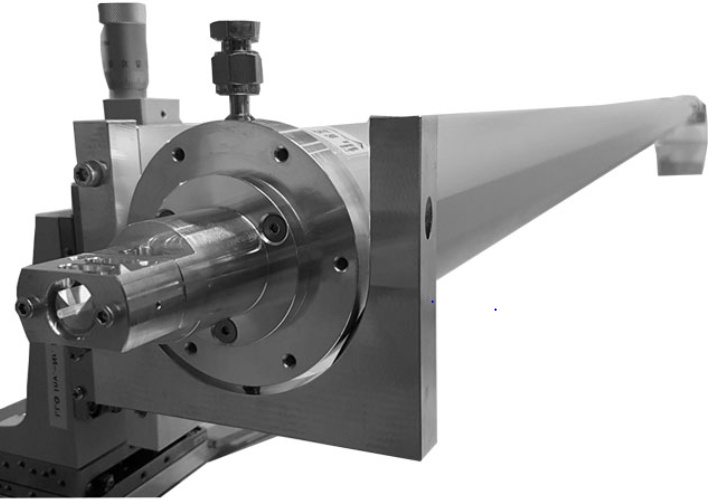

High power stretched flexible hollow core fiber pulse compressor

The SAVANNA-HP is the result of a collaboration between UltraFast Innovations and the Institute for

Nanophotonics in Göttingen IFNANO. The stretched flexible hollow core fiber (SF-HCF) compressor

spectrally broadens high-energy femtosecond input pulses by nonlinear interaction with a noble gas of

adjustable gas pressure inside a hollow fiber and subsequently compresses the pulse using chirped mirror

technology from UltraFast Innovations. The state of the art SF-HCF technique from IFNANO allows nearly

ideal wave guiding reducing the losses to a minimum and allows accumulation of self-phase modulation

over an interaction length of up to 8 m. The incoupling is protected by a high power shield allowing extreme

input parameters of few tens of mJ pulses and an average power of up to 20 W (with active cooling up to

several hundred Watts). Combining the SF-HCFs from IFNANO and our chirped mirrorcompression, we

provide an unmatched compression unit for today's state of the art lasers.



Key Product Features:

 Input pulse duration: up to hundreds of fs (as short as possible)

 Input pulse energy: up to few tens of mJ

 Typical compression factor: 5-30 x

 Fiber transmission: close to the theoretical limit

 Fiber length: up to 8 m

 Supported input peak power: Up to 400 GW at 10 W average power

 Supported input average power: Up to several hundred Watts at 125 GW peak power

 Active cooling for average powers > 20 W

 Footprint: 300-1000 cm x 60 cm


Customization Options

 Variable spectrum selection

 Flexible dispersion management

Custom reflective mirror telescope with astigmatism compensation

 In-coupling / Out-coupling chamber with Z-lock unit

 Pressure-stabilized single / double differentially pumped setup

 Active beam pointing stabilization unit



SF-HCF specifications:


 Standard Special Complex Custom
 Max. peak power 125 GW 250 GW | 125 GW 400 GW | 125 GW 400 GW
 Max. average power 10 W 10 W | 20 W 10 W | 100 W > 100W
 Max fiber length 3 m 4 m 6 m 8 m
 Typical transmission* 80 % 75 % 70 % 65 %
 Typical spectral broadening 15 x 20 x 30 x 45 x



Temporal and spectral pulse characteristics:






 Left: Retrieved temporal profile and ideal Fourier transform limited shape (FTL).

 Right: Fiber output spectrum supporting 2.9 fs pulses. Input: 24 fs & 10 mJ into

 2.5 m fiber




 Left: Spectrum (red) after broadening in a 6 m SF-HCF fiber and phase (blue) after

 compression. Right: Retrieved compressed pulse (red) and Fourier transform limited

 shape (black). Inset: output beam profile. Results achieved by coupling 300 fs &

 580W pulses into a 6 m fiber.

 Output: 318 W in compressed 10 fs pulses




Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Email Quotations

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 1 working days.
