1.5 μm Standardized Repetition Locking Optical Combs

Products / Lasers/Light /Optical Frequency Comb /1.5 μm Standardized Repetition Locking Optical Combs /

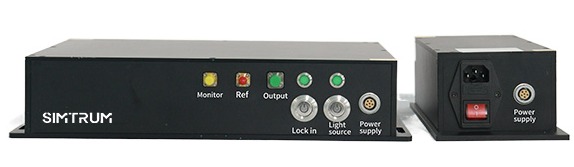

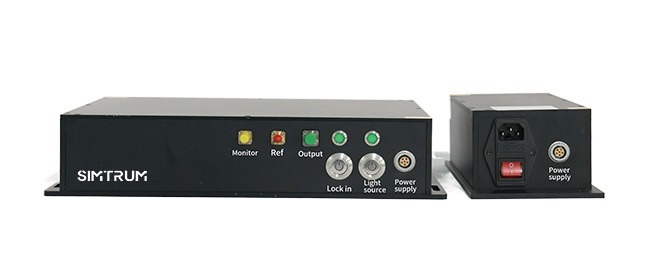

1.5 μm Standardized Repetition Locking Optical Combs
Overview Specifications Related Products Order Now!
SIMTRUM provides the 1.5 μm standardized repetition frequency locking optical combs which can achieve one-click auto-locking function of repetition rate through the technologies of full polarization-maintaining femtosecond fiber seed sources, high-speed phase-locked loop, low-noise femtosecond fiber amplification, and intelligent locking of repetition frequency.



The unique cavity design ensures the working stability of this product in various environments, and it can achieve normal operation in full temperature range, which is suitable for optical clocks, time-frequency transfer, molecular spectroscopy and high-precision measurements.



Features

  • One-click Locking
  • Full Polarization-maintaining Fiber (PMF) Structure
  • All Temperature Range Operation
  • Compact Size



Applications

  • Optical Clocks
  • High-precision, Long-range Time-frequency Transmission
  • Molecular Spectroscopy
  • High-precision Measurements

Product Specifications
Product Number LL-HM01-OFC-ST-1560-100-200
 Working Wavelength (Customizable) 1560 nm
 Spectral Width (Customizable) ＞20 nm
 Output Power (Customizable) 100 mW
 Power Stability@24 hours，Peak Value ＜0.5%
 Output Laser Type Pulse
 Pulse Width (Customizable) ≤150 fs
 Repetition Rate (Customizable) 200 MHz
 Repetition Rate Locking Method Automatically locked
 Output Optical Isolation 35-45 dB （Typical Value 45 dB）
 Output Polarization Type Linear polarization / Free polarization
 Output Polarization Extinction Ratio 20-25 dB（Typical Value 23 dB）
 Frequency Stability（RF Reference） ＜5E-13 @1s
 Operating Temperature -20~+40 ℃
 Storage Temperature -40~+85 ℃
 Power Consumption ＜20 W
 Weight 5 kg


Testing Data

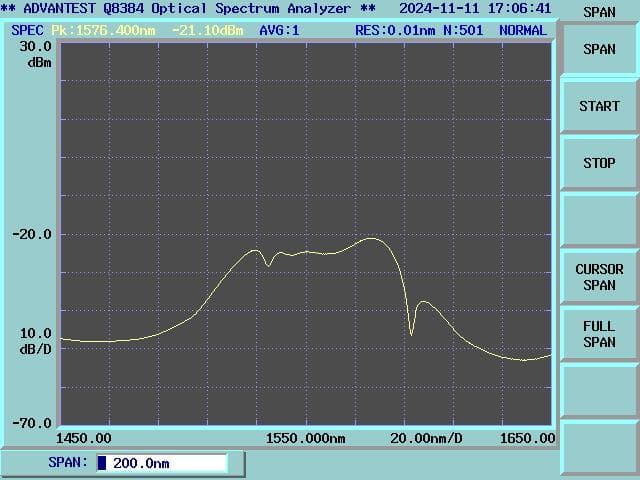

Typical Spectrum

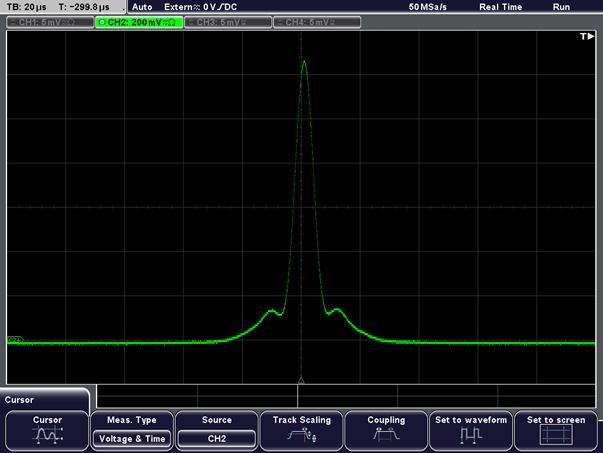

Pulse Width＜100 fs

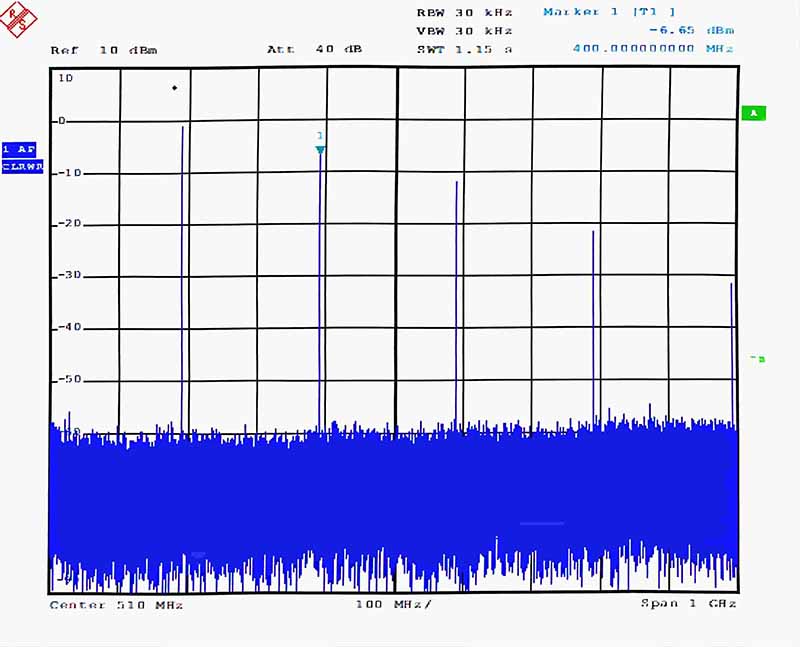

Spectrogram

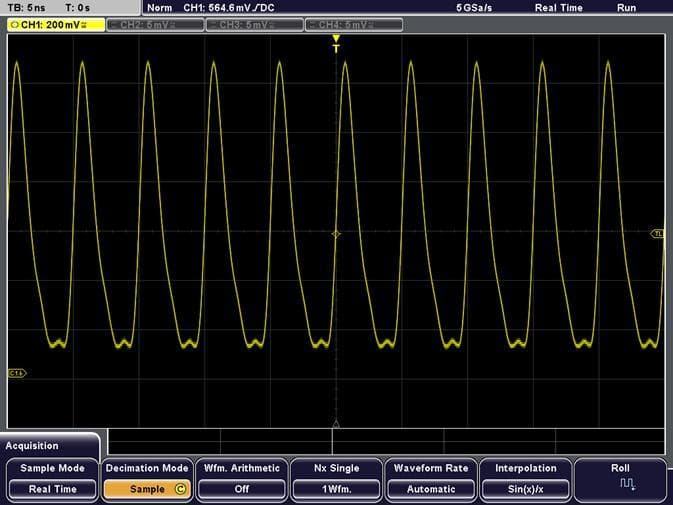

Time Domain Waveform

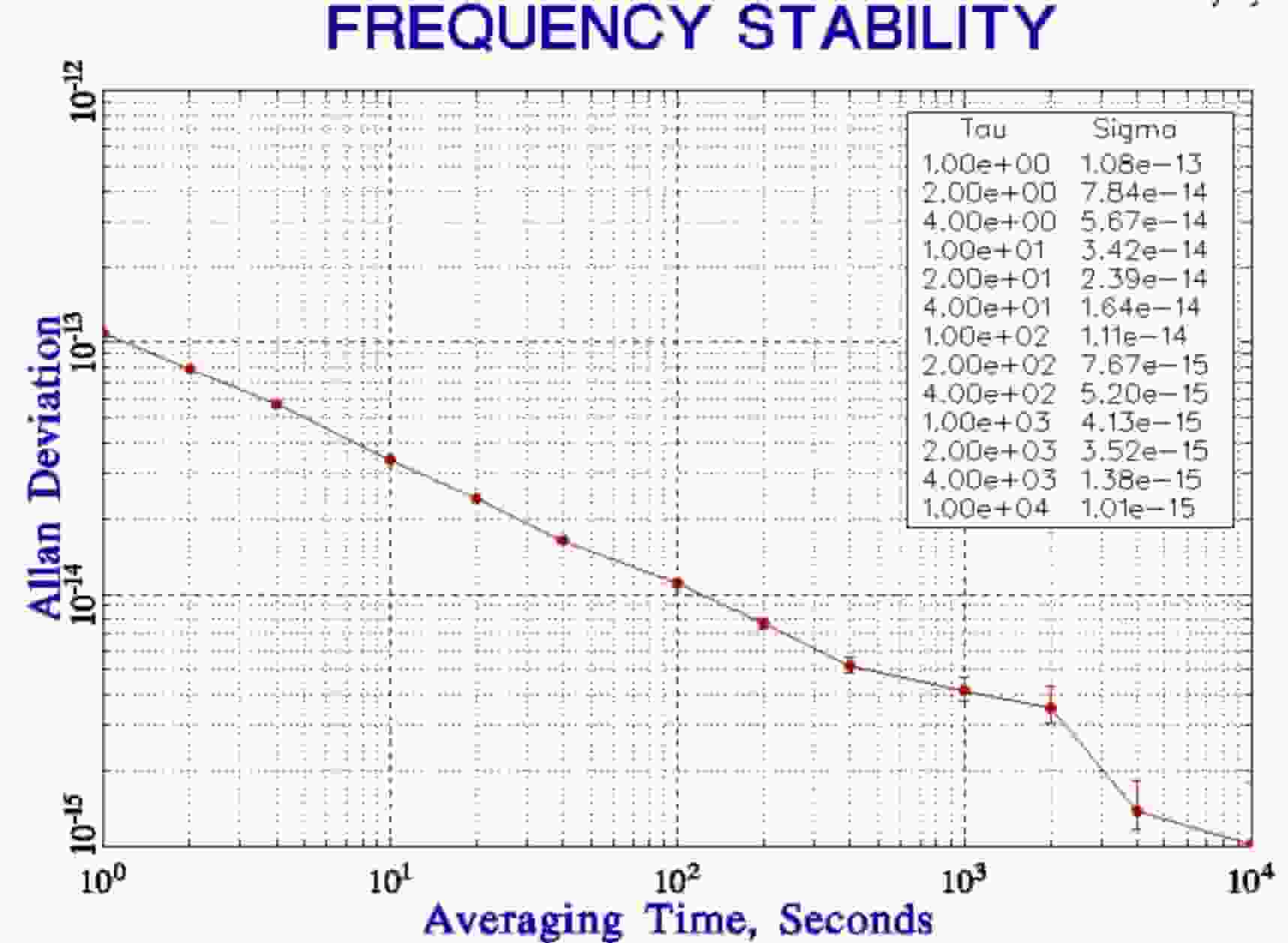

High Stability Lock：1.08E-13 @1s；1.01E-15 @10,000s




Type Wavelength Output Power Repetition Rate Frequency Stability
Standardized Repetition Locking Optical Combs 1560±10 nm 100 mW 200 MHz RF reference＜5E-13 @1s
Fully Locked Optical Frequency Combs 1560±10 nm 30-100 mW 50-250 MHz RF reference＜1E-13 @1s
Asynchronous Optical Sampling Light Source 1560±10 nm 50 mW 200 MHz Within the loop＜3E-13 @1s
Femtosecond Pulse Fiber Laser (515nm-2μm) 515/780/1030/1040/
1050/1560/1970 nm		 60mW-10W 30 MHz-1 GHz /
Portable Fceo Detection Module 1560±10 nm Singal-to-noise Ratio:
25-35 dB		 / /
Broadband Compact RF Optical Modules 1310/1550 nm Link Gain: 15 dB / /
High Gain RF Optical Modules 1310/1550 nm Link Gain: 55 dB / /

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.
Items Detail Unit Remark
Application
Working Wavelength   nm Customizable
Spectral Width   nm Customizable
Output Power   mW Customizable
Power Stability   %
Pulse Width   ps Customizable
Pigtail Length   m Customizable
Repetition Rate   MHz Customizable
Frequency Stability   /






We are here for you!





Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-HM01-OFC-ST-1560-100-200
Working Wavelength: 1560 nm ,Spectral Width: ＞20nm ,Output Power: 100mW, Pulse Width: ＜150fs, Repetition Rate: 200MHz ,Repetition Rate Locking Method: Automatically Locked, Power Stability: ≤0.5% RMS @24 hours ,Frequency Stability: ＜5E-13 @1s (RF Reference) 		4-6 Weeks $35714.00
LL-HM01-OFC-ST-1560-100-200
Customizable parameters include working wavelength, 3dB spectral width, average output power, pulse width, pigtail length and repetition rate. 		6-8 Weeks Request for quote

LL-HM01-OFC-ST-1560-100-200 - Parameter

LL-HM01-OFC-ST-1560-100-200 - Parameter

LL-HM01-OFC-ST-1560-100-200 - Download

LL-HM01-OFC-ST-1560-100-200 - Download
