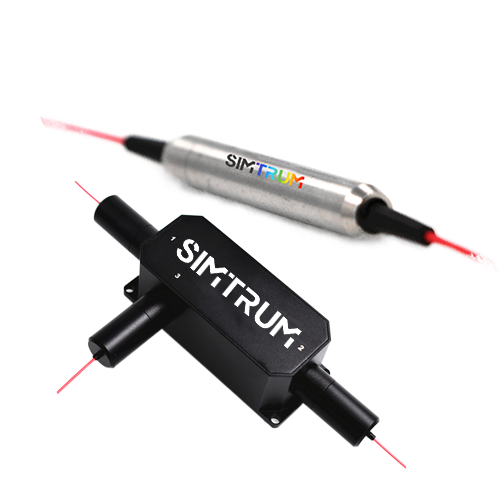

Optical Circulator

Enhance your optical networks with SIMTRUM's Optical Circulator, featuring low insertion loss and high isolation. Its compact design is ideal for bidirectional transmission in telecommunications, fiber sensors, and medical imaging.

Parameter Port Type Center Wavelength(nm) Isolation @23 (dB) Insertion Loss @23(dB)
532nm/633nm Optical Fiber Circulator  3  532/633 20-22 1.5-2
1030nm PM Fiber Circulator (Faraday Based, 50mW)  3  1030 20-23 3.2-3.5

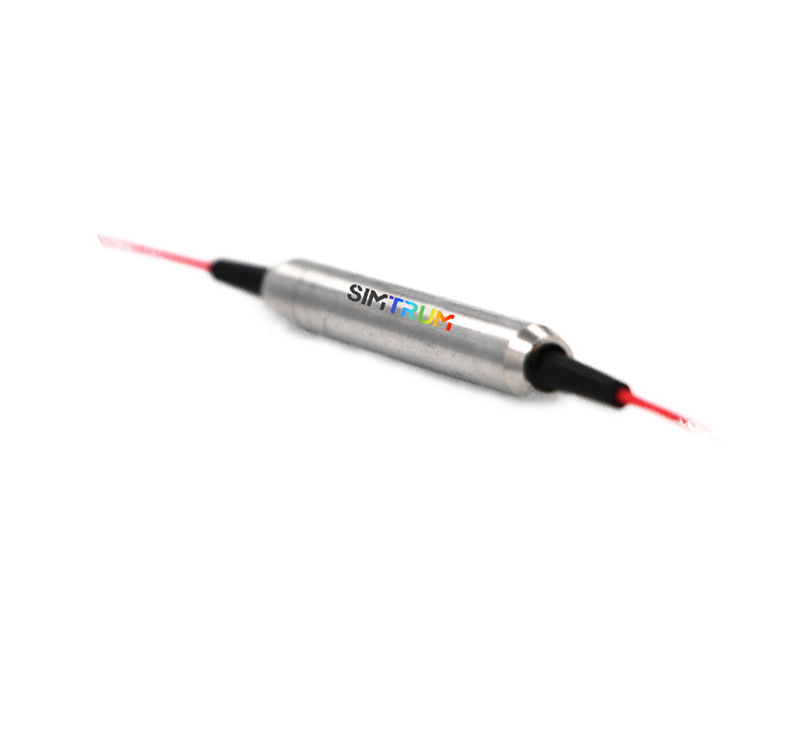

1064nm PM Fiber Circulator (Faraday Based, 300mW)  3-4 1064 25-30 1.8-2.1

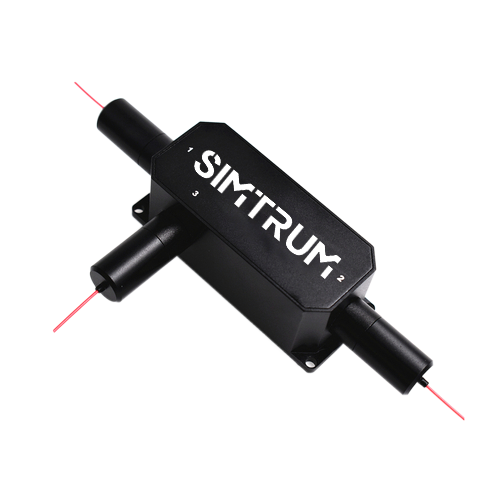

780-1080nm High Power Optical Circulator (up to 30W)  - 1064/1030/980/850/808/780 22-25 1-1.3
980-1080nm High Power Optical Circulator (up to 100W)  - 1064/1030/980 25 1-22
980-1080nm Multi-mode Optical Circulator (up to 20W)  - 1064/1030/980 18-20 1-18
1310-2050nm Polarization Maintaining Fiber Circulator  3-4 2050/2000/1950/1550/1480/1310 16-46 0.6-1.9
1310/1480/1550nm High Power Fiber Circulator (up to 20W)  3 1550/1480/1310 25-40 0.6-0.9
2000nm High Power Optical Circulator (up to 20W)  3 1950/2000/2050 16 1.6

Technical Support Available: Contact us  | You can download our full Product Line Card Click Here
