Products / Opto-Electronics /Spatial Light Modulator /Phase Spatial Light Modulator /

Phase Spatial Light Modulator

Overview & Specifications Application examples Software Related Products Order Now！

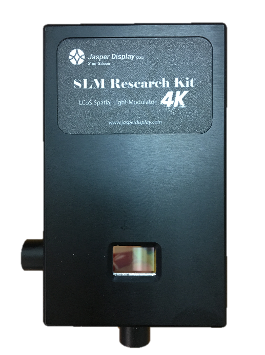

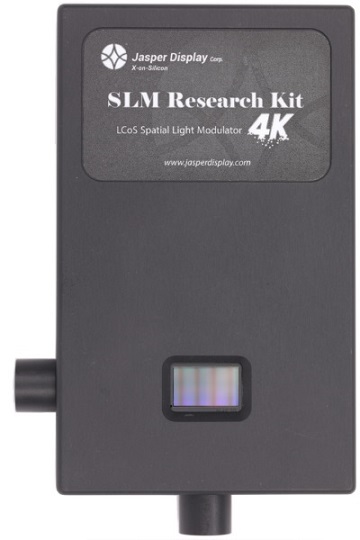

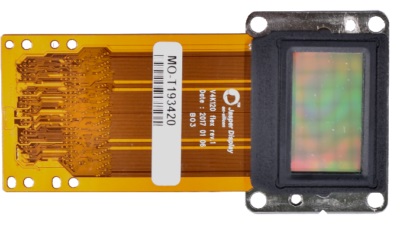

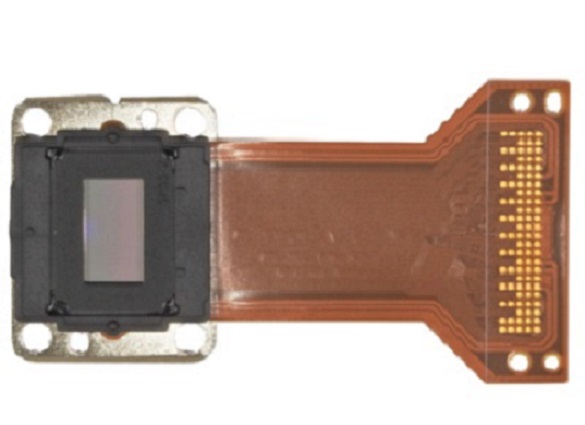

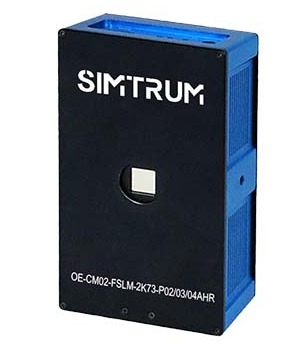

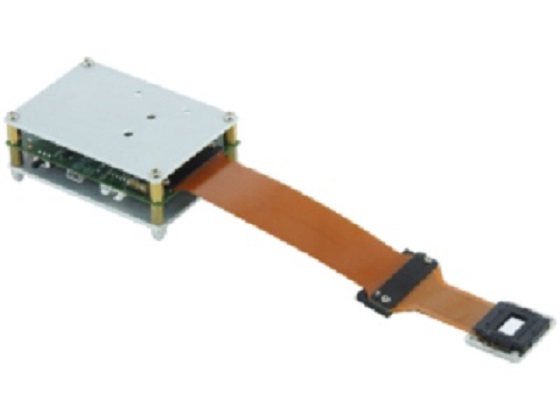

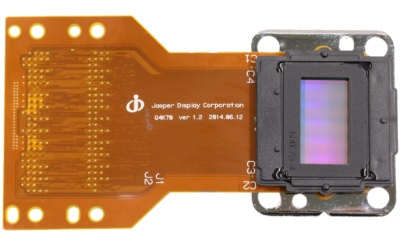

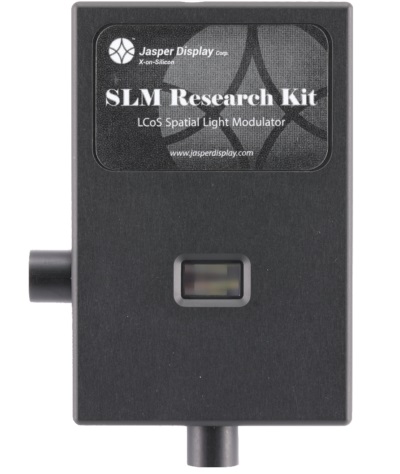

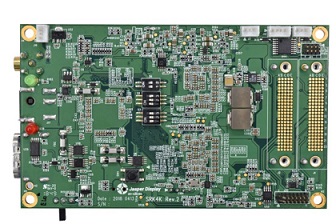

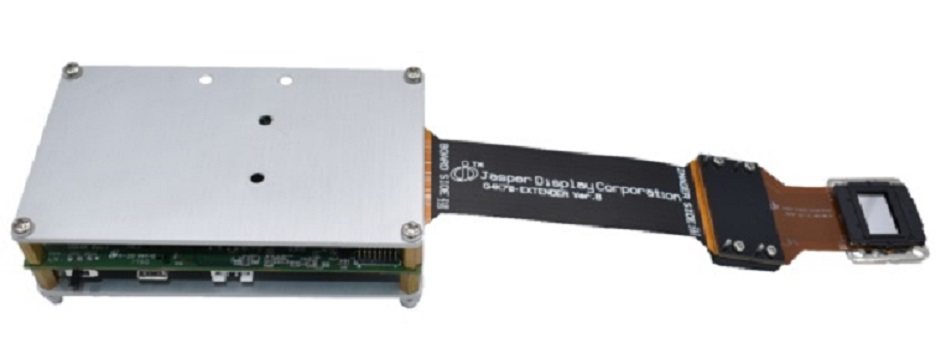

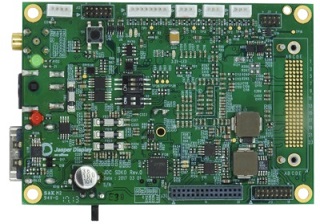

SIMTRUM's phase spatial light modulator is an optical device that can adjust the phase of light waves. By altering the phase distribution of light, it enables dynamic control and modulation of light beams. This modulation typically relies on liquid crystal technology, allowing the device to be flexibly applied in fields such as holography, beam shaping, adaptive optics, and optical communication. The advantage of phase modulation is that it can create complex optical effects without changing the intensity of the light

Features

Wide spectrum of use
High resolution
High control accuracy
Color phase modulation is realized
High optical efficiency

Application

Optical holography
Laser processing
Beam shaping
Optical communications

Product Specification

General Parameters

Model	Spectral range	Resolution	Cell size	Valid area	Phase range	Optical utilization	Response Time
OE-CM02-FSLM-2K39-P	532nm	1920x1080	4.5	0.39	2.1π@532nm	75%@532nm	≤16.7ms
OE-CM02-FSLM-2K39-P02	420-820nm	1920x1080	4.5	0.39	2π@637nm Max:3π@637nm	60.8%@637nm	≤16.7ms

OE-CM02-FSLM-2K70-P02	400-700nm	1920x1080	8	0.69	2π@633nm Max:2.5π@633nm	64%@532nm	≤16.7ms

OE-CM02-FSLM-2K70-P02HR	500-700nm	1920x1080	8	0.69	2π@633nm Max:2.5π@633nm	85%@532nm	≤16.7ms

OE-CM02-FSLM-2K70-P02/03	450-1100nm	1920x1080	8	0.69	2π@1064nm Max:2.1π@1064nm	75%@1064nm	≤30ms

OE-CM02-FSLM-2K70-P03/04HR	1000-1100nm 1500-1700nm	1920x1080	8	0.69	2π@1064nm/1550nm Max:3.5π@1064nm Max:2.3π@1550nm	85%@1064nm/1550nm	≤100ms


OE-CM02-FSLM-2K73-P02	420-700nm	2048x2048	6.4	0.73	2π@637nm Max:2.12π/3.72π@637nm	40%±5%@532nm 50%±5%@637nm	≤40ms

OE-CM02-FSLM-2K73-P02HR	500-700nm	2048x2048	6.4	0.73	2π@637nm Max:2.2π@637nm	85%±5%@532nm 85%±5%@637nm	≤30ms

OE-CM02-FSLM-2K73-P02/03/04AHR	420-1700nm	2048x2048	6.4	0.73	2π@1064nm/1550nm Max:4.51π@1064nm Max:2.85π@1550nm	80%±5%@1064nm	≤120ms


OE-CM02-FSLM-2K73-P03HP	1000-1100nm	2048x2048	6.4	0.73	2π@1064nm Max:3.5π@1064nm	95%±5%@1064nm	≤30ms

OE-CM02-FSLM-2K73-P02/03/04BHR	420-1700nm	2048x2048	6.4	0.73	2π@1550nm Max:4.91π@1550nm	85%±5%@1550nm	≤600ms

OE-CM02-FSLM-4K55-P02	500-700nm	3840x2160	3.2	0.55	2π@637nm Max:2.5π@637nm	45%@460nm 85%@532nm 85%@637nm	≤30ms


OE-CM02-FSLM-4K55-P03/04	1000-1700nm	3840x2160	3.2	0.55	2π@1550nm Max:2.5π@1550nm	85%@1064nm 85%@1550nm	≤100ms

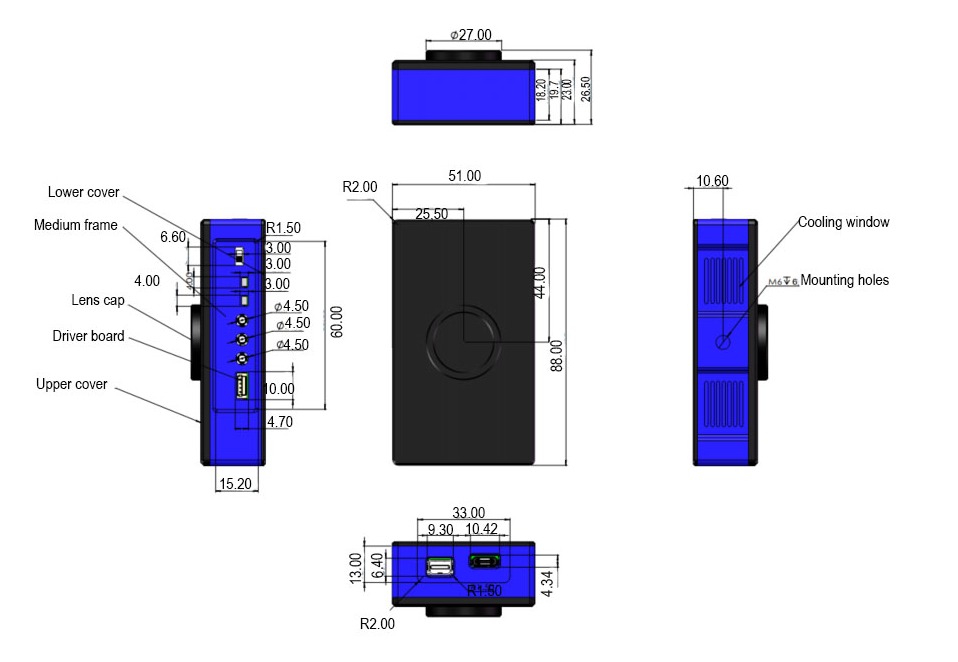

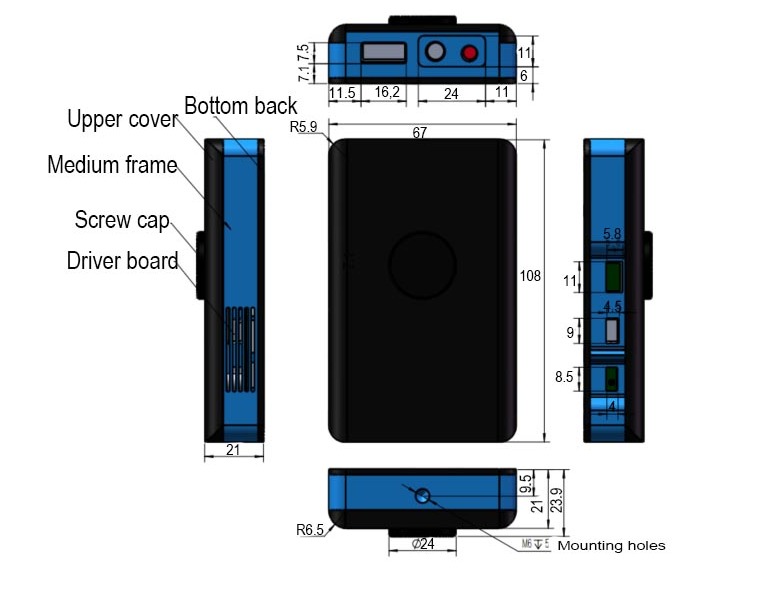

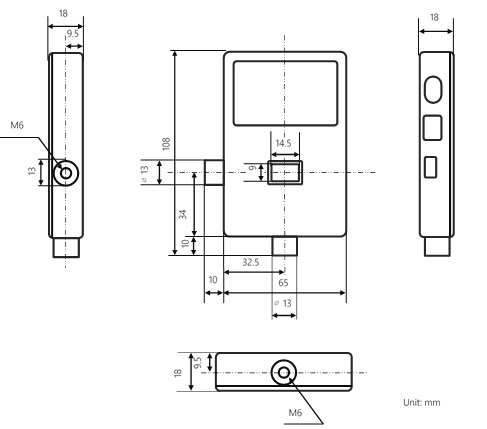

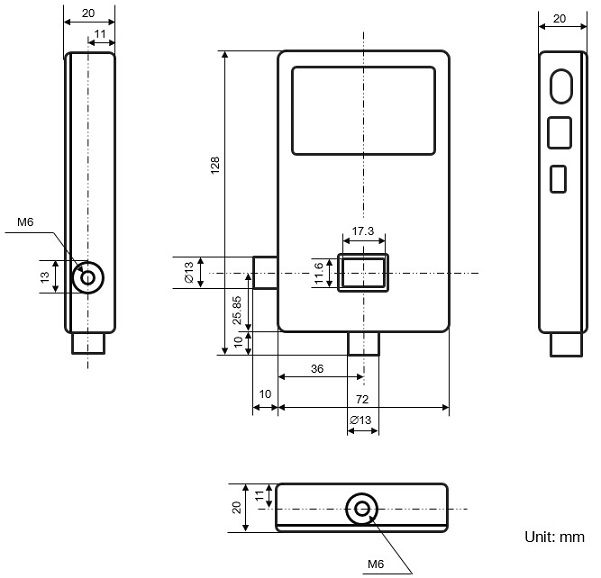

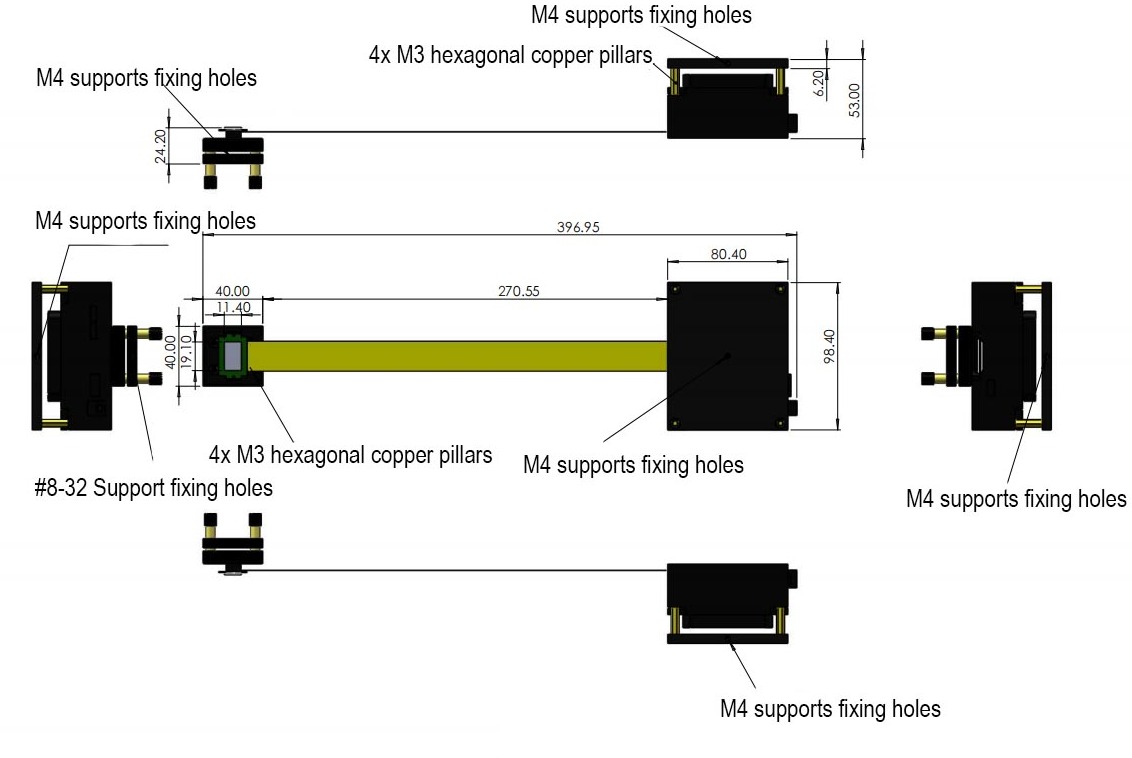

Mechanical Diagram (mm)

1. Scatter imaging

Based on the OE-CM02-FSLM-2K70-P02, the focus with relatively uniform intensity values outside the traditional ME region after scanning the scattering medium is realised.

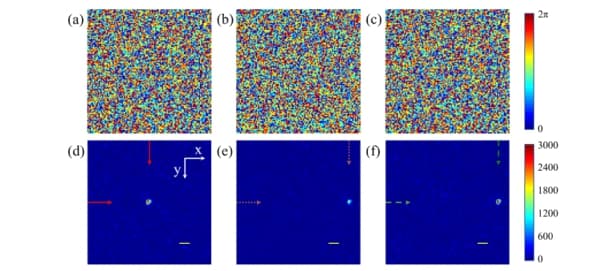

	Experimental results of WFT&RO after scattering medium in the ME region. (a-c) SLM phase plate for initial focus, scan focus, and RO focus. (d-f) Observation plane images of the initial focus, scan focus, and RO focus.

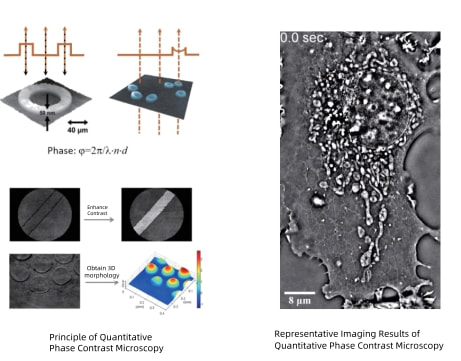

2. Microscopy

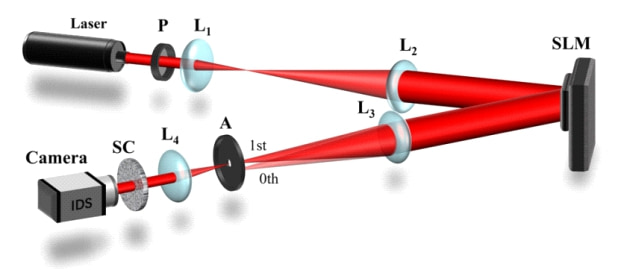

A high-temporal and spatiotemporal resolution quantitative phase contrast microsystem based on OE-CM02-FSLM-2K70 was studied.

3. Laser processing

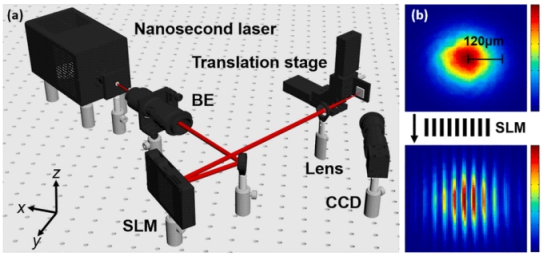

Mixed-period microstructure fabrication on chromium thin films based on phase modulation-assisted nanosecond laser technology based on OE-CM02-FSLM-2K70-P02.

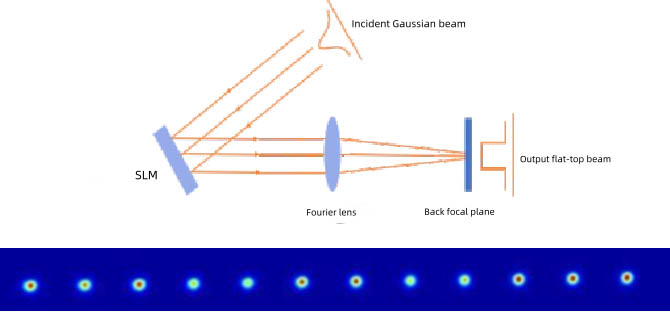

Based on OE-CM02-FSLM-2K70-P02, it can be used in laser processing such as beam splitting and shaping.

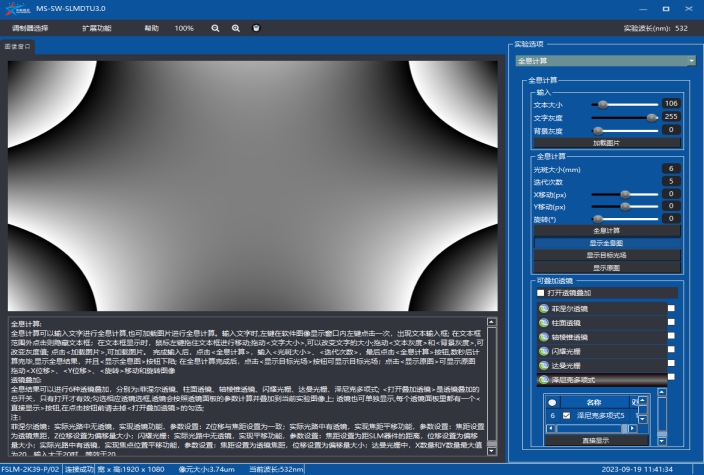

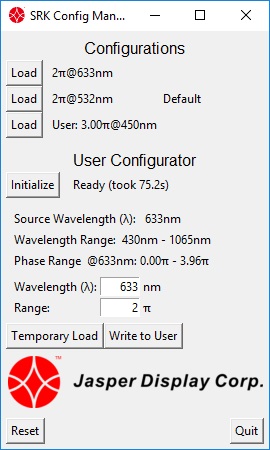

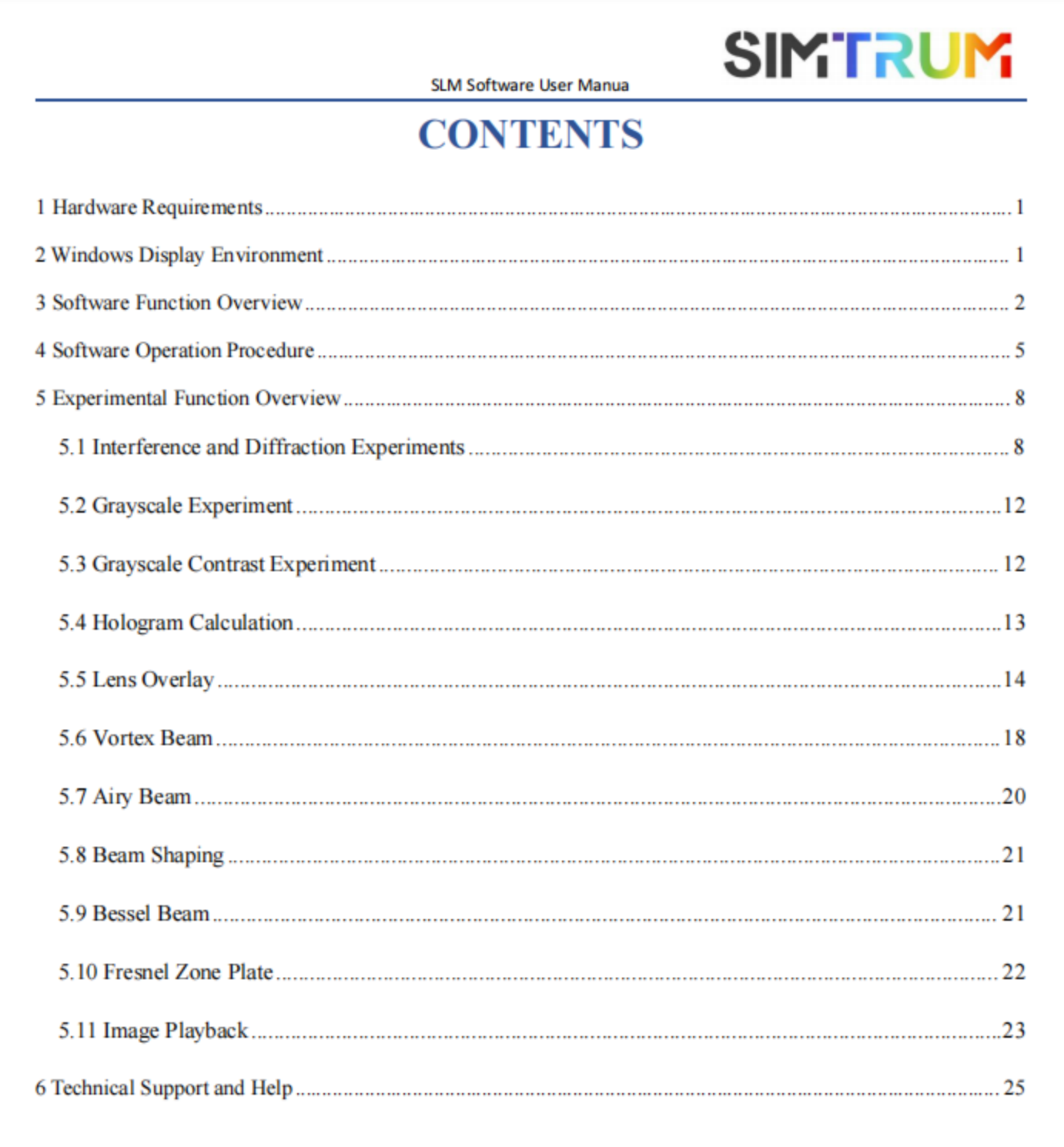

Software interface

Key features of the software include:

1. Integrate various specific light field control functions: including diffraction light field, non-diffraction light field, structured light field, etc.

2. Integrate more than 20 experimental projects, 35 Zenick polynomials, and support superposition between phase maps;

3. Real-time online adjustment and control of various light field parameters;

4. Quickly correct wavefront aberration according to actual needs;

5. It can be expanded independently, and it can be dynamically displayed in external input mode;

6. Independently select the playback mode to achieve high-speed refresh playback;

7. Open program interface, open the functional interface of the image processing part in the form of SDK, and support a variety of development languages, including Labview, C/C++, etc.
