Reflection Amplitude SLM
Overview & Specifications Application examples Software Related Products Order Now！

SIMTRUM's  spatial light modulator can change the amplitude, phase and polarization state of the light distribution in space under the control of the driving signal that changes with time, or convert the incoherent light into coherent light, which can easily write specific information into the light wave to achieve the purpose of light wave modulation. The voltage of each pixel is dynamically controlled in real time through the image signal to modulate the light wave.



Reflection Amplitude Spatial Light Modulator is an advanced optical device . Utilizing reflective materials such as MEMS or liquid crystals, this modulator allows for precise control of light in real-time, making it ideal for applications in optical imaging, display technology, laser systems, and telecommunications.

Features

  • Wide spectral range
  • High resolution
  • High light utilization
  • High control accuracy

Application

  • Optical Communication
  • Biomedical Imaging
  • Light Field Control
  • Spectral Analysis

Product Specification

General Parameters

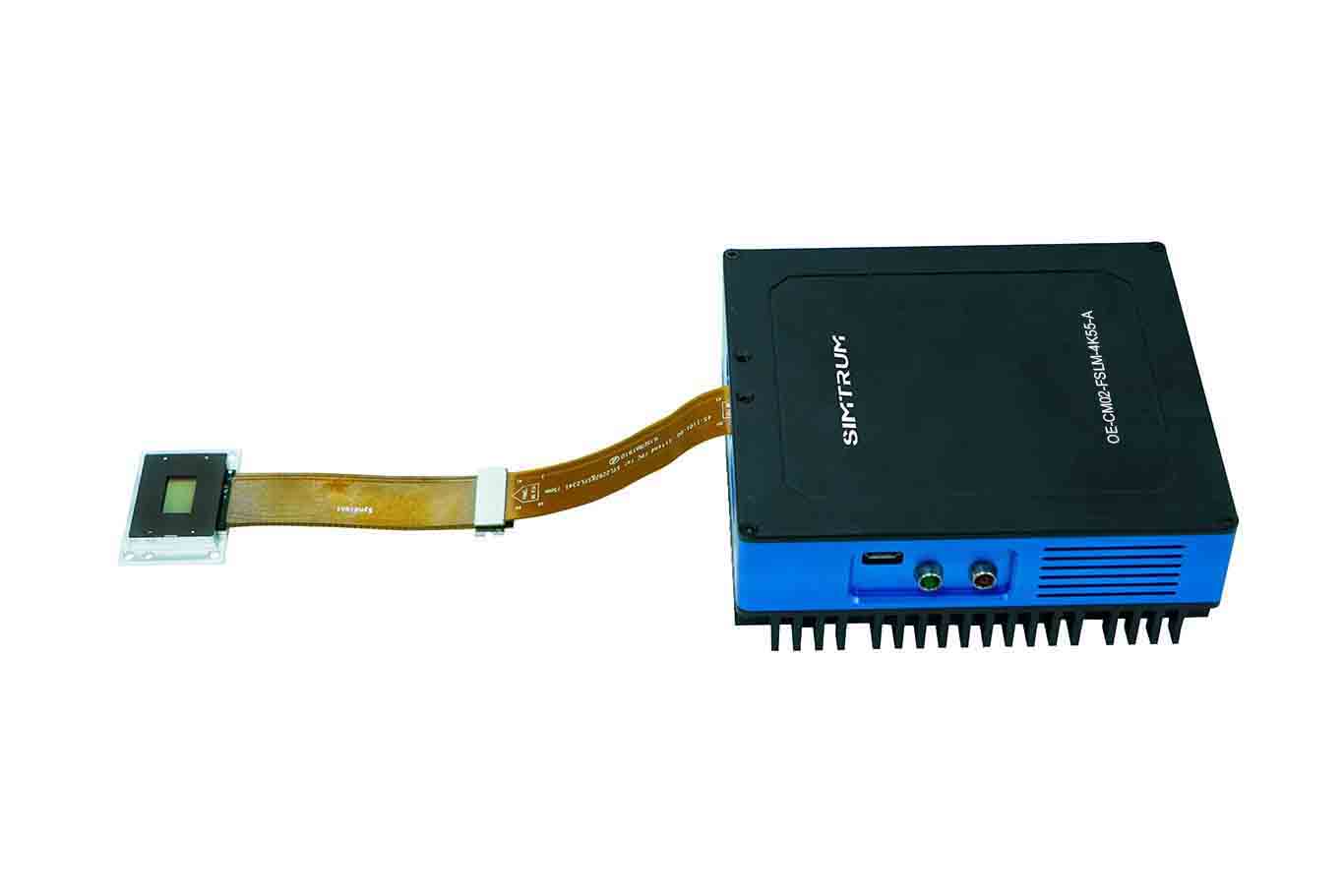

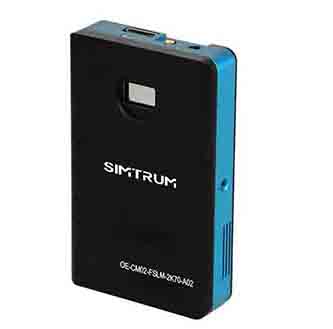

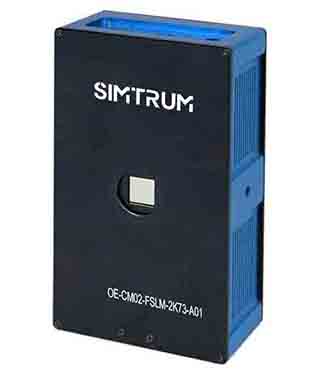

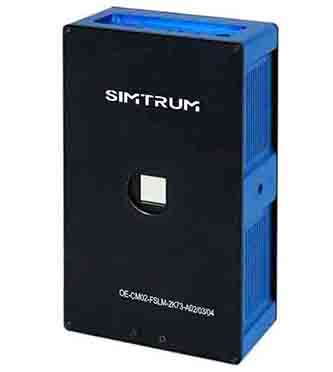

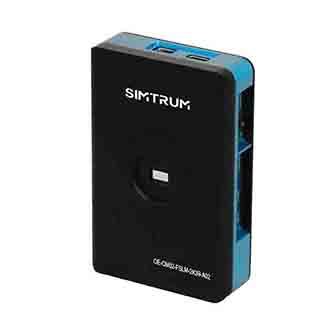

Model OE-FSLM-A1-420-1920-45 OE-FSLM-A2-420-1920-80 OE-FSLM-A3-350-2048-64 OE-FSLM-A4-420-2048-64 OE-FSLM-A5-400-3840-32
Spectral range 420nm-650nm 420nm-1100nm 360nm-450nm 1000nm-1700nm 400nm-1550nm
Resolution 1920×1080 1920×1080 2048×2048 2048×2048 3840×2160
Pixel size 4.5μm 8μm 6.4μm 6.4μm 3.2μm
Effective region 0.39"
8.64mm×4.86mm		 0.69"
15.36mm×8.64mm		 0.73"
13.1mm×13.1mm		 0.73"
13.1mm×13.1mm		 0.55"
12.29mm×6.9mm
Contrast 600:1@532nm 1000:1@532nm 500:1（without waveplate）1000：1(with λ/4 waveplate） 70:1（without waveplate）1000：1(with λ/4 waveplate） 1200:1@532nm
Optical utilization 67%@532nm 61%@532nm 90±5%@385nm/405nm 80±5%@365nm 80%±5%@1064nm/1550nm 53%@532nm
Response Time ≤2ms / ≤30ms ≤60ms ≤4ms
Data interface MINI DP DVI or HDMI HDMI HDMI HDMI
Drive power 5V 2A 5V 3A 12V 3A 12V 3A 5V 3A
Damage Threshold 5W/cm² 2W/cm² 3.4W/cm² 20W/cm² 2W/cm²

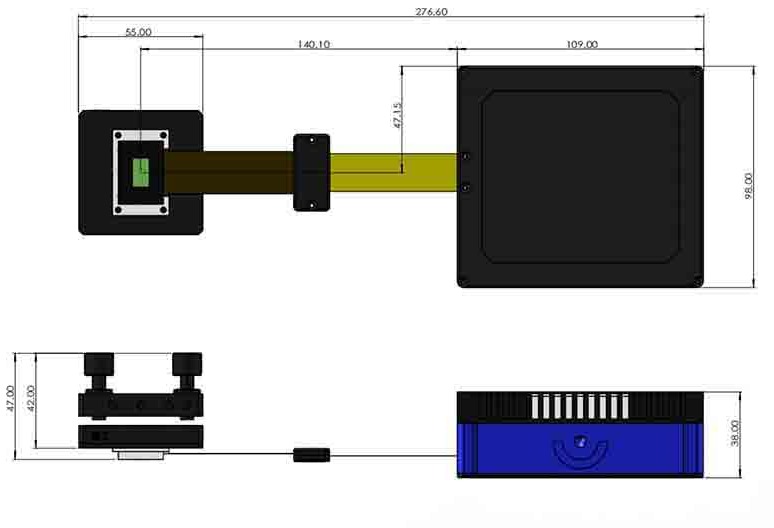

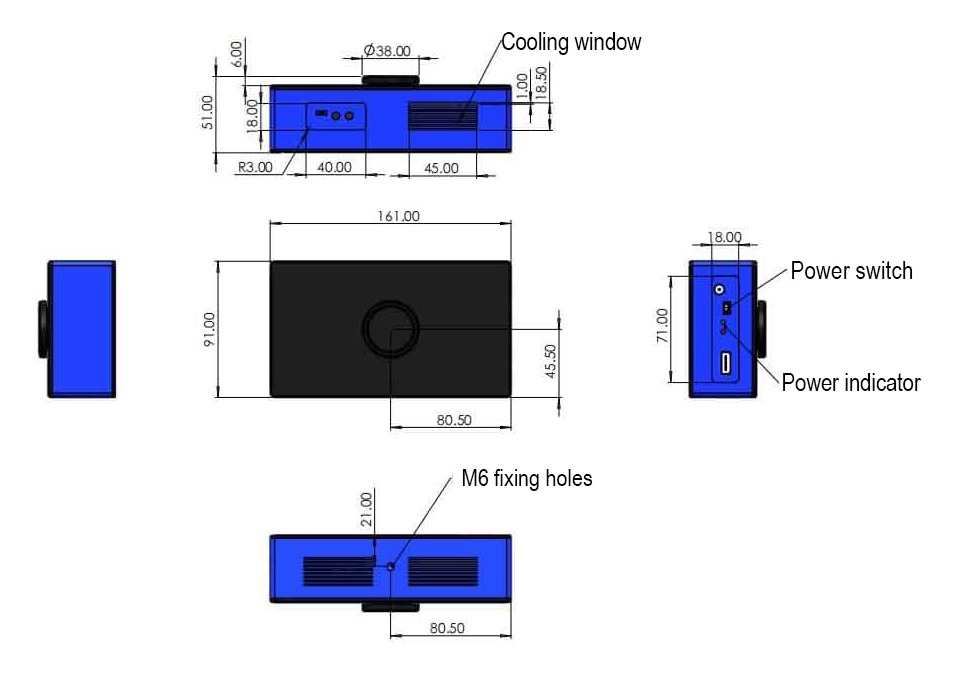

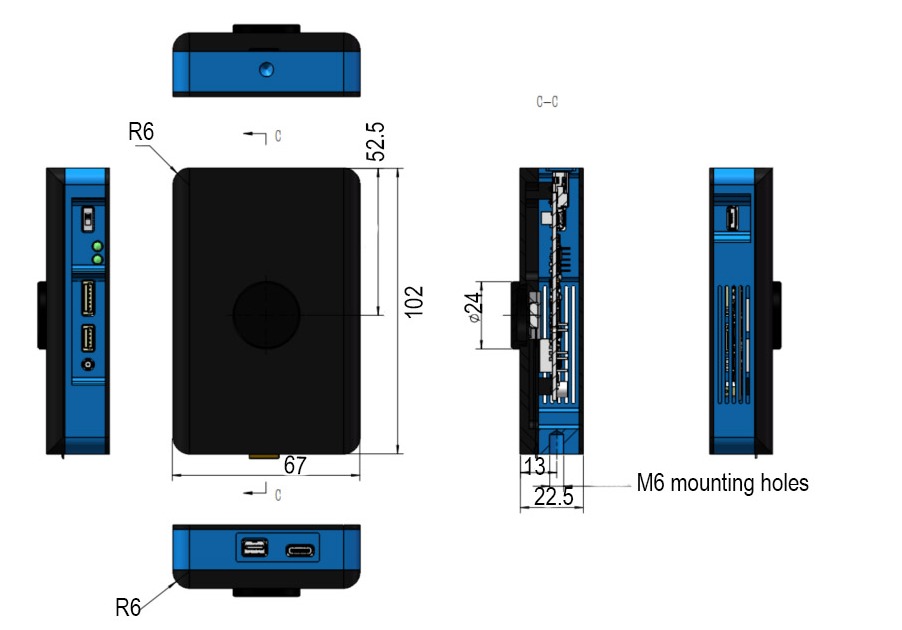

Mechanical Diagram (mm)








Laser processing

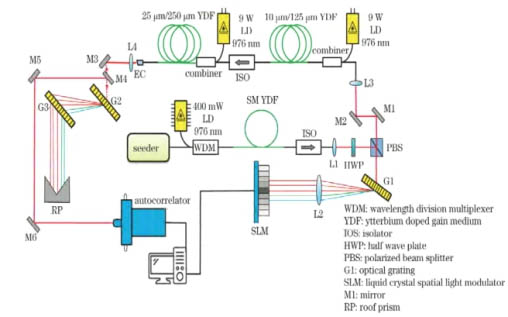

Spectral shaping is realised based on FSLM-2K70-A02.

Spectral shaping effect and corresponding greyscale plot

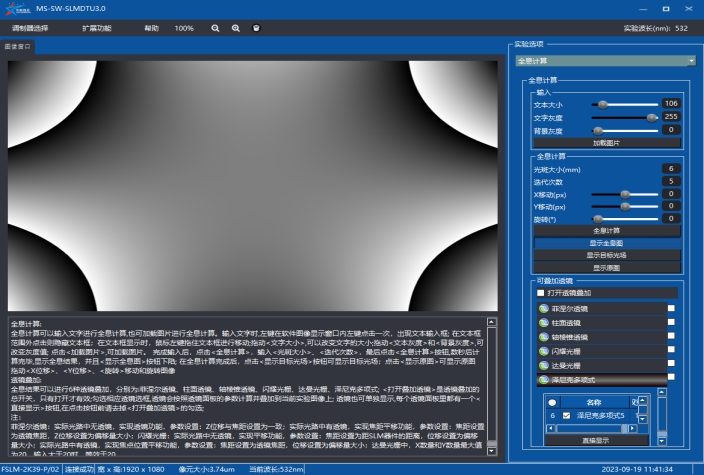

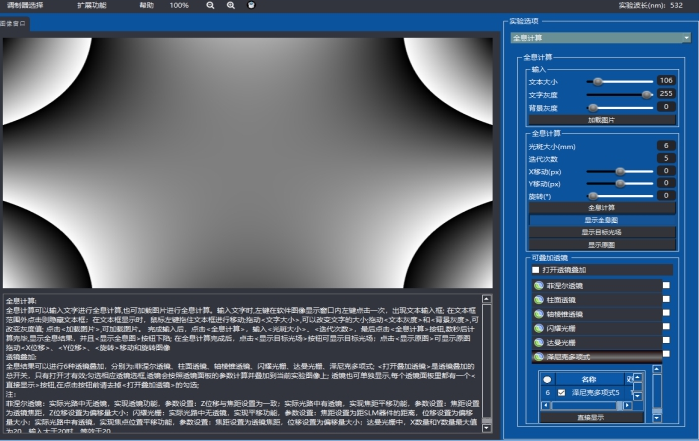

Software interface



Key features of the software include:

1. Integrate various specific light field control functions: including diffraction light field, non-diffraction light field, structured light field, etc.

2. Integrate more than 20 experimental projects, 35 Zenick polynomials, and support superposition between phase maps;

3. Real-time online adjustment and control of various light field parameters;

4. Quickly correct wavefront aberration according to actual needs;

5. It can be expanded independently, and it can be dynamically displayed in external input mode;

6. Independently select the playback mode to achieve high-speed refresh playback;

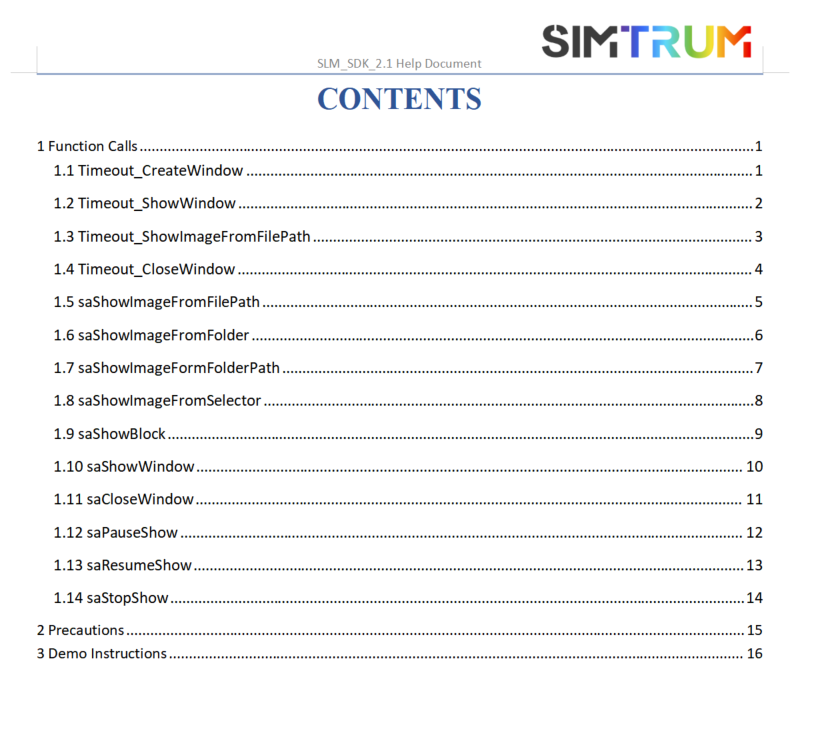

7. Open program interface, open the functional interface of the image processing part in the form of SDK, and support a variety of development languages, including Labview, C/C++, etc.
