Blackbody Calibration Sources -15 to 1500°C

PROTHERM CS 400/CS 400-M1

Infrared Radiation Source


The two-piece infrared calibration source PYROTHERM CS 400 is used for calibration and examination of infrared radiation thermometers and infrared cameras in the temperature range from 50 °C to 400 °C. It consists of the radiating unit and the controller unit, connected with two cables. The total emissivity of the blackened surface is approximately 97 percent. Digital PID controller and precision platinum resistance thermometer Pt100 provide excellent accuracy and stability.

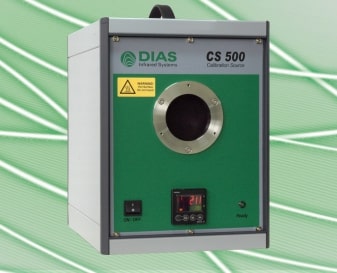

PYROTHERM CS 500

Infrared Radiation Source


The infrared radiation source PYROTHERM CS 500 is used for calibration and examination of infrared radiation thermometers and infrared cameras in the temperature range from 50 °C to 500 °C. Its execution as an extended area radiator results in a compact portable device with a large aperture and a total emissivity of approximately 97 percent. A serial interface RS-485 enables the control of the radiator with PC. Digital PID controller and precision platinum resistance thermometer Pt100 provide excellent accuracy and stability.



PYROTHERM CS 1200

Infrared Radiation Source


The infrared calibration source PYROTHERM CS 1200 is used for the calibration and verification of infrared radiation thermometers and infrared cameras within the temperature range from 300 °C to 1200 °C. The cavity style guarantees a very high emissivity. The temperature adjustment can be done directly at the black body or via serial interface RS-485 (optional USB adapter) with PC software. Digital PID controller and high-precision temperature sensor provide excellent accuracy and stability.



PYROTHERM CS 1500

Infrared Radiation Source


The infrared calibration source PYROTHERM CS 1500 is used for the calibration and verification of infrared radiation thermometers and infrared cameras within the temperature range from 300 °C to 1500 °C, especially in the near infrared range (NIR) at 0.8 µm to 1.8 µm wavelength. The cavity style guarantees a very high emissivity. The temperature adjustment can be done directly at the black body or via serial interface RS-485 (optional USB adapter) with PC software. Digital PID controller and high-precision temperature sensor provide excellent accuracy and stability.

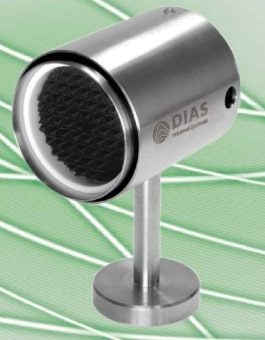

PYROTHERM CS F35 to F150

Infrared Radiation Source


The calibration sources PYROTHERM CS F35 to F150 are used for the calibration and control of radiation thermometers and infrared cameras. The temperature value is fixed between 35 °C and 150 °C. A robust stainless steel housing enables the use under rough conditions in the industry. The radiation surface has a high emissivity value of 0.98. A precise temperature control guarantees a high accuracy and stability of the calibration source

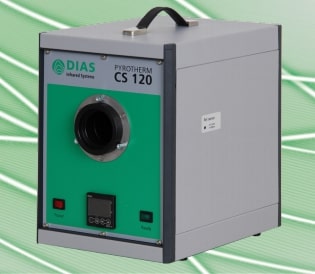

PYROTHERM CS 120

Infrared Radiation Source


The infrared calibration source PYROTHERM CS 120 is used for calibration and examination of infrared radiation thermometers and infrared cameras in the temperature range from –15 °C to 120 °C. A serial interface RS-485 (optional USB adapter) enables the control of the black body with PC. Digital PID controller and precision platinum resistance thermometer Pt100 provide excellent accuracy and stability. Dry air or nitrogen avoides condensation at low operating temperatures.




Please check the table below for individual specifications

Type

PYROTHERM

 CS 400

PYROTHERM

 CS 400-M1

PYROTHERM

CS 120

PYROTHERM

CS 500

PYROTHERM

 CS 1200

PYROTHERM

CS 1500

PYROTHERM

CS F35 to F150

Temperature range50°C to 400°C

50°C to 530°C

(short-term)

–15°C to 120°C50°C to 500°C300°C to 1200°C300°C to 1500°C

35°C to 100°C in

 steps of 5,

100°C to 150°C in

steps of 10

Aperture diameter30 mm50 mm60 mm38 mm38 mm50 mm
Emissivity0.97 ± 0.010.98 ± 0,010.97 ± 0.010.99 ± 0.0050.99 ± 0.0050.98 ± 0.0051
Uncertainty2 K0.5   K1   K + 0.0025 · T [°C]2   K + 0.0025 · T [°C]2   K + 0,0025 · T [°C]0.7 K
Control stability0.5 K0.2   K0.2   K0.3   K0.3   K0.1 K
Heat up time30 min8 min30 min

300°C: 30 min

,1200°C: 50 min

300°C: 30 min,

1300°C: 50 min

F35: 5 min,

F150: 15 min

Temperature sensorPt100 Class APt100 Class APt100 class AType R Pt13RhType R Pt13Rhnil
OutputStatus output (relay)nilnilnilnilnil
Input

Set point activation (logic input

 for floating contact)

nilnilnilnilnil
ControllerPIDPIDPIDPIDPID–20 °C to 70 °C
DimensionsSource unit: 120 mm × 122 mm × 90 mm,
    Control unit: 235 mm × 140 mm × 350 mm

235 mm × 311

 mm × 316 mm

235 mm × 311

mm × 311 mm

380   mm × 530 ... 545 mm (adjustable) × 500 mm [W × H × D]380   mm × 530 ... 545 mm (adjustable) × 500 mm
    [W × H × D]
nil
Weight

Source unit: appr. 1 kg,

 Control unit: appr. 3 kg

appr. 8 kgappr. 8 kgapprox. 37 kgapprox. 37 kg0.9 kg
Power supply115/230V AC, 200 VA115/230V AC, 200 VA115/230V AC, 500 VA

220 to 240 V AC,

 maximum 3 kW

220 to 240 V AC,

maximum 3 kW

24V DC, max. 1A
InterfacenilRS-485   (optional USB adapter)RS-485RS-485 (optional USB adapter and software)RS-485 (optional USB adapter and software)nil
Display resolutionnil0.1   Knil0.1   K0.1   Knil
Reproducibility1nilnilnil0.5   K + 0.001 · T [°C]0.5   K + 0.001 · T [°C]0.2 K
Cavity featuresnilnilnil

Cavity material: SiC

    Variant: Cylinder with conical base
    Depth: 225 mm (front edge of radiator cover to cavity base)
    Inner diameter: 45 mm
Cavity material: SiC
    Type: Cylinder with conical base
    Depth: 225 mm (front edge of radiator cover to cavity base)
    Inner diameter: 45 mm
nil

Temperature

constancy

nilnilnil0.3K + 0.001 · T [°C]
    (for the central area Æ 20 mm, related to the center)
0.3K + 0.001 · T [°C]
    (for the central area Æ 20 mm, related to the center)
0.2 K (for the center area Æ 45 mm, related to the center)
Operating temperaturenil0°C to 30°C
Housingnil

stainless steeel,

 IP54, diameter

Æ 64.5 mm, length 81 mm
