Auto-Fluorescence Microscope | SIMTRUM Photonics Store

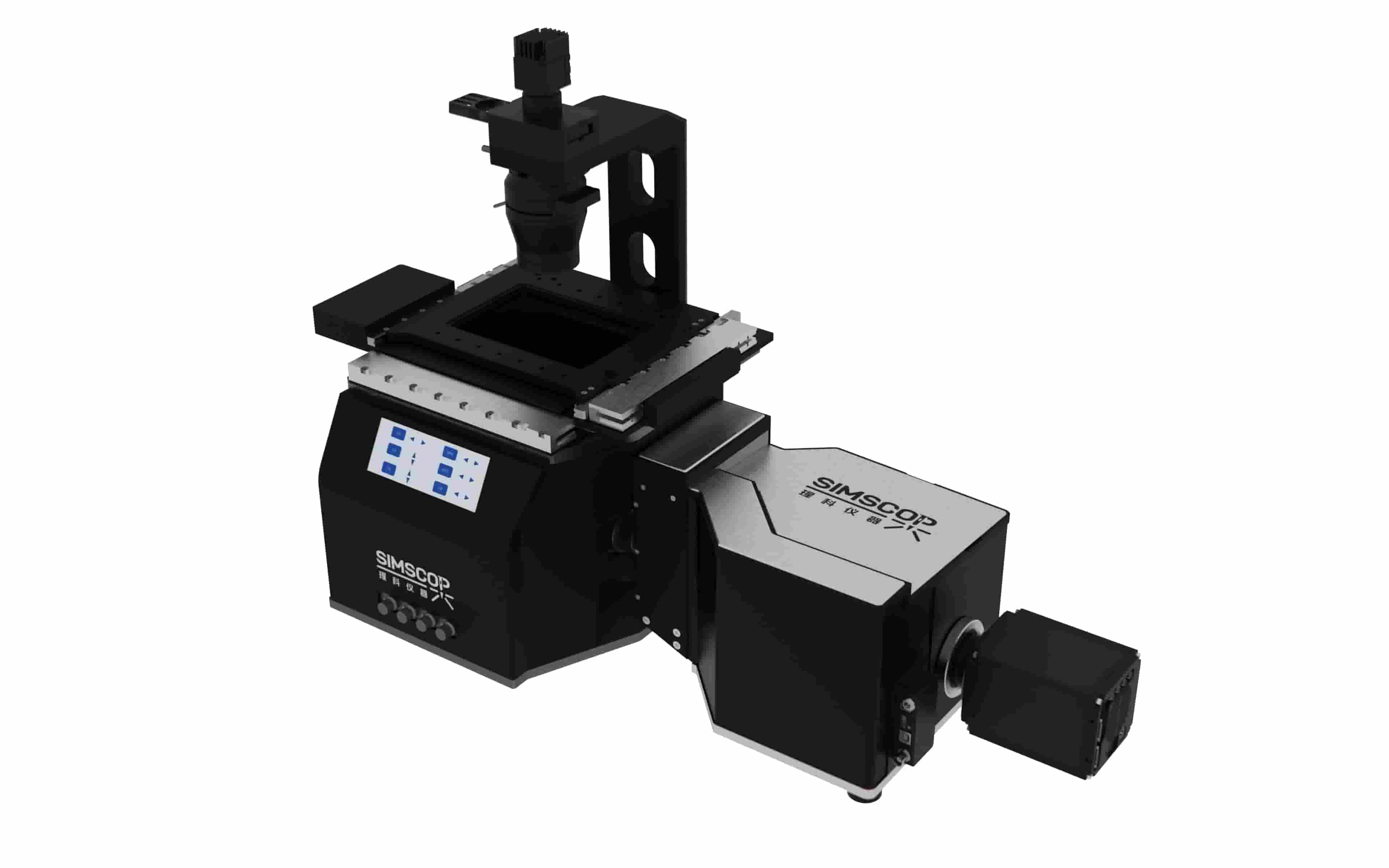

The  Automated fluorescence microscope provides higher precision and functionality than ordinary microscopes by integrating advanced motion control and automation technologies.

It is suitable for high-end research laboratories and fields that require high-precision operations, such as nanotechnology, microscopic material research, etc.

Features and Benefits

• High-precision control : The  Automated fluorescence microscope provides nanometer-level motion accuracy,including translation, rotation, and height adjustment .

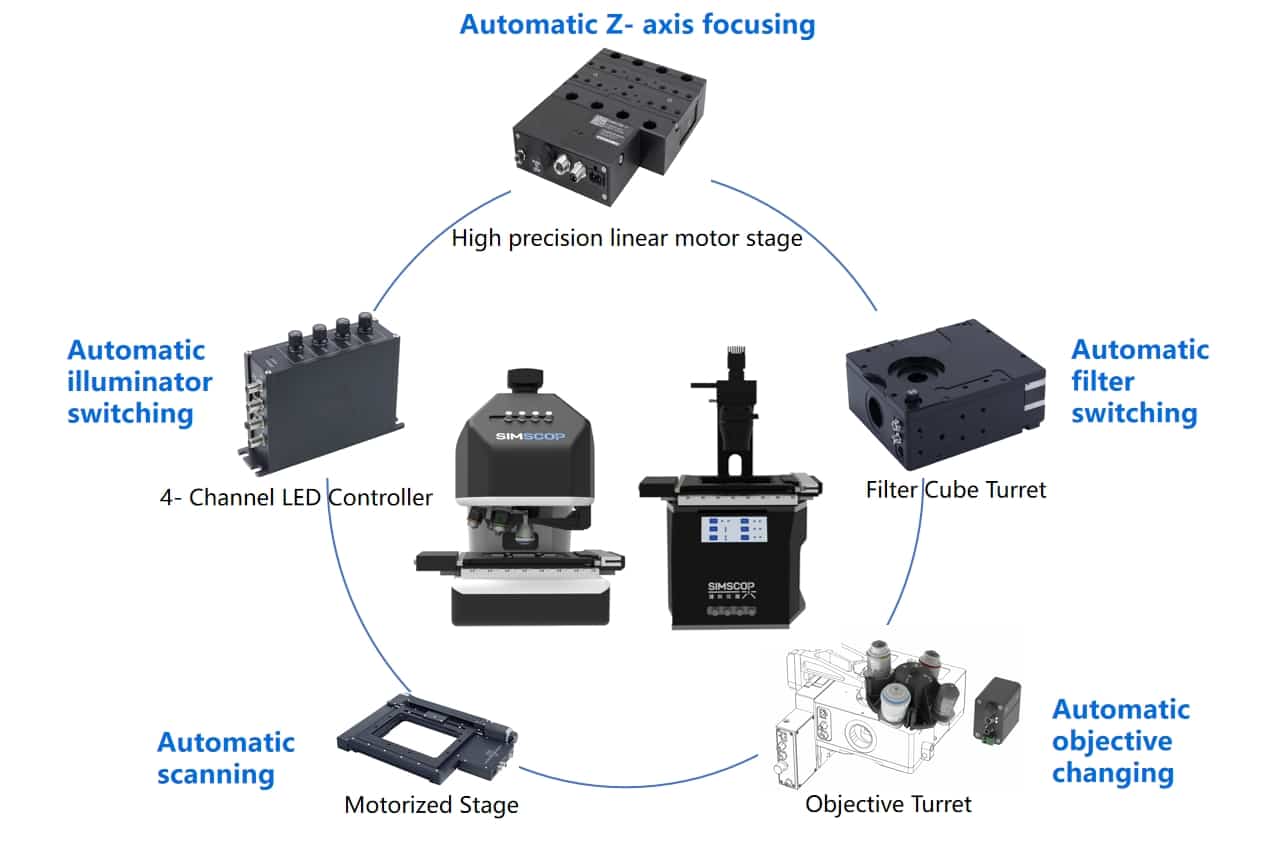

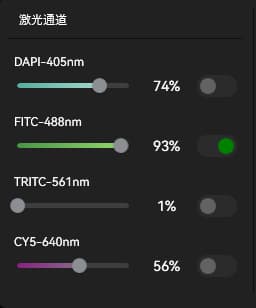

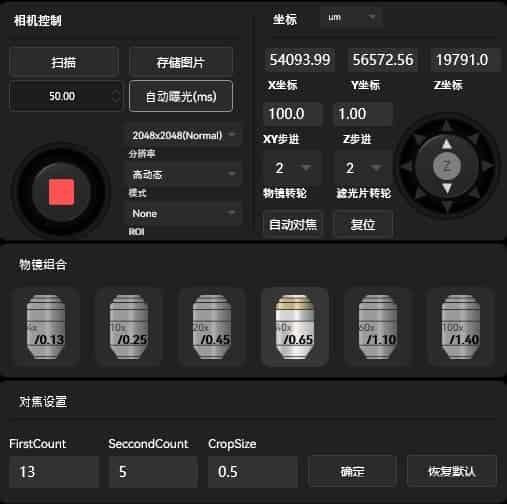

• Automated : The system supports automated sample processing and data acquisition, including autofocus, autoscan , automatic objective lens switching and image stitching .
• High stability: The control system of the Automated fluorescence microscope is designed for high stability, which reduces vibration and error during movement and ensures image quality.
• Real-time Control : Provides real-time motion control and feedback, allowing users to instantly adjust sample position and imaging conditions
• Easy integration : The Automated fluorescence microscopy system can be seamlessly integrated with a variety of microscopes and imaging techniques (such as confocal microscopy .
• Flexibility- Four upgrade options are available: Automated Raman confocal microscope, Automated point / line scanning confocal microscope, and Automated spinning disk confocal microscope.

Application Areas

• Biomedical research
• Materials Science
• Semiconductors and microelectronics
• Nanotechnology
• Drug development

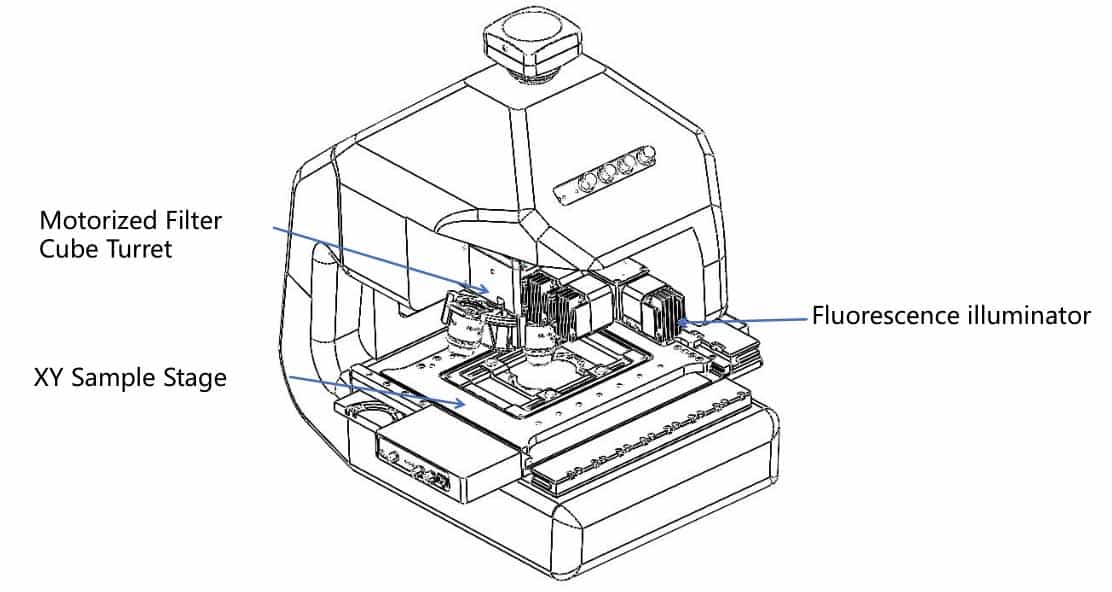

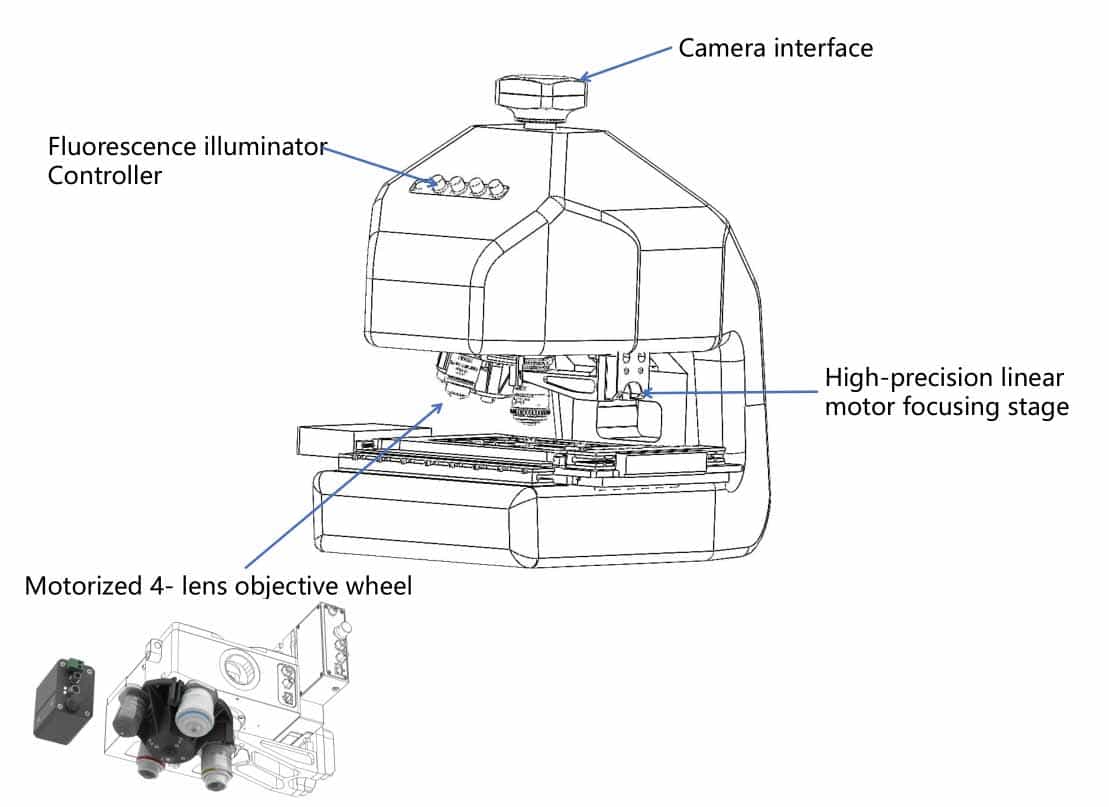

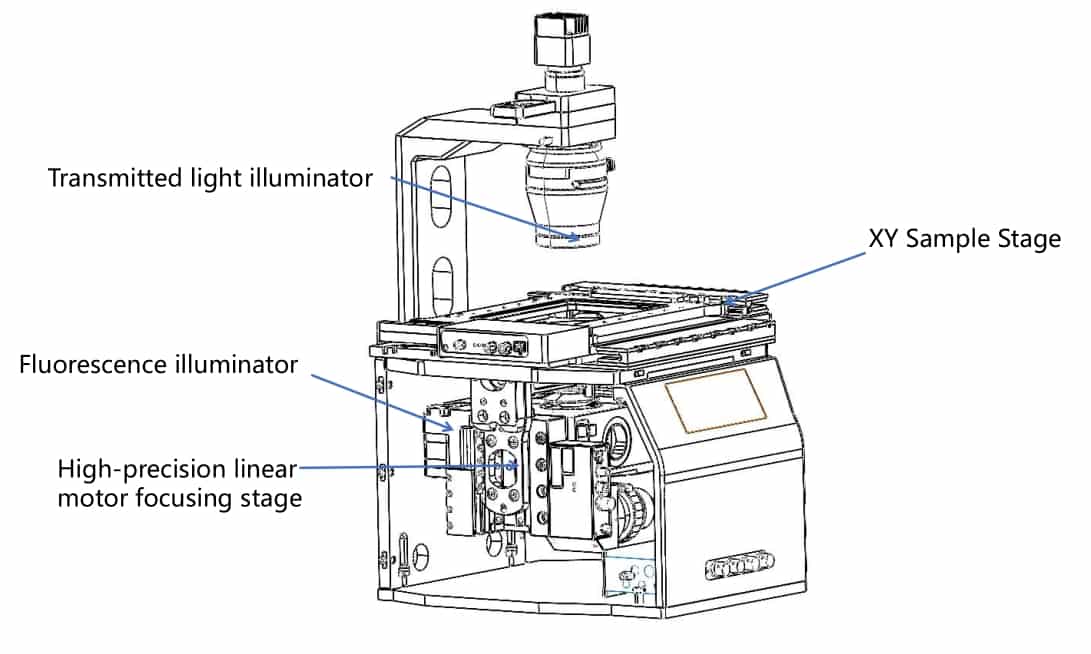

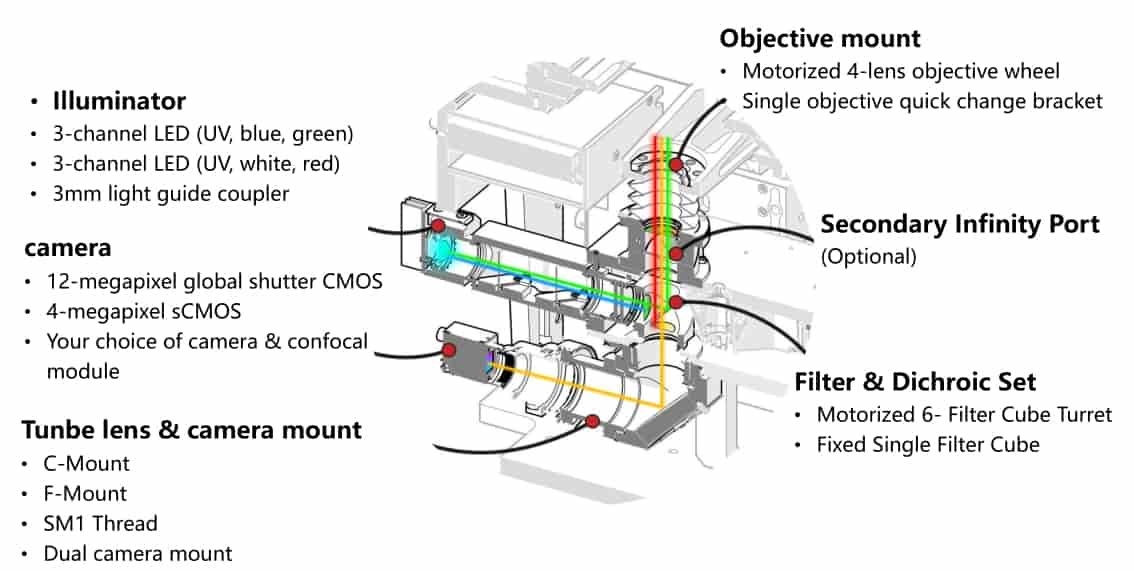

Lighting and Filtering Module

• 3-channel LED epi-illuminator with two wavelength options covering a wide range of popular fluorophores
•  Transmitted illuminator for brightfield and phase contrast imaging
• 3mm liquid light guide coupler supporting external laser and LED light engines

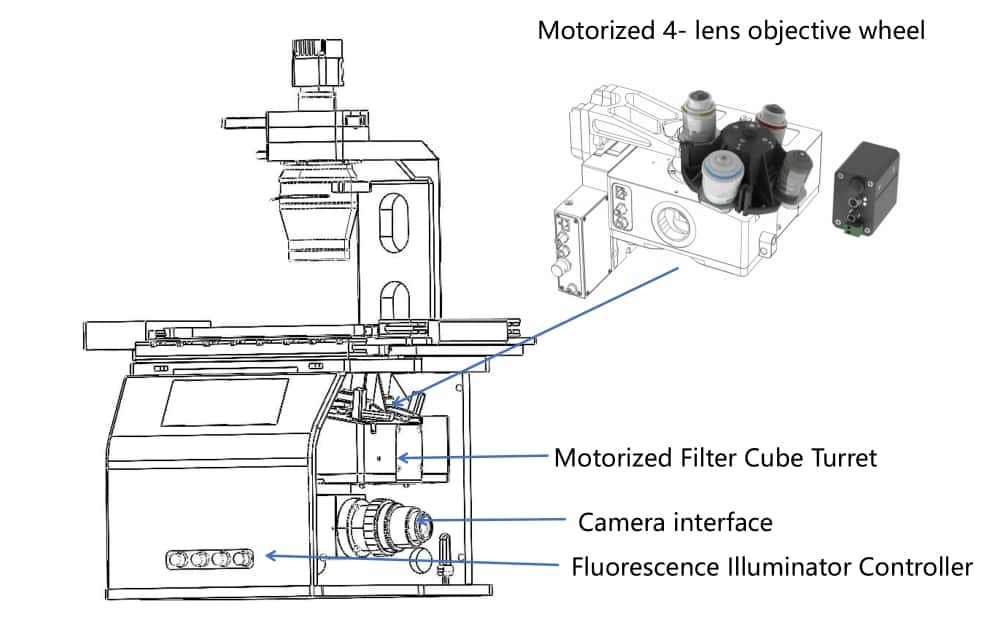

•  Motorized six filter cube turret for versatility or single filter cube core for simplicity
•  Filter wheel integration for additional flexibility and ultra-fast filter switching

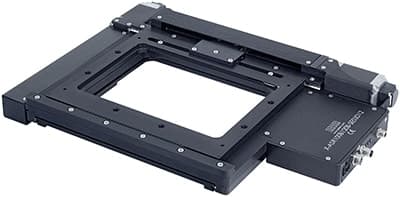

Type 1

• 50 mm up to 305 mm travel per axis
• Up to 12 µm accuracy; 2 µm repeatability; 85 mm/s speed
• Easily adjustable non-contact hall sensor limit switches
• Designed for use with an X-MCC2 Series stepper motor controller or any 2-phase stepper motor controller

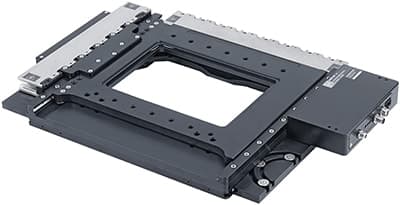

Type 2

• 130 x 100 mm or 250 x 100 mm travel options
• 1 nm resolution linear encoders provide 5 µm accuracy, 500 nm repeatability, and 50 nm minimum incremental move
• Ultra quiet linear motors provide 750 mm/s top speed and are maintenance free

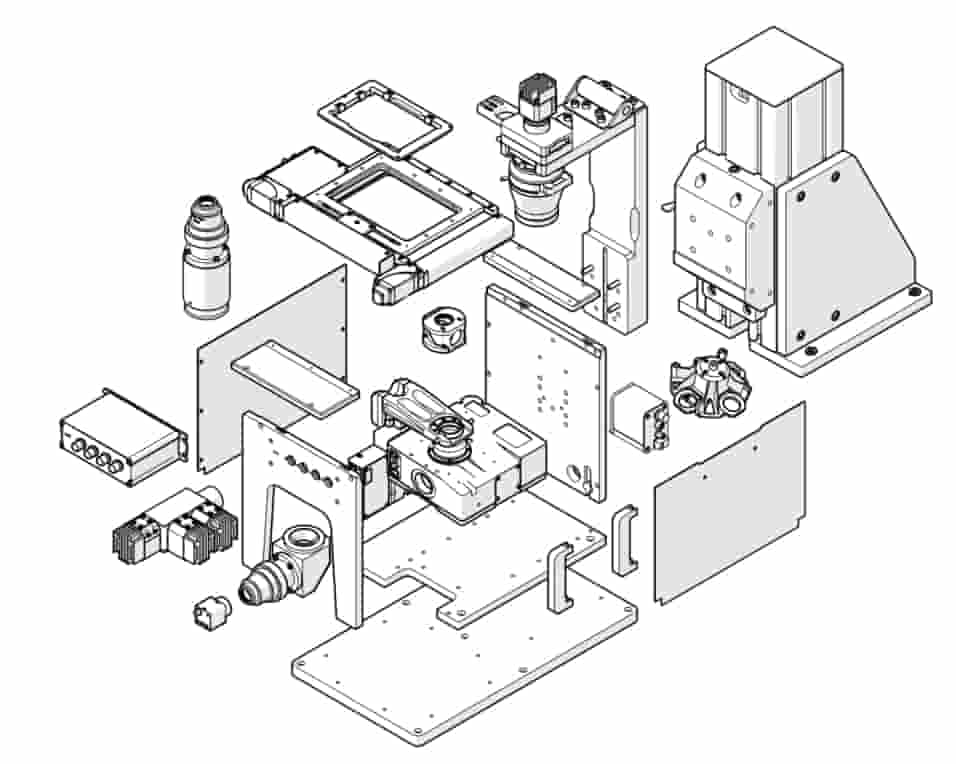

• A microscopy platform module

Combined advantages:

• Super-resolution imaging
• AI Image Enhancement
• Maximizing throughput
• Achieving consistency
• Maximize versatility

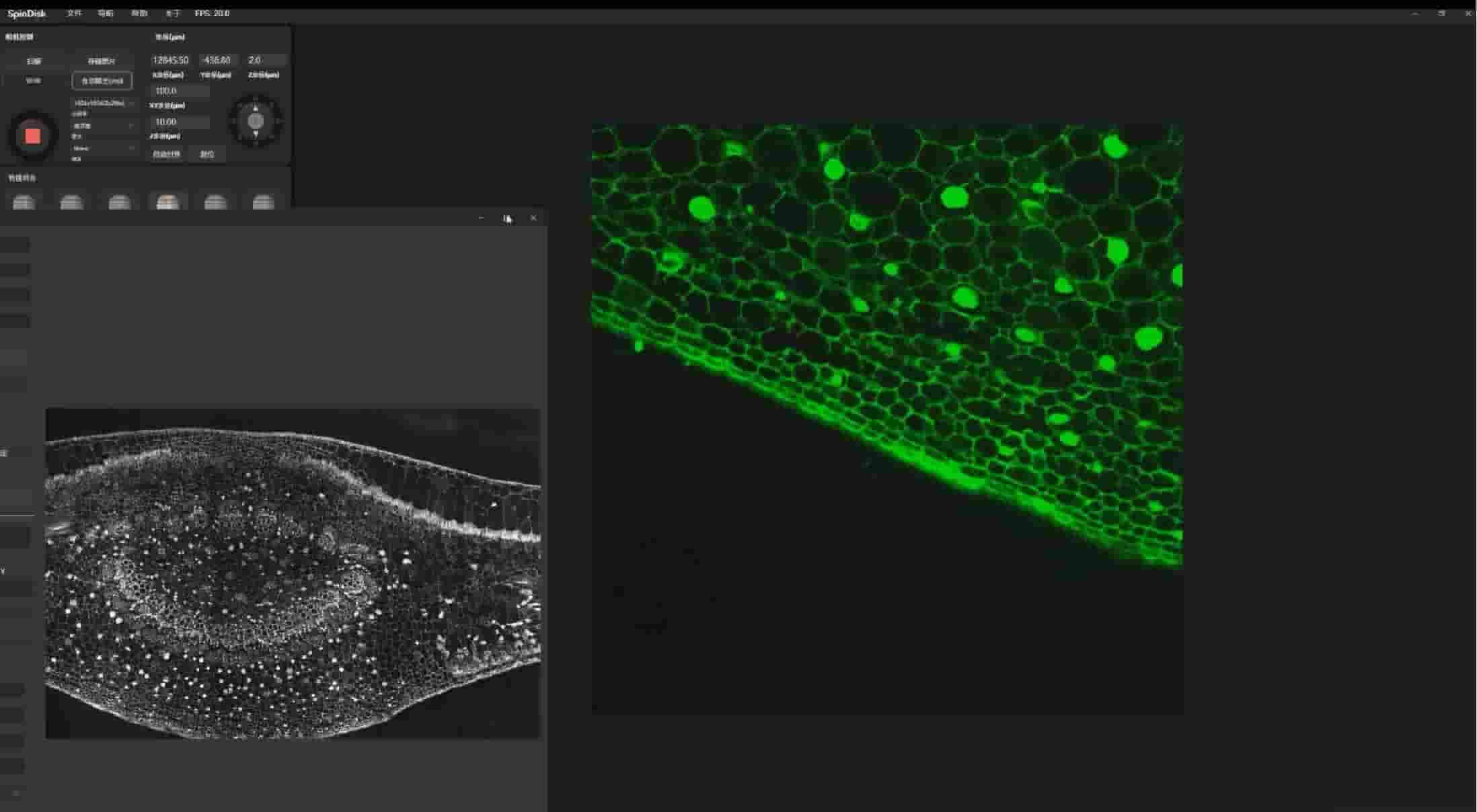

The AI-enhanced image on the right shows enhanced detail and resolution, as well as reduced noise

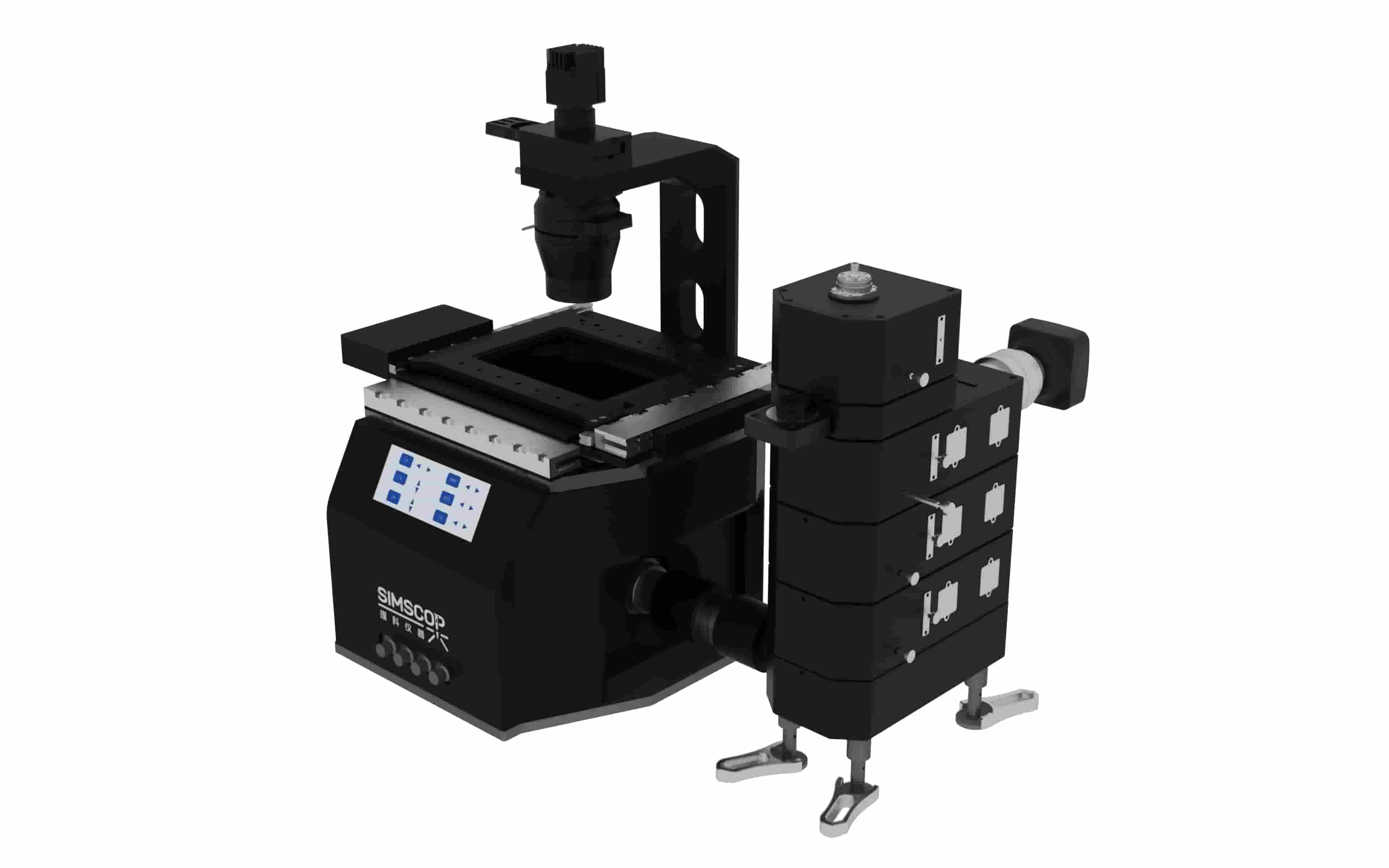

Product Advantages

• Optimized for biological users with multiple fluorescence channels
• Can be connected to multi-channel laser light source or imaging camera

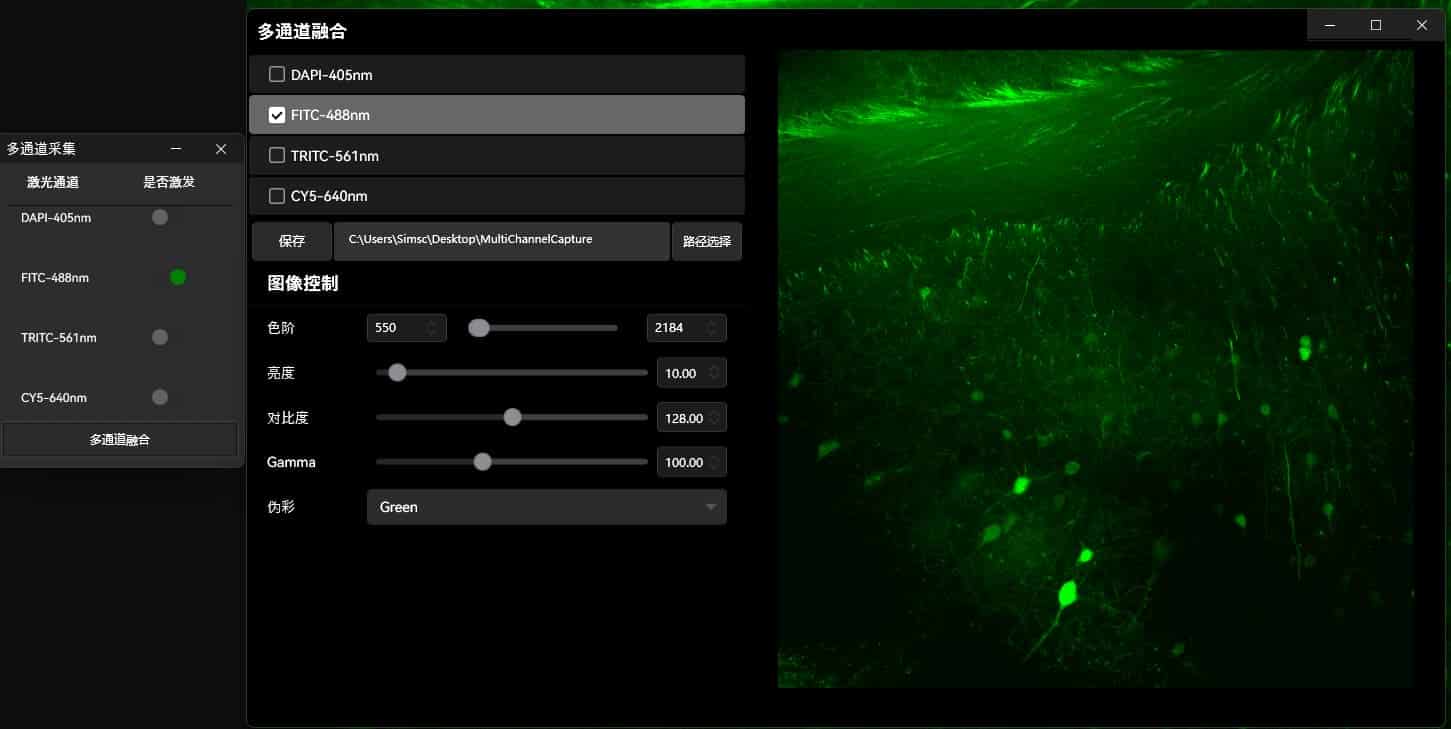

• Users can use multiple cameras for fluorescence imaging acquisition and image integration
• Single-point spectra/Raman signals can be collected while collecting fluorescence images
• Users can freely add multiple modules

Application

• Biology and Life Sciences
• Materials Science
• Graphene and carbon nanotubes
• Nanomaterials
• Catalyst
• semiconductor
• Pharmaceutical Quality Contrl

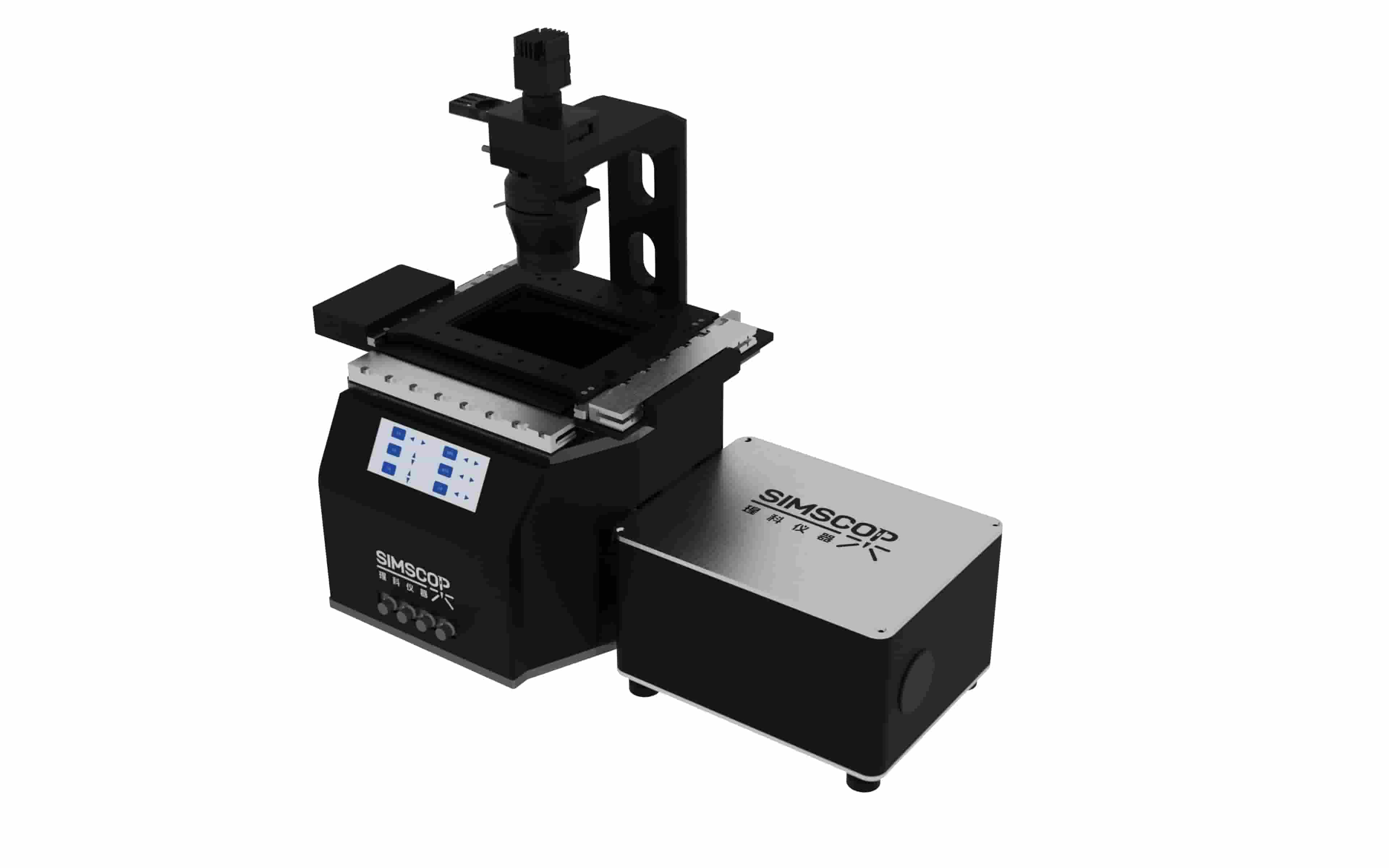

Product  Advantages

• Compatible with any upright or inverted microscope with a camera port.
• With the perfect match with pinhole size and high light throughput, the SpinDisk Basic can be coupled with LED and LASER light source.
• Custom-designed lenses are optimized to perform with a wide range of  wavelengths from UV to near NIR to use a large  variety of fluorophores

Point Scan products

• Multi-channel imaging
• Higher acquisition speed (8FPS)
• Flexible choice of lasers and detectors
• Suitable for SIPM and PMT detectors

Line Scan Products

• High-speed acquisition (50fps@1024x1000 pixels )
• Multicolor fluorescence ( up to 4 channels )
• Deep imaging module ( maximum depth: 600μm)
• High sensitivity
• Large field of view (60X: 0.36mm, 40X: 0.54mm)
