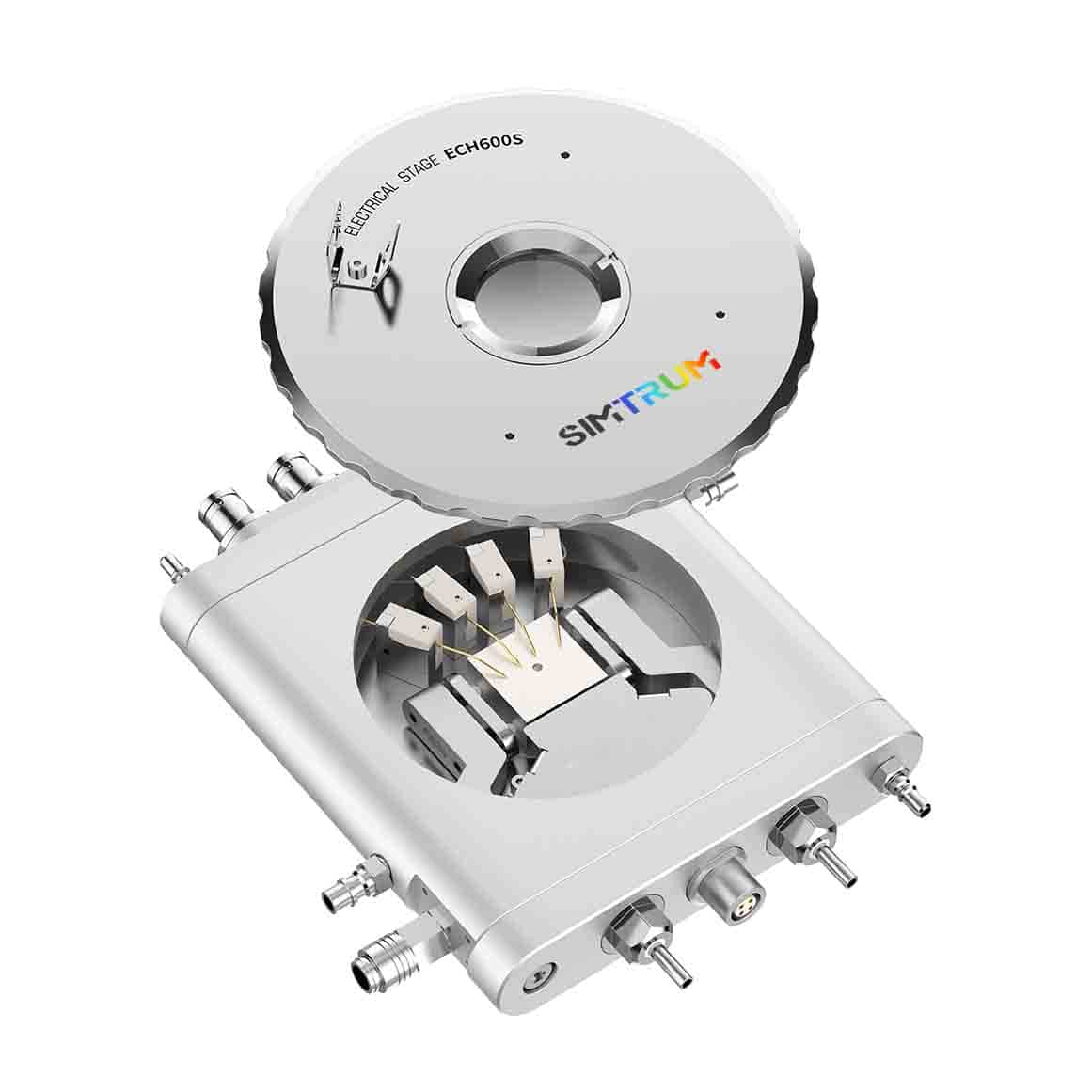

Electrical Probe Temperature Stage

Overview Specifications Resources Application Related Products Order Now!

The Electrical Probe Temperature Stage is a product designed to characterize the temperature dependence of electrical properties during the heating and cooling phases of materials research. Based on the optical temperature stage, an electrical module has been added. By moving the needle pin during testing, the tip of the needle can be brought into contact with any area of the sample surface. The electrical signal is transmitted to the instrumentation for electrical testing through the wiring connected to the needle holder, and the electrical properties of the material at variable temperatures are analyzed.

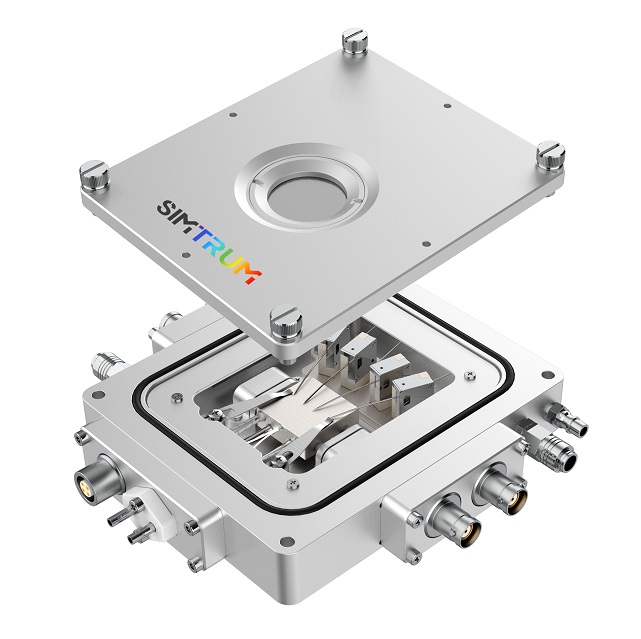

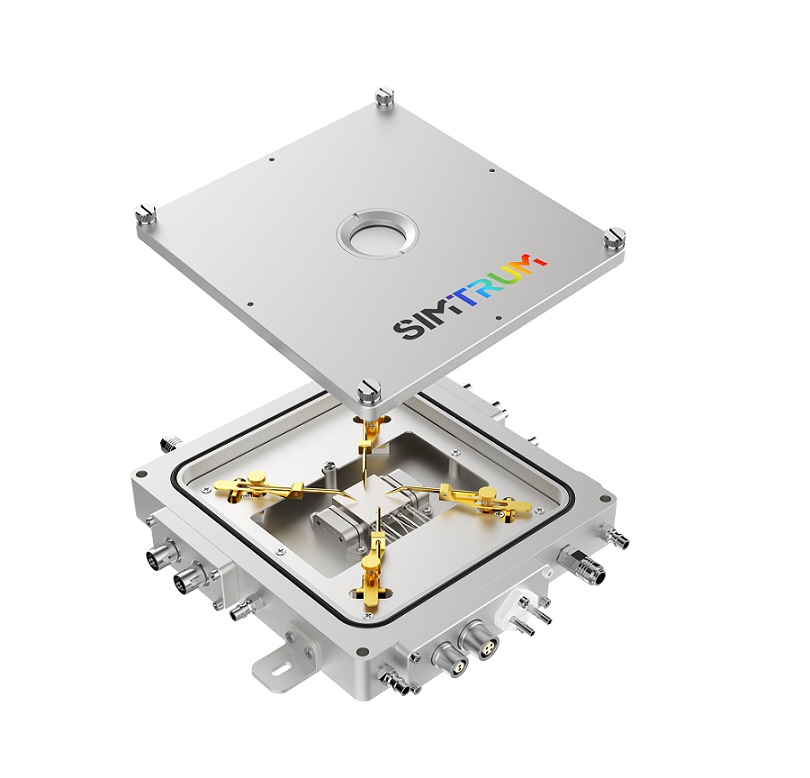

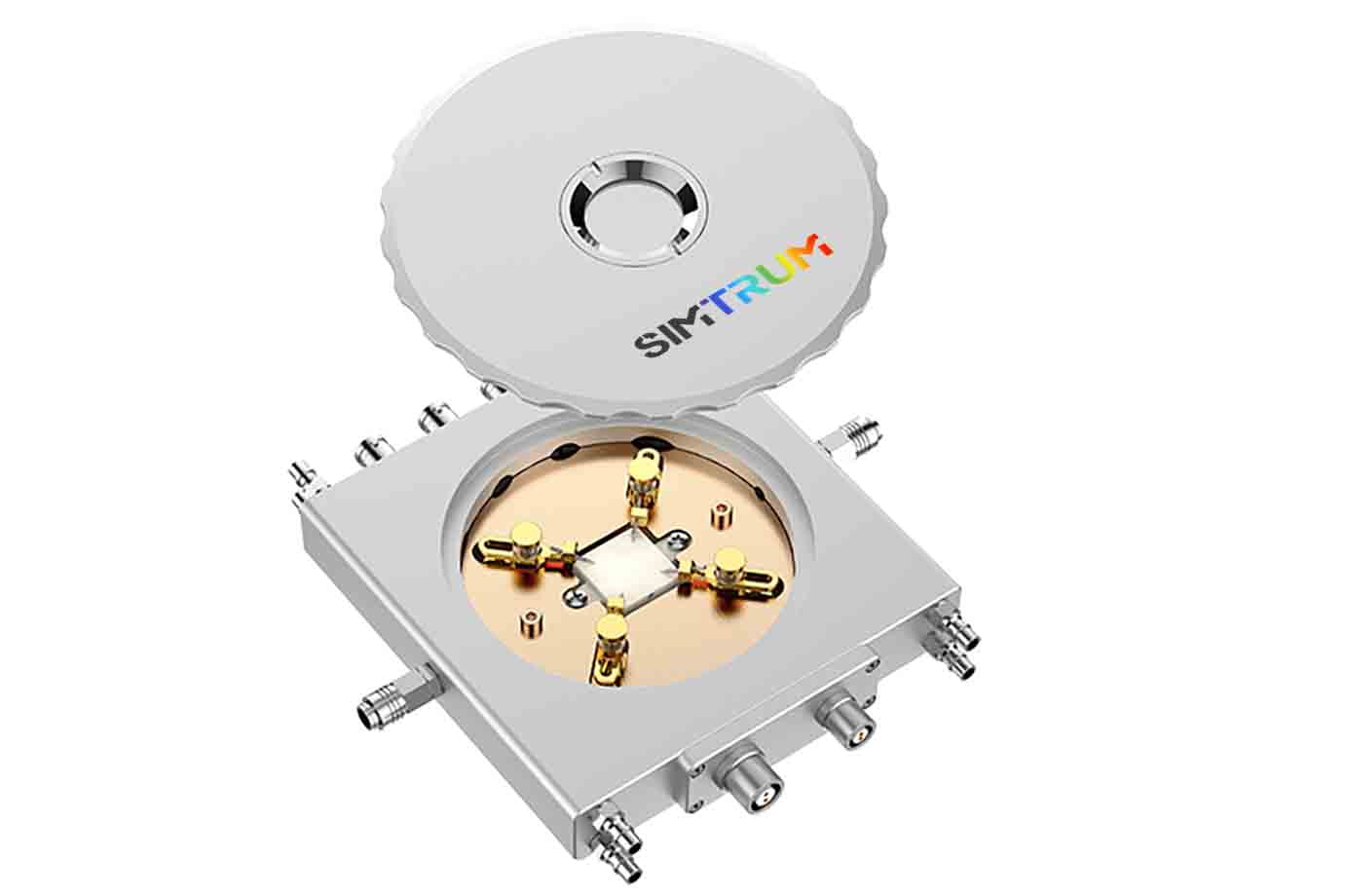

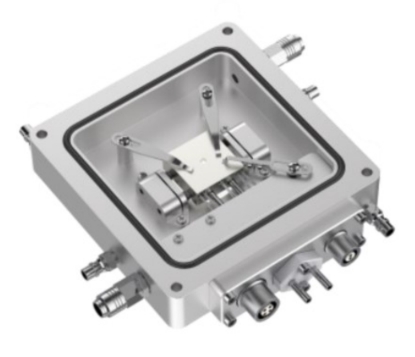

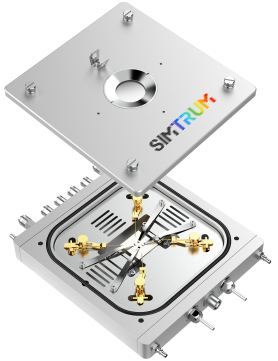

Fixed Probe Pin	Magnet Micro Probe Pin	Fixed Probe Pin+ Magnet Probe Pin

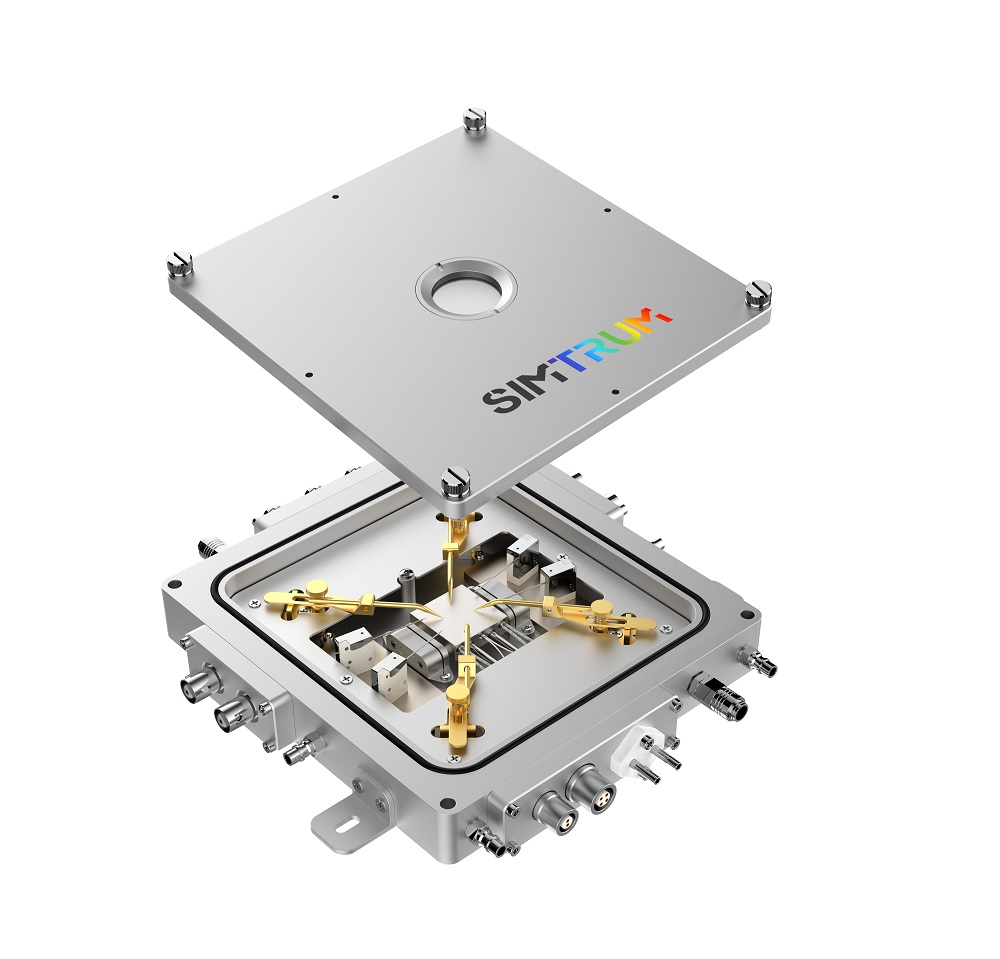

Features ● Temperature range: -190 to 600℃, temperature control accuracy ±0.1℃ ● Gas-tight chamber can pass protective gas ● Upgradeable vacuum chamber (≤1 Pa with a mechanical pump/ ≤10^-3 Pa with a molecular pump) ● Upgradeable magnetic field cancellation chamber ● Upgradeable vertical orientation ● Step up and down the temperature, 0-60 ℃/min ● Supports multi-probe testing (up to 8 ) ● Upgradable Triax BNC ● Support on-demand customization	Temperature Control System

Chamber Type
Gas-tight - Protective gas can be passed through	Vacuum ≤1 Pa with a mechanical pump / ≤10^-3 Pa with a molecular pump

Light Transmission Mode

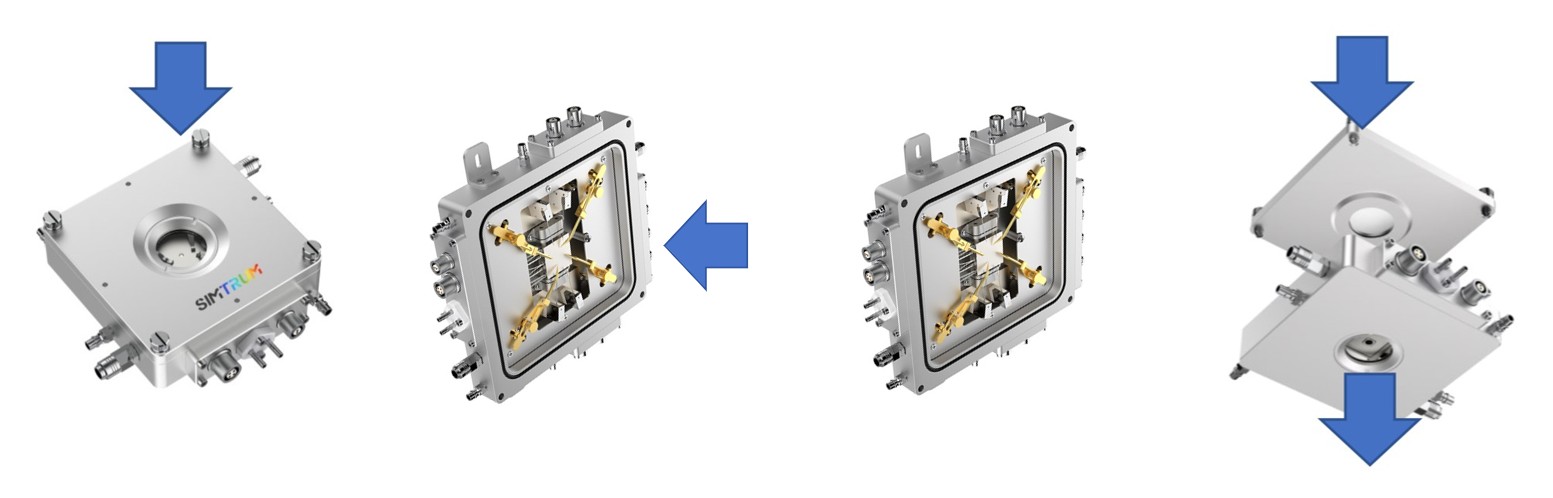

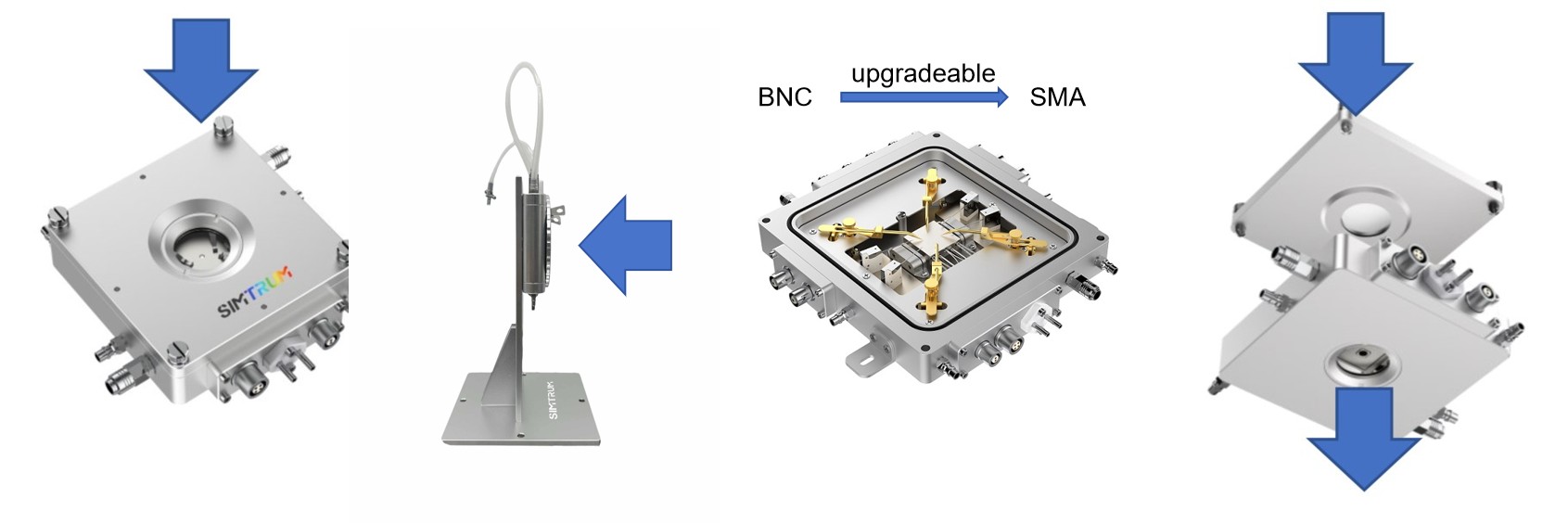

Top Reflection Mode Vertical Reflection Mode Stage Transmission Mode (2mm Stage hole)


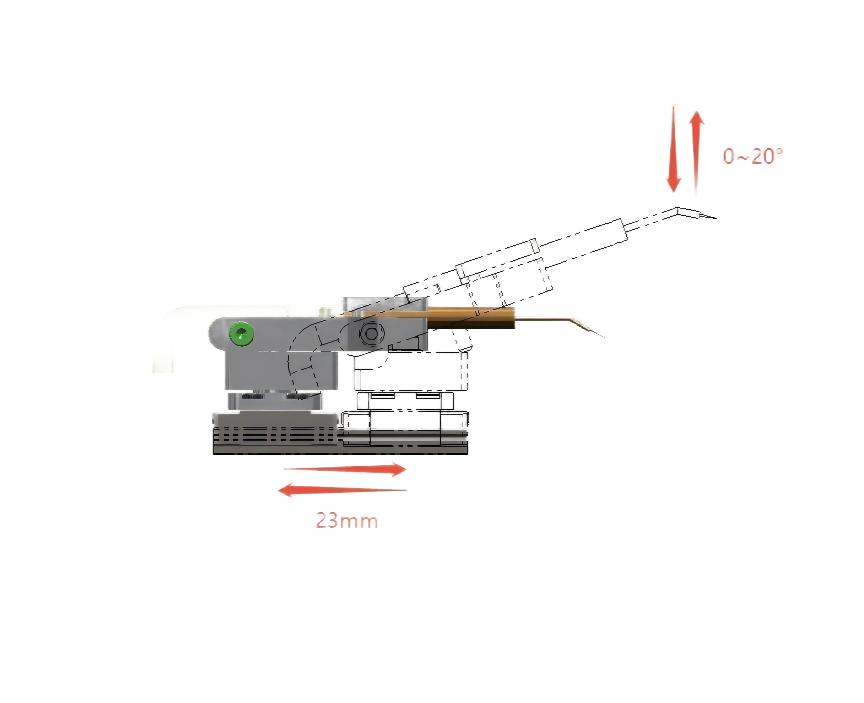

Probe Types

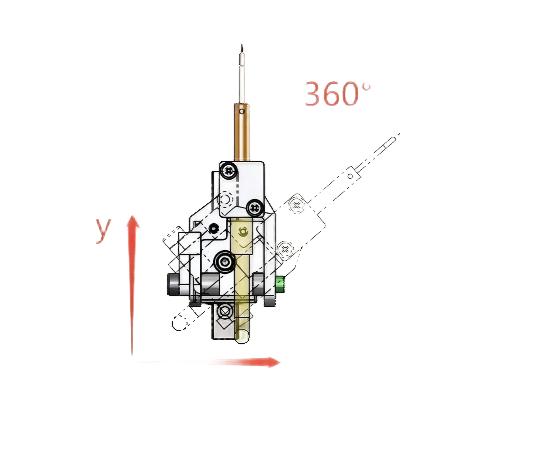

Fixed Probe Pin Magnetic Probe Pin Tri-Axis Aligning Probe Pin

Customized Optical Interface Customized Chamber

Liquid Nitrogen Consumption 1 ) The maximum liquid nitrogen consumption is 1L/h, maintained at -190 ℃ ; 2 ) Normal use 0.5L/h, high and low temperature changes.

Water Cooling System
	The water circulation system is needed for Ultra-low or High-temperature environments. It attaches to the Temperature stage chamber ● For low temperatures application down to -190 degrees, it will prevent water condensation to the stage and chamber ● For high-Temperature application, it will cool the chamber wall to room temperature for safety
Water Circulating System (temperature control)

Product specifications and Brochures

Product Brochure Link:


Parameter	PE120-25-P4	CRYO600-190-P4	RTH600/1000/1500-P4
Hot and cold mode	Semiconductor heating and cooling	Liquid nitrogen cooling, resistance heating	Resistive heating / infrared heating
Temperature range	-25～120℃ OR -15～100℃ *	-190 ～ 600℃ *	RT～600 1000℃ or 1500
Temperature stability	±0.1℃	±0.1℃ (-190~-120℃ : ±0.3℃)	±0.1℃ (＜ 600℃ ) ±1℃ (＞ 600℃ )
Temperature resolution	0.1℃
Heating and cooling speed	0～30℃/min	0～50℃/min, maximum 150 ℃ / min	Maximum heating rate: 150℃/ min
Temperature control method	PID
Temperature Sensor	PT100	PT100	Thermocouple
Optical Path	Reflected light path *can be upgraded to transmitted light path	Reflected light path / Transmitted light path*
Window Material	/	Quartz glass (manually removable and replaceable)
Window size	/	Φ25 mm
Objective working distance	Min. 0.1 mm	7mm	10.5mm
Light hole	/	No light-transmitting hole by default * Additional light-transmitting hole can be added upon upgrade
Window defrosting	/	Negative temperature air blowing defrosting	/
Sample stage size	40x40mm *	23x23mm	20x20mm
Sample stage material	Copper	Silver	Ceramics
Dimensions	91x97x24mm *	91x97x24mm*	116x150x30mm*
Sample chamber height	/	6mm	9.5mm
Chamber	/	Airtight* Upgradable vacuum chamber
Housing cooling	/	Circulating water
Probe	/	2/4 magnetic probe holders	4 fixed probe holders
Probe	/	Manual positioning*
Probe interface	BNC interfaceOptional SMA interface /BNC interfaceUpgradeable triaxial BNC
Sample table potential	Default electrical suspension *Optional electrical grounding

Temperature Range Choice

Low Temperature Stage: -190 to 600℃

Low temperature optional  -190℃  -180℃  -160℃  -120℃  -100℃  RT

High temperature optional  400℃  600℃

Drawings

Below are the User's Manual, Driver & Software, or Click Here to drop us a message for any corrections.

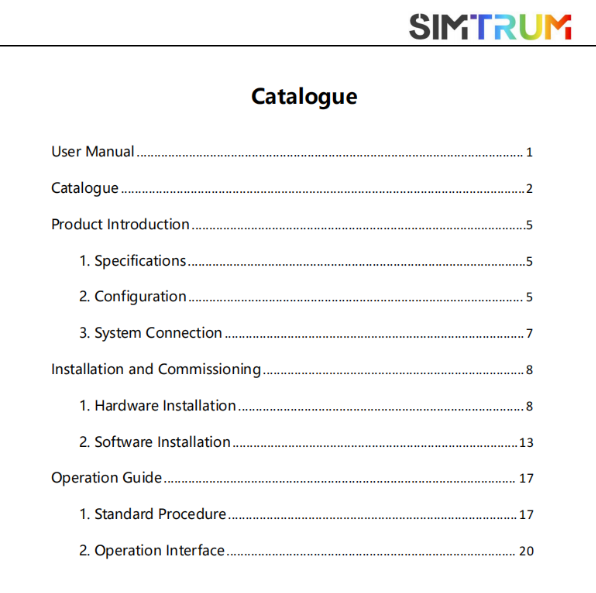

Probe Heating-Cooling Stage_User Manual

Software

Before July 2026

SDK & SDK Instruction

Software

After July 2026

Welcome to the resource center for SIMTRUM Optical Heating & Cryo Stages. Here you will find essential documentation and software tools to help you set up, operate, and customize your temperature control system. Whether you are a first‑time user or an experienced researcher, these materials will guide you through hardware installation, temperature control modes, and advanced programming.

Probe Heating-Cooling Stage_User Manual
Complete user manual covering hardware inspection, package contents, step‑by‑step installation (including connections for LN2, water circulation, vacuum, and temperature controller), software setup, operating instructions for fixed‑point, program, and formulation modes, as well as common fault recovery and precautions. (PDF format)
General Temperature Control Guide
A concise overview of temperature control principles for the Optical Heating & Cryo Stages. It explains the different control modes (fixed‑point, program segment, and multi‑segment formulation), parameter settings, and best practices to ensure stable and accurate temperature ramping while respecting the system’s maximum heating/cooling rates.
Temperature Control System SDK (Version 15022023)
Software development kit for developers who wish to integrate and automate temperature control within their own applications. The SDK includes API documentation, communication protocols, sample code, and necessary drivers to enable remote control, data logging, and custom experiment sequences.

For technical support or custom project inquiries, please contact us.

Application 1

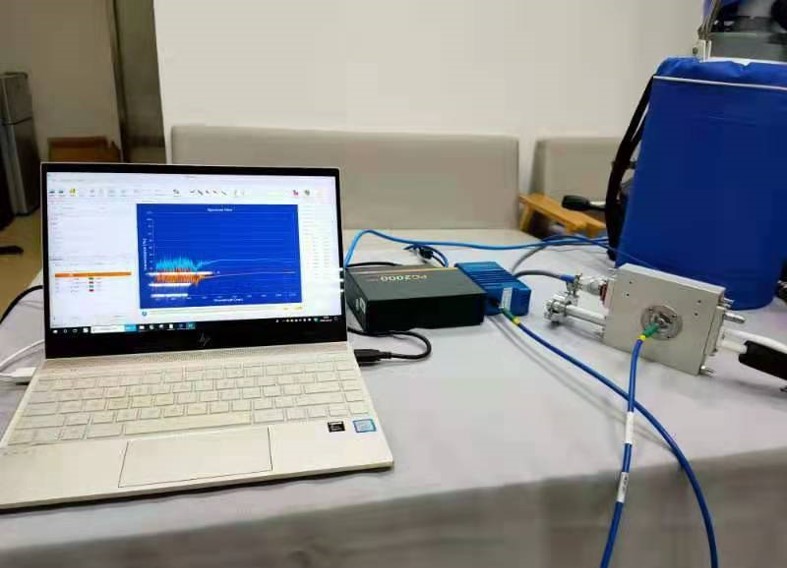

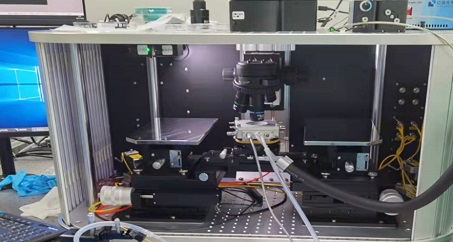

● TCSPC Testing Solution for Bear Chip SPAD (APD)

● TCSPC Testing Solution for Packaged SPAD (APD) TO46 or T08 Product Brochure Link:

Free-space Bear Chip SPAD TCSPC Testing System

Fiber-based Bear Chip SPAD TCSPC Testing System

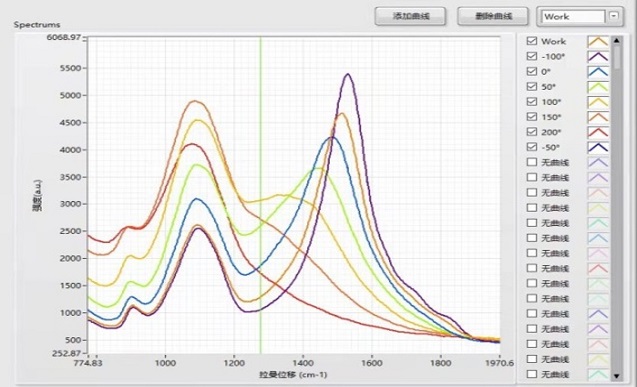

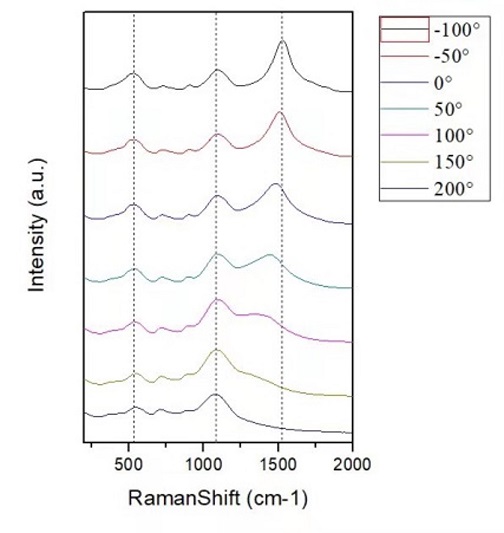

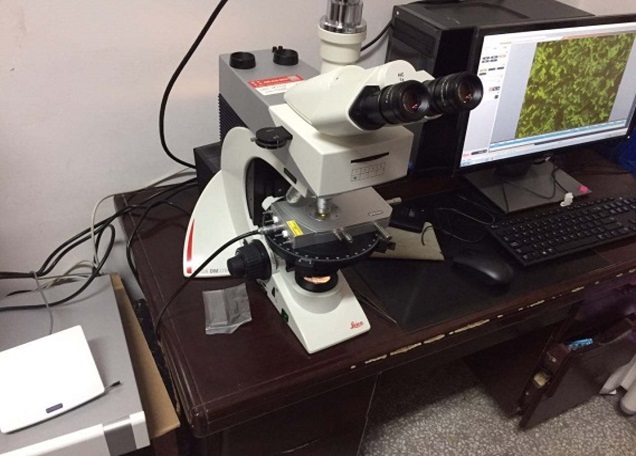

Application 2 Variable temperature Raman spectroscopy test

Optical Heating & Cryo Stage

Application 3 Optical vacuum hot stage for crystal sample testing

Optical vacuum hot stage

Application 4 High temperature Raman field temperature control test

1500℃ temperature hot plate

Application 5 Ultra-high temperature hot stage with Timegate time-gated Raman spectrometer on-site test

Ultra-high temperature hot plate

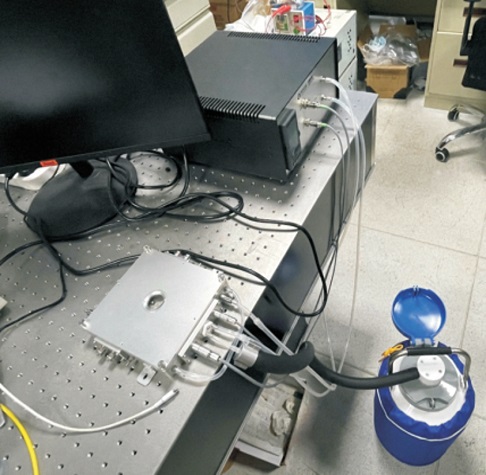

Application 6 External four-probe hot and cold stage for temperature and vacuum testing

Adjustable Electrical Probe Station

Application 7 Customized probe hot and cold bench joint debugging test

Electrical Probe Temperature Stage

Application 8 Customized SEM hot and cold stage for variable temperature testing

SEM Hot and Cold Stage

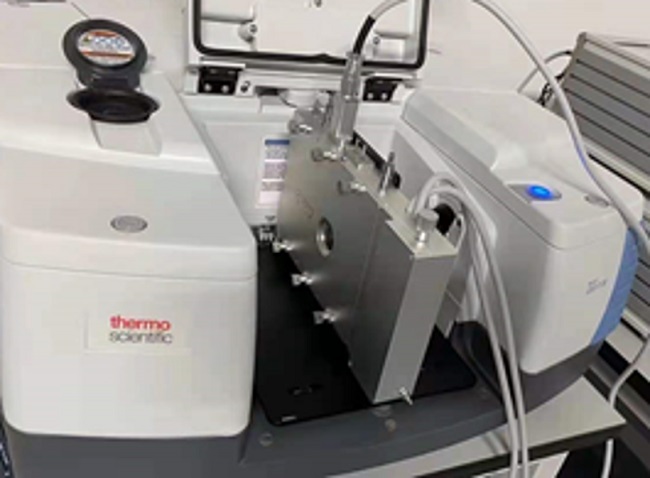

Application 9 XRD in-situ hot and cold stage adapted to X-ray diffractometer testing

XRD in-situ hot and cold stage

Application 10 Customized μTS desktop stretching machine hot and cold stage

In-situ Tensile Heating & Cryo Stage

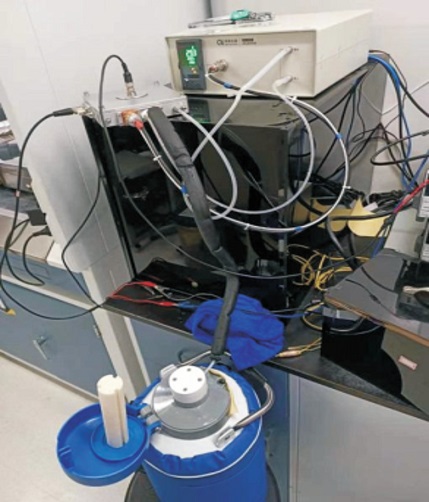

Application 11 Customized Dielectric Charge and Discharge Test System

Optical Heating & Cryo Stage

Product	Temperature Range	Chamber Type	Optical Path	Electrinical Probe Arm
Optical Heating & Cooling Stage	-190°C to 1200°C	Air-tight or Vacuum sealed	Transmission or Reflection	No
X-ray/XRD Heating & Cryo Stage	-190°C to1200°C	Air-tight or Vacuum sealed	Transmission or Reflection	No (Customizable)
Electrical Probe Temperature Stage	-190°C to 600°C	Air-tight or Vacuum sealed	Transmission or Reflection	Fix probe arm
Adjustable Electrical Probe Station	-190°C to 600°C	Air-tight or Vacuum sealed	Transmission or Reflection	Adjustable probe arm
In-situ Tensile Heating & Cryo Stage	-190°C to 1200°C	Air-tight or Vacuum sealed	Transmission or Reflection	No(Customizable)
Live-Cell Incubator Stages	2℃ to 40℃（±0.1℃）	Air-tight	—	—

Get the Perfect Custom Combination! Contact us now for Various High-end Microscopes:

Confocal Raman Microscope

Spinning Disk Confocal Microscope

Line Scan Confocal Microscope

Auto-Fluorescence Microscope

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)

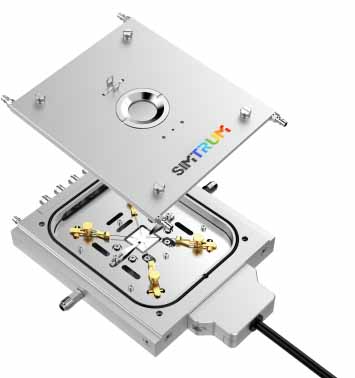

RTH1000-P4-C Electrical Probe Temperature Stage. Temp control range RT to 1000°C. Temperature stability ±0.1°C. Max. heating/cooling rate 50°C/min. Price includes: Temperature Stage and Controller, Water circulating system, Software.	8-12 Weeks	$9995.37

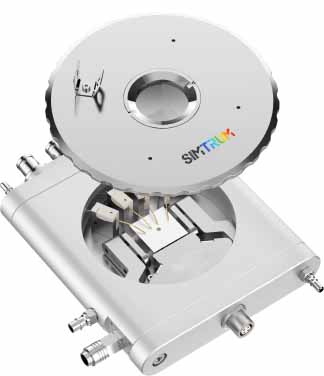

RTH600-P4 Electrical Probe Temperature Stage. Temp control range RT to 600°C, Gas-tight Chamber, 4 fixed probe holders, 23×23mm sample stage, Silver. Reflection optical path (transmission upgrade available, φ2mm aperture). Price includes: Temperature Stage and Controller, Water circulating system, Software.	8-12 Weeks	$6927.68
RTH1500-P4 Electrical Probe Temperature Stage, Temp control range >RT to 1500℃	8-12 Weeks	Request for quote
STPE120-25-P4 Electrical Probe Temperature Stage. Temp control range -25 to 120°C, Gas-tight Chamber, 4 fixed probe holders, 40×40mm sample carrier, copper. Price includes: Semiconductor probe hot and cold stage, Temperature Controller, Water circulating system, Software.	8-12 Weeks	$7838.77

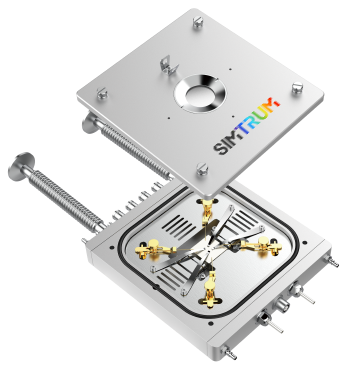

CRYO600-190-P4 Electrical Probe Temperature Stage. Temp control range -190 to 600°C, Gas-tight Chamber, 4 fixed probe holders, 23×23mm sample stage, Silver. Reflection optical path (transmission upgrade available, φ2mm aperture). Price includes: Temperature Stage and Controller, Cooling Controller, Water circulating system, LN2 Tank (2L), Software.	8-12 Weeks	$12995.85
High Vacuum Upgrade High Vacuum Upgrade: upgraded high vacuum chamber and interface (KF16), vacuum level <10⁻³ Pa. Temperature range -190 to 400°C.	8-12 Weeks	$1500.00
Transmission Stage Upgrade Upgrade stage from Reflection to Transmission, Standard hole size 2mm	8-12 Weeks	$500.00
Transmission Stage Upgrade Upgrade stage from Reflection to Transmission, Standard hole size 2mm	8-12 Weeks	$500.00
High Vacuum Upgrade High Vacuum Upgrade: upgraded high vacuum chamber and interface (KF16), vacuum level <10⁻³ Pa. Temperature range -190 to 400°C.	8-12 Weeks	$1500.00
Weak Magnetic Chamber Upgrade Upgraded Weak Magnetic Chamber, Enhancing shielding effectiveness to address challenges of magnetic field noise.	8-12 Weeks	$1500.00
MINI STRTH-200-P2 Miniature Probe Heating Stage. Temperature range RT to 200°C. Core: copper, φ20×4mm. Probes: 2 high-voltage probe holders + 2 gold-plated copper probes. Chamber: exposed. Price includes: probe heating stage, temperature controller (GTC-C), chiller (GCW-A), software (GoGo TCS).	8-12 Weeks	$3687.32
RTH1200-P4-C Electrical Probe Temperature Stage. Temp control range RT to 1200°C. Temperature stability ±0.1°C. Max. heating/cooling rate 50°C/min. Price includes: Temperature Stage and Controller, Water circulating system, Software.	8-12 Weeks	$11253.50
Vertically oriented mounting Upgraded stage for vertical mounting in spectroscopic or optical systems	8-12 Weeks	$500.00
Connector Interface Upgrade Upgraded electrical connector from BNC to SMA type	8-12 Weeks	$500.00

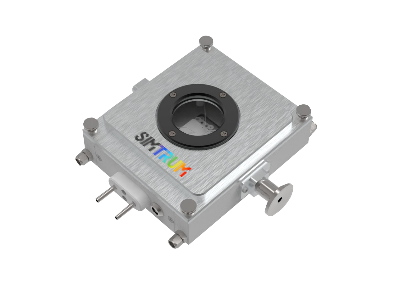

PE120-10V-P4-C Semiconductor Probe Temperature Stage. Temp control range -10 to 120°C, Vacuum chamber (≤1Pa), Temperature stability ±0.1°C, Max. heating/cooling rate 30°C/min, 4-probe stage (BNC interface). Price includes: Thermoelectric Controller, Probe Stage, Water circulating system.	8-12 Weeks	$6094.74
CRYO350-120-P4 robe Cryo Stage. Temp control range -120 to 350°C. Stage core: silver, 23×23mm. Probes: 4 fixed probe holders with tungsten steel gold-plated probes. Chamber: gas-tight. Price includes: Probe Stage, Temperature Controller (GTC-A), Cooling Controller (GRC-A), Chiller (GCW-A), LN2 Tank (2L), Software (GoGo TCS).	8-12 Weeks	$10933.00
PE120-25V-P4 Semiconductor Probe Temperature Stage. Temp control range -25 to 120°C, Vacuum chamber (≤1Pa), 40×40mm sample stage, copper, 4 fixed probe holders. Price includes: Semiconductor probe hot and cold stage, Temperature Controller, Water circulating system, Software.	8-12 Weeks	$8457.62

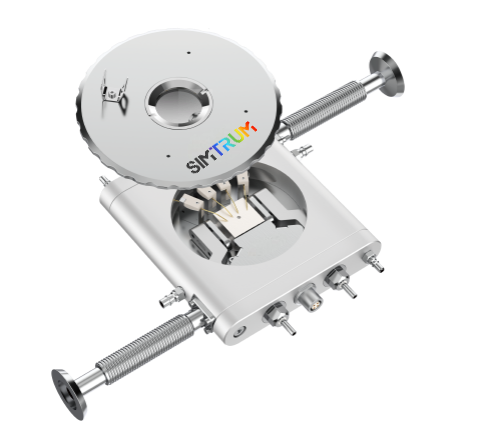

CRYO600-190-M4 Probe Cryo Stage. Temp control range -190 to 600°C, Gas-tight chamber, 23×23mm sample stage, Silver, 4 magnetic probe holders. Reflection optical path (transmission upgrade available, φ2mm aperture). Price includes: Probe Stage, Temperature Controller, Cooling Controller, Water circulating system, LN2 Tank (2L), Software.	8-12 Weeks	$12377.00
