Enhanced Cavities for Laser Light


Enhancement cavities for continuous-wave/pulsed laser light

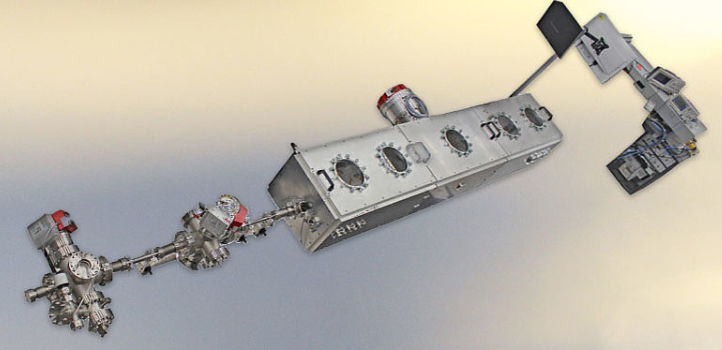

Tailored to your setup, the enhancement cavity CALDERA can be built for continuous-wave as well

as for multi-kW-level average power pulsed operation, serving applications such as the generation

of coherent vacuum-/extreme-ultraviolet (XUV) radiation at repetition rates ofseveral 10s of MHz.


Key Product Features:

 State-of-the-art broadband cavity optics

 Ready for average powers on the 100-kW level

 Advanced designs tailored to specific applications

 Stable operation at repetition rates ≥10 MHz







Working principle:

Femtosecond enhancement cavity: a MHz-repetition-rate pulsetrain is coherently coupled to a passive optical

resonator via a partially transmitting input coupler, giving rise to a circulating pulse with a power increased by

up to a few orders of magnitude. The intracavity pulse can be focused to a gas target to generate coherent

vacuum-/extreme-ultraviolet (XUV)radiation at repetition rates of several 10’s of MHz. Coherent XUV radiation

obtained by cavity-enhanced high-harmonic generation combines high pulse repetition rates with high photon

energies at high XUV photon flux, and serves a host of time-domain and frequency-domain precision

metrology applications.





Working principle of an enhancement cavity: the pulses of a MHz-repetition-rate train are coherently added up in

time to a significantly more intense pulse circulating in the cavity. The cavity consists of an input coupler

(R < 100%) and several highly reflecting (HR) mirrors (R=100%).


Applications

 Vacuum- and extreme-ultraviolet frequency combs [1]

 Multi-MHz-repetition-rate photoemission spectroscopy [2]

 MW-level picosecond pulses for hard x-ray generation via inverse Compton scattering [3]


We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
CALDERA
4-6 Weeks Request for quote
K2
4-6 Weeks Request for quote

K2 - Parameter

CALDERA - Parameter

K2 - Download

CALDERA - Download
