UV & NIR Enhanced CMOS Camera | SIMTRUM Photonics Store

Products / Imaging /Microscope Cameras /UV & NIR Enhanced CMOS Camera /
UV & NIR Enhanced CMOS Camera
Overview UV Enhanced NIR Enhanced Related Products Order Now!

SIMTRUM provides UV Enhanced & NIR Enhanced CMOS Cameras – STUVE series & STNIRE series which use USB3.0 to transmit uncompressed images in real-time. They adopt the Sony Exmor back-illuminated CMOS sensor, and support image acquisition and parameter setting through client-side user-friendly software. It is suitable to capture images in both visible range and UV / NIR range, covering 200nm to 1100nm.


Features

- Sony Exmor back-illuminated CMOS sensor;

- Two-step noise reduction technology;

- Ultra-high sensitivity and low noise;

- USB 3.0 data transmission interface compatible with USB 2.0 protocol;

- Supports external triggering, digital I/O and free-running modes;

- Supports ROI, flip, bit-depth switching and other features;

- Supports firmware worksite upgrading;

- Compliant with CE, FCC requirements;

- Provides advanced video and image processing application software, compatible with Windows/Linux/OSX multi-platform SDK, support native C/C++,C#VB.Net, DirectShow, Twain API.

Product Brochure Link:

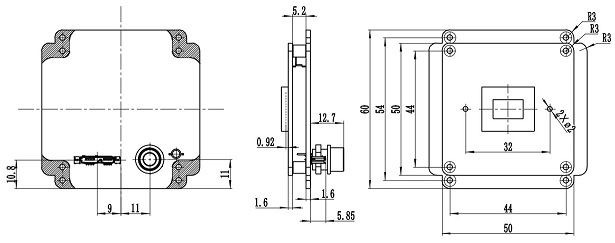

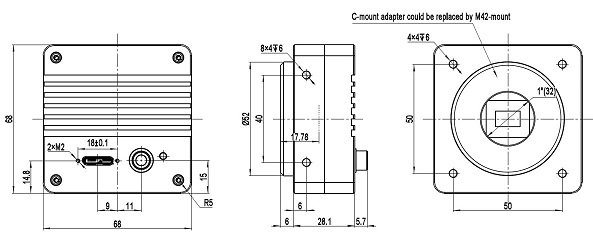

Dimension

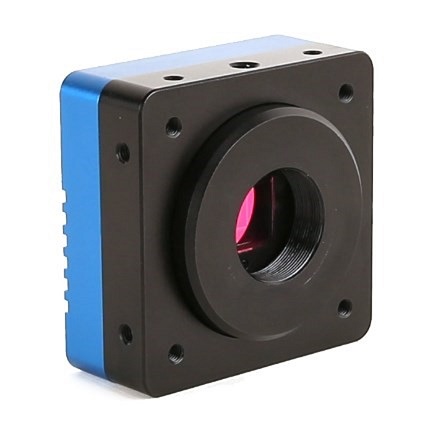

Housing 1

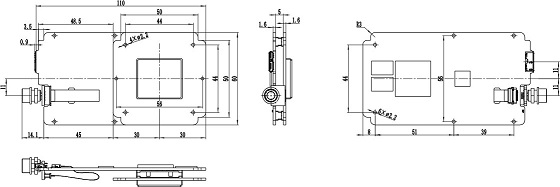

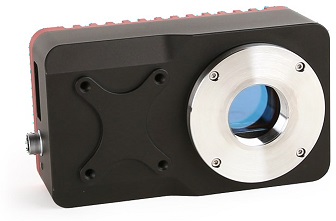

Housing 2





Product specifications and Brochures


ParametersSTUVE4200KMB
4.2M pixels 1.2” CMOS USB3.0
Industrial Camera		STUVE4200KME
4.2M pixels 2.0” CMOS USB3.0
Industrial Camera		STUVE8000KMA
8.0M pixels 2/3” CMOS USB3.0
Industrial Camera		STUVEB4200KMB
4.2M pixels 1.2” CMOS USB3.0
Industrial Camera
  Sensor ModelGpixel GSENSE2020BSI-HGpixel GSENSE400BSISony IMX487-AAMJ-CGSENSE2020BSI
  Pixel Size6.5 µm x 6.5 µm11 µm x 11 µm2.74 µm x2.74 µm6.5 µm x 6.5 µm
  Sensor Size1.2”2.0”2/3”1.2”
  Frame Rate44fps@2048 x 2048
44fps@1024 x 1024		37fps@2048 x 2048
37fps@1024 x 1024		45fps@2840 × 2840
198fps@1420 × 1420		43.6fps@2048 x 2046
43.6fps@1024 x 1022
  Dynamic Range67.5dB(LG)
61dB(HG)
90.5dB(HDR)		64dB(LG)
68.5dB(HG)
94dB(HDR)		72.0dB67.5dB (LG)
61dB (HG)
90.7dB (HDR)
  Signal-to-Noise Ratio47dB(LG)
32dB(HG)		50dB(LG)
33dB(HG)		40.0dB47dB (LG)
32dB (HG)
  Sensitivity1.1x108(e-/((W/m2).s))3.25x108(e-/((W/m2).s))145mV1.1x108(e-/((W/m2)·s)
  Dark Current93.7%@550nm345e-/s/pix0.15mV80e-/s/pix
  Gain Range1x-8x1x-8x1x-50x1x-50x
  Exposure Time21µs-60sec21µs-60sec30µs-15sec150µs-60sec
  ShutterRolling shutterGlobal shutterRolling shutter
  BinningHardware 2x2 / Software 2x2, 3x3, 4x4Software 2x2, 3x3, 4x4
  Data InterfaceUSB3.0 (USB3.1 GEN1)
  Digital I/OOne optical-coupling isolated input, one optical-coupling isolated output, tow non-isolated input and output
  Data FormatMono8 / Mono12
General Specification
  Power SupplyPower with USB3.0/ DC12V

Power with USB3.0

12V Power adapter

  Power Consumption<2.3W<3.8W<3.7W
  TemperatureWorking temperature -10~50℃, storage temperature-30~70℃
  Humidity20%-80%, no condensation
  Size68mmx68mmx28.1mm118mmx68mmx23.2mm
  Weight270g227g633g
  Lens MountC-mount
  Operating SystemWin32/WinRT/Linux/macOS/Android
  CertificationCE, FCC, RoHSCE, FCC


Model Guide

Model Number Sensor & Size (mm)*Pixel Size(μm) G Sensitivity
Dark Signal 		FPS/Resolution Binning Exposure Time
STUVE4200KMB
(Gpixel UV)		4.2M/GSENSE2020BSI
(M,UV,RS)
1/2”(13.31x13.31) 		6.5 x 6.51.1x108(e-/((W/m2).s))
QE93.7%@550nm
80(e-/s/pix)		44 fps@2048 x 2048
44 fps@1024 x 1024		1x1
2x2		21us~60s
STUVE4200KME
(Gpixel UV)		4.2M/GSENSE2020BSI
(M,UV,RS)
2.0”(22.53x22.53) 		11.0 x 11.03.25x108(e-/((W/m2).s))
QE95.3%@560nm
345(e-/s/pix)		37 fps@2048 x 2048
37 fps@1024 x 1024		1x1
2x2		21us~60s
STUVE8000KMA
(GS-UV)		8.0M/IMX487-AAMJ
(M,UV,GS)
2/3”(7.78x7.78) 		2.74 x 2.74145mv with 1/30s
0.15mv with 1/30s		45 fps@2840 x 2840
198 fps@1420 x 1420		1x1
2x2		30us~15s
STUVEB4200KMB
(UV)		4.2M/GSENSE2020BSI
(M,UV,RS)
1/2”(13.31x13.31) 		6.5 x 6.51.1x108(e-/((W/m2).s))
QE93.7%@550nm
80(e-/s/pix)		43.6 fps@2048 x 2046
43.6 fps@1024 x 1022		1x1
2x2		150us~60s
* C: Color;  M: Monochrome; RS: Rolling Shutter; GS: Global Shutter; UV: Ultra-Violet

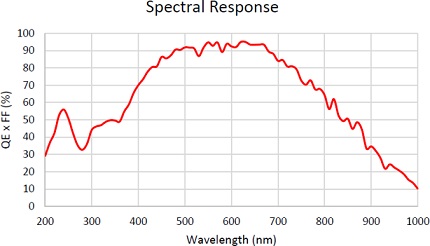

Spectral Response
UV Enhanced CMOS Camera - STUVE Series

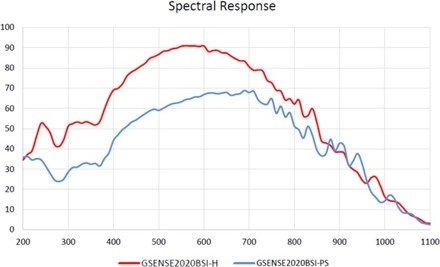

STUVE4200KMB

Sensor Model - GSENSE2020BSI-H


STUVE4200KME

Sensor Model - GSENSE400BSI

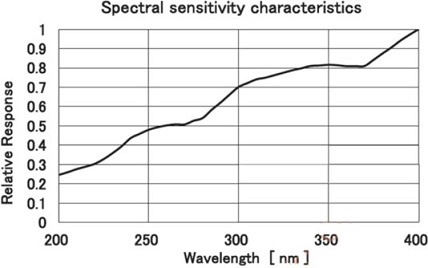

STUVE8000KMA

Sensor Model - Sony IMX487-AAMJ-C

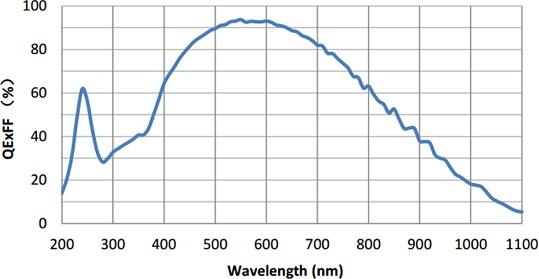

STUVEB4200KMB

Sensor Model - GSENSE2020BSI







Product specifications and Brochures


ParameterSTNIRE2100KPA
2.1M pixels 1/2.8” CMOS USB3.0
Industrial Camera		STNIRE4100KPA
4.1M pixels 1/1.8” CMOS USB3.0
Industrial Camera
  Sensor modelSony IMX462LQRSony IMX464LQR
  Pixel size2.9 µm x 2.9 µm
  Sensor size1/2.8”1/1.8”
  Frame rate120.3fps@1920 x 108090fps@2688 x 1520
  Dynamic range71dB
  Signal-to-Noise ratio40dB
  Sensitivity2376mV
  Dark current0.15mV
  Gain range1x-50x
  Exposure time11µs-15sec
  ShutterRolling shutter
  BinningSoftware2x2, 3x3, 4x4
  Data interfaceUSB3.0 (USB3.1 GEN1)
  Digital I/OOne optical-coupling isolated input, one optical-coupling isolated output, tow non-isolated input and output
  Data FormatRAW8/RAW12/RGB8/RGB24/RGB32/RGB48
General specification
  Power supplyPower with USB3.0/ DC12V
  Power consumption<4.1W<3.0W
  TemperatureWorking temperature -10~50℃, storage temperature -30~70℃
  Humidity20%-80%, no condensation
  Size68mmx68mmx28.1mm
  Weight228g
  Lens mountC-mount
  Operating systemWin32/WinRT/Linux/macOS/Android
  CertificationCE, FCC




Model Guide

Model Number Sensor & Size (mm)*Pixel Size(μm) G Sensitivity
Dark Signal 		FPS/Resolution Binning Exposure Time
STNIRE2100KPA2.1M/IMX462LQR
(C,RS,NIR)
1/2.8”(5.57x3.13) 		2.9 x 2.92376mV with 1/30s
0.15mV with 1/30s  		120.3 fps@1920 x 10801x111us ~ 15s
STNIRE4100KPA4.1M/IMX464LQR
(C,RS,NIR)
1/1.8”(7.8x4.41) 		2.9 x 2.92376mV with 1/30s
0.15mV with 1/30s  		90 fps@2688 x 15201x111us ~ 15s
* C: Color;  M: Monochrome; RS: Rolling Shutter; GS: Global Shutter

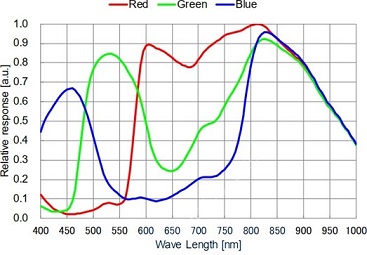

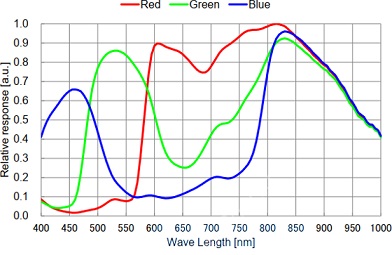

Spectral Response
NIR Enhanced CMOS Camera - STNIR Series


STNIRE2100KPA

STNIRE4100KPA







Microscop Cameras

Camera CategoryResolutionPixel SizeFPSWavelengthNote
Microscope  TE-Cooling USB3.0 CCD Camera1.5MP to 12MP6.45um to 3.1um~30FPS380nm - 650nmIR Cut filter
Microscope  USB3.0 CCD Camera1.5MP to 12MP6.45um to 3.1um~30FPS380nm - 650nmIR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera24MP and 61MP5.94um and 3.76umup to 190FPS380nm -650nmUV extended available
TE-Cooling USB3.0 CMOS Camera10MP to 45MP4.63um to 2.31umup to 96FPS380nm - 650nmIR Cut filter
TE-Cooling USB3.0 CMOS Camera with  External Trigger0.5MP / 0.5MP6.9um / 9um20FPS380nm - 650nm
External Trigger
Microscope USB3.0 CMOS Camera0.5MP to 45MP
6.9um to 1.55umupto 520FPS380nm - 650nmIR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced1.3MP to 10MP9.7um to 4.6umupto 86FPS200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP1.5MP to 45MP
3.4um to 1.2umupto 165FPS380nm - 650nmIR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera5MP2um30FPS380nm - 650nmIR Cut filter
HDMI Color CMOS Camera2MP to 8MP
60FPS380 - 1100nm

UV & NIR Enhanced CMOS Camera4.2/8MP,  2.1/4.1MP

upto 200FPS200-1100nmUV or NIR Enhance


Scientific Cameras

TypeModelWavelengthSensor   TypeResolutionPixel sizeFrame RateQE
X-RAY sCMOS Camera XF9580-1000eVBSI sCMOS2048 x 204822.5um or 13.3um 48~100% full range
XUV/VUV CameramaxCam1-300nm BSI/FSI CCD 1024 x 25526um
Refer to brochures
High Speed sCMOS CameraDhyana 2100200-1100nmFSI CMOS / Mono5220(H) x 4096(V)4.5um x 4.5um450fps@8bit63%@520nm
Dhyana 9KTDI200-1100nmBSI sCMOS TDI/Mono90725um x 5um510kHZ@8bit82%@550nm,
Cooled High Sensitivity sCMOS Camera95V2200-1100nmBSI sCMOS/Mono2048(H) x 2048(V)11μm x 11μm48fps@12bit STD95%@560nm
400BSI V2200-1100nmBSI sCMOS2048(H) x 2048(V)6.5μm x 6.5μm74fps@CL, 40fps@USB3.095%@600nm
400BSI V3200-1100nmBSI sCMOS2048(H) x 2048(V)6.5μm x 6.5μm100fps@CL, 40fps@USB3.095%@600nm
400D200-1100nmFSI   sCMOS/Mono2048(H) x 2040(V)6.5μm x 6.5μm35fps@16bit72%@595nm
400DC200-1100nmFSI   sCMOS/Color2048(H) x 2044(V)6.5μm x 6.5μm22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras6060BSI200-1100nmBSI sCMOS/Mono6144(H) x 6144(V)10μm x 10μm26.4fps@12-bit STD95%@580nm
4040BSI200-1100nm4096(H) x   4096(V)9μm x 9μm16.5fps@CL, 9.7fps@USB3.090%@550nm
6060FSI200-1100nmFSI sCMOS/Mono6144(H) x   6144(V)10μm x 10μm44fps@12-bit STD72%@550nm
4040FSI200-1100nm4096(H) x   4096(V)9μm x 9μm16.5fps@CL, 9.7fps@USB3.074%@600nm
Compact Industry sCMOS Camera401D  200-1100nmFSI sCMOS/Mono2048(H) x 2048(V)6.5μm x 6.5μm40fps@16bit, 45fps@8bit72%@595nm
401A-G200-1100nm2048(H) x 2048(V)11μm x 11μm
58%@600nm
401A-U200-1100nm2048(H) x 2048(V)11μm x 11μm
58%@600nm
201D200-1100nm2048(H) x 1152(V)6.5μm x 6.5μm70fps@16bit, 80fps@8bit72%@595nm


Intensified CMOS Cameras

TypeTime-Resolved iCMOSHigh-speed Gated iCMOS CameraHigh-speed Fluorescence iCMOS Camera
540M/S1000M/SFLUO (1000 FPS)FLUO (2000 FPS)
Product Image

TRiCAM_Specifications 1.jpeg

Framerate 162 fps540 fps1000 fps1000 fps - 7500 fps2000 fps - 6400 fps
Sensor Resolution1920 x 1200 pixels1696 x 1710 pixels1280 x 1024 pixels1280 x 1024 pixels1920 x 1080 pixels*
Pixel size5.86 x 5.86  µm 8 x 8 µm6.6   x 6.6 µm6.6 x 6.6 µm10 x 10 µm
Photon gain (max.)50000 lm/m^2/lx 11000 lm/m^2/lx11000 lm/m^2/lx36000 lm/m^2/lx36000 lm/m^2/lx
Gating repetition rate100 or 300Khz100khz100khz100khz100khz
Intensifier18mm intensifier Dual-stage   intensifierDual-stage intensifierSingle-stage intensifier  Single-stage intensifier
Bit Depth10 bit and 12 bit8 bit8 and 12 bit8 and 12 bit8 bit
Minimum exposure time40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)


Imaging Intensified Tube

TypeTime-Resolved Image IntensifierHigh-speed Image Intensifier
Model 18Model 25Model 18Model 25
Product Image

Input diameter18mm25mm18mm25mm
Effective areaGen II: ø 17.5 mm, Gen III: 13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mmGen II: ø 17.5 mm, Gen III:   13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition 100 kHz, 300 kHz or 1 MHz100 kHz, 300 kHz or 1 MHz100khz Or 300khz ,  2.5 MHz  burst mode100khz Or 300khz,  2.5 MHz burst mode
Min. gate width< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)
Frame RateUp to 500 fpsUp to 500 fpsup to 1,000,000 fpsup to 1,000,000 fps
Photon Gain

S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000

S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000		S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000		S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000


Short-wave, Mid-wave, Long-wave Infrared Cameras

ProductSpectral RangeRsolutionCoolingFeature
SWIR Camera400-1700nm1.3MP, 0.3MPuncooled
MIR CameraMid Infrared Detector3.7um to 4.8um0.08MP, 0.3MP,1.5MPCooled
Mid Infrared Camera3.7um to 4.8um0.08MP, 0.3MP,1.5MPCooled
Duel Band Detector3.7 to 4.8um|7.7 to 9.5um320*256px Cooled
LWIR CameraCooled LWIR Detector7.7um to 9.4um0.08MP, 0.3MPCooled
Cooled LWIR Camera7.7um to 9.4um0.3MPCooled
LWIR Thermography Camera 8 to 14um0.08MP, 0.3MP,1.5MPUncooledBroad Temperature Range
Thermography Camera for Skin Screening8 to 14um320*256px UncooledBody Temperature
Thermal Imaging Cameras for Phone8 to 14um256*192pxUncooledFor Smart Phone
Compact Thermal Imaging Camera8 to 14um0.08MP, 0.3MPUncooledFor CCTV , Drone



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STUVE4200KMB
UV Enhanced CMOS Camera, Sensor Gpixel GSENSE2020BSI-H, 4.2Mega Pixel, color mode Monochromatic, rolling shutter, FPS 44@2048x2048, Exposure 21us~60s 		4-6 Weeks Request for quote
STUVE4200KME
UV Enhanced CMOS Camera, Sensor Gpixel GSENSE400BSI, 4.2Mega Pixel, color mode Monochromatic, rolling shutter, FPS 37@2048x2048, Exposure 21us~60s 		4-6 Weeks Request for quote
STUVE8000KMA
UV Enhanced CMOS Camera, Sensor Sony IMX487-AAMJ-C, 8Mega Pixel, color mode Monochromatic, Global shutter, FPS 45@2840x2840, Exposure 30us~15s 		4-6 Weeks Request for quote
STUVEB4200KMB
UV Enhanced CMOS Camera, Sensor Gpixel GSENSE2020BSI, 4.2Mega Pixel, color mode Monochromatic, Rolling shutter, FPS43.6fps @2048 x 2046 Exposure 150us-60sec 		4-6 Weeks Request for quote
STNIRE2100KPA
NIR Enhanced CMOS Camera, Sensor Sony IMX462LQR, 2.1Mega Pixel, color mode Polychromatic, Rolling shutter, FPS 120.3@1920x1080, Exposure 11us~15s 		4-6 Weeks Request for quote
STNIRE4100KPA
NIR Enhanced CMOS Camera, Sensor Sony IMX464LQR, 4.1Mega Pixel, color mode Polychromatic, Rolling shutter, FPS 90@2688x1520, Exposure 11us~15s 		4-6 Weeks Request for quote

STNIRE4100KPA - Parameter

STNIRE2100KPA - Parameter

STUVEB4200KMB - Parameter

STUVE8000KMA - Parameter

STUVE4200KME - Parameter

STUVE4200KMB - Parameter

STNIRE4100KPA - Download

STNIRE2100KPA - Download

STUVEB4200KMB - Download

STUVE8000KMA - Download

STUVE4200KME - Download

STUVE4200KMB - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
