Built-in Digital Microscope | SIMTRUM Photonics Store

The SIMTRUM STUBI203i Built-in Digital Microscopes merges ergonomic design with advanced optical technology for precision in educational, clinical, and research settings. It features a UCIS optical system ensuring clear imaging, with achromatic objective lenses for diverse magnification needs. The microscope offers expansive viewing through a wide field eyepiece and precise sample examination with its dual coaxial coarse and fine focusing system. It's designed with a mechanical stage for smooth specimen handling and an Abbe condenser for optimal illumination. The rotatable binocular head enhances user comfort during extended observations.



Features With built-in 300/5 million pixel chips. Aptina CMOS sensor; The Ultra-Fine color engine ensures accurate color reproduction. Provide advanced video and image processing application software UopView; Provide Windows/Linux/OSX multi-platform SDK; Native C/C++, C#, Directshow, Twain APIs are supported.	Applications Ideal for educational environments where teaching biology and microscopy is key. In clinical settings, it's used for detailed tissue and cell analysis. Research laboratories rely on this microscope for conducting cellular and molecular studies.



Standard Configuration Technical Parameters

Optical system	UCIS infinite chromatic aberration independently corrected optical system
Observation tube	Hinge-type binocular observation head, observation angle 30°, interpupillary distance 48~75mm, adjustable diopter. Built-in 3 million/5 million pixel digital camera device, C-mount CMOS camera using AptinaCMOS sensor; CNC aluminum alloy precision housing; USB2.0 interface ensures high transmission rate; Ultra-Fine color engine ensures accurate color reproduction; the camera provides advanced video and Image processing application software UopView; provides Windows/Linux/OSX multi-platform SDK; supports native C/C++, C#, Direct show, TwainAPl
Eyepiece	High eye point plan eyepiece 10X/Φ20mm, adjustable diopter, anti-mildew function
Objective lens	Infinity achromatic objective lens (anti-mildew function) 4X, 10X, 40X(s), 100X(s)(oil)
Converter	Four-hole internal positioning converter
Condenser	Abbe condenser N.A.1.25, with matching socket, hand wheel lifting type, the condenser bracket is equipped with a condenser center adjustment device to facilitate the center alignment of the lighting system, and the focusing effect is better, the condenser aperture diaphragm adopts the same color as the objective lens color circle markers to facilitate obtaining high-resolution, high-contrast images.
Focusing system	Low-hand position coarse and fine coaxial focusing handwheel, focusing accuracy 0.001mm, coarse and tight adjustment, 17mm/revolution: limiter device on the workbench, maximum stroke 13mm: the position of the coarse and fine focusing handwheel is adjustable up and down to meet the requirements Different user needs
Stage	156×138mm, with moving ruler, moving range 76×54mm, accuracy 0.1mm, X and Y low coaxial adjustment handwheels
Lighting system	6V/20W halogen lamp, continuously adjustable brightness, pull-out lamp holder, easy to replace the bulb. Excellent independent heat dissipation system, the microscope host can still maintain a low temperature under 24-hour lighting conditions



Q1: What is a built-in digital microscope?

A1: A built-in digital microscope integrates high-resolution imaging hardware within the microscope frame, allowing for direct digital capture of images and videos through the eyepiece or a dedicated camera port.



Q2: How do I capture images with a built-in digital microscope?

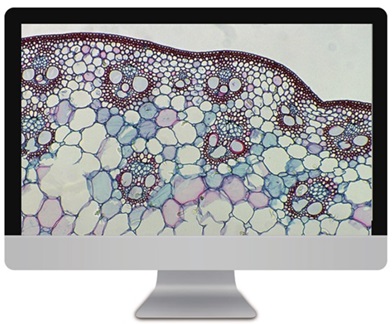

A2: Images can be captured using the provided software that interfaces with the microscope's camera. This software often allows for live viewing, image capture, and sometimes image analysis.



Q3: What magnification can I expect from a built-in digital microscope?

A3: Magnification levels depend on the specific model and configuration of the microscope, but digital microscopes can typically range from low-power (10x-40x) to high-power (100x-1000x) magnifications.



Q4: Can I use a built-in digital microscope for professional research?

A4: Yes, many built-in digital microscopes are equipped with advanced optics and imaging capabilities suitable for professional research applications.



Q5: Is special software required to use the built-in camera?

A5: Typically, a built-in digital microscope will come with proprietary or compatible software necessary for operation, image capture, and possibly additional functionalities like measurement or analysis.



Q6: Are built-in digital microscopes compatible with all operating systems?

A6: Compatibility can vary. Most microscopes support common operating systems like Windows and macOS, but it's important to check the specifications for compatibility with your system.



Q7: How do I share images from a built-in digital microscope?

A7: Images and videos captured can be saved to a computer and shared like any other digital file, via email, cloud storage, or USB drives.



Q8: Can I view live specimens with a built-in digital microscope?



A8: Absolutely, digital microscopes are excellent for viewing both live and prepared specimens, and the built-in camera can be used to observe and record live activities.



Q9: What type of optical system does the STUBI203i use?

A9: The STUBI203i features a UCIS (Universal Corrected Infinity System) optical system that provides clear, sharp imaging across a wide field of view.



Q10: Can the STUBI203i be used for oil immersion techniques?

A10: Yes, the microscope comes with achromatic objectives, including a 100X(s) lens that is suitable for oil immersion, which enhances viewing of samples at higher magnifications.



Q11: What are the power requirements for the STUBI203i?

A11: The STUBI203i is equipped with a 3W LED warm white light source and accepts an input voltage of AC100~240V, with a frequency of 50/60HZ.



Q12: Is the STUBI203i suitable for educational purposes?

A12: Absolutely, the STUBI203i's ergonomic design, clear imaging, and user-friendly features make it an excellent tool for educational settings where biology and microscopy are taught.



Q13: How precise is the focusing mechanism on the STUBI203i?

A13: The microscope has a dual coaxial coarse and fine focusing system with a fine adjustment accuracy of 0.002mm, allowing for detailed and precise examinations.



Q14: Does the STUBI203i come with a warranty?

A14: Warranty details can vary, so it's best to refer to the SIMTRUM website or contact our sales team directly for specific warranty information on the STUBI203i microscope.



Q15: What kind of specimens can be observed with the STUBI203i?

A15: The STUBI203i is versatile and suitable for a wide range of biological specimens, from prepared slides to live cultures, tissue sections, and more.



Q16: Is the LED lighting on the STUBI203i adjustable?

A16: Yes, the microscope comes with adjustable brightness settings, allowing you to tailor the illumination to your specific sample requirements.
