Fiber Raman Amplifier
1st Order FRA 2nd Order FRA Working Theory Related Products Order Now!

1st Order Fiber Raman Amplifier 1528-1565nm



Fiber Raman Amplifier uses the Raman Scattering effect in quartz fiber to provide gain for optical signal. 14xxnm laser is used as Raman pump to provide gain for signal light in C or L band, which can effectively compensate the attenuation of optical signal in long-distance  optical fiber transmission. It is suitable for long-distance optical transmission system and  distributed optical fiber sensing system.

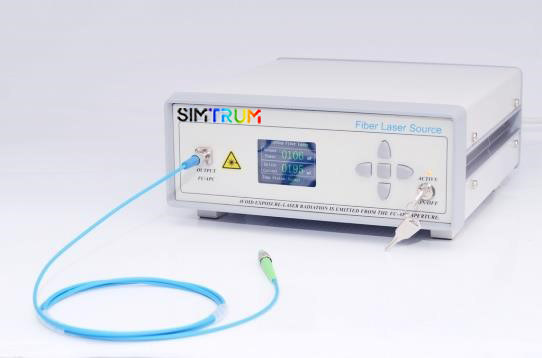

Desktop Module

Characteristics

- Wide Wavelength Range

- High Gain

- Low noise

 Applications

- Optical Communications

- Fiber Sensing

- Fiber Laser




Product specifications and Brochures

Product Brochure Link:





Optical Parameters Unit Typical Value Remarks
Signal Wavelength nm 1528~1565 Customizable
Optical Gain dB 10/20 *Note 4
Gain Flatness dB <2
Pump Wavelength nm 1425~1465
Total Pump Power mW 300/500/1000/1400 Customizable
Degree of Polarization -    5% (Type)，10%(Max)
Effective Noise Figure dB 0
Optical Fiber  -  SMF-28
Fiber Connectors  - FC/APC
Control Mode - ACC



General Parameters Desktop Module
Control Function Key lock switch, Push button RS232 serial Communication
Remote Control Port Optional DB9 Female
Power Supply AC100~240V, <45W DC 12V3A
Dimensions  260(W)×280(D)×120(H)mm 125(W)×150(D)×30(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/Model Number
FRA Wavelength(nm) Pump Power(mW) Packaging


1550

1650

 300/500/1000/1400

M-Module

B-Desktop



*Note 4 - The amplifier is only a Raman amplifier pump, which needs to cooperate with the long-distance quartz fiber in the user system to produce sufficient signal gain.




2nd Order Fiber Raman Amplifier  1425-1465nm



Based on the 1st-order Fiber Raman Amplifier, the 2nd-order Fiber Raman Amplifier adds a 13xxnm pump laser to provide Raman gain for the 14xxnm laser of the 1-order Raman, which can effectively reduce the system noise and is suitable for optical signal amplification in longer-distance repeater free optical transmission systems. The 2nd-order fiber Raman amplifier needs to be used together with the 1st-order fiber Raman amplifier.

Desktop Module



Characteristics

- Wide Wavelength Range

- High Gain

- Low noise

Applications

- Optical Communications

- Fiber Sensing

- Fiber Laser








Product specifications and Brochures

Product Brochure Link:



Optical  Parameters Unit Typical Value Remarks
Signal  Wavelength   1425~1465 Customizable
Optical  Gain dB 10/20
Gain  Flatness dB <2
Pump  Wavelength nm 1340~1360
Total  Pump Power mW 300/500/1000/1400 Customizable
Degree  of Polarization - 5% (Type)，10%(Max)
Effective  Noise Figure dB 0
Optical  Fiber  - SMF-28
Fiber  connectors  - FC/APC
Control  mode - ACC



General Parameters Desktop Module
Control Function Key lock switch, Push button RS232 serial Communication
Remote Control Port Optional DB9 Female
Power Supply AC100~240V, <45W DC 12V3A
Dimensions  260(W)×280(D)×120(H)mm 125(W)×150(D)×30(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/Model Number
FRA Wavelength(nm) Pump Power(mW) Packaging
  1450 300/500/1000/1400 M - Module
B - Desktop




What is a Raman amplifier? How to use it?

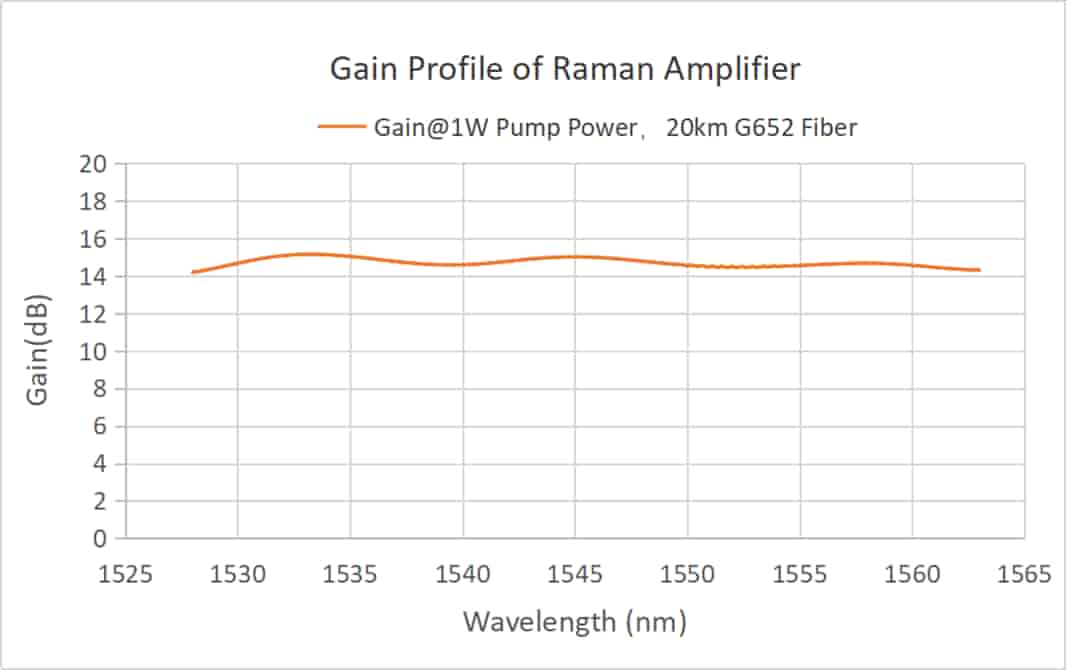

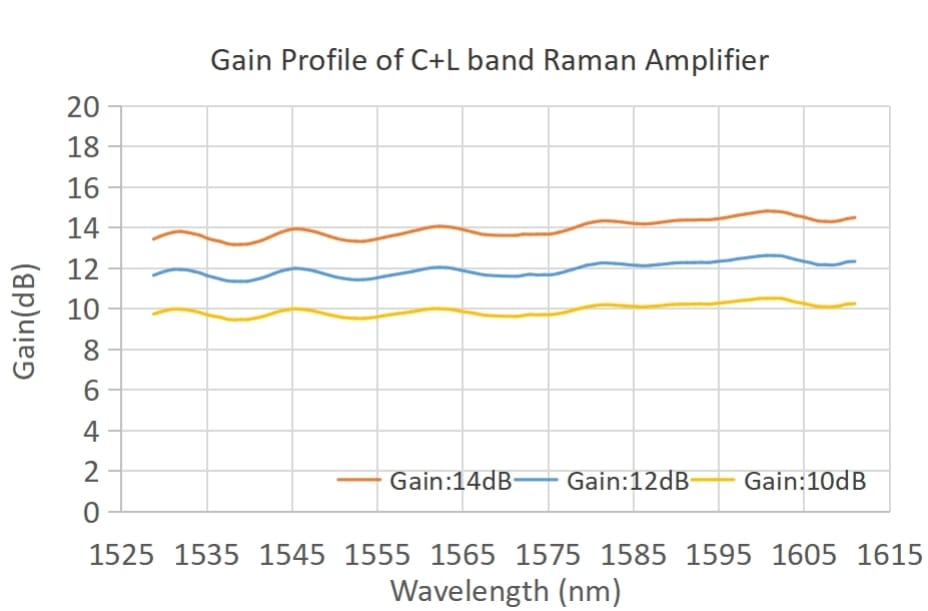

Please refer to the SIMTRUM website for the Fiber Raman Amplifier. The fiber Raman amplifier uses the Raman effect in the silica fiber to provide gain to the optical signal and realizes high gain and low noise amplification for the optical signal in the C or L band, which can effectively compensate for The attenuation of optical signals in long-distance optical fiber transmission is usually used in long-distance optical transmission communication systems, distributed optical fiber sensing, and dense wavelength division multiplexing optical transmission systems. For the C-band signal with a wavelength around 1550nm, a Raman pump laser with a wavelength of 1420~1465nm is generally used. The signal light and the Raman pump light simultaneously enter the long-distance transmission fiber through WDM, which constitutes a distributed fiber Raman Amplifier; for signals of multiple wavelengths distributed in the CL band, the Raman pump also needs to select multi-wavelength pumps from 1420 to 1500 nm to achieve flat gain, as shown in the figure below (multi-wavelength signals in the C-band, transmission length of 20km, ordinary single-mode Fiber, Raman pump wavelength 1425-1465nm, power 1 watt). The Raman amplifiers we provide are mainly Raman pumped lasers, wavelength division devices, and gain fibers that can be provided by users, and we can also provide them. It should be noted that the gain of the Raman amplifier refers to the comparison of the signal power at the receiving end of the system when the Raman amplifier pump is turned on and off, also known as the switching gain, such as the one-way communication system in the figure below, signal light and pump light. In the same direction transmission, the signal optical power is detected at the far end.



One-way fiber optic communication


The Raman gain given in the product information is for a test system we built, using a 20km single-mode fiber, which is equivalent to an example demonstration. It does not mean that customers can use this pump to produce exactly the same gain in their own system. It may be larger than that in our data, or it may be smaller than ours. We do not have the final gain effect of the Raman amplification system built by customers. Guarantee (the gain depends on many factors in the system), customers choose different Raman pump power according to their own situation when placing an order; we only guarantee that the wavelength and power of the Raman pump conform to the contract or product data nominal parameter.


A Raman amplifier has been added to our user's case of distributed fiber optic vibration sensing system (schematic)



Distributed Fiber Optic Sensing



TypeWavelengthInputOutput
EDFA Single Mode C-Band - Standard/ Booster1530 - 1565 nm-45 dBm to -25dBm
-6dBm to +3dBm		35@-35dBm / 45@-45dBm
15/17/20/23/25/26 dBm
EDFA Single Mode C-Band In-Line1530 - 1565 nm-25 dBm to +3 dBm13/17/23/25/26 dBm
EDFA Single Mode C-Band Gain Flattened1530 - 1565 nm-32 dBm to -10 dBm14/17/20/23 dBm
EDFA Single Mode C-Band High Power1530 - 1565 nm- 6 dBm to +10dBm 27/30/33/35/37/40 dBm
EDFA Single Mode C-Band PM - Low Power / High Power1530 - 1565 nm-30 dBm to +3 dBm
- 6 dBm to +10 dBm		14/17/20/23/26 dBm
30/33/37/40 dBm
EDFA Single Mode C-Band Pulsed1530 - 1565 nm1-10mw1-1000W
EDFA Single Mode L-Band1530 - 1603 nm- 6 dBm to +3 dBm15/17/20/23/25 dBm
EDFA Single Mode L-Band Low Power / High Power1530 - 1603 nm- 6 dBm to +10 dBm 27/30/33/37 dBm
EDFA Single Mode L-Band High Power Polarization Maintaining1530 - 1603 nm- 6 dBm to +10 dBm 30/33/37 dBm
YDFA Ytterbium Doped Fiber Amplifier
1030 - 1100 nm0 dBm to 10 dBm17/20/23/25/26/27/30/33/37/40  @0dBm
TDFA Low Power1800 - 2000 nm->100 mW
TDFA High Power
1900 - 2050 nm10 mW1/3/5 W
Fiber Raman Amplifier 1st Order
1528 - 1565 nmPump Wavelenth
1425 - 1465 nm		Total Pump Power
300/500/1000/1400 mW
Fiber Raman Amplifier 2nd Order
1425 - 1465 nm
Pump Wavelenth
1340 -1360 nm		Total Pump Power
300/500/1000/1400 mW

We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
FRA-1550-300
Fiber Raman Amplifier, Optical Gain 10/20dB, Gain Flatness <2dB, Pump Wavelength 1425-1465nm, Pump Power 300mW 		4-6 Weeks $2442.00
FRA-1550-500
Fiber Raman Amplifier, Optical Gain 10/20dB, Gain Flatness <2dB, Pump Wavelength 1425-1465nm, Pump Power 500mW 		4-6 Weeks $2686.00
FRA-1550-1000
Raman Fiber Amplifier, Optical Gain 10/20dB, Gain Flatness <2dB, Pump Wavelength 1425-1465nm, Pump Power 1000mW 		4-6 Weeks $5442.00
FRA-1550-1400
Fiber Raman Amplifier, Optical Gain 10/20dB, Gain Flatness <2dB, Pump Wavelength 1425-1465nm, Pump Power 1400mW 		4-6 Weeks $6984.00
FRA-1450-300
Fiber Raman Amplifier, Optical Gain 10/20dB, Gain Flatness <2dB, Pump Wavelength 1340-1360nm, Pump Power 300mW 		4-6 Weeks $3810.00
FRA-1450-500
Fiber Raman Amplifier, Optical Gain 10/20dB, Gain Flatness <2dB, Pump Wavelength 1340-1360nm, Pump Power 500mW 		In Stock $7577.00
FRA-1450-1000
Fiber Raman Amplifier, Optical Gain 10/20dB, Gain Flatness <2dB, Pump Wavelength 1340-1360nm, Pump Power 1000mW 		4-6 Weeks $12021.00
FRA-1450-1400
Fiber Raman Amplifier, Optical Gain 10/20dB, Gain Flatness <2dB, Pump Wavelength 1340-1360nm, Pump Power 1400mW 		4-6 Weeks $13079.00
