Soft X-Ray BSI sCMOS Camera (80-1000eV) | SIMTRUM Photonics

Products / Imaging /Scientific CMOS Cameras /Soft X-Ray BSI sCMOS Camera (80-1000eV) /
Soft X-Ray BSI sCMOS Camera (80-1000eV)
Overview Specifications Downloads & Drivers Related Products Order Now!

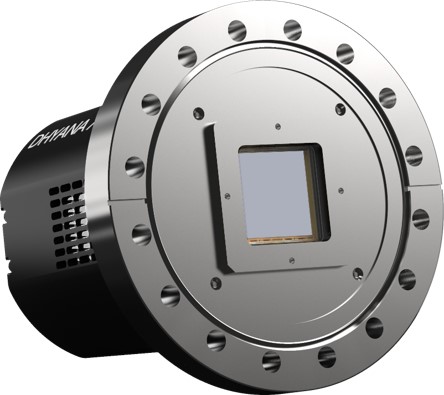

X-ray sCMOS Camera XF95

Dhyana XF95 is a new generation of soft X-ray Back-illuminated sCMOS Camera. Line application features have carried out new performance upgrades and technical transformations:

1. Using a new generation of back-illuminated sCMOS chips without anti-reflection coating, the quantum efficiency has been greatly improved in the corresponding 80eV-1000eV photon energy range, which has exceeded 90% as a whole and some wavelengths have reached nearly 100% ultra-high level, with more professional soft X-ray, extreme ultraviolet imaging performance, and radiation damage resistance. [1]

2. Using the new vacuum refrigeration structure, it can be compatible with 10-7Pavacuum chamber environment applications, the refrigeration depth can be lower than the ambient temperature by 70℃, and the deep refrigetation level can be up to -50 ℃. Low camera noise floor and thermal noise, improving the camera's long exposure working time.


Feature

●   ~100%@80-1000 eV Ultra-high Quantum Efficiency

●   Max. 10-7 Pa Vacuum Compatibility

●   1.2 - 5.4" Imaging Area

●   48fps @4MP High Frame Rate

●   -50℃ Deep Refrigeration

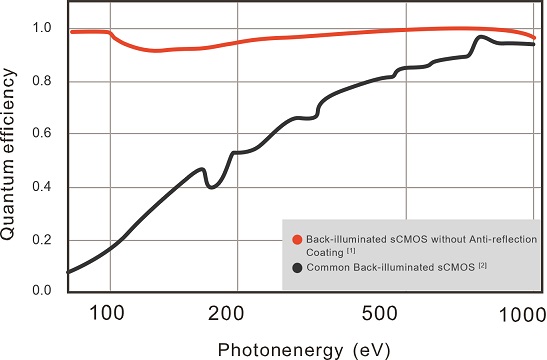

Dhyana XF95 Quantum Efficiency Graph



Dhyana XF95/F400BS Quantum Efficiency Graph


Applications

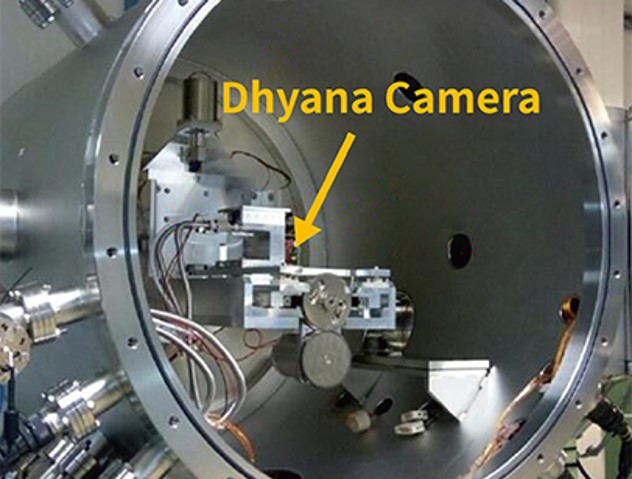

Fig1 French SOLEIL synchrotron beamline chamber [2]

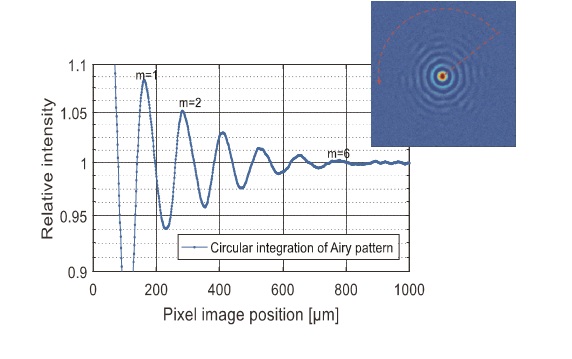

Fig2 Dhyana camera 186 eV beam diffaction pattern [2]


Application comment: "Back-illuminated sCMOS technology can be adapted to specific applications at a more attractive cost and shows overall exhibits a good dynamic range, which can significantly reduce acquisition time for imaging applications compared to commonly used classical back-illuminated CCD cameras.." [3]  - Journal of Synchrotron Radiation, 2020



[1] Harada, Tetsuo , et al. "High-exposure-durability, high-quantum-efficiency (>90%) backside-illuminated soft-X-ray CMOS sensor." Applied Physics Express 13.1(2020):016502 (4pp).

[2] Desjardins, K. , et al. "Characterization of a back-illuminated CMOS camera for soft x-ray coherent scattering." PROCEEDINGS OF THE 13TH INTERNATIONAL CONFERENCE ON SYNCHROTRON RADIATION INSTRUMENTATION ‒ SRI2018 2019.

[3] Backside‐illuminated scientific CMOS detector for soft X‐ray resonant scattering and ptychography[J]. Journal of Synchrotron Radiation, 2020.




Product specifications and Brochures

Product Brochure Link:




ModelXF95
Sensor ModelBack-illuminated sCMOS without Anti-reflection Coating
Area Array Size2 inches (22.5mm x 22.5mm)
Pixel Size11μm x 11μm
Resolution
2048 x 2048
Spectral Range80-1000eV; 200 nm - 1100 nm
Peak QE*1~100% @ 80-1000eV
Readout Noise1.6e- (Median)
Full-well Capacity90ke-
Frame Rate48fps@4MP
Vacuum Compatibility*10-7Pa (Max.)
Cooling Temperature-50°C@20°C room temperature
Data InterfaceCaneraLink & USB3.0
Flange InterfaceDN 100 CF Standard

* Remark: 1. The QE value comes from the factory report of the chip. for performance evaluation, please refer to the professional paper.

                 2. The vacuum tightness data comes from a third-party professional evaluation agency.

                 3. The evaluation of other photoelectric parameters of the camera strictly implements the EMVA1288 test standard.

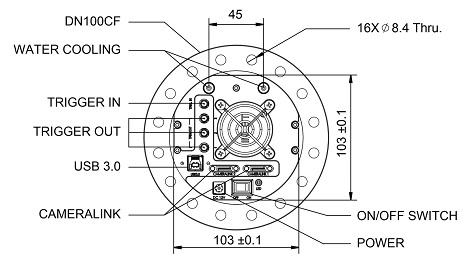

Product Structure



Documents & Manuals


Camera Quick Start

Support: Dhayana Series Cameras


Mosaic 1.6 Software Introduction

Support: Dhayana Series Cameras


Camera Quick Start

Support: FL-20, FL-20BW, TrueChrome Series, HD Lite (HDMI), MIchrome Series, GT USB2.0 Series




Mosaic 2.2 Software Introduction

Support: FL-20, FL-20BW, TrueChrome Series, HD Lite (HDMI), MIchrome Series, GT USB2.0 Series




Tucsen Camera Quick Start (TCapture)





TCapture Software Introduction





Software & Drivers*



 Software--Mosaic 1.6.8 windows

         Support: Dhyana 95/400BSI/400DC/400D



 Software-- Mosaic 2.2 Mac

          Support: MIchrome Series | GT Series | FL Series | TrueChrome AF/Metrics




 Software--Mosaic 2.3 windows

          Support: MIchrome Series | GT Series | FL Series | TrueChrome AF/Metrics/HD Lite




 Plugin-- Directshow and Twain

          Support：MIchrome Series | GT Series | FL Series | TrueChrome AF/Metrics/HD Lite/4K




 Driver--Corporate with all cameras

          Support for Windows 7 and above (32 & 64bit)




image.png Plugin--Labview (with user guide)

          Support: Dhyana95 | Dhyana 400BSI V1/V2 | Dhyana400D | Dhyana 401DS | Dhyana 201DS




image.png Plugin--Matlab (with user guide)

          Support: Dhyana95 | Dhyana 400BSI V1/V2 | Dhyana400D | Dhyana400DC | Dhyana 401DS | Dhyana 201DS




image.png Plugin--MetaXpress (with user guide)

                          Support: Dhyana95 | Dhyana 400BSI V1/V2| Dhyana400D | Dhyana400DC | FL-20BW




image.png Plugin--Micromanager (with user guide)

                     Support: Dhyana95 | Dhyana 400BSI V1/V2| Dhyana400D | Dhyana400DC | FL-20BW




 Software--TCapture 5.1.1

          Support: TrueChrome Metrics/IIS/II/HD Lite | DigiRetina16/500/DigiSwift | ISH1000/500/300/130




 Software--TCapture 4.3.0.605

          Support: CCD | X1000/500 Camera





*Please open link in a new tab



Related Spectrometer Product

Product Model Wavelength (nm) Dispersion Resolution
maxLIGHT Pro (XUV) 5 to 80 0.5 to   1.3nm/mm <0.028nm at 40nm
easyLIGHT (XUV) 30 to 250 ~2.0nm/mm <0.1nm
highLIGHT(XUV) 1 to 100 - <0.1nm
maxLIGHT (VUV) 40 to 200 0.9 to   1.6nm/mm <0.05nm at 120nm
easyLIGHT (VUV) 80 to  300 ~2.5nm/mm <0.1nm
X-Ray Spectroscopy
 2-4 keV   0.3eV
Extended X-ray Spectroscopy 5-12keV
Near Edge X-ray absorption
 200 - 1200eV




Microscop Cameras



Camera Category Resolution Pixel Size FPS Wavelength Note
Microscope  TE-Cooling USB3.0 CCD Camera 1.5MP to 12MP 6.45um to 3.1um ~30FPS 380nm - 650nm IR Cut filter
Microscope  USB3.0 CCD Camera 1.5MP to 12MP 6.45um to 3.1um ~30FPS 380nm - 650nm IR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera 24MP and 61MP 5.94um and 3.76um up to 190FPS 380nm -650nm UV extended available
TE-Cooling USB3.0 CMOS Camera 10MP to 45MP 4.63um to 2.31um up to 96FPS 380nm - 650nm IR Cut filter
TE-Cooling USB3.0 CMOS Camera with  External Trigger 0.5MP / 0.5MP 6.9um / 9um 20FPS 380nm - 650nm
 External Trigger
Microscope USB3.0 CMOS Camera 0.5MP to 45MP
 6.9um to 1.55um upto 520FPS 380nm - 650nm IR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced 1.3MP to 10MP 9.7um to 4.6um upto 86FPS 200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP 1.5MP to 45MP
 3.4um to 1.2um upto 165FPS 380nm - 650nm IR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera 5MP 2um 30FPS 380nm - 650nm IR Cut filter
HDMI Color CMOS Camera 2MP to 8MP   60FPS 380 - 1100nm

UV & NIR Enhanced CMOS Camera 4.2/8MP,  2.1/4.1MP
   upto 200FPS 200-1100nm UV or NIR Enhance

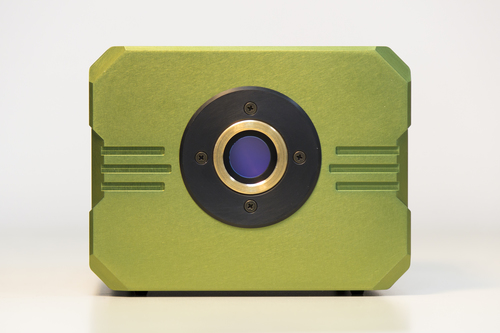

Scientific Cameras

Type Model Wavelength Sensor   Type Resolution Pixel size Frame Rate QE
X-RAY sCMOS Camera  XF95 80-1000eV BSI sCMOS 2048 x 2048 22.5um or 13.3um  48 ~100% full range
XUV/VUV Camera maxCam 1-300nm  BSI/FSI CCD  1024 x 255 26um   Refer to brochures
High Speed sCMOS Camera Dhyana 2100 200-1100nm FSI CMOS / Mono 5220(H) x 4096(V) 4.5um x 4.5um 450fps@8bit 63%@520nm
Dhyana 9KTDI 200-1100nm BSI sCMOS TDI/Mono 9072 5um x 5um 510kHZ@8bit 82%@550nm,
Cooled High Sensitivity sCMOS Camera 95V2 200-1100nm BSI sCMOS/Mono 2048(H) x 2048(V) 11μm x 11μm 48fps@12bit STD 95%@560nm
400BSI V2 200-1100nm BSI sCMOS 2048(H) x 2048(V) 6.5μm x 6.5μm 74fps@CL, 40fps@USB3.0 95%@600nm
400BSI V3 200-1100nm BSI sCMOS 2048(H) x 2048(V) 6.5μm x 6.5μm 100fps@CL, 40fps@USB3.0 95%@600nm
400D 200-1100nm FSI   sCMOS/Mono 2048(H) x 2040(V) 6.5μm x 6.5μm 35fps@16bit 72%@595nm
400DC 200-1100nm FSI   sCMOS/Color 2048(H) x 2044(V) 6.5μm x 6.5μm 22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras 6060BSI 200-1100nm BSI sCMOS/Mono 6144(H) x 6144(V) 10μm x 10μm 26.4fps@12-bit STD 95%@580nm
4040BSI 200-1100nm 4096(H) x   4096(V) 9μm x 9μm 16.5fps@CL, 9.7fps@USB3.0 90%@550nm
6060FSI 200-1100nm FSI sCMOS/Mono 6144(H) x   6144(V) 10μm x 10μm 44fps@12-bit STD 72%@550nm
4040FSI 200-1100nm 4096(H) x   4096(V) 9μm x 9μm 16.5fps@CL, 9.7fps@USB3.0 74%@600nm
Compact Industry sCMOS Camera 401D   200-1100nm FSI sCMOS/Mono 2048(H) x 2048(V) 6.5μm x 6.5μm 40fps@16bit, 45fps@8bit 72%@595nm
401A-G 200-1100nm 2048(H) x 2048(V) 11μm x 11μm   58%@600nm
401A-U 200-1100nm 2048(H) x 2048(V) 11μm x 11μm   58%@600nm
201D 200-1100nm 2048(H) x 1152(V) 6.5μm x 6.5μm 70fps@16bit, 80fps@8bit 72%@595nm

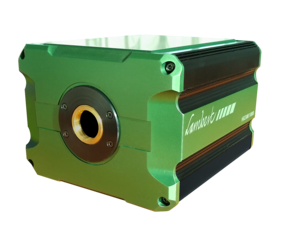

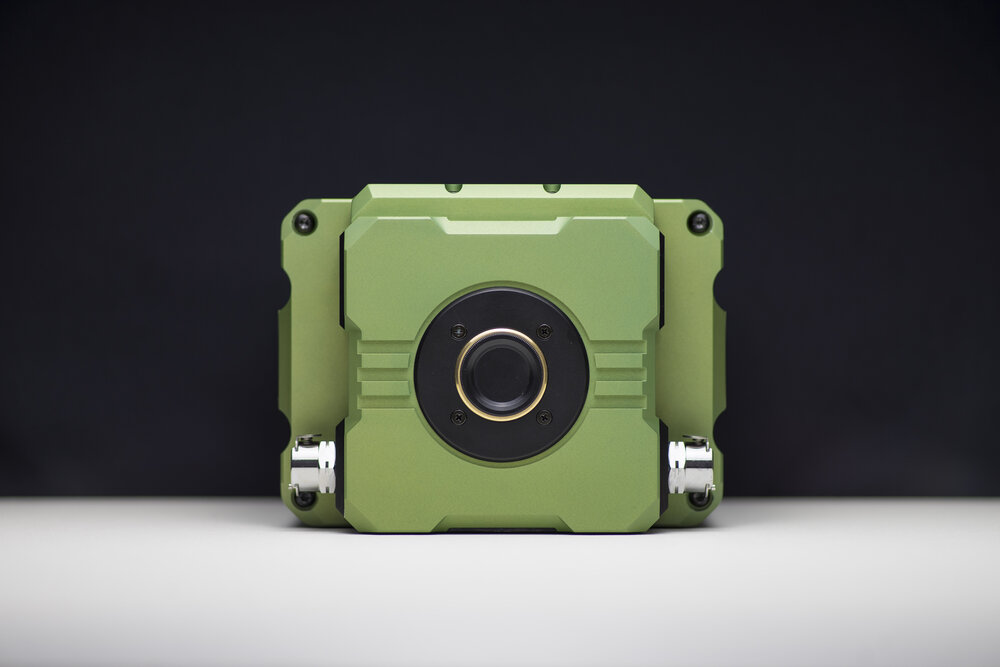

Intensified CMOS Cameras

Type Time-Resolved iCMOS High-speed Gated iCMOS Camera High-speed Fluorescence iCMOS Camera
540M/S 1000M/S FLUO (1000 FPS) FLUO (2000 FPS)
Product Image

TRiCAM_Specifications 1.jpeg

Framerate  162 fps 540 fps 1000 fps 1000 fps - 7500 fps 2000 fps - 6400 fps
Sensor Resolution 1920 x 1200 pixels 1696 x 1710 pixels 1280 x 1024 pixels 1280 x 1024 pixels 1920 x 1080 pixels*
Pixel size 5.86 x 5.86  µm  8 x 8 µm 6.6   x 6.6 µm 6.6 x 6.6 µm 10 x 10 µm
Photon gain (max.) 50000 lm/m^2/lx  11000 lm/m^2/lx 11000 lm/m^2/lx 36000 lm/m^2/lx 36000 lm/m^2/lx
Gating repetition rate 100 or 300Khz 100khz 100khz 100khz 100khz
Intensifier 18mm intensifier  Dual-stage   intensifier Dual-stage intensifier Single-stage intensifier   Single-stage intensifier
Bit Depth 10 bit and 12 bit 8 bit 8 and 12 bit 8 and 12 bit 8 bit
Minimum exposure time 40 ns (3 ns optional) 40 ns (3 ns optional) 40 ns (3 ns optional) 40 ns (3 ns optional) 40 ns (3 ns optional)

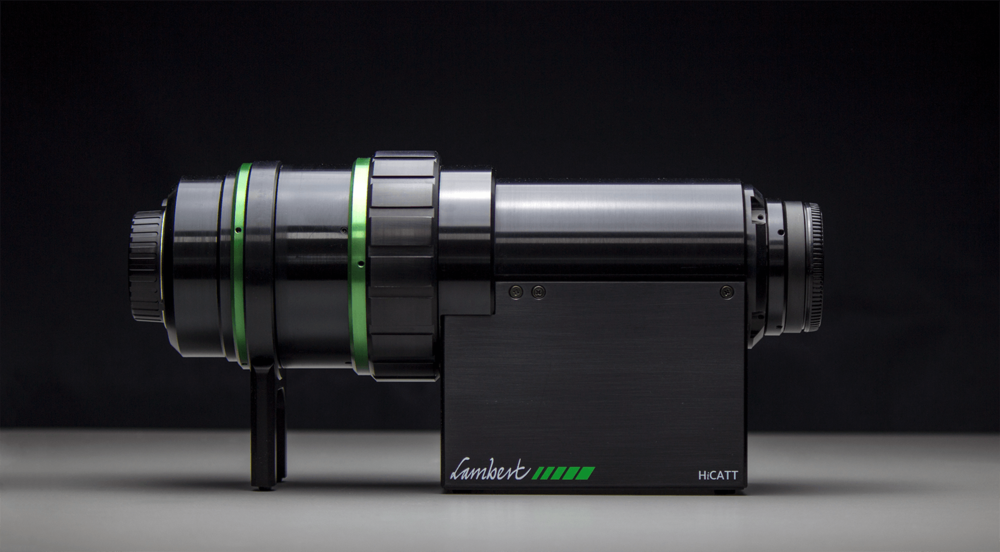

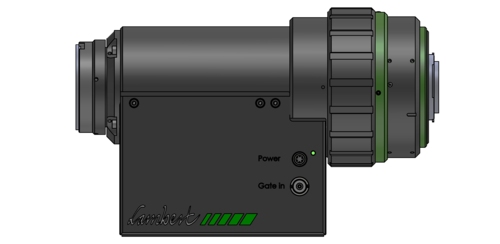

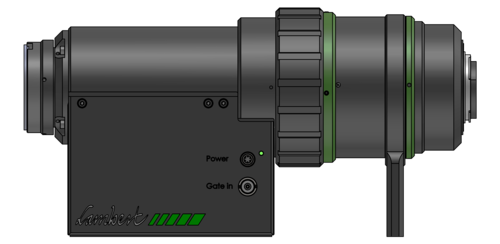

Imaging Intensified Tube

Type Time-Resolved Image Intensifier High-speed Image Intensifier
Model 18 Model 25 Model 18 Model 25
Product Image

Input diameter 18mm 25mm 18mm 25mm
Effective area Gen II: ø 17.5 mm, Gen III: 13.5x10 mm Gen II: ø 24.5 mm, Gen III: 16x16 mm Gen II: ø 17.5 mm, Gen III:   13.5x10 mm Gen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition  100 kHz, 300 kHz or 1 MHz 100 kHz, 300 kHz or 1 MHz 100khz Or 300khz ,  2.5 MHz  burst mode 100khz Or 300khz,  2.5 MHz burst mode
Min. gate width < 3ns - 40ns (FWHM) < 3ns - 40ns (FWHM) < 3ns - 40ns (FWHM) < 3ns - 40ns (FWHM)
Frame Rate Up to 500 fps Up to 500 fps up to 1,000,000 fps up to 1,000,000 fps
Photon Gain

S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000

 S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000		 S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000		 S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000



Short-wave, Mid-wave, Long-wave Infrared Cameras

Product Spectral Range Rsolution Cooling Feature
SWIR Camera 400-1700nm 1.3MP, 0.3MP uncooled
MIR Camera Mid Infrared Detector 3.7um to 4.8um 0.08MP, 0.3MP,1.5MP Cooled
Mid Infrared Camera 3.7um to 4.8um 0.08MP, 0.3MP,1.5MP Cooled
Duel Band Detector 3.7 to 4.8um|7.7 to 9.5um 320*256px  Cooled
LWIR Camera Cooled LWIR Detector 7.7um to 9.4um 0.08MP, 0.3MP Cooled
Cooled LWIR Camera 7.7um to 9.4um 0.3MP Cooled
LWIR Thermography Camera  8 to 14um 0.08MP, 0.3MP,1.5MP Uncooled Broad Temperature Range
Thermography Camera for Skin Screening 8 to 14um 320*256px  Uncooled Body Temperature
Thermal Imaging Cameras for Phone 8 to 14um 256*192px Uncooled For Smart Phone
Compact Thermal Imaging Camera 8 to 14um 0.08MP, 0.3MP Uncooled For CCTV , Drone
