Time-Correlated Single Photon Counting (TCSPC)
TCSPC-1ps TCSPC-4ps TCSPC-8ps Software Related Product Order Now!

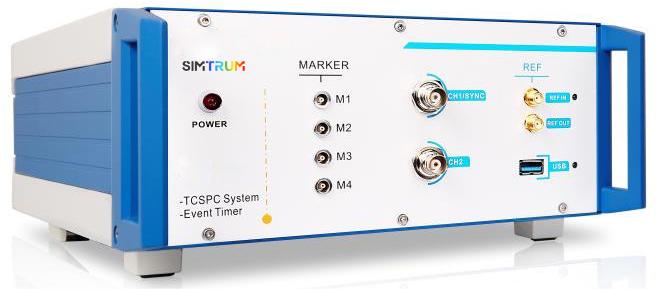

SIMTRUM'S Time-Correlated Single Photon Counting (TCSPC)-1ps is a device designed to accurately measure the arrival time of individual photons. They are widely used in quantum communication, fluorescence lifetime measurement, LiDAR, and high-energy nuclear physics. Their high temporal resolution and sensitivity make them essential components in modern quantum technology.

Features

  • 6/10/20 independent pulse input channels
  • Minimum resolution of 1 ps
  • 1 synchronization signal channel and 1 Mark signal channel.
  • 64-bit time stamp, supporting continuous measurement for 14 hours without overflow.
  • USB 3.0 and dual 10G Ethernet outputs, maximum continuous output rate of 400M Event/s.
  • Single-channel dead time of 5 ns, with continuous output of 120M Event/s per channel.hysics


Application

  • Fluorescence Lifetime Measurement and Imaging
  • Quantum Communication
  • LiDAR
  • High-Energy Nuclear Physics

Product Specification
Channel performance (including pulse input, synchronization and mark channels)
  Number of channels 6/10/20
  Interface SMA
  Voltage range of input signal 0 to 5V
  Maximum permissible signal voltage range -200mV to 5.5V
  Measurement triggering method Rising edge triggering
  Trigger voltage 0~4.096V adjustable, step 1mV
  Minimum trigger pulse width 500ps
TDC performance
  Timestamp resolution 1 ps
  Range 52700s (about 14.5 hours, no overflow)
unlimited (need to deal with timestamp overflow)
  Root mean square jitter(rms) <8 ps
  Wide-fledged jitter at half maximum (FWHM) <20 ps
  Dead time for single-channel measurements 4 ns
  Single-channel instantaneous saturation count rate 250 Mcp/s
  Maximum Event Transfer Rate of the Device (sum of all channels) 280 Mcp/s (10 Gigabit Ethernet port output differential timestamp)
Real-time histogram
  Maximum number of time channels (bin) 1e7(10 million. only limited by the computing capability of the host computer)
  Temporal resolution ≥1ps freely adjustable
  Range Unlimited (set number of bin channels * resolution)
  Count depth per channel 64 bits
Intensity monitoring
  Window length 1us ~ 8s
  Count range per channel 4 billion (32 bits)
TTTR
  T2 resolution 1 ps
  T3 resolution ≥1ps freely adjustable
  T2 maximum range 14.5h (no overflow handling needed), unlimited (overflow handling required)
  T3 maximum range 14.5h (no overflow handling needed), unlimited (overflow handling required)
Clock
  External 10MHz clock input 1.8V~3.3V, square wave
Upper computer
  Disposition Intel i5/32GB/1T NVME SSD/Dual-port 10G network card
  Data interface 10Gb SFP+ /USB3.0
  Cable 2meter DAC stacking line/USB 3.0

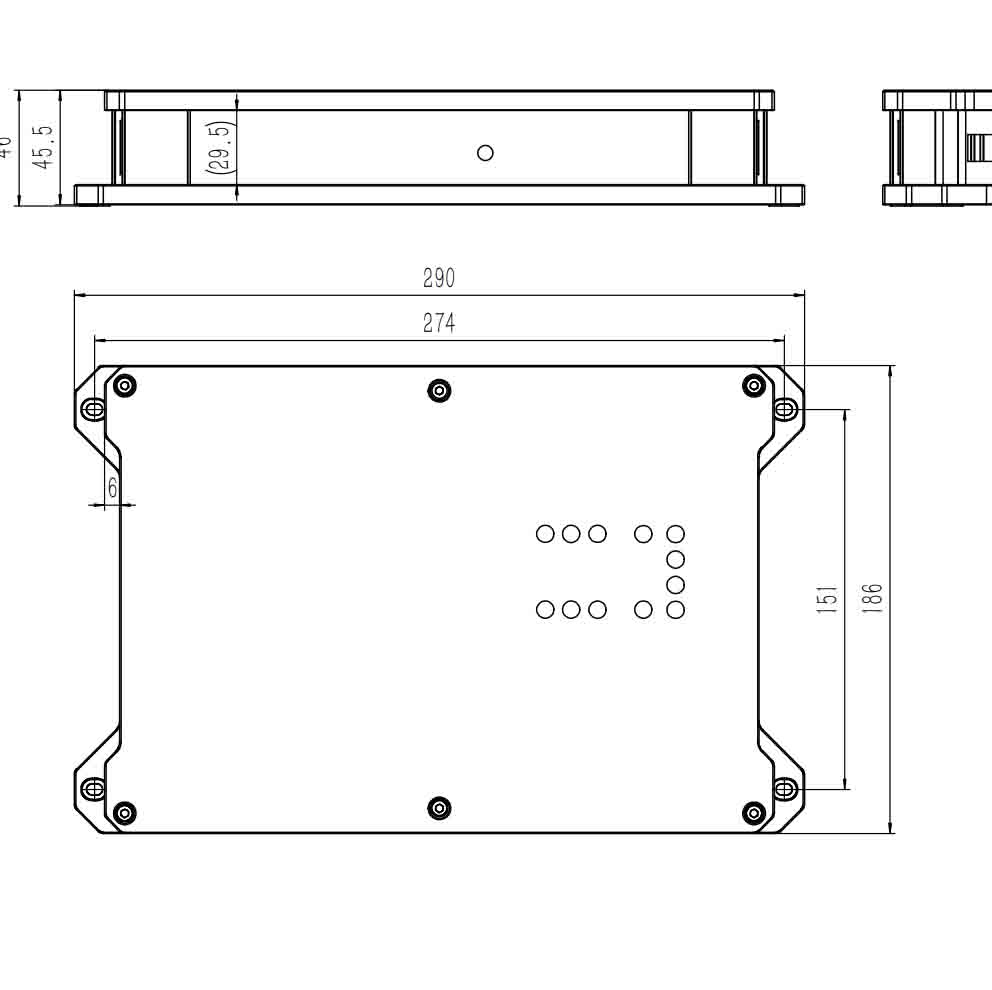

Mechanical Diagram (274mm*186mm*45mm）






SIMTRUM'S Time-Correlated Single Photon Counting (TCSPC)-8ps is a device designed to accurately measure the arrival time of individual photons. They are widely used in quantum communication, fluorescence lifetime measurement, LiDAR, and high-energy nuclear physics. Their high temporal resolution and sensitivity make them essential components in modern quantum technology.

Features

  • 2/4/10/18 independent pulse input channels, with a maximum resolution of 8 ps
  • An additional 1 synchronization signal channel and 1 Mark signal channel
  • 64-bit time stamp, supporting continuous measurement for 14 hours without overflow
  • Actual measurement time is only limited by the host computer's storage capacity
  • USB 3.0 output, with a maximum continuous output rate of 40M Event/s



Application

  • Fluorescence Lifetime Measurement and Imaging
  • Quantum Communication
  • LiDAR
  • High-Energy Nuclear Physics











Product Specification

Channel performance (including pulse input, synchronization and mark channels)
  Number of channels 2/4/10/18
  Interface SMA
  Voltage range of input signal -2 to 3.3V (@1MQ)
  Maximum permissible signal voltage range -2.2mV to 3.6V (@1MQ)
  Measurement triggering method Rising edge triggering
  Trigger voltage -1~2.5V adjustable, step 1mV
  Minimum trigger pulse width 300ps
TDC performance
  Timestamp resolution 4 ps
  Range 52700s (about 14.5 hours, no overflow)
unlimited (need to deal with timestamp overflow)
  Root mean square jitter(rms) <10 ps
  Wide-fledged jitter at half maximum (FWHM) <20 ps
  Dead time for single-channel measurements 4 ns
  Single-channel instantaneous saturation count rate 250 Mcp/s
  Maximum Event Transfer Rate of the Device (sum of all channels) 39 Msps (64-bit timestamp); 78 M (32-bit timestamp)
Real-time histogram
  Maximum number of time channels (bin) 1e7(10 million. only limited by the computing capability of the host computer)
  Temporal resolution ≥4ps freely adjustable
  Range Unlimited (set number of bin channels * resolution)
  Count depth per channel 64 bits
Intensity monitoring
  Window length 1us ~ 8s
  Count range per channel 4 billion (32 bits)
TTTR
  T2 resolution 4 ps
  T3 resolution ≥4ps freely adjustable
  T2 maximum range 14.5h (no overflow handling needed), unlimited (overflow handling required)
  T3 maximum range 14.5h (no overflow handling needed), unlimited (overflow handling required)
Clock
  External 10MHz clock input 1.8V~3.3V, square wave
Upper computer
  Disposition Intel i5/32GB/1T NVME SSD/Dual-port 10G network card
  Data interface 10Gb SFP+ /USB3.0
  Cable 2meter DAC stacking line/USB 3.0

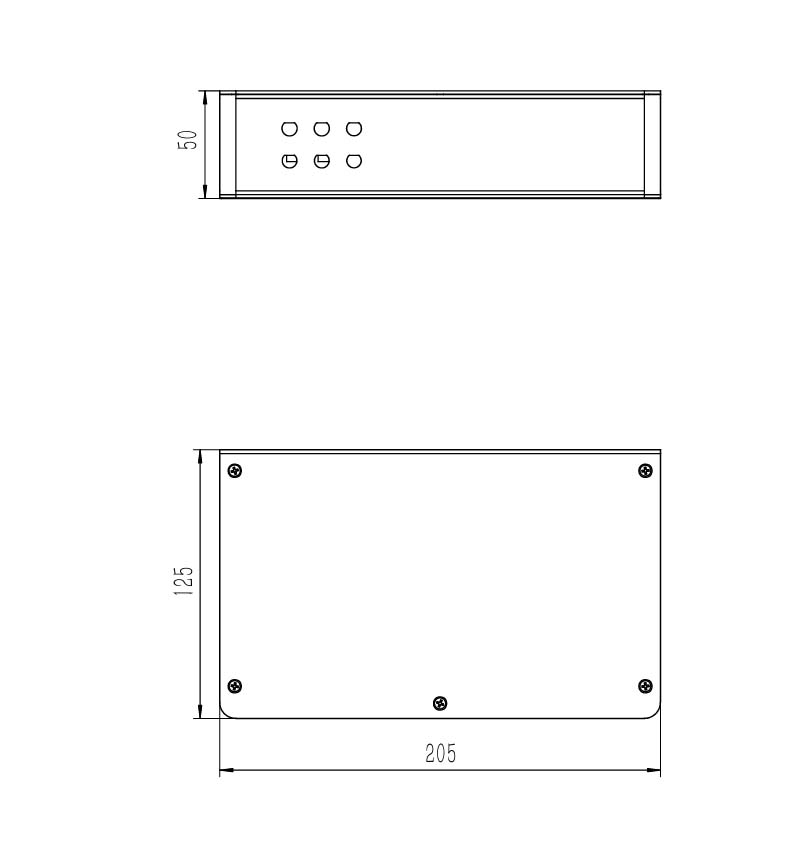

Mechanical Diagram (205mm*125mm*50mm）




SIMTRUM'S Time-Correlated Single Photon Counting (TCSPC)-8ps is a device designed to accurately measure the arrival time of individual photons. They are widely used in quantum communication, fluorescence lifetime measurement, LiDAR, and high-energy nuclear physics. Their high temporal resolution and sensitivity make them essential components in modern quantum technology.

Features

  • 4/6/10/20 independent pulse input channels, with a maximum resolution of 8 ps
  • An additional 1 synchronization signal channel and 1 Mark signal channel
  • 64-bit time stamp, supporting continuous measurement for 14 hours without overflow
  • Actual measurement time is only limited by the host computer's storage capacity
  • USB 3.0 output, with a maximum continuous output rate of 40M Event/s



Application

  • Fluorescence Lifetime Measurement and Imaging
  • Quantum Communication
  • LiDAR
  • High-Energy Nuclear Physics













Product Specification

Channel performance (including pulse input, synchronization and mark channels)
  Number of channels 4/6/10/20
  Interface SMA
  Voltage range of input signal 0 to 5V（@50Ω）
  Maximum permissible signal voltage range -200mV to 5.5V（50Ω）
  Measurement triggering method Rising edge triggering
  Trigger voltage 0~4.096V adjustable, step 1mV
  Minimum trigger pulse width 300ps
TDC performance
  Timestamp resolution 8 ps
  Range 52700s (about 14.5 hours, no overflow)
unlimited (need to deal with timestamp overflow)
  Root mean square jitter(rms) <10 ps
  Wide-fledged jitter at half maximum (FWHM) <20 ps
  Dead time for single-channel measurements 5 ns
  Single-channel burst count rate 200 Msps (sustaining 128 measurements)
  Device saturation count rate (sum of all channels) 40 M Event/s （USB3.0 output）
Real-time histogram
  Maximum number of time channels (bin) 1e7(10 million. only limited by the computing capability of the host computer)
  Temporal resolution ≥8 ps
  Range ≤36000 s
  Count depth per channel 64 bits
Intensity monitoring
  Window length 1us ~ 10s
  Count range per channel 4 billion (32 bits)
TTTR
  T2 resolution 8 ps
  T3 resolution ≥8 ps
  T2 maximum range Unlimited
  T3 maximum range 36028s
Clock
  Internal 25MHz crystal oscillator Quick start
  Internal 10MHz constant temperature crystal oscillator Large range measurements
  External 10MHz clock input 1.8V~3.3V, square wave



Mechanical Diagram (205mm*125mm*50mm）

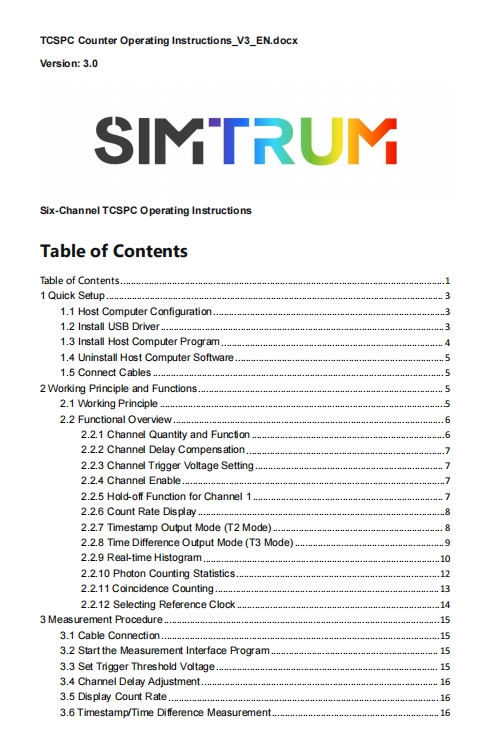

User's Manual (Click Here) Software (Click Here)

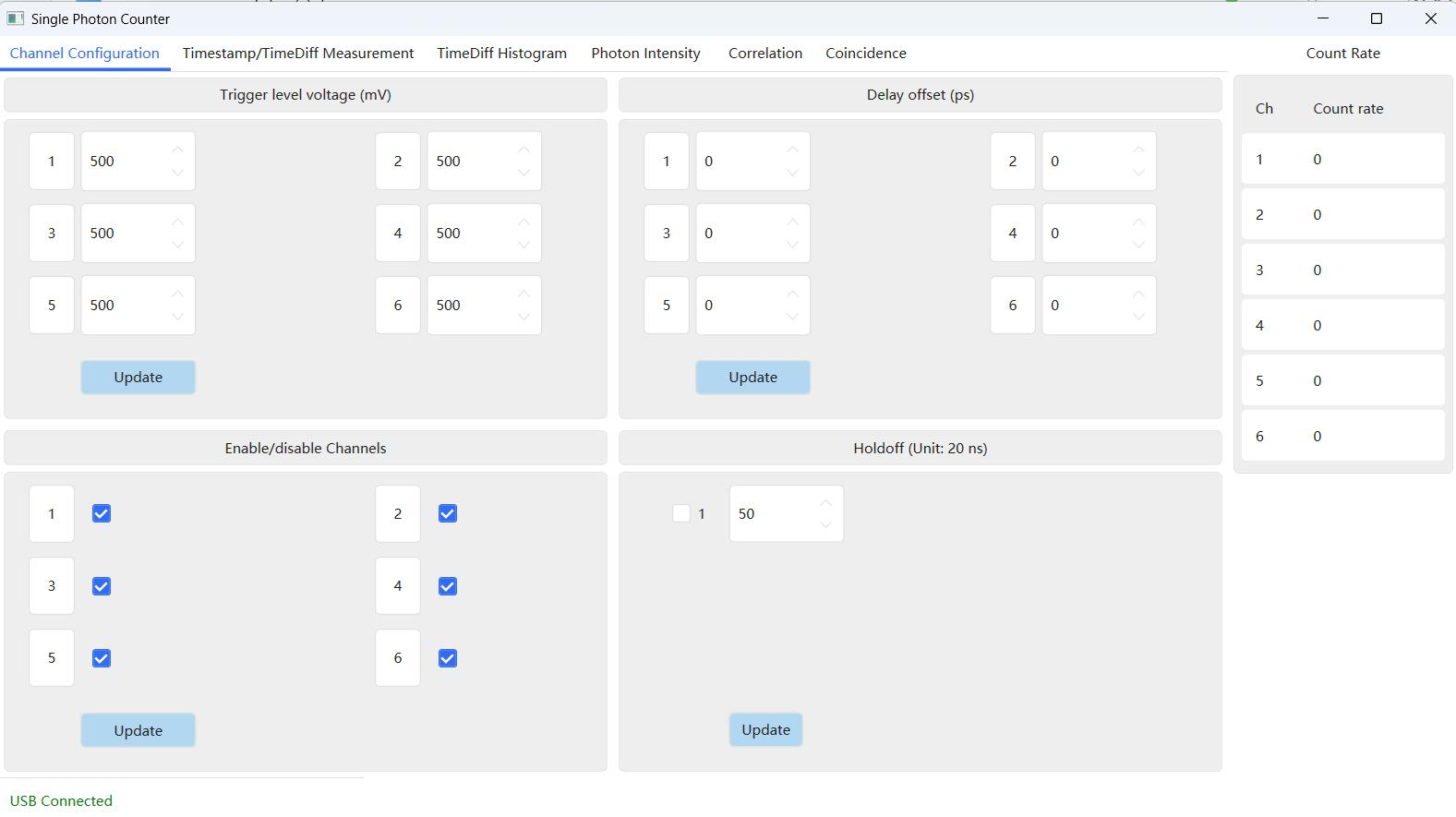

TCSPC Software – Comprehensive Control and Analysis for Single-Photon Counting

The TCSPC software suite provides a powerful, user-friendly interface for controlling and analyzing data from the SIMTURM single-photon counter. Designed for versatility and precision, it supports a wide range of time-correlated single-photon counting applications, from basic photon statistics to advanced coincidence and histogram analysis.

Key software features include:

  1. Multi-Channel Operation & Real-Time Monitoring
    Control up to 6 independent input channels with individual trigger threshold settings, delay compensation, and channel enable/disable functions. Monitor count rates in real time with live updates.

  2. Timestamp & Time-Difference Measurement (T2/T3 Modes)
    Record raw timestamps (T2) or time differences relative to a sync signal (T3) with high precision. Data can be output via USB 3.0 or 10 Gigabit optical ports for flexible integration.

  3. Real-Time Histogram Display & Analysis
    Visualize time-difference distributions in real time with customizable bin size, count, and range. Supports both accumulate and refresh modes for dynamic or cumulative statistics.

  4. Photon Counting Statistics
    Perform photon intensity measurements in two modes: Time Window mode (fixed intervals) or Sync Signal mode (between sync pulses). Results are plotted in real time and can be saved for post-analysis.

  5. Advanced Coincidence Counting
    Define custom coincidence strategies with multiple channels and adjustable time windows. The software supports virtually unlimited strategies, limited only by host CPU capability.

  6. DLL/SDK for Custom Integration
    Includes a comprehensive dynamic link library (DLL) with header files for developing custom applications in C++, Python, LabVIEW, and other languages. Enables automation, real-time data acquisition, and tailored measurement workflows.

  7. Hardware Synchronization & Scanning Support
    Supports pixel, line, and frame sync signals for scanning applications such as LiDAR and fluorescence lifetime imaging (FLIM). Provides examples for histogram and photon count scanning with spatial tagging.

  8. Flexible Data Export & Script-Based Analysis
    Save measurement data in binary format for efficient storage. Includes MATLAB parsing scripts for timestamp, time-difference, histogram, and intensity data, enabling seamless post-processing and integration into existing workflows.
