38M Pixel large Format sCMOS Camera
Overview Specifications & Model Guide Downloads & Drivers Related Products Order Now!

Dhyana 6060BSI

Key Features:

 - 5.4”large area

 - 10μm x 10μm pixel size

 - Pixel 6144 * 6144

 - 95%QE@580nm

 - 102ke- full well capacity

 - 26fps @ full resolution

 - CXP high-speed interface

Dhyana 6060BSI Quantum Efficiency


Dhyana 6060FSI

Key Features:


 - 5.4”large area

 - 10μm x 10μm pixel size

 - Pixel 6144 * 6144

 - 71.6%QE@550nm

 - 123ke- full well capacity

 - 44fps@full resolution

 - CXP high-speed interface


Dhyana 6060FSI Quantum Efficiency


Dhyana 4040BSI

Key Features:

 - 3.2” large area

 - 9μm x 9μm pixel size


 - Pixel 4096 * 4096

 - 90%QE@550nm

 - 39ke- full well capacity

 - Long exposure time supported

 - Excellent cooling performance


Dhyana 4040BSI Quantum Efficiency


Dhyana 4040FSI

Key Features:


 - 3.2” large area

 - 9μm x 9μm pixel size


 - Pixel 4096 * 4096

 - 76%QE@600nm

 - 70ke- full well capacity

 - Long exposure time supported

 - Excellent cooling performance


Dhyana 4040FSI Quantum Efficiency


3.2 inch large area array, 9μm x 9μm big pixel

The large imaging area is not only a standard for Astronomy imaging, but an ideal solution for high-energy physics applications, such as optical field measurement





70Ke- high full-well capacity, 0.05e-/p/s ultra-low

dark current

The high full-well capacity and excellent cooling performance with ultra-low dark current allows Dhyana 4040 to acquire the brilliant image quality with low noise even under long exposure times






70Ke- high full-well capacity, 0.05e-/p/s ultra-low dark current

The high full-well capacity and excellent cooling performance with ultra-low dark current allows Dhyana 4040 to acquire the brilliant image quality with low noise even under long exposure times





Please check the table below for individual specifications tied to individual products.

        Product Brochure English: Ultra-large sCMOS Camera

Model Dhyana 6060BSI Dhyana 6060FSI Dhyana 4040BSI Dhyana 4040FSI
Sensor model BSI sCMOS FSI sCMOS BSI sCMOS FSI sCMOS
Shutter type Rolling Rolling Rolling Rolling
Color/Mono Mono Mono Mono Mono
Effective area 61.4mm x 61.4mm 61.4mm x 61.4mm 36.9mm x 36.9mm 36.9mm x 36.9mm
Resolution 6144(H) x 6144(V) 6144(H) x 6144(V) 4096(H) x 4096(V) 4096(H) x 4096(V)
Pixel size 10μm x 10μm 10μm   x 10μm 9μm x 9μm 9μm x 9μm
QE 95%@580nm 71.6%@550nm 90%@550nm 74%@600nm
Full-Well capacity 102ke- 123ke- 39ke- 70ke-
Dynamic Range 90dB 90dB 85dB 86dB
Frame rate

26fps@12-bit STD; 11fps@12-bit HDR;
8fps @14-bit STD

44fps@12-bit STD；19fps @12-bit HDR；
14fps@14-bit STD

20fps@CameraLink
10fps@USB3.0

20fps@CameraLink
10fps@USB3.0
Readout noise 3e- (Median） 4.6e- (Median） 2.3e- (Median value） 3.6e- (Median value）
Exposure time 12μs-300s 7μs-300s 10μs~300s 10μs~300s
DSNU 4e- 4e- 0.5e- 0.5e-
PRNU 0.2% 0.2% 0.2% 0.2%
Cooling Method Air & Liquid Air & Liquid Air & Liquid Air & Liquid
Cooling temperature 40°C below ambient 40°C below ambient

Air: (Ambient at +20 ): -20°C;

 Liquid: -30°C@20°C

Air: (Ambient at +20 ): -20°C;

 Liquid: -30°C@20°C
Dark current 0.2e-/pixel/s@-20°C 0.2e-/pixel/s@-20°C

Air:   0.15e-/pixel/s;

 Liquid: 0.1e-/pixel/s

Air:   0.15e-/pixel/s;

 Liquid: 0.1e-/pixel/s
Binning 2x2, 4x4 2x2, 4x4 2x2, 4x4 2x2, 4x4
ROI Support Support Support Support
Time Stamp 1μs accuracy 1μs accuracy 1μs accuracy 1μs accuracy
GPS Support Support Support Support
Trigger Mode Hardware & Software Hardware & Software Hardware & Software Hardware & Software
Output Trigger Signals

Exposure, Global, Readout,

  High level, Low level

Exposure, Global, Readout,

 High level, Low level

Exposure, Global, Readout,

 High level, Low level

Exposure, Global, Readout,

High level, Low level
Trigger Interface SMA SMA SMA & CC1 SMA & CC1
Data Interface CXP12 x 4 CXP12 x 4 USB3.0& CameraLink USB3.0 & CameraLink
Data Bit Depth 12bit, 14bit, 16bit 12bit, 14bit, 16bit 12bit & 16bit 12bit & 16bit
Optiona Interface User-customization User-customization

Optional F-Mount/

User-customization

Optional F-Mount/

User-customization
Power Supply 12V/10A 12V/10A 12V/8A 12V/8A
Power Consumption ＜100W ＜100W ＜45W ＜45W
Dimensions φ160 (Diameter) x 164 mm (length）

φ160 (Diameter) x 164 mm (length）

 105mm x 95mm x 123.5mm 105mm x 95mm x 123.5mm
Weight ＜4kg ＜4kg ＜2kg ＜2kg
Software

Samplepro / MAXIMDL /

 Labview / Matlab / EPICS

Samplepro   / MAXIMDL /

 Labview / Matlab/ EPICS

Mosaic1.6/Samplepro

/MaximDL/Labview/Matlab

Mosaic1.6/Samplepro

/MaximDL/Labview/Matlab
SDK C/C++/C# C/C++/C# C/C++/C# C/C++/C#
Operating System Windows/Linux Windows/Linux Windows/Linux Windows/Linux
Operating Environment

Working Temp.  -35~45°C

Storage Temp. -35~60°C

Working Temp.  -35~45°C

Storage Temp. -35~60°C

Working Temp.  -35~45°C

Storage Temp. -35~60°C

Working Temp.  -35~45°C

Storage Temp. -35~60°C

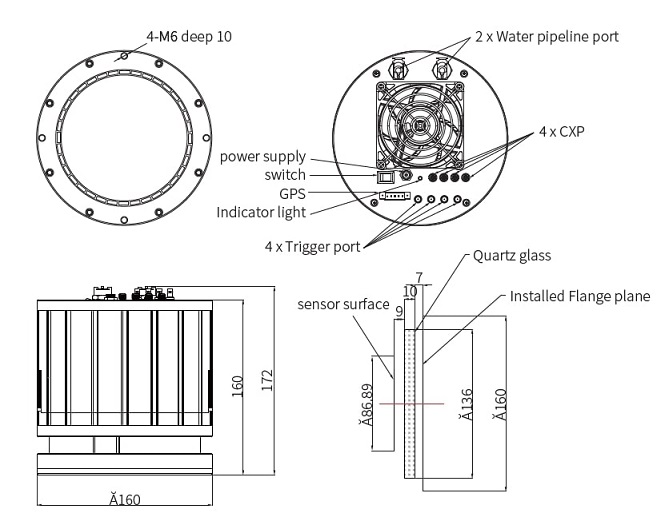

Dhyana 6060BSI Structure (unit: mm)

Dhyana 6060BSI Structure (unit: mm)

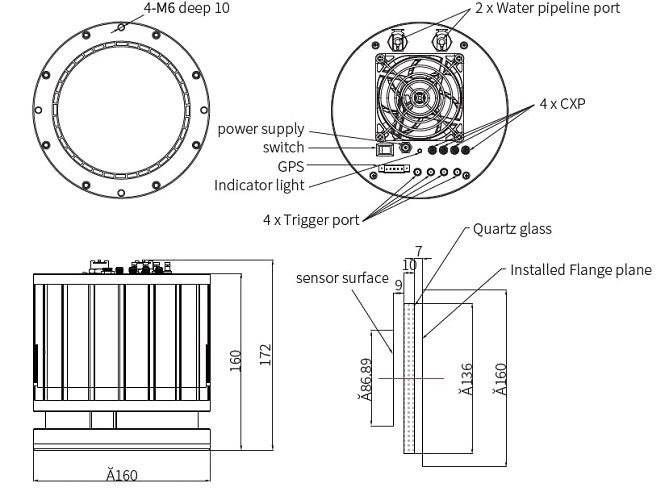

Dhyana 6060FSI Structure (unit: mm)



Dhyana 6060FSI Structure (unit: mm)

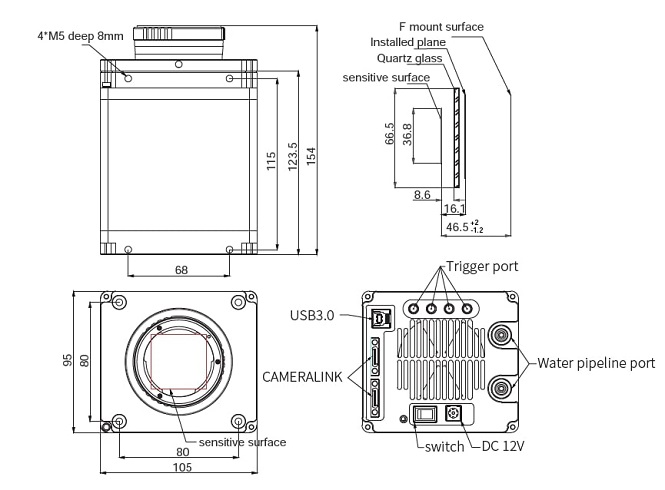

Dhyana 4040BSI Structure (unit: mm)

Dhyana 4040BSI Structure (unit: mm)

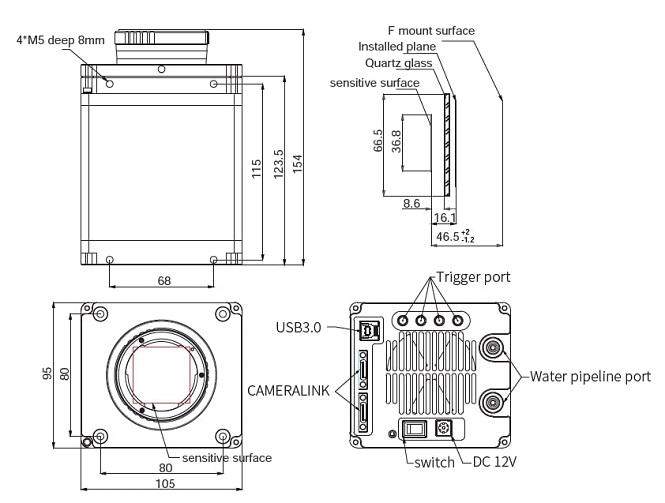

Dhyana 4040FSI Structure (unit: mm)

Dhyana 4040FSI Structure (unit: mm)






Documents & Manuals


Camera Quick Start

Support: Dhayana Series Cameras


Mosaic 1.6 Software Introduction

Support: Dhayana Series Cameras


Camera Quick Start

Support: FL-20, FL-20BW, TrueChrome Series, HD Lite (HDMI), MIchrome Series, GT USB2.0 Series




Mosaic 2.2 Software Introduction

Support: FL-20, FL-20BW, TrueChrome Series, HD Lite (HDMI), MIchrome Series, GT USB2.0 Series




Tucsen Camera Quick Start (TCapture)





TCapture Software Introduction





Software & Drivers*



 Software--Mosaic 1.6.8 windows

         Support: Dhyana 95/400BSI/400DC/400D



 Software-- Mosaic 2.2 Mac

          Support: MIchrome Series | GT Series | FL Series | TrueChrome AF/Metrics




 Software--Mosaic 2.3 windows

          Support: MIchrome Series | GT Series | FL Series | TrueChrome AF/Metrics/HD Lite




 Plugin-- Directshow and Twain

          Support：MIchrome Series | GT Series | FL Series | TrueChrome AF/Metrics/HD Lite/4K




 Driver--Corporate with all cameras

          Support for Windows 7 and above (32 & 64bit)




image.png Plugin--Labview (with user guide)

          Support: Dhyana95 | Dhyana 400BSI V1/V2 | Dhyana400D | Dhyana 401DS | Dhyana 201DS




image.png Plugin--Matlab (with user guide)

          Support: Dhyana95 | Dhyana 400BSI V1/V2 | Dhyana400D | Dhyana400DC | Dhyana 401DS | Dhyana 201DS




image.png Plugin--MetaXpress (with user guide)

                          Support: Dhyana95 | Dhyana 400BSI V1/V2| Dhyana400D | Dhyana400DC | FL-20BW




image.png Plugin--Micromanager (with user guide)

                     Support: Dhyana95 | Dhyana 400BSI V1/V2| Dhyana400D | Dhyana400DC | FL-20BW




 Software--TCapture 5.1.1

          Support: TrueChrome Metrics/IIS/II/HD Lite | DigiRetina16/500/DigiSwift | ISH1000/500/300/130




 Software--TCapture 4.3.0.605

          Support: CCD | X1000/500 Camera





*Please open link in a new tab
