Transmission Amplitude SLM

Overview & Specifications Application examples Software Related Products Order Now！

SIMTRUM's spatial light modulator can change the amplitude, phase and polarization state of the light distribution in space under the control of the driving signal that changes with time, or convert the incoherent light into coherent light, which can easily write specific information into the light wave to achieve the purpose of light wave modulation. The voltage of each pixel is dynamically controlled in real time through the image signal to modulate the light wave.

Transmission amplitude spatial light modulator is a kind of amplitude spatial light modulator, which has ultra-high spatial resolution, fast modulation speed, and can respond to changes in the input signal in real time, with a wavelength range covering visible light and near-infrared bands. It is widely used in laser imaging and display, holographic recording, optical information processing and other fields.

Features

High Resolution
Fast Response
Low Power Consumption
Strong Compatibility

Application

Optical Imaging
Projection Displays
Optical Communication
Laser Processing
Beam Shaping
Image Processing

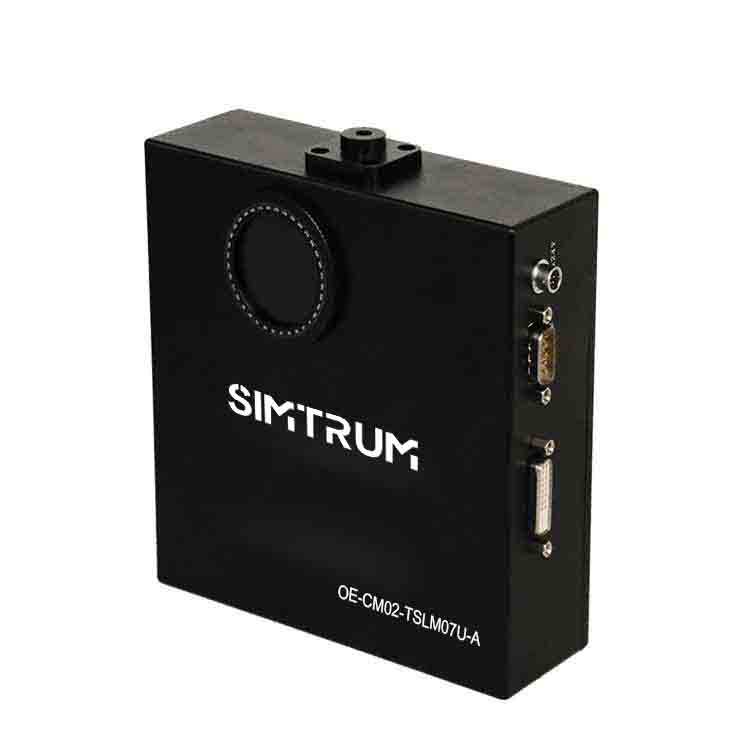

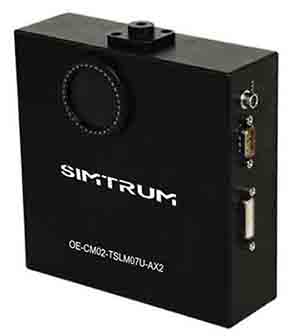

Product Specification

General Parameters

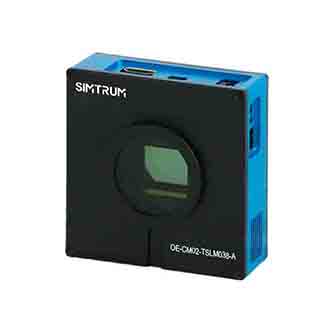

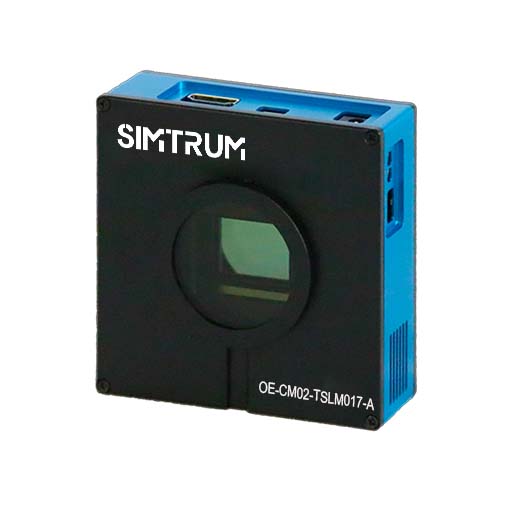

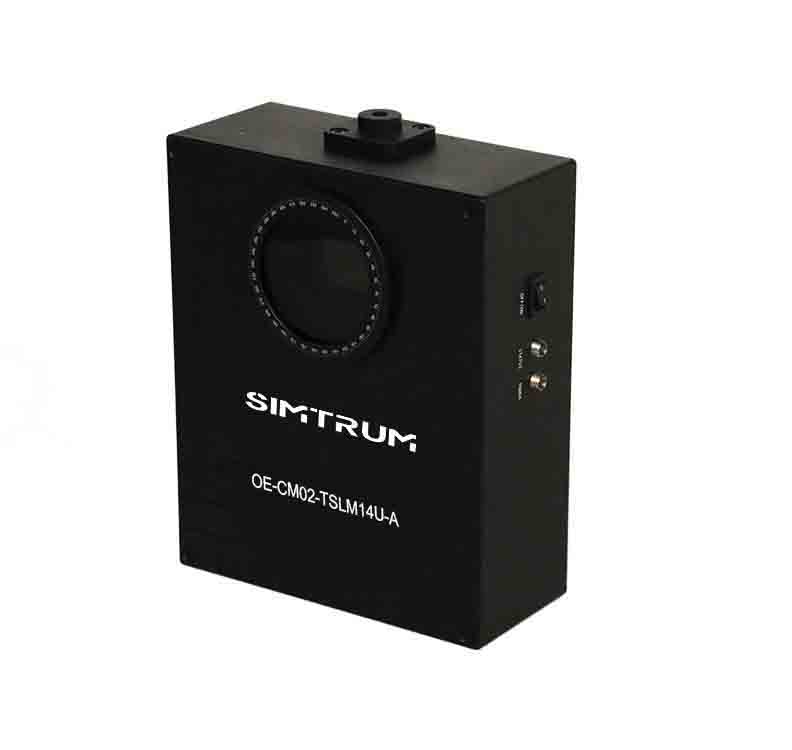

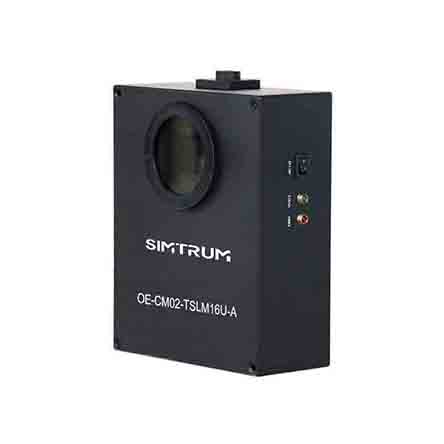

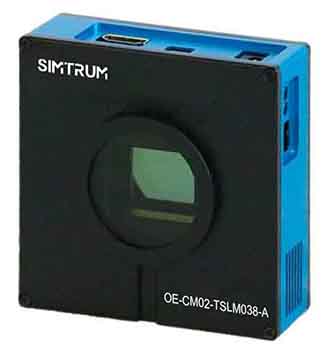

Model	OE-TSLM-A1-420-1024-360	OE-TSLM-A2-420-1024-260	OE-TSLM-A3-420-1024-140	OE-TSLM-A4-420-1920-85	OE-TSLM-A5-420-1920-85	OE-TSLM-A6-420-2048-140	OE-TSLM-A7-420-1920-190
Spectral range	420nm-1200nm	420nm-1200nm	420nm-1200nm	420nm-1200nm	420nm-1200nm	420nm-1200nm	420nm-1200nm
Resolution	1024×768	1024×768	1024×768	1920×1080	1920×1080	2048×1536	1920×1080
Pixel size	36μm	26μm	14μm	8.5μm	8.5μm	14μm	19μm
Effective region	1.8" 36.8mm×27.6mm	1.3" 26.6mm×19.9mm	0.7" 14.3mm×10.8mm	0.74" 16.3mm×9.18mm	0.74" 16.3mm×9.18mm	1.4" 28.7mm×21.5mm	1.6" 36.5mm×20.5mm
Contrast	400:1@532nm	400:1@532nm	40:1@1064nm	150:1@635nm	150:1@635nm	100:1@532nm	40:1@808nm
Optical utilization	28%@532nm	35%@532nm	9%@1064nm	12%@635nm	12%@635nm	6%@532nm	2%@635nm
Response Time	≤16.7ms	≤16.7ms	≤16.7ms	≤16.7ms	≤6.67ms	≤22.2ms	≤16.7ms
Data interface	HDMI	VGA or HDMI	VGA or HDMI	DVI	DVI	DVI	DVI
Drive power	12V 2A	16V 1A or 12V 2A	16V 1A or 12V 2A	24V 1A or 5V 1A	24V 1A or 5V 1A	24V 1A	24V 1A
Damage Threshold	2W/cm²	2W/cm²	2W/cm²	2W/cm²	2W/cm²	2W/cm²	2W/cm²

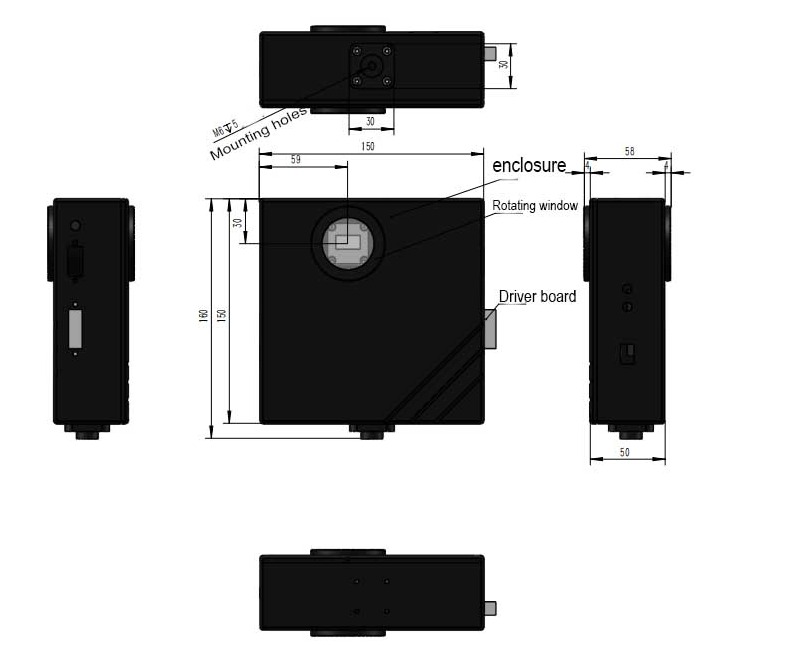

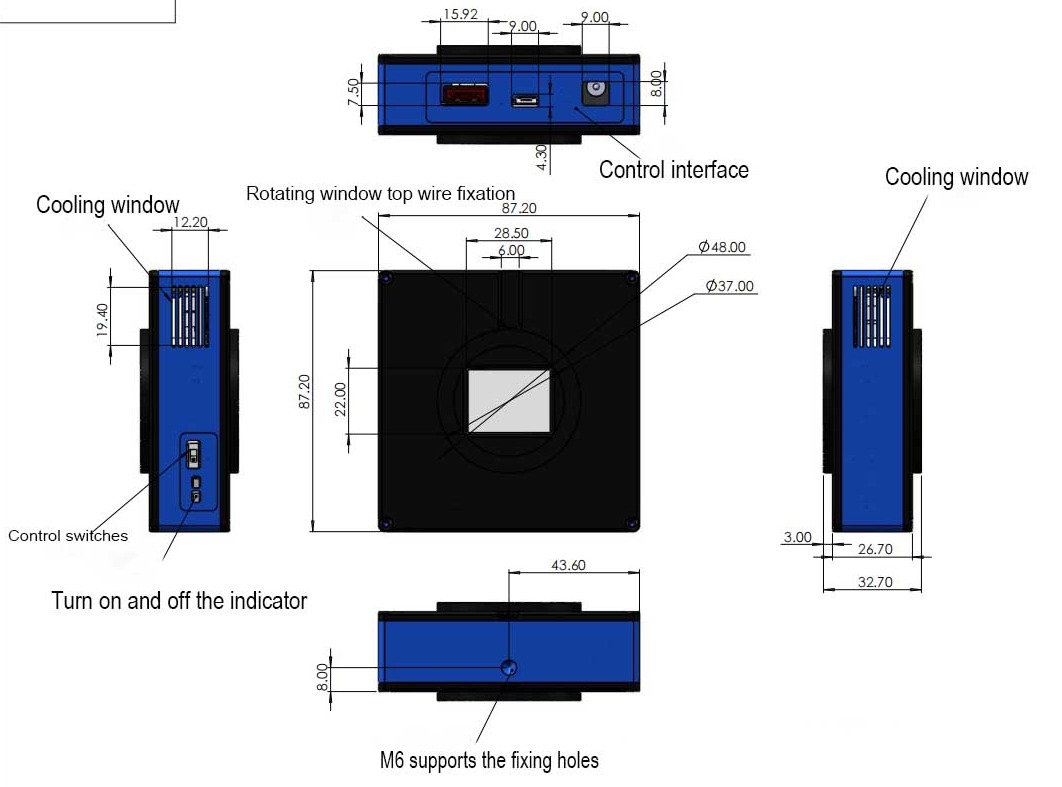

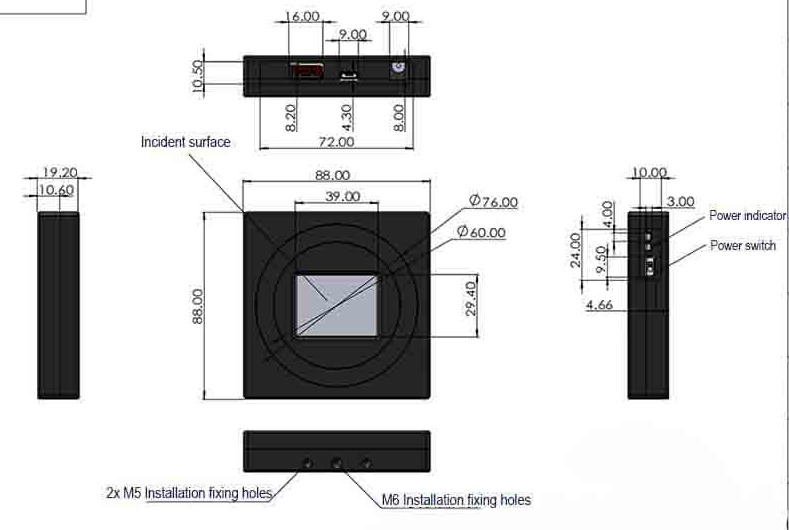

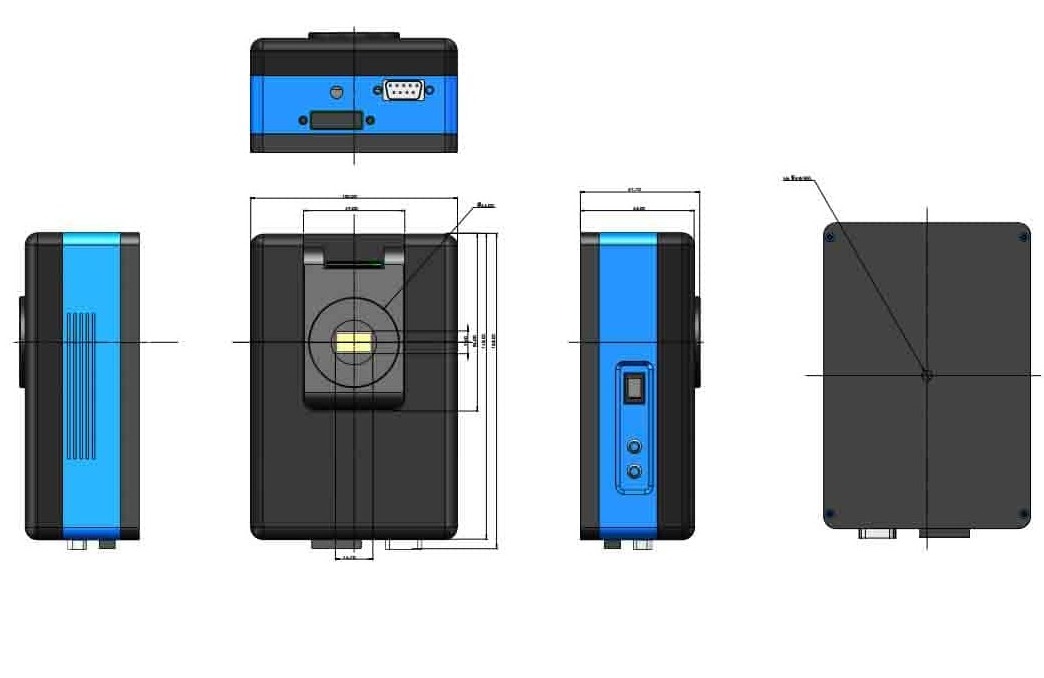

Mechanical Diagram (mm)

1. Scatter imaging

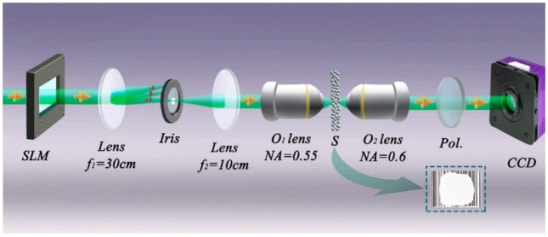

Based on the OE-CM02-TSLM023-A, multifocal focusing after passing through the scattering medium is realised.

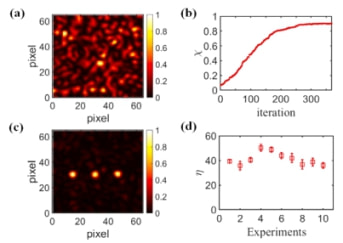

	(a) Measured results of transmitted light intensity in the target area before WFS (wavefront shaping); (b) WFS feedback curves; (c) after WFS,Three focal points are built in preset positions; (d) Peak-to-background ratios (n) of the three focal points constructed in 10 different experiments.

2. Microscopy

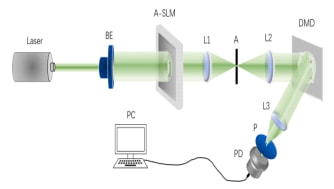

Based on the OE-CM02-TSLM023-A, DCT single-pixel detection for wavefront measurement is realised.

Three-step phase-shifting DCT-SPI and three-step SPI FSPI were used to measure the amplitude and phase of dragonfly wings at different sampling ratios.

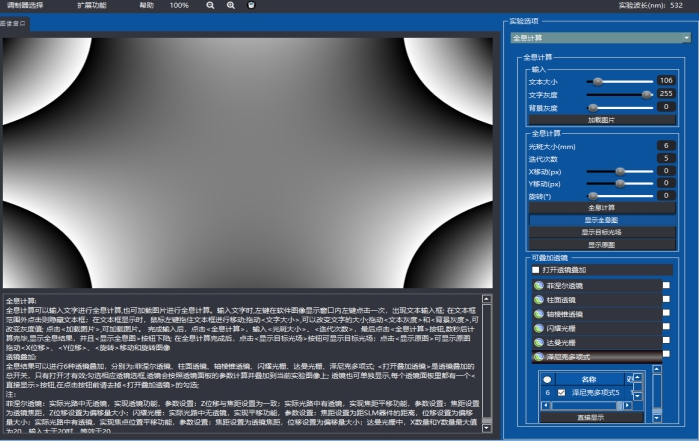

Software interface

Key features of the software include:

1. Integrate various specific light field control functions: including diffraction light field, non-diffraction light field, structured light field, etc.

2. Integrate more than 20 experimental projects, 35 Zenick polynomials, and support superposition between phase maps;

3. Real-time online adjustment and control of various light field parameters;

4. Quickly correct wavefront aberration according to actual needs;

5. It can be expanded independently, and it can be dynamically displayed in external input mode;

6. Independently select the playback mode to achieve high-speed refresh playback;

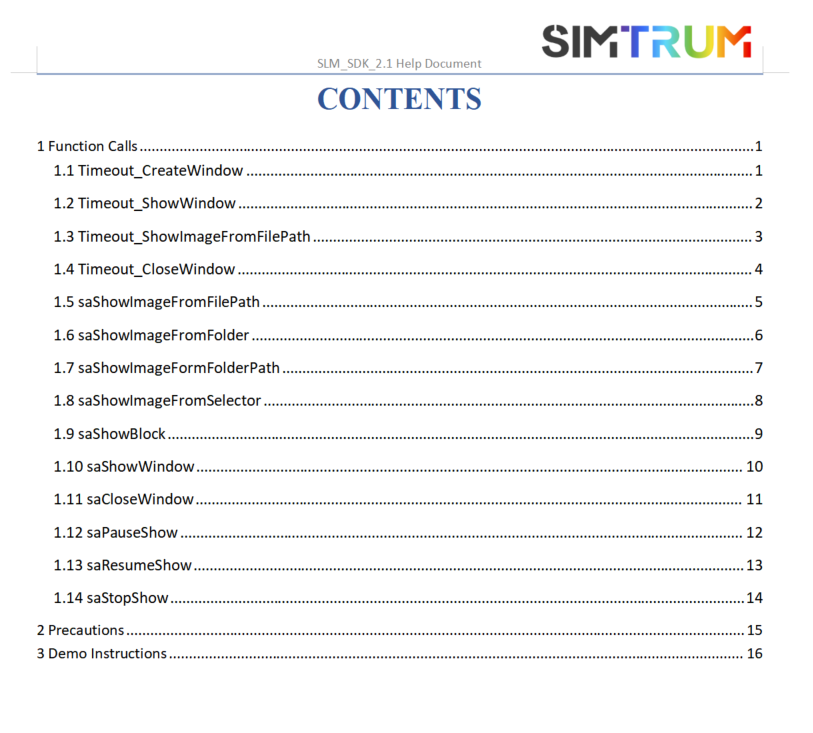

7. Open program interface, open the functional interface of the image processing part in the form of SDK, and support a variety of development languages, including Labview, C/C++, etc.
