Asynchronous Optical Sampling Light Source

Products / Lasers/Light /Optical Frequency Comb /Asynchronous Optical Sampling Light Source /

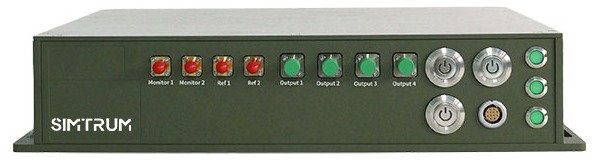

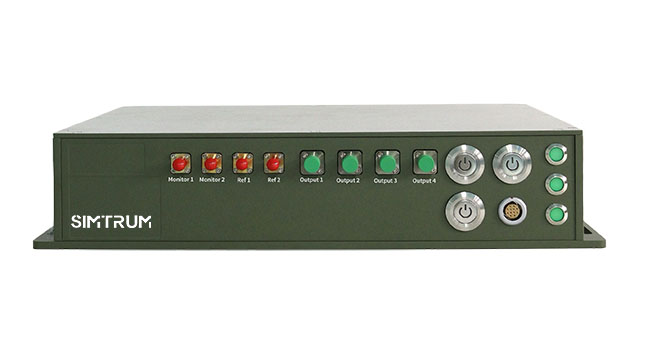

Asynchronous Optical Sampling Light Source
Overview Specifications Related Products Order Now!
SIMTRUM provides asynchronous optical sampling light source (dual optical comb) products based on all-fiber resonant cavity design, high stability environment shared cavity design and high-precision electronics system design, effectively isolate the influence of environmental vibration and temperature changes.
The product has the advantages of high stability of repetition rate, strong environmental anti-interference ability, and one-button auto-locking, which is widely used in laser ranging, spectroscopy measurement, THz spectroscopy, high temperature field imaging and measurement and other fields. The product can provide two series of high coherence, high stability and tunable frequency difference femtosecond pulse sequence, and the tunable range can be customized.



Features

  • Ultra-Narrow Pulse Width Output
  • Tunable Repetition Rate Difference
  • Ultra-High Stability
  • High Environmental Immunity



Applications

  • Laser Ranging
  • Spectroscopic Measurement
  • THz Spectroscopy
  • High Temperature Field Imaging and Measurement

Product Specifications

Technical Specifications Minimum Typical Value Maximum
Product Number LL-HM01-OFC-D-Customized LL-HM01-OFC-D-1560-50-200 LL-HM01-OFC-D-Customized
Working Wavelength
(Customizable)		 1560±10 nm
3dB Spectral Width / 20 nm /
Output Power
(Customizable)		 / 50 mW /
Power Stability / 0.5% @24 hours, RMS 1% @24 hours, RMS
Output Laser Type Pulse
Pulse Width 50 fs 100 fs 150 fs
Basic Repetition Rate
（Customizable）		 / 200 MHz /
Repetition Rate Stability
（in the ring）		 ＜3E-13 @1s
Repetition Rate Difference
（Customizable）		 / 5 kHz /
Adjustable Range of Repetition Rate Difference
（Customizable）		 / 5 kHz /
Repetition Rate Jitter
Peak-to-Peak		 / 5 MHz /
Output Polarization Type Linear Polarization
Output Polarization Extinction Ratio 20 dB 23 dB 27 dB
Output Optical Isolation 35 dB 45 dB /
Operating Temperature -20~+40 ℃
Storage Temperature -40~+85 ℃
Operating Voltage 12V+5V VDC
Output Fiber Type Panda PM 1550，FC/APC
Specification Size 340*230*75 mm
Weight ＜8 kg

Type Wavelength Output Power Repetition Rate Frequency Stability
Standardized Repetition Locking Optical Combs 1560±10 nm 100 mW 200 MHz RF reference＜5E-13 @1s
Fully Locked Optical Frequency Combs 1560±10 nm 30-100 mW 50-250 MHz RF reference＜1E-13 @1s
Asynchronous Optical Sampling Light Source 1560±10 nm 50 mW 200 MHz Within the loop＜3E-13 @1s
Femtosecond Pulse Fiber Laser (515nm-2μm) 515/780/1030/1040/
1050/1560/1970 nm		 60mW-10W 30 MHz-1 GHz /
Portable Fceo Detection Module 1560±10 nm Singal-to-noise Ratio:
25-35 dB		 / /
Broadband Compact RF Optical Modules 1310/1550 nm Link Gain: 15 dB / /
High Gain RF Optical Modules 1310/1550 nm Link Gain: 55 dB / /

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.
Items Detail Unit Remark
Application
Working Wavelength   nm Customizable
3dB Spectral Width   nm
Output Power   mW Customizable
Power Stability   %
Pulse Width   fs
Repetition Rate   MHz Customizable
Repetition Rate Difference   kHz Customizable
Adjustable Range of Repetition Rate Difference   kHz Customizable
Frequency Stability   /



We are here for you!





Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-HM01-OFC-D-1560-50-200
Working Wavelength: 1560±10 nm ,3dB Spectral Width: 20nm, Output Power: 50mW ,Basic Repetition Rate: 200MHz ,Repetition Rate Difference: 5kHz, Adjustable Range of Repetition Rate Difference: 5kHz 		4-6 Weeks $107143.00
LL-HM01-OFC-D-Costomized
Customizable parameters include working wavelength, output power,repetition rate, repetition rate difference and adjustable range of repetition rate difference. 		6-8 Weeks Request for quote

LL-HM01-OFC-D-Costomized - Parameter

LL-HM01-OFC-D-1560-50-200 - Parameter

LL-HM01-OFC-D-Costomized - Download

LL-HM01-OFC-D-1560-50-200 - Download
