Products / Optics /Filters /Filters for TIRF Microscope /

Filters for TIRF Microscope

Overview Specifications Accessories Order Now!

For multicolor TIRF, there are two different filter set configurations depending on the microscope structure. If the microscope is equipped with a filter runner, a conventional multi-band emitter (cut-off depth of OD6 - 7) can be loaded into the microscope cube, and the corresponding number of single-band bandpass emitters (cut-off depth of OD6 - 7) can be loaded into the filter runner, and the last band can be used with long-pass emitters. Different bandpass emitters can be switched by a runner to collect fluorescence signals in different wavelengths. Matching single-band bandpass emitters with multi-band emitters provides a cut-off depth of OD12+ at the corresponding laser wavelength.		Objective-based TIRF optical path diagram
For microscopes without filter turrets, Chroma uses a unique process to package two identical multiband emitters (cut-off depth of OD6 - 7) into a metal outer ring (thicker than conventional filters) to achieve a cut-off depth of OD8 - 10+.		488 nm laser single-band TIRF filter set

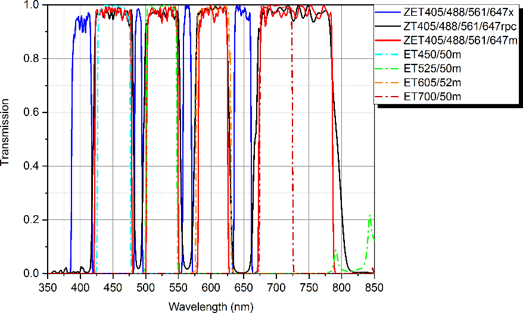

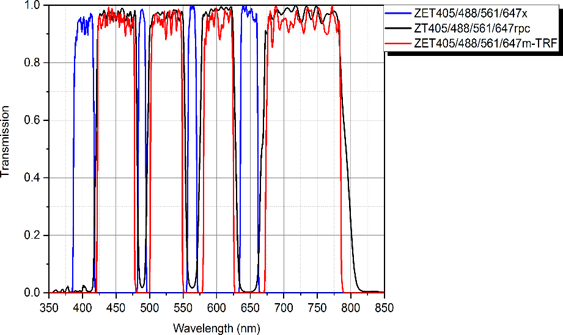

Four-band TIRF filter set (no filter wheel required)		Four-band TIRF filter set (filter runner required)

ET Series - TIRF Single Band Bandpass Filter Sets

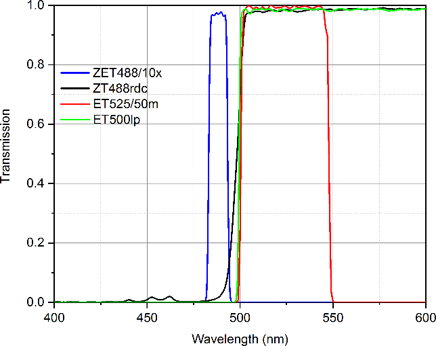

Spectral Transmission Curves

Filter Set	Excitation tablets CWL/FWHM	Dichroic mirrors RWL	Bandpass transmitters CWL/FWHM	Long-pass transmitter50% cut-on	Laser wavelength(nm)
TRF49901	405/20	405	460/50	425	400 - 410
TRF49902	436/20	442	480/40	460	430 - 445
TRF49903	436/20	442	500/40	460	430 - 445
TRF49904	488/10	488	525/50	500	485 - 491
TRF49905	514/10	514	545/40	525	511 - 517
TRF49907	532/10	532	575/50	542	529 - 535
TRF49908	532/10	532	590/50	542	529 - 535
TRF49909	561/10	561	600/50	575	557 - 563
TRF49910	561/10	561	630/75	575	557 - 563
TRF49911	594/10	594	645/75	610	591 - 597
TRF49914	642/20	647	705/72	665	633 - 650

ET Series - TIRF Single Band Longpass Filter Sets

Spectral Transmission Curves

Filter Set	Excitation tablets CWL/FWHM	Dichroic mirrors RWL	Long launcher - 1 50% cut-on	Long-pass launcher-2 50% cut-on	Laser wavelength(nm)
TRF49913	635/20	640	655	655	627 - 643

ET Series - TIRF Multi-Band Bandpass Filter Sets

Spectral Transmission Curves

Filter Set	Laser Wavelength
Filter Set	405 nm	442 nm	488 nm	514 nm	532 nm	561 nm	594 nm	640 nm	647 nm	Need runner
TRF59901	•		•							×
TRF59902		•		•						×
TRF59903		•			•					×
TRF59904			•			•				×
TRF59905			•				•			×
TRF59906			•					•		×
TRF59907					•			•		×
TRF69901	•		•			•				×
TRF69902	•		•				•			×
TRF69904		•		•		•				×
TRF69905		•		•			•			×
TRF89901v2	•		•			•		•		×
TRF89902	•		•			•			•	×
TRF59901-EM	•		•							√
TRF59902-EM		•		•						√
TRF59903-EM		•			•					√
TRF59904-EM			•			•				√
TRF59905-EM			•				•			√
TRF59906-EM			•					•		√
TRF59907-EM					•			•		√
TRF59908-EM 1	•									√
TRF69901-EM	•		•			•				√
TRF69902-EM	•		•				•			√
TRF69904-EM		•		•		•				√
TRF69905-EM		•		•			•			√
TRF89901-EMv2	•		•			•		•		√
TRF89902-EM	•		•			•			•	√

*405 nm laser is used for photoactivation

*Note Prices do not include any shipping, tax or customs clearance charges

Compared to conventional laser microscopes, TIRF has higher requirements for the flatness and thickness of dichroic mirrors. The flatness needs to be controlled at 0.5 waves/inch and below, and the thickness of the dichroic mirror must also be 2mm or more to avoid the influence of external stress on the flatness during installation.

Conventional microscope cubes cannot be fitted with dichroic mirrors with a thickness of 2 mm or more. In addition, because the material is mainly plastic, the resistance to deformation is also poor. For TIRF applications, Chroma has launched a patent-protected TIRF-specific cube (patent number: US8488238B2), which has the following features:

Ability to mount dichroic mirrors up to 3 mm thickness;
The ability to mount emitters with a maximum thickness of 6 mm allows the OD value to be increased in and near the laser line by superimposing two emitters;
The metal material has strong resistance to deformation and does not cause stress on the installed dichroic mirror.

Cube number	Excitation tablets	Dichroic mirrors	Transmitters	Microscope model
91032	25 mm diameter	26 x 38 mm	25 mm diameter	Nikon TE2000/Ti
	3.5 mm thickness（standard）	2mm thickness ( standard )	6 mm thickness（maximum）
	6 mm thickness（maximum）	3mm thickness ( maximum )
91041	25 mm diameter	26 x 38 mm	25 mm diameter	Olympus IX71/IX81
	3.5 mm thickness（standard）	2mm thickness ( standard )	6 mm thickness（maximum）
	6 mm thickness（maximum）	3mm thickness ( maximum )
91044	25 mm diameter	26 x 38 mm	25 mm diameter	Olympus IX73/IX83
	3.5 mm thickness（standard）	2mm thickness ( standard )	6 mm thickness（maximum）
	6 mm thickness（maximum）	3mm thickness ( maximum )
91042	25 mm diameter	25.5 x 36 mm	25 mm diameter	Zeiss Axio
	3.5 mm thickness（standard）	2mm thickness ( standard )	6 mm thickness（maximum）
	6 mm thickness（maximum）	3mm thickness ( maximum )

1,The Chroma TIRF cube is not sold separately and requires Chroma to install the TIRF dichroic mirror and correct its flatness;

2,TIRF dichroic mirrors are fixed with glue.
