Narrow Filters for Laser

Laser microscope PCR Filters Related Products Order Now!

Laser Bandpass Filter Set is a collection of optical filters designed to select or transmit a specific range of wavelengths from a laser source while blocking or attenuating unwanted wavelengths. This set is crucial in applications where the precision and purity of the laser light are essential. The set typically includes:Bandpass Filters,Dichroic Mirrors (or Beamsplitters),Longpass and Shortpass Filters (Edge Filters).

The primary purpose of a Laser Bandpass Filter Set is to ensure that only the desired wavelength(s) reach the target or detector, enhancing the system's performance by increasing signal-to-noise ratio, improving contrast, or isolating specific spectral lines for analysis or imaging. These filter sets are essential in various applications, including fluorescence microscopy, Raman spectroscopy, laser-based imaging, and optical communications, where the precise control of laser light properties is crucial for accuracy and efficiency.

Widefield light source and laser light source have different requirements for filters, which are mainly manifested in the following aspects:

1,Lasers have very good monochromaticity and require excitation sheets with narrow bandwidths;

2,Usually the experiment has certain requirements for the quality of the reflected laser beam, and the dichroic mirror used needs to be better flattened to reflect the wavefront of the laser Distortion is minimized;

3,The laser energy density is high, and the emitter requires a higher cut-off depth (OD value ) to reduce the excitation noise of the laser.

488nm Laser single-band filter set

Type of light source	Excitation Chip Bandwidth	Dichroic Mirror Flatness	Transmitters
LED / Mercury Lamp / Halogen Lamp / White Light	>/= 20 nm	</=10 waves/inch	OD5abs @ Ex and Em intersections
Laser	</= 20 nm	</=2 waves/inch	OD6abs @ laserline

1,Laser applications such as TIRF, STORM, PALM, and STED have different requirements for dichroic mirror flatness and emitter cut-off depth, please refer to the corresponding sections;

2,Laser applications such as multiphoton, SHG, CARS, and SRS have different requirements for the shield cut-off depth, as described in the respective sections.

ET Series - Laser Single Band Bandpass Filter Sets

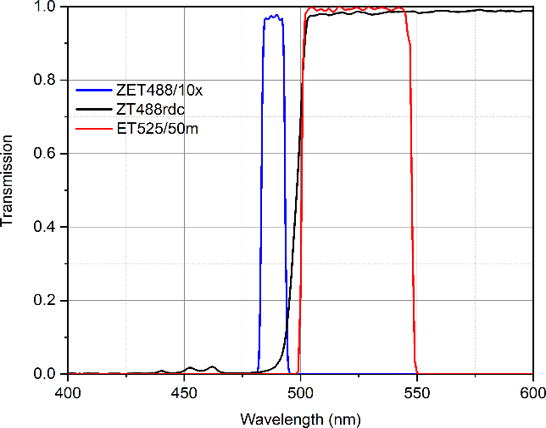

Spectral Transmission Curves

Filter Set	Excitation Tablets (CWL/FWHM)nm	Dichroic Mirrors (RWL)nm	Transmitters (CWL/FWHM)nm	Laser wavelength(nm)
49901	405/20	405	460/50	400 - 410
49902	436/20	442	480/40	430 - 445
49903	436/20	442	500/40	430 - 445
49904	488/10	488	525/50	485 - 491
49905	514/10	514	545/40	511 - 517
49906	514/10	514	575/50	511 - 517
49907	532/10	532	575/50	529 - 535
49908	532/10	532	590/50	529 - 535
49909	561/10	561	600/50	557 - 563
49910	561/10	561	630/75	557 - 563
49911	594/10	594	645/75	591 - 596
49914	642/20	647	705/72	633 - 650

ET Series - Laser single-band long-pass filter sets

Spectral Transmission Curves

Filter Set	Excitation Tablets (CWL/FWHM)nm	Dichroic Mirrors (RWL)nm	Transmitters (CWL/FWHM)nm	Laser wavelength(nm)
49912	594/10	594	610	355 - 375
49913	635/20	640	655	591 - 596
49915	365/20	365	425	633 - 640

ET Series - Laser Multi-Band Filter Sets

Spectral Transmission Curves

Filter Set	Laser Wavelength
Filter Set	395 nm	405 nm	442 nm	488 nm	514 nm	532 nm	561 nm	594 nm	640 nm	647 nm
59901		•		•
59902			•		•
59903			•			•
59904				•			•
59905				•				•
59906				•					•
59907						•			•
69901		•		•			•
69902		•		•				•
69904			•		•		•
69905			•		•			•
89901v2		•		•			•		•
89902		•		•			•			•
89904	•		•		•		•		•

The 405 nm laser is used for photoactivation

*Note Prices do not include any shipping, tax or customs clearance charges

Chroma PCR Filters use an advanced magnetron sputtering coating process with high transmittance, high cut-off depth, and high steepness. Based on commonly used fluorescent probes, the center wavelength and bandwidth of the filter are optimized to avoid bleed-through between adjacent channels and provide the best signal-to-noise ratio for PCR experiments.

Through fine layer design and optimization, precise coating process control, Chroma also offers multi-band PCR filter sets that can reduce the number of filters in the instrument and meet the need for instrument miniaturization.

Single-band PCR filter set

Four-band PCR filter set

Five-color PCR filter set

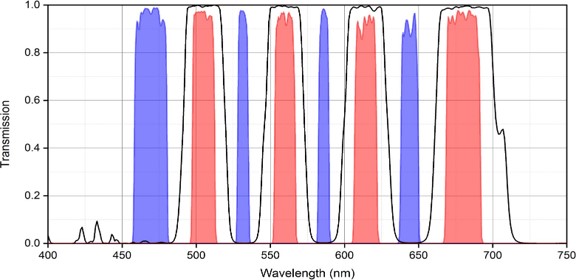

Spectral Transmission Curves

PCR Filter set	Applicable PCR dyes
FAM Set	FAM, SYBR Green, EvaGreen
HEX Set	HEX, VIC, JOE
ROX Set	ROX, Texas Red
Cy5 Set	Cy5, Qusar 670
Cy5.5 Set	Cy5.5, Qusar 705

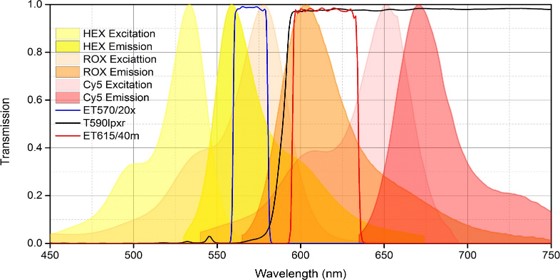

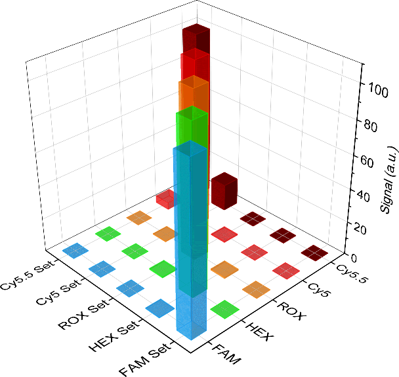

Calculation results of bleed-through of five-color PCR filter groups

Seven-color PCR filter set

PCR Filter set	Applicable PCR dyes
Atto 425 Set	Atto 425
FAM Set	FAM, SYBR Green, EvaGreen
HEX Narrow Set	HEX, VIC, JOE
Atto 550 Set	TAMARA, Cy3, Atto 550
ROX Narrow Set	ROX, Texas Red
Cy5 Set	Cy5, Qusar 670
Cy5.5 Set	Cy5.5, Qusar 705

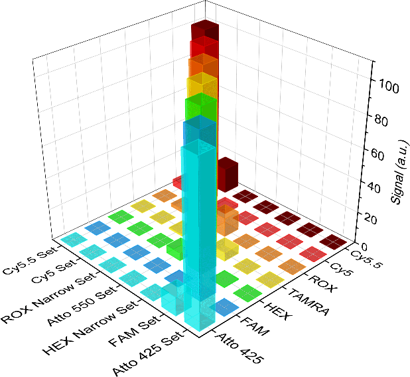

The cross-color analysis is shown in the figure on the right

Seven-color PCR filter group bleed-through calculation results

Ultra-flat Dichroic Mirrors

Chroma dichroic mirrors are characterized by magnetron sputtering coating technology, which is characterized by high layer density, excellent spectral characteristics and environmental tolerance. However, magnetron sputtering coating will produce greater stress on the substrate, resulting in a certain degree of bending of the substrate. In laser applications, if the dichroic mirror has a certain radius of curvature, the reflected laser light will become divergent or concentrated light, resulting in poor beam quality, which will affect the experimental results or the performance of the instrument. In addition, the flatness of the dichroic mirror is the key factor that determines the image quality of the reflection optical path in the optical path of reflection imaging.

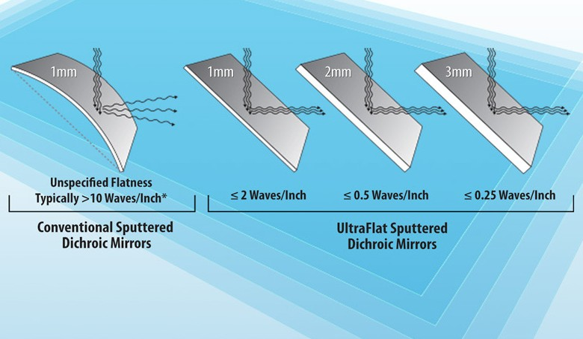

Chroma's patented process of controlling the flatness of dichroic mirrors eliminates the effects of layer stresses and offers dichroic mirrors with different flatness depending on the needs of the application (UltraFlat series).

UltraFlat Series	Substrate thickness(mm)	Surface flatness(nm)	Typical Applications
UF1	1	</= 2 waves / inch P-V @ 632.8	Confocal, Two-photon,CARS/SRS, Flow cytometry, etc
UF2	2	</= 0.5 waves / inch P-V @ 632.8	TIRF, PALM, STORM
UF3	3	</= 0.25 waves / inch P-V @ 632.8	STED, Structured lighting
UF3	>/= 5	</= 0.1 waves / inch P-V @ 632.8	Customized applications

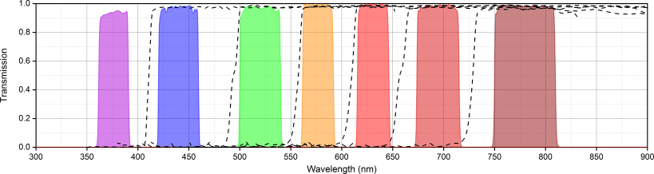

Fluorescence bandpass filters and spectrodichroic mirrors In flow cytometry, different dye combinations correspond to different filter selections based on signal-to-noise ratio and bleed-through considerations, please contact Chroma to discuss specific protocol details. Below are typical spectra of fluorescence bandpass filters and spectrochromic mirrors.
