Biology Plan Objective
Plan Apo Plan Fluor Plan Fluor PH Related Products Order Now!

Plan Apochromatic Objective

Plan Apo(Plan Apochromatic Objective) is biological objective lens with infinite conjugate parfocal distance of 60mm,with apochromatic correction with wide wavelength range.



Feature

  • Biological objective lens with infinite conjugate parfocal distance of 60mm
  • Apochromatic correction with wide wavelength range
  • Provides excellent image flatness across the entire field of view
  • High numerical aperture, which can obtain the deep structure of the sample



Product Specifications and Brochures

Product Brochure Link:

Name Plan Apo
2X 4X 10X 20X
Optical System Characteristics Infinite Correction
Observation Method Bright Filed / Fluorescence
Level of Chromatic Aberration Correction Apochromatism
Magnification [X] 2 4 10 20
Focal Length [mm] 100 50 20 10
Field Number of The Objective [mm] 25
Numerical Aperture(NA) 0.1 0.2 0.45 0.75
Working Distance(WD)[mm] 8.5 20 4 0.6
Cover Glass Thickness [mm] / / 0.17 0.17
Immersion Liguid Air
Spring Protection / / / √
Parfocalizing Distance [mm] 60.06
Thread M25X0.75
Weight [g] 207 166 187 265

Note:The resolution and depth of focus of the objective are calculated from the reference wavelength(λ=550nm)

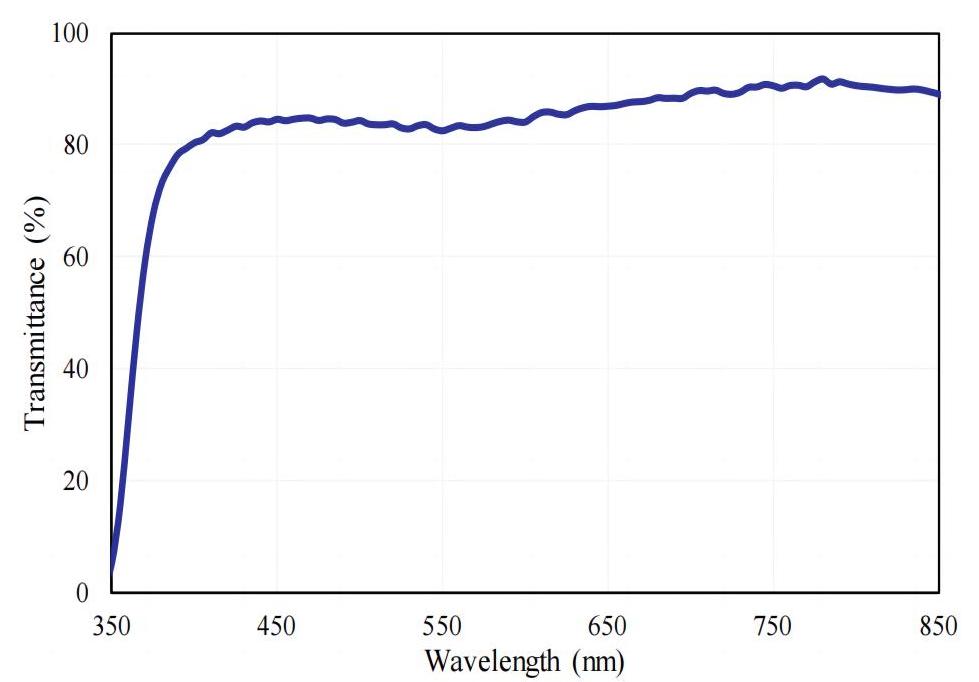

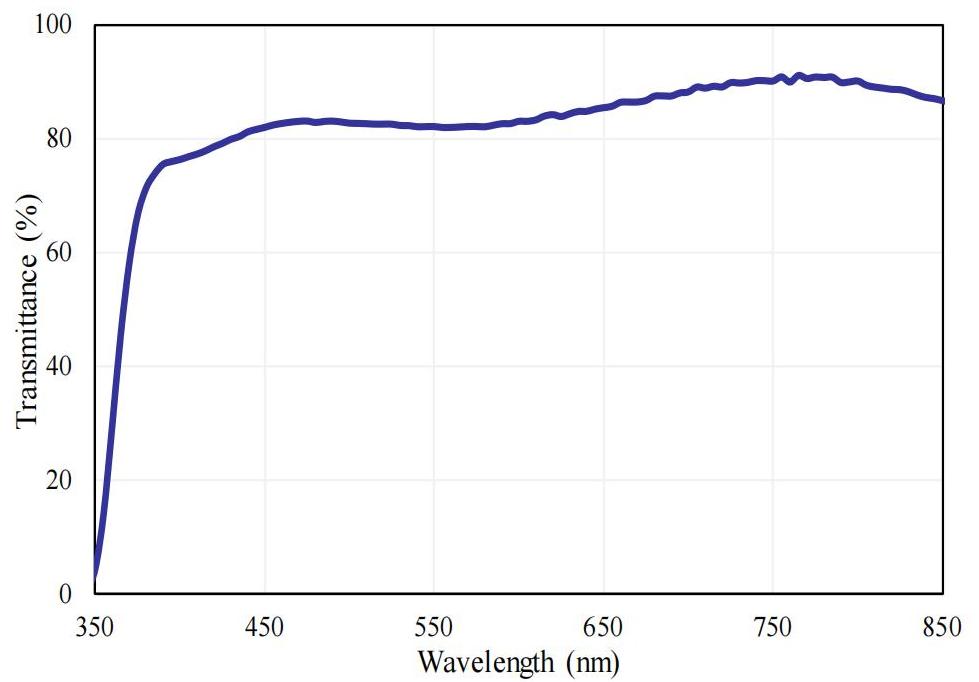

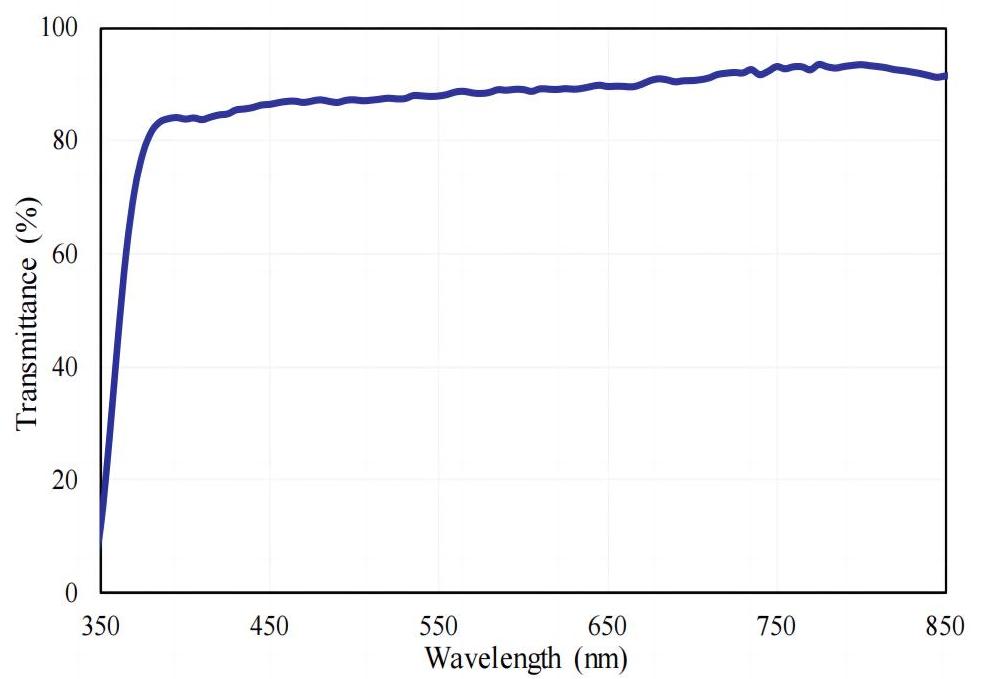

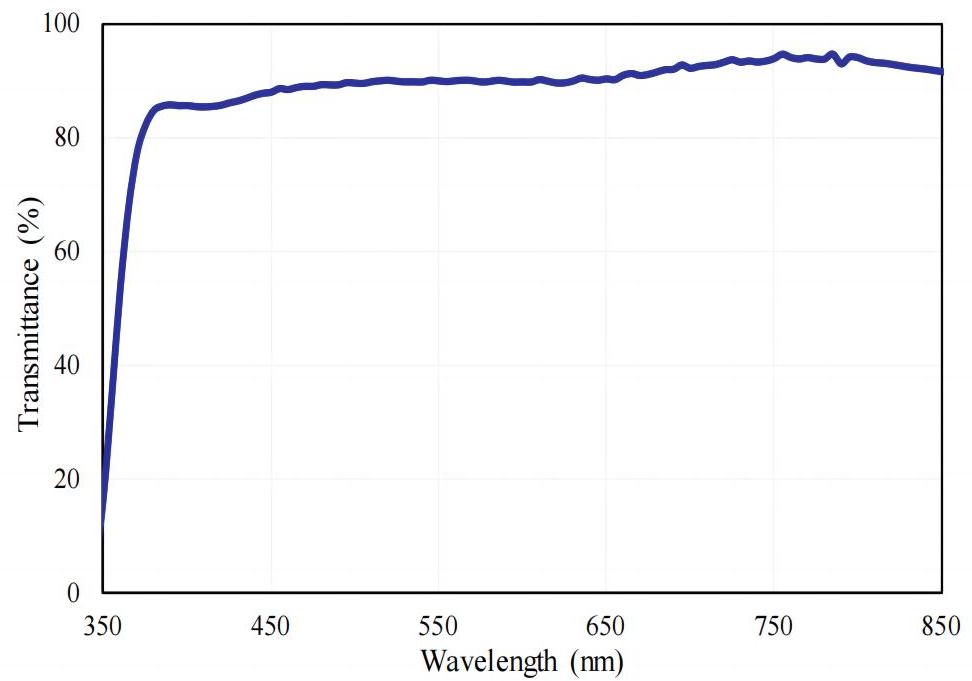

Transmittance/Wavelength



                                                                             Plan Apo 2X                                                                                                   Plan Apo 4X







                                                                             Plan Apo 10X                                                                                                  Plan Apo 20X

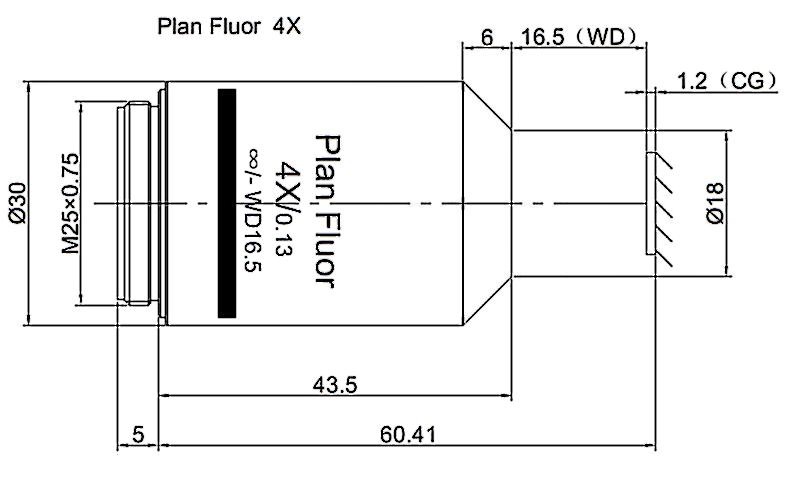

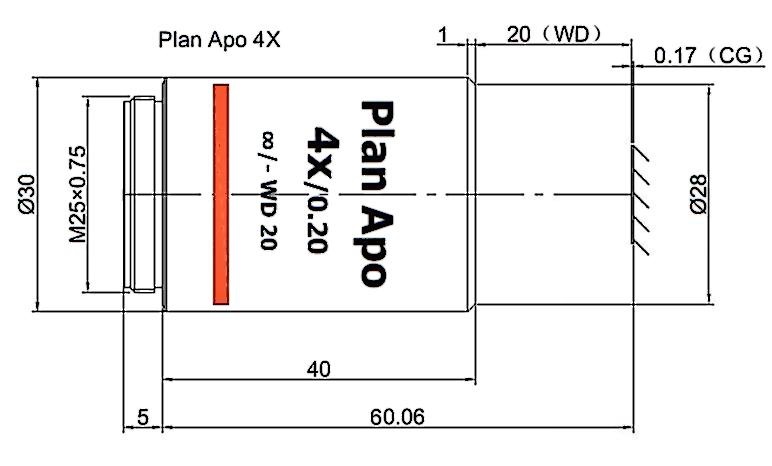

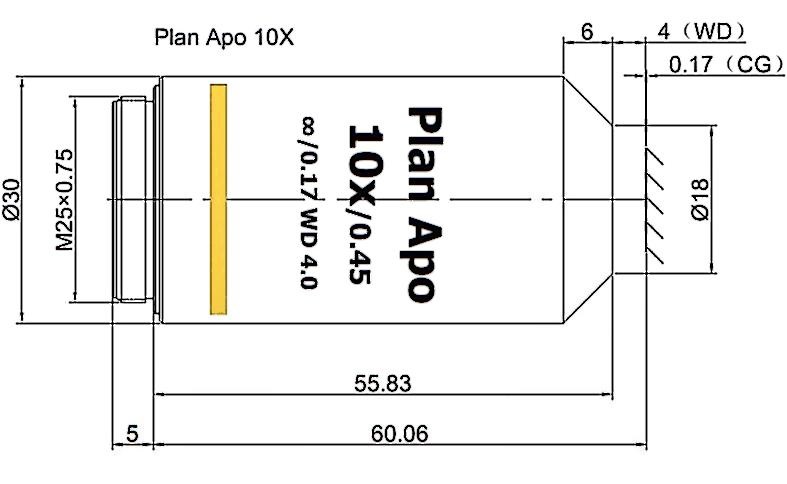

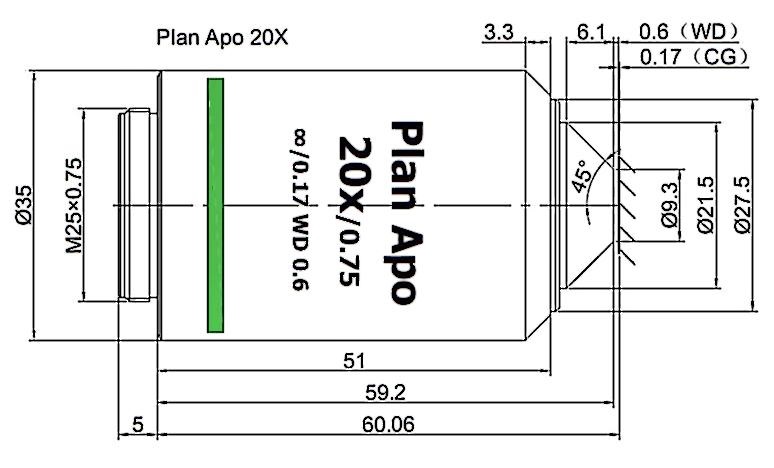

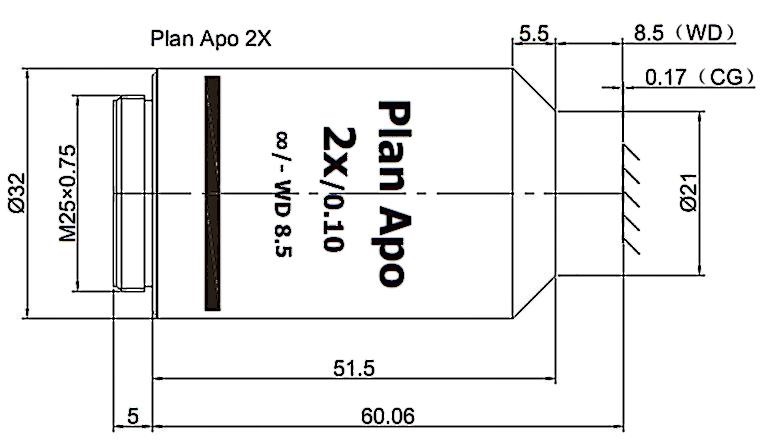

Drawings














Plan Fluorite Objective

Plan Fluor (Plan Fluorite Objective) is biological objective with infinite conjugate parfocal distance of 60mm.It has ultra-long working distance, and can be used for samples and containers of different thickness through the correction ring.



Feature

• Biological objective lens with infinite conjugate parfocal distance of 60mm
• Plan semi-apochromatic design

• Ultra-long working distance, and can be used for samples and containers of different thickness through the
  correction ring



Product Specifications and Brochures

Product Brochure Link:

Name Plan Fluor
4X 10X 20X 40X 60X
Optical System Characteristics Infinite Correction
Observation Method Bright Filed / Fluorescence
Level of Chromatic Aberration Correction Semi-apochromatism
Magnification [X] 4 10 20 40 60
Focal Length [mm] 50 20 10 5 3.3
Field Number of The Objective [mm] /
Numerical Aperture(NA) 0.13 0.3 0.45 0.6 0.7
Working Distance(WD)[mm] 16.5 14.5 7.7-8.9 2.3-3.3 1.6-2.3
Cover Glass Thickness [mm] / / 0-2 0-2 0-2
Immersion Liguid Air
Spring Protection / / √ √ √
Parfocalizing Distance [mm] 60.41
Thread M25X0.75
Weight [g] 142 158 321 303 259

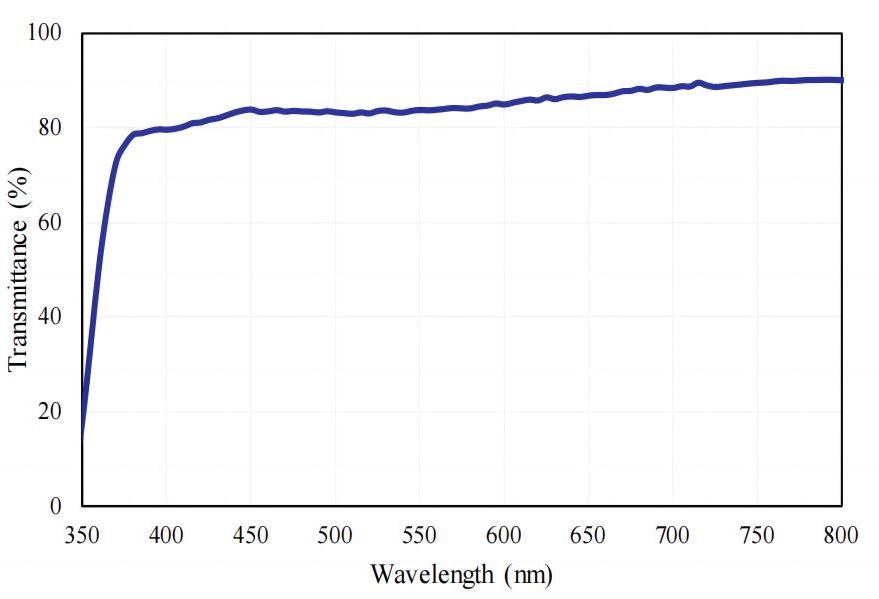

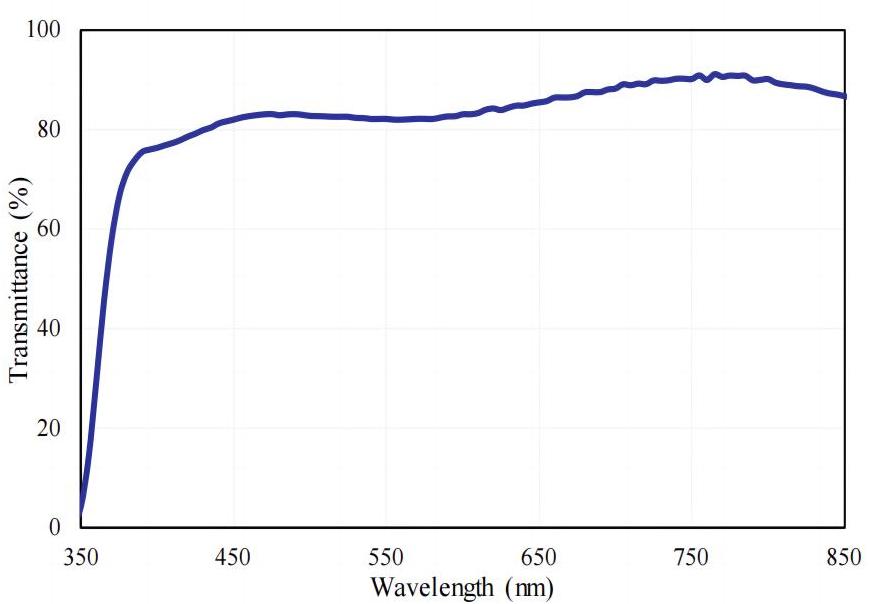

Transmittance/Wavelength

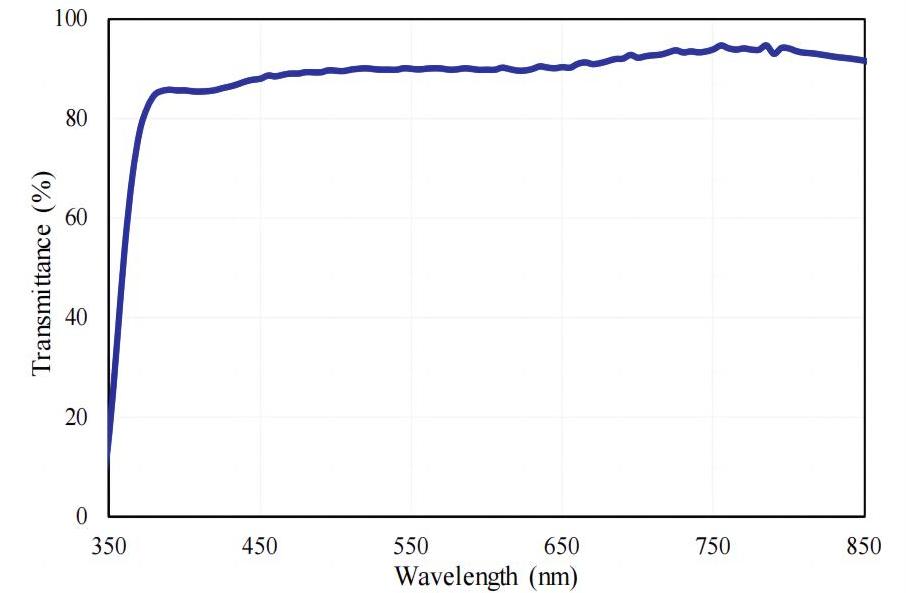

                                                Plan Fluor 4X                                                               Plan Fluor 10X                                                               Plan Fluor 20X

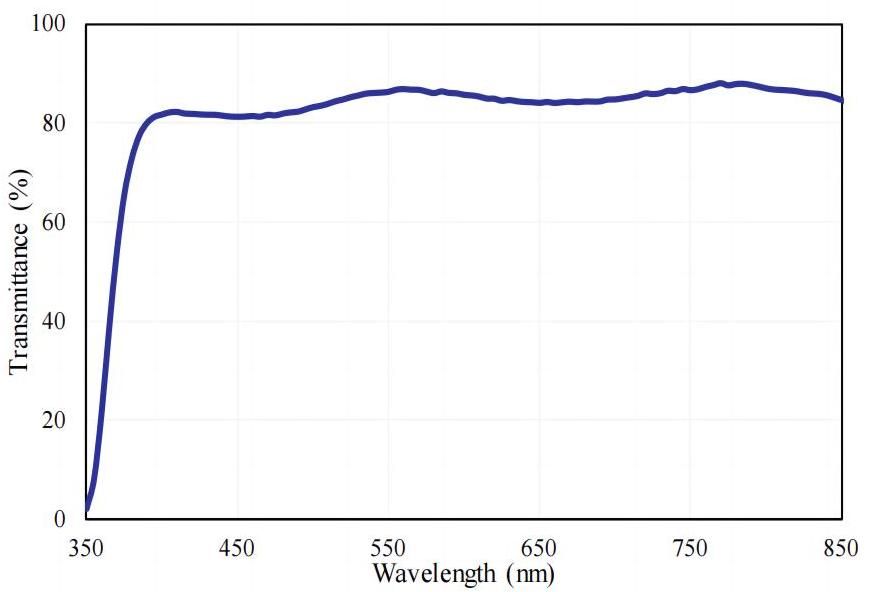

                                                                                              Plan Fluor 40X                                                                       Plan Fluor 60X

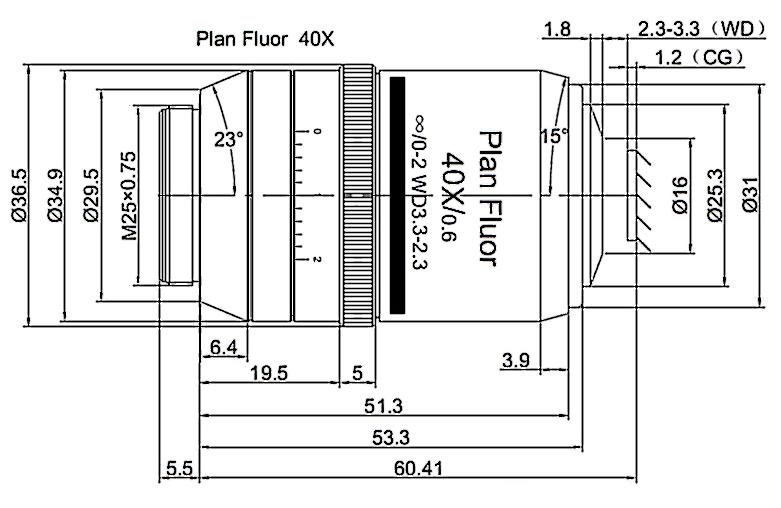

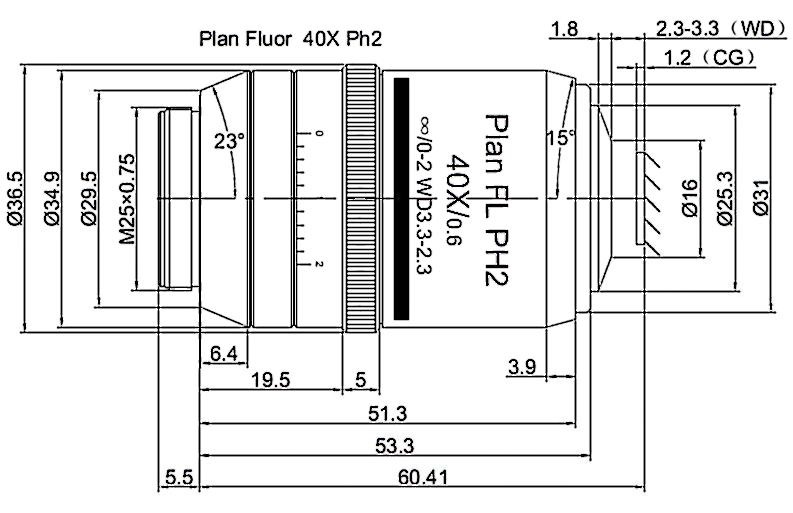

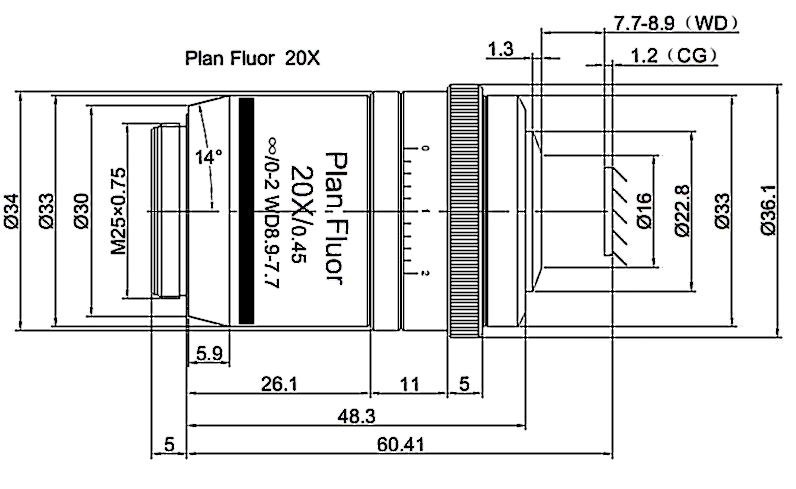

Drawings














Plan Fluorite Objective Phase-contrast

Plan Fluor Ph(Plan Fluorite Objective Phase-contrast) is biological objective with infinite conjugate parfocal distance of 60mm.It has Phase-contrast device, providing high contrast observation for colorless specimen.



Feature

• Biological objective lens with infinite conjugate parfocal distance of 60mm

• Plan semi-apochromatic design

• Ultra-long working distance, and can be used for samples and containers of different thickness through the

  correction ring

• Phase-contrast device, providing high contrast observation for colorless specimen





Product Specifications and Brochures

Product Brochure Link:

Name Plan Fluor PHL Plan Fluor PH1 Plan Fluor PH2
4X 10X 20X 40X 60X
Optical System Characteristics Infinite Correction
Observation Method Bright Field / Dark Field / Fluorescence
Level of Chromatic Aberration Correction Semi-apochromatism
Magnification [X] 4 10 20 40 60
Focal Length [mm] 50 20 10 5 3.3
Field Number of The Objective [mm] /
Numerical Aperture(NA) 0.13 0.3 0.45 0.6 0.7
Working Distance(WD)[mm] 16.5 14.5 7.7-8.9 2.3-3.3 1.6-2.3
Cover Glass Thickness [mm] / / 0-2 0-2 0-2
Immersion Liguid Air
Spring Protection / / √ √ √
Parfocalizing Distance [mm] 60.41
Thread M25X0.75
Weight [g] 142 158 321 303 263

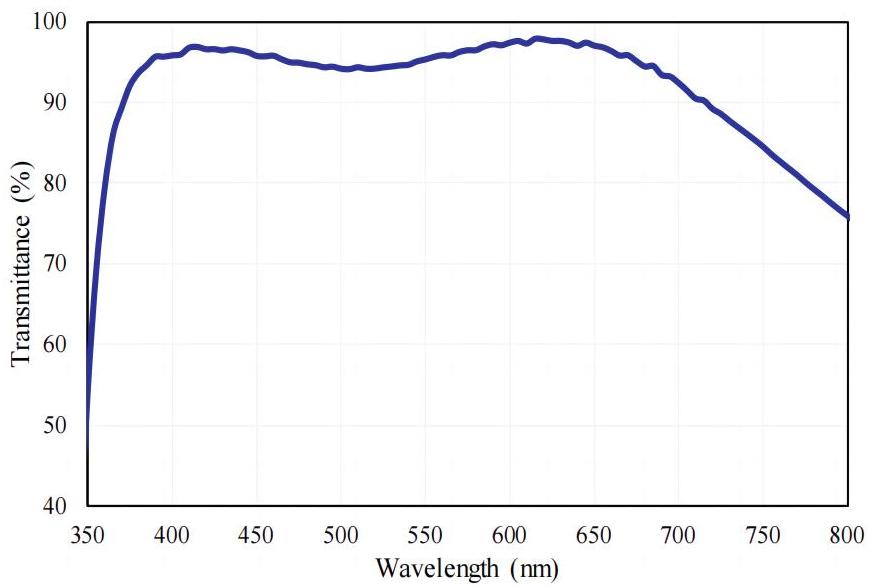

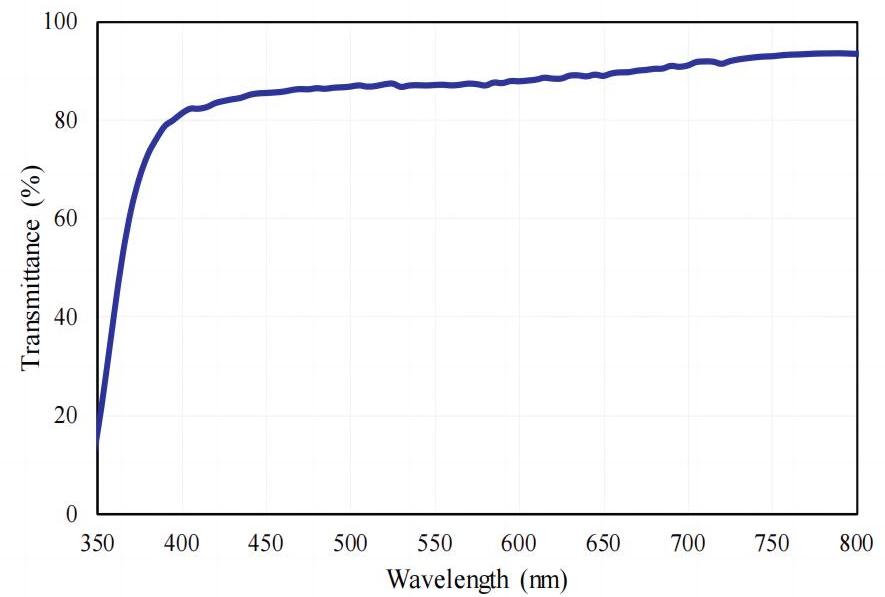

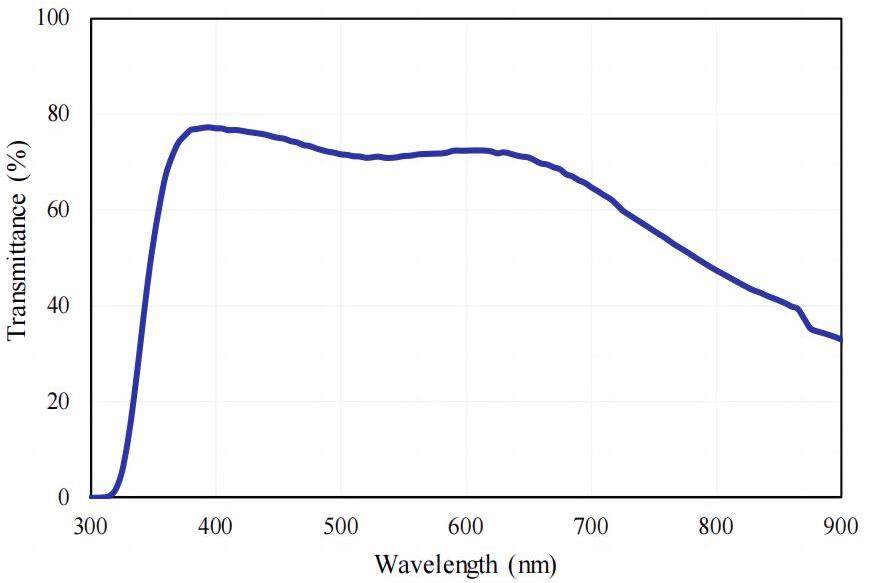

Transmittance/Wavelength

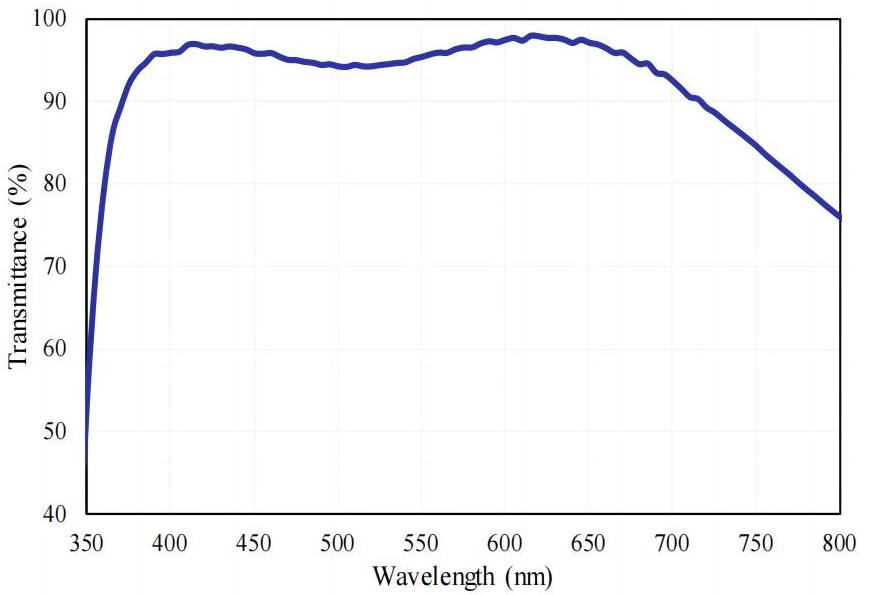

                                       Plan Fluor PHL 4X                                                          Plan Fluor PH1 10X                                                       Plan Fluor PH1 20X

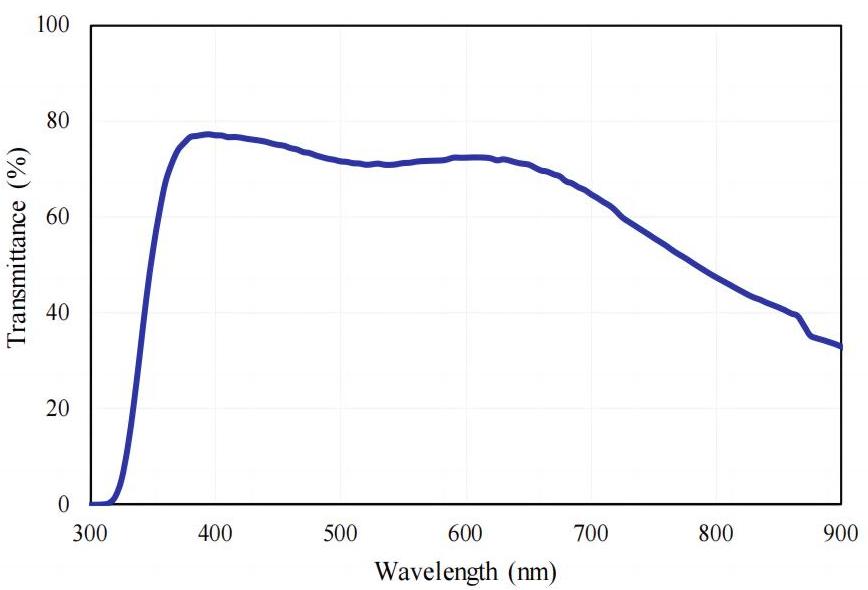

                                                                           Plan Fluor PH2 40X                                                           Plan Fluor PH2 60X

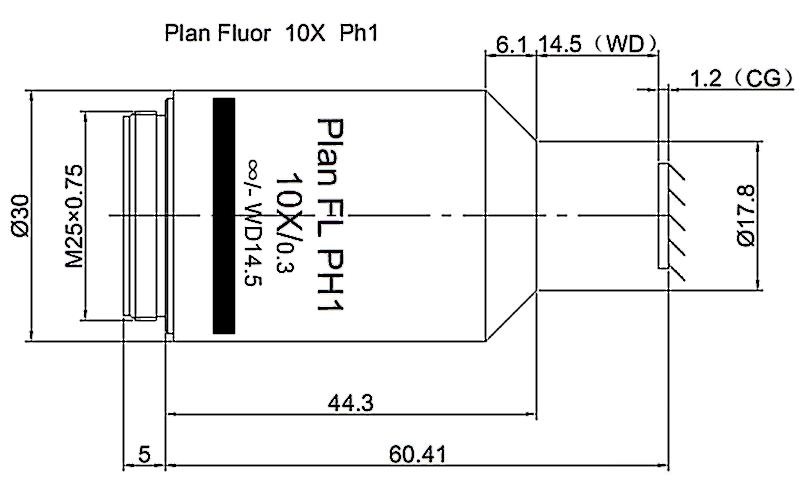

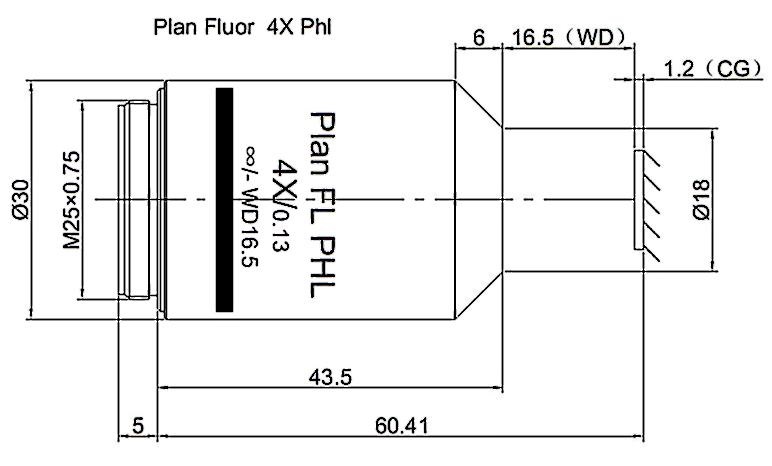

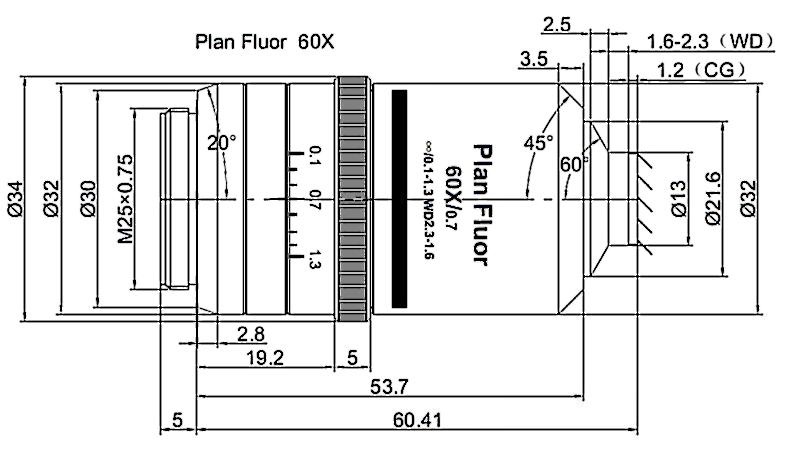

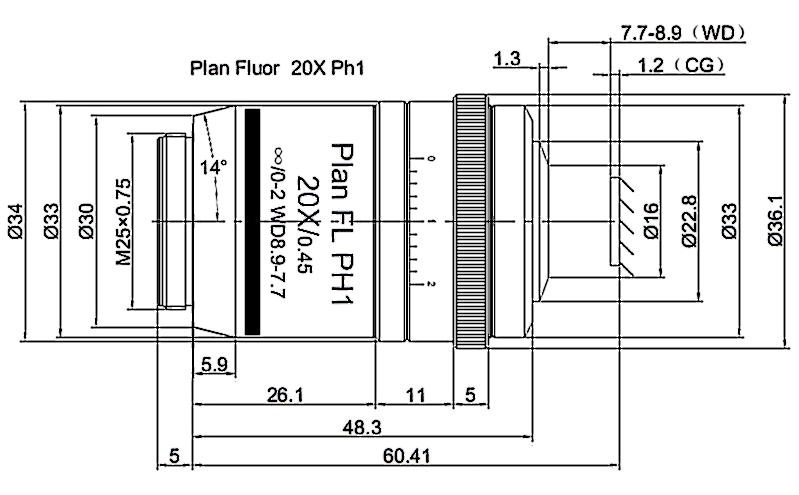

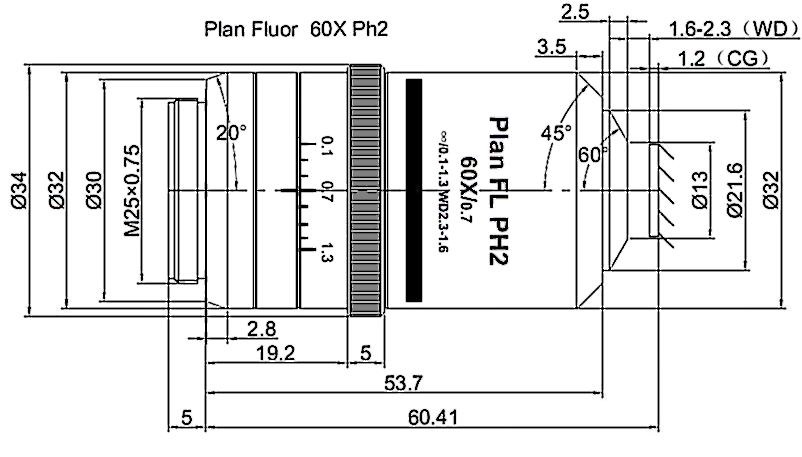

Drawings














Plan Apochromatic Objective

Name Wavelength Magnification NA WD(MM) F(MM) R(um)
Plan Apochromatic Objective VIS VIS 1X to 50X 0.025 to 0.55 13 to 41 4 to 200 0.5 to 11
Plan Apohromatic Objective High Resolution VIS VIS 5X,10X,20X,100X 0.21, 0.42, 0.6, 0.9 9.5, 14, 15, 25 2, 10, 20, 40 0.3, 0.5, 0.7, 13
Plan Apochromatic Objective Super Long Working Distance VIS VIS 20X,50X,100X 0.29, 0.42, 0.55 13, 20, 30 2, 4, 10 0.5, 0.7, 0.9
Plan Apochromatic Objective NIR NIR 20X,50X 0.42, 0.55 13, 20 4, 10 0.5, 0.65
Plan Apochromatic Objective High Resolution NIR NIR 20X,50X 0.6, 0.67, 0.75 0.4, 0.95, 10 4, 10 0.37, 0.41, 0.46
Liquid Crystal Display Plan Apochromatic Objective NIR NIR 20X,50X 0.4, 0.45 15, 20 4, 10 0.6, 0.7
Plan Apochromatic Objective NUV NUV 20X 0.42 17 10 0.65
Plan Apochromatic Objective NUV High Resolution NUV 50X 0.65 10 4 0.42
Liquid Crystal Display Plan Apochromatic Objective NUV NUV 20X,50X 0.4, 0.45 15, 20 4, 10 0.6, 0.7



Industrial Plan Objective

Name Observation Method Magnification NA WD(MM) F(MM) R(um)
Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field Bright Field 5X,10X,20X,100X 0.15, 0.3, 0.45, 0.8, 0.9 1, 3, 11, 20 2, 4, 10 ,20, 40 0.31, 0.34, 0.6, 0.9, 1.8
Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field Bright Field 20X,50X,100X 0.4, 0.5, 0.8 3.1, 10.4, 12 2, 4, 10 0.34, 0.55 ,0.7
Plan Objective Bright Field Bright Field 5X,10X,20X,100X 0.13, 0.3 ,0.4, 0.55, 0.8 2, 6.8, 8.2, 11.1, 11.5 2, 4, 10, 20, 40 0.34, 0.5, 0.7, 0.9, 2.1
Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field Bright and Dark Field 5X,10X,20X,100X 0.15, 0.3 ,0.45, 0.8, 0.9 1, 3, 11, 20 2, 4, 10, 20, 40 0.31, 0.34, 0.6, 0.9, 1.8
Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field Bright and Dark Field 20X,50X,100X 0.4, 0.5, 0.8 3.1, 10.4, 12 2, 4, 10 0.34, 0.55, 0.7
Plan Objective Bright and Dark Field Bright and Dark Field 5X,10X,20X,100X 0.13, 0.3, 0.46, 0.75, 0.9 1.4, 1.8, 3.6, 6, 11 2, 4, 10, 20, 40 0.31, 0.37, 0.6, 0.9, 2.1



Biology Plan Objective

Name Observation Method Magnification NA WD(MM) F(MM) Level of Chromatic Aberration Correction
Plan Apochromatic Objective Bright Filed / Fluorescence 2X,4X,10X,20X 0.1, 0.2, 0.45, 0.75 0.6, 4, 8.5, 20 10, 20, 50, 100 Apochromatism
Plan Fluorite Objective Bright Filed / Fluorescence 4X,10X,20X,40X,60X 0.13, 0.3, 0.45. 0.6, 0.7 1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5 3.3, 5, 10, 20, 50 Semi-apochromatism
Plan Fluorite Objective Phase-contrast Bright Field / Dark Field / Fluorescence 4X,10X,20X,40X,60X 0.13, 0.3, 0.45. 0.6, 0.7 1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5 3.3, 5, 10, 20, 50 Semi-apochromatism
