SIMTRUM's filter wheel portfolio offers both motorized and manual actuation methods in various configurations, with or without housing, accommodating 6 to 10 filters ranging from 12.5mm to 32mm in diameter. Engineered for high positioning accuracy (up to 0.4° for motorized models) and excellent compatibility, these products meet the demands for rapid and precise switching of multiple optical channels in applications such as microscopy, spectroscopy, and laser systems.
| Product |
Actuation Method |
Housing |
Number of Filters |
Filter Diameter |
Filter Thickness |
Positioning Accuracy |

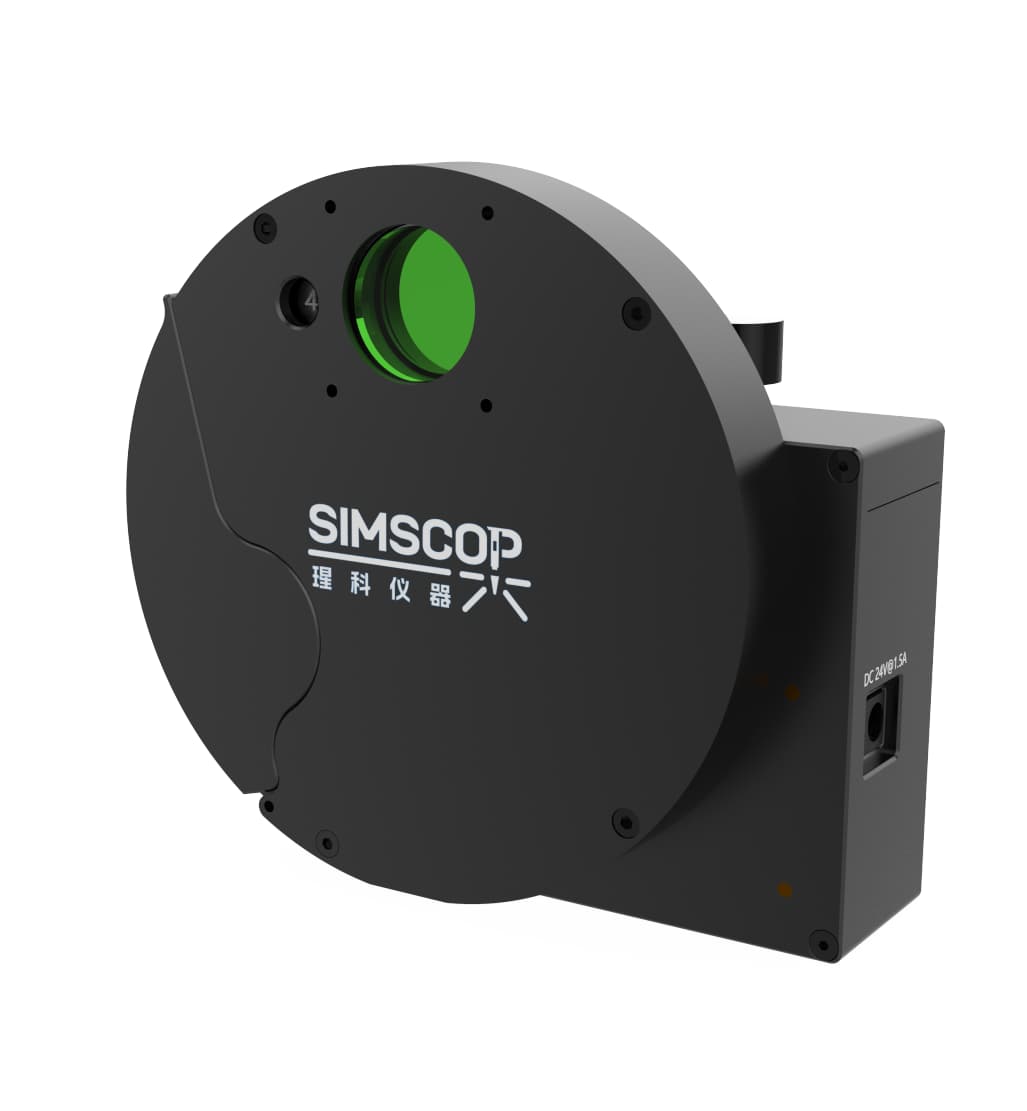

| Motorized Filter Wheels |
Motorized |
With |
6/8/10 |
12.5/25.4 mm |
≤6.35 mm |
1° |

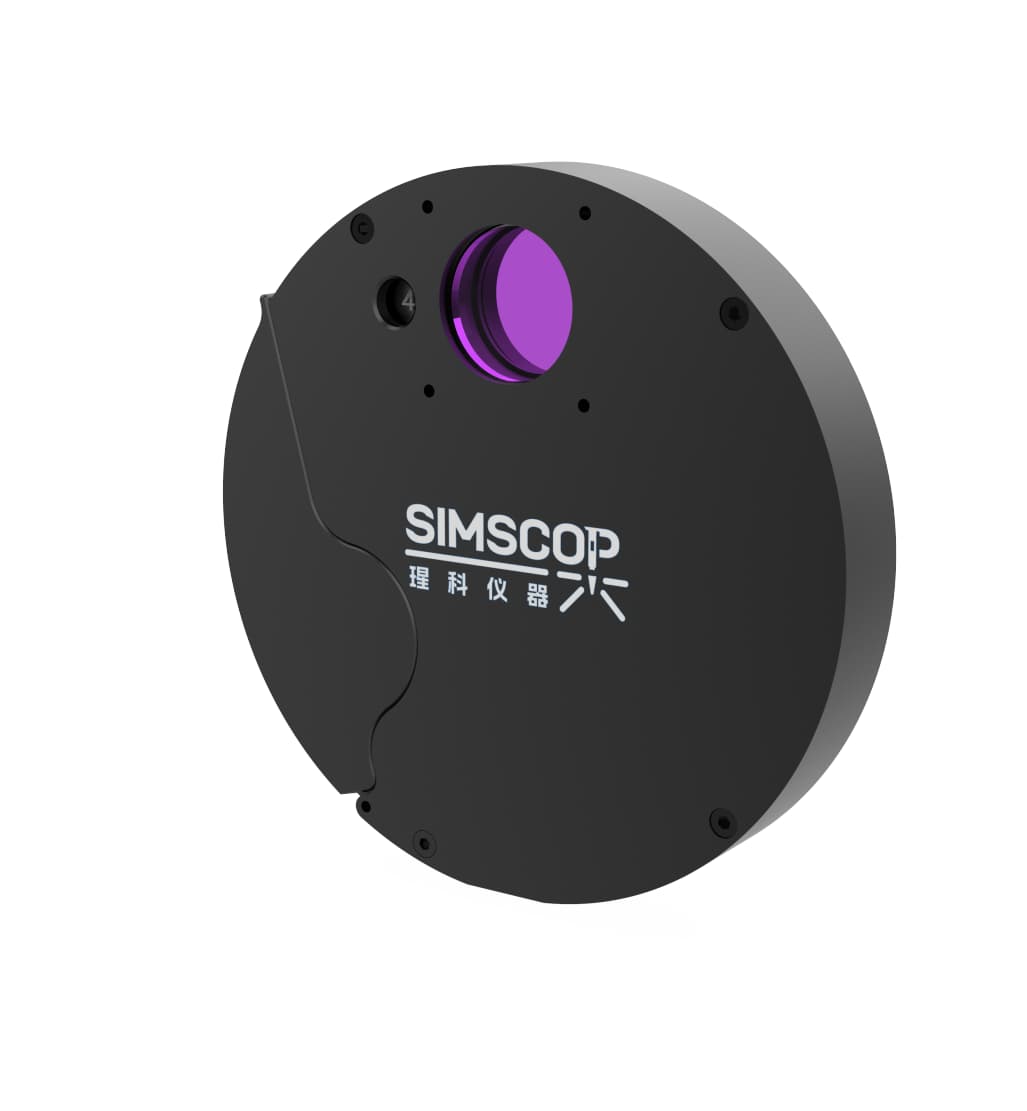

| Motorized Filter Wheels Mount |
Motorized |
Without |
6/8/10 |
12.5/25.4 mm |
≤6.35 mm |
1° |

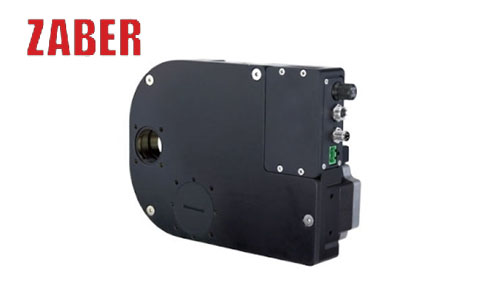

| FWR Motorized Filter Wheels |
Motorized |
With |
7-10 |
25.4-32 mm |
≤6.35 mm |
0.4° |

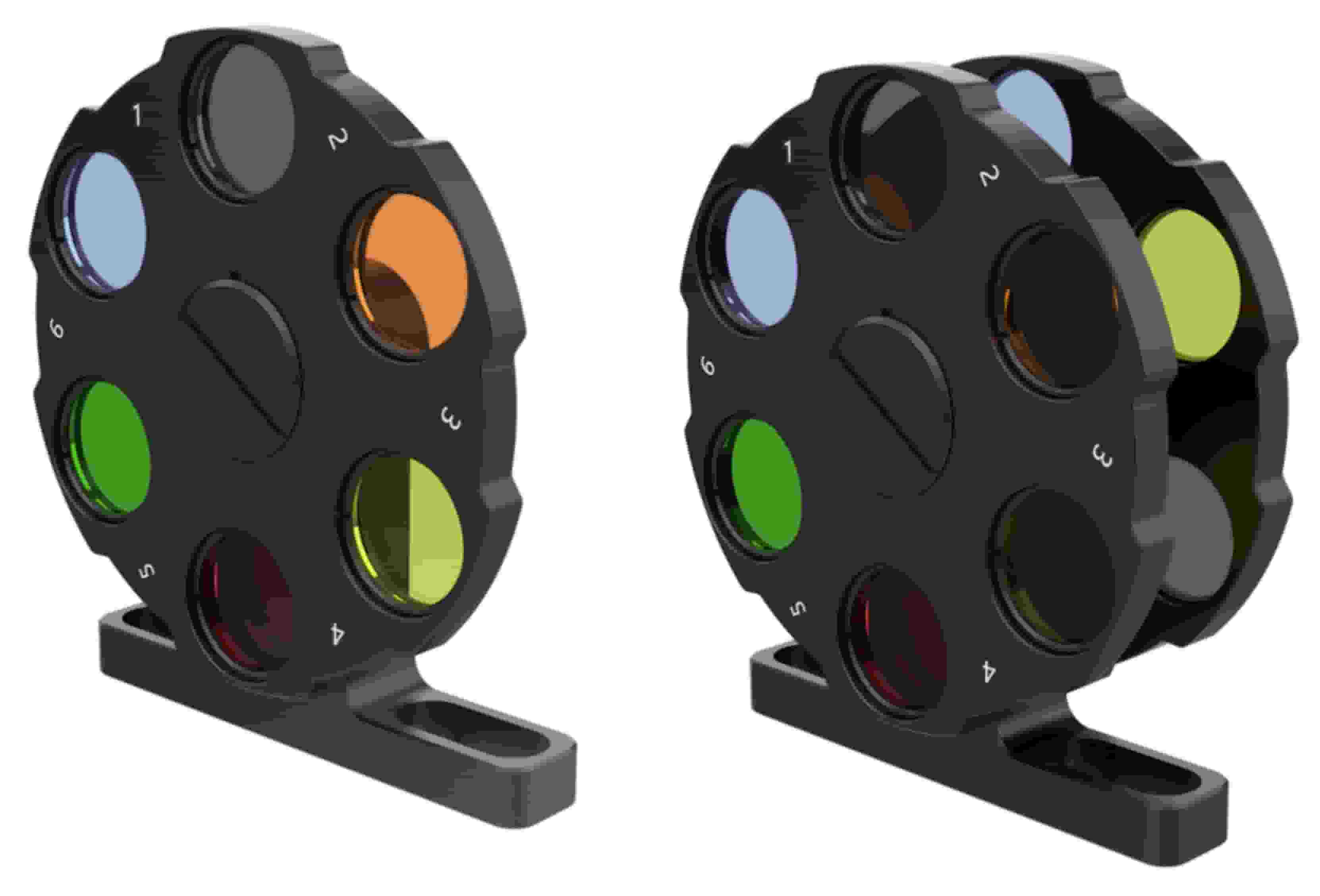

| Manual Filter Wheels |
Manual |
With |
6/8/10 |
12.5/25.4 mm |
≤6.35 mm |
/ |
| Manual Filter Wheels Mount |
Manual |
Without |
6/8/10 |
12.5/25.4 mm |
≤6.35 mm |
/ |
Technical Support Available: Contact us | You can download our full Product Line Card Click Here
